GO Store Self Bunded Tanks
Tax excluded. Shipping calculated at checkout
GST (10%) is calculated at checkout. Tax invoices provided with all orders.
Pickup available at GO Fill - 59-61 Kabi Cct, Deception Bay, QLD, 4508
Usually ready in 4 hours

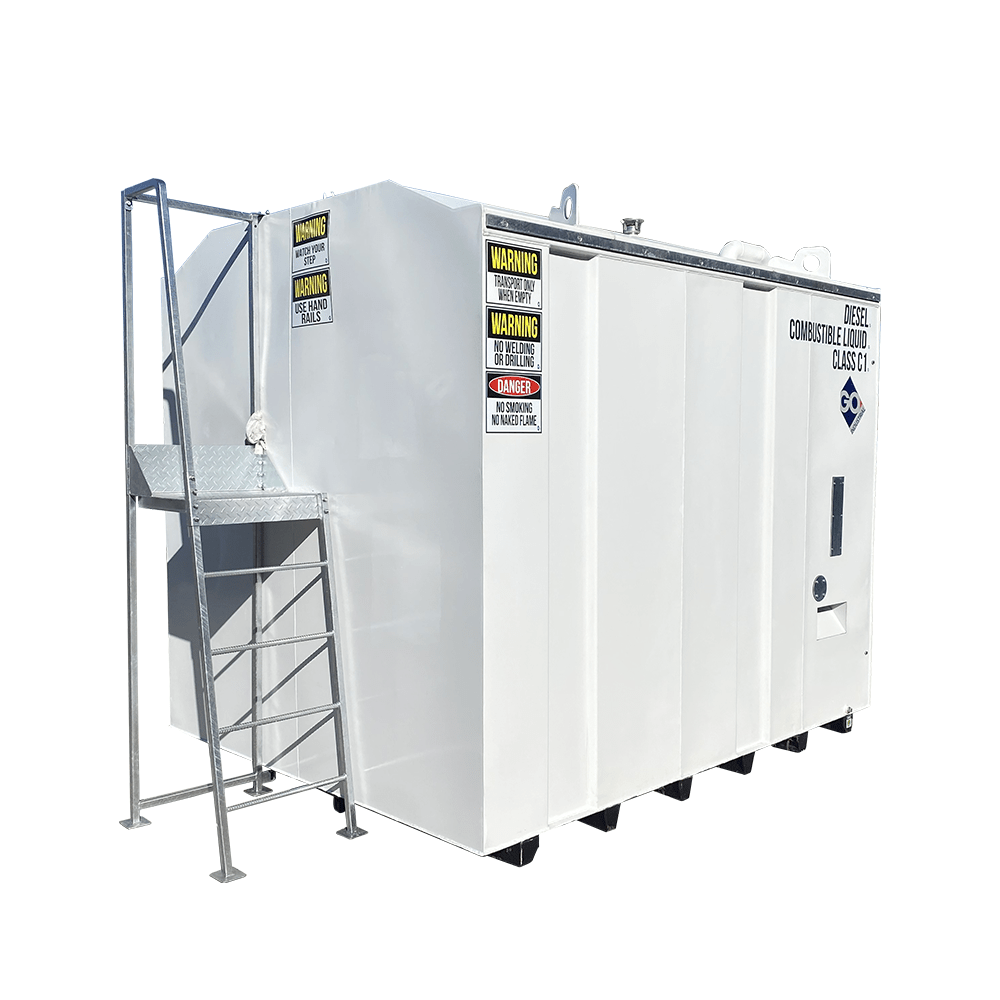

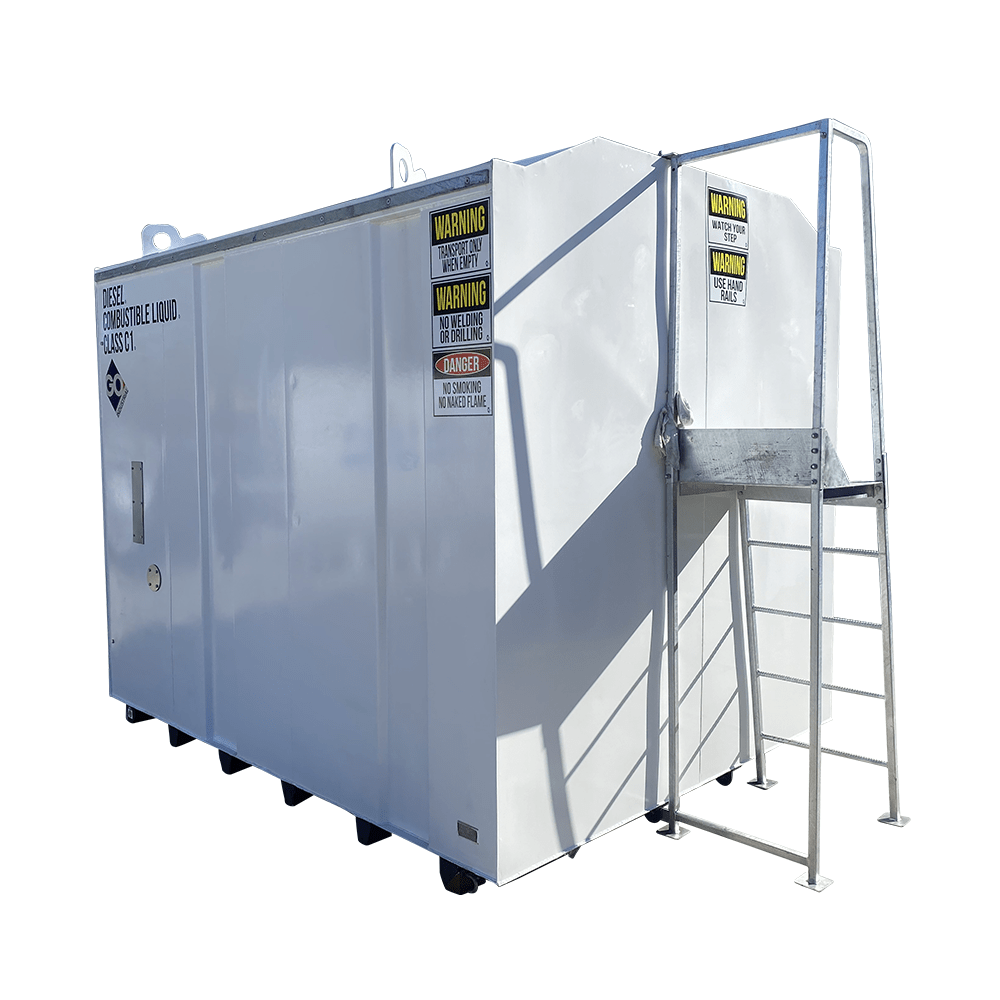

GO Store Self Bunded Tanks
5,500L Capacity
GO Fill - 59-61 Kabi Cct, Deception Bay, QLD, 4508
59-61 Kabi Cct
Deception Bay QLD 4508
Australia
| Capacity Range | 5,500L – 16,000L (3 models) |
| Max Pressure | 21 kPa (3 psi) |
| Suction Point | DN50 (2") with anti-syphon valve |
| Spare Suction | DN25 (1") outlet |
| Construction | Double-walled mild steel (Q235B) |
| Finish | RAL9003 Hempel marine 3-stage |
| Material | Mild steel Q235B |
| Surface Prep | Sandblasted to SA2 standard |
| Paint System | Hempel 3-stage marine (180 um DFT) |
| Colour | RAL9003 Signal White |
| Venting | Free-air updraft + interstitial relief |
| Dewatering | 1" line to tank low point |
| Design Standard | AS1940 / AS1692 |
| Warranty | 2 years |
| AS1940:2017 – Storage and handling of flammable and combustible liquids | Certified |
| AS1692 – Steel tanks for flammable and combustible liquids | Certified |
| AS1170 – Structural design actions | Certified |
| AS4100 – Steel structures | Certified |
| AS1554.1 – Structural steel welding | Certified |
| UL142 / ULC/S601 / BS799 / PPG2 | Certified |
| Bund Capacity | 110% of inner tank |
| Fill Point | DN50 (2") camlock with OPV |
| Manway | 600 mm dia with internal ladder |

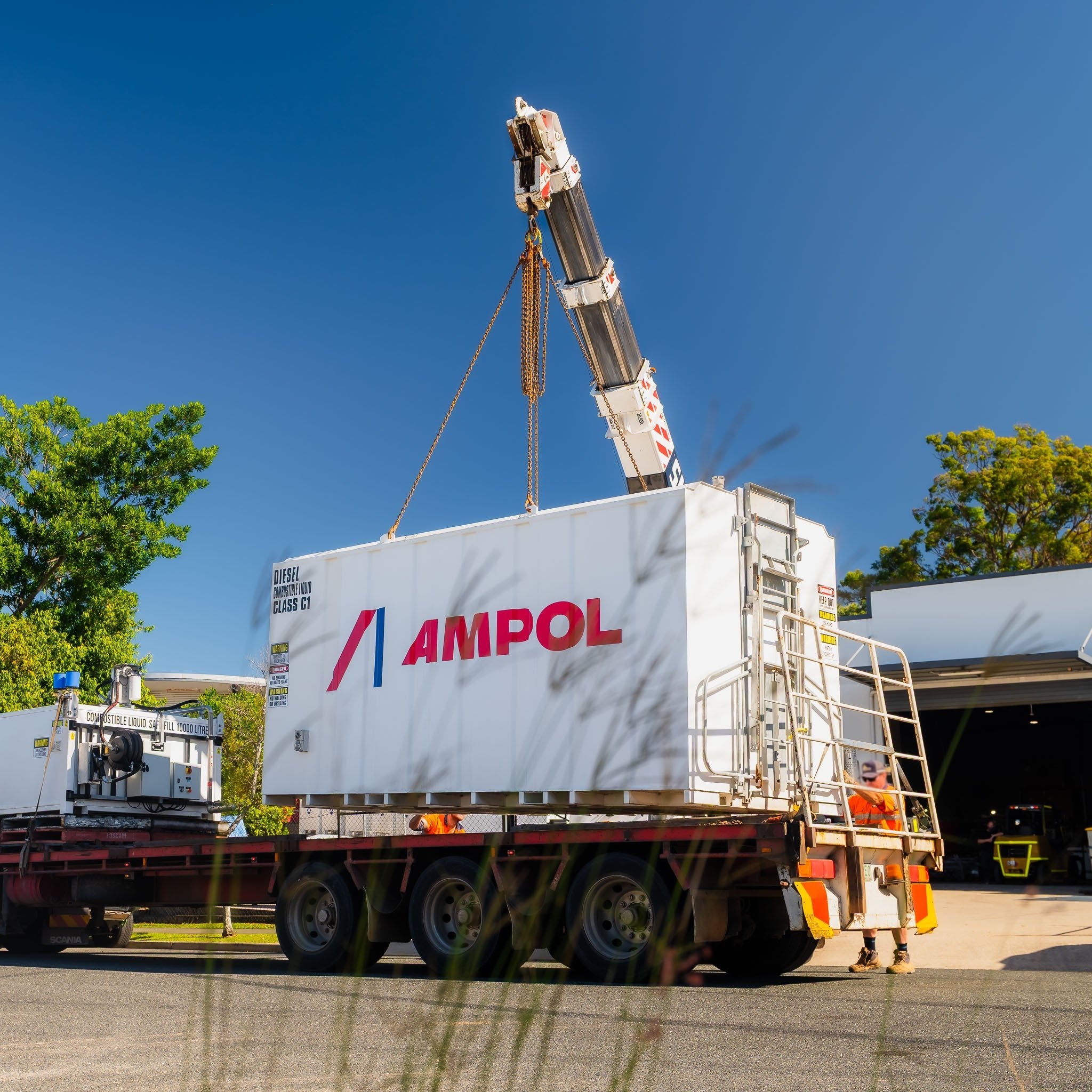

| Crane Lifting | Certified lugs (empty lift only) |
KEY FEATURES
The GO STORE is a permanent-installation self bunded tank with an integrated pump bay. From fill point to dispensing nozzle, every component is built to handle high-throughput refuelling on demanding sites.

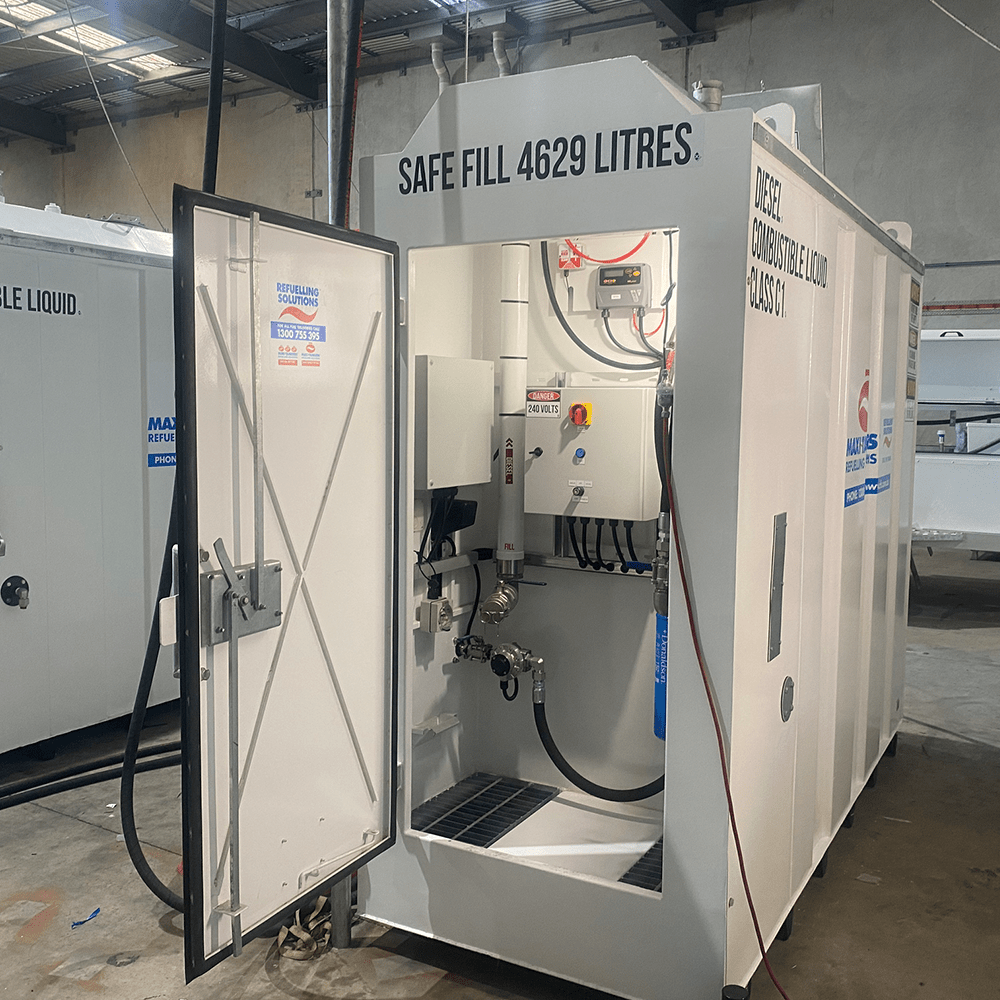

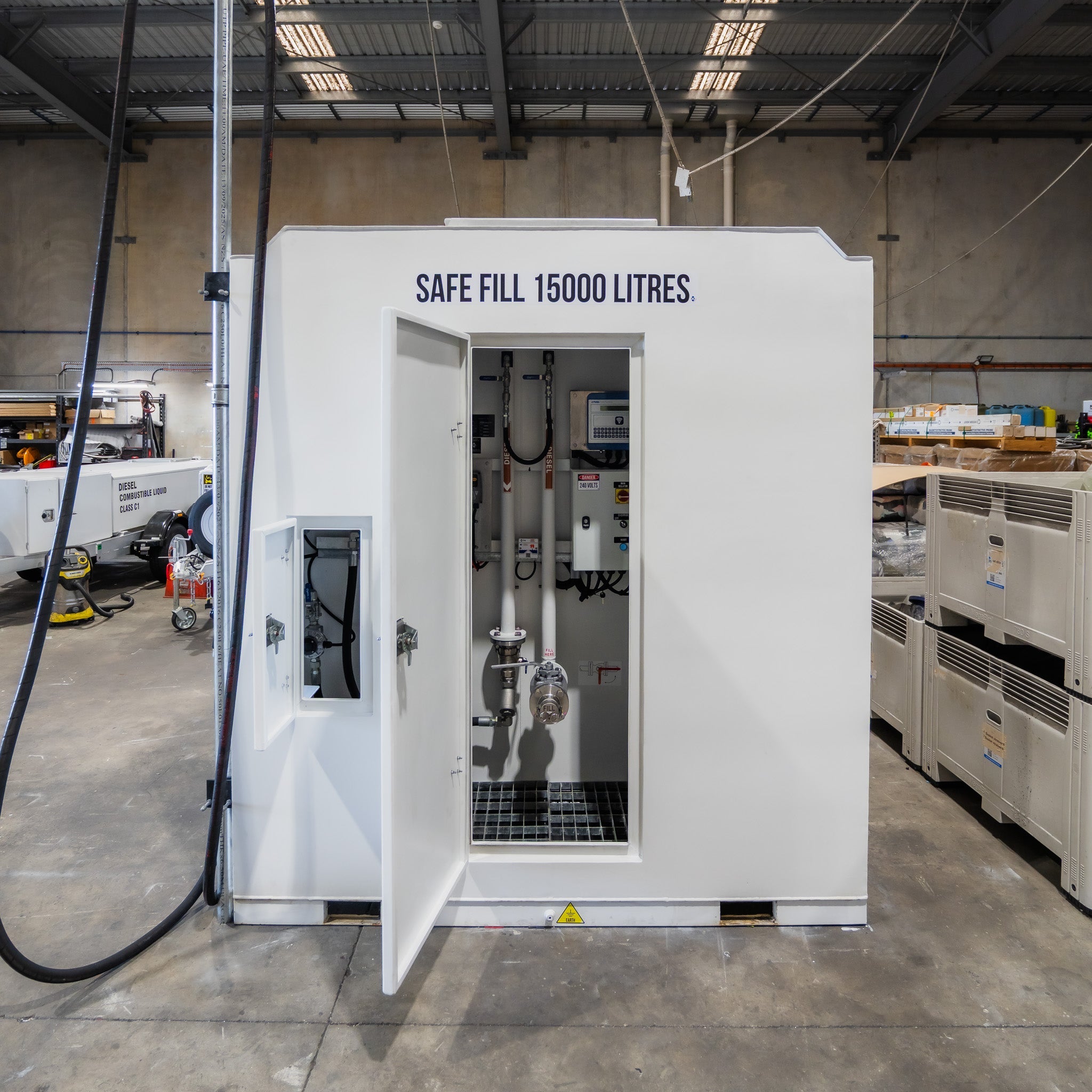

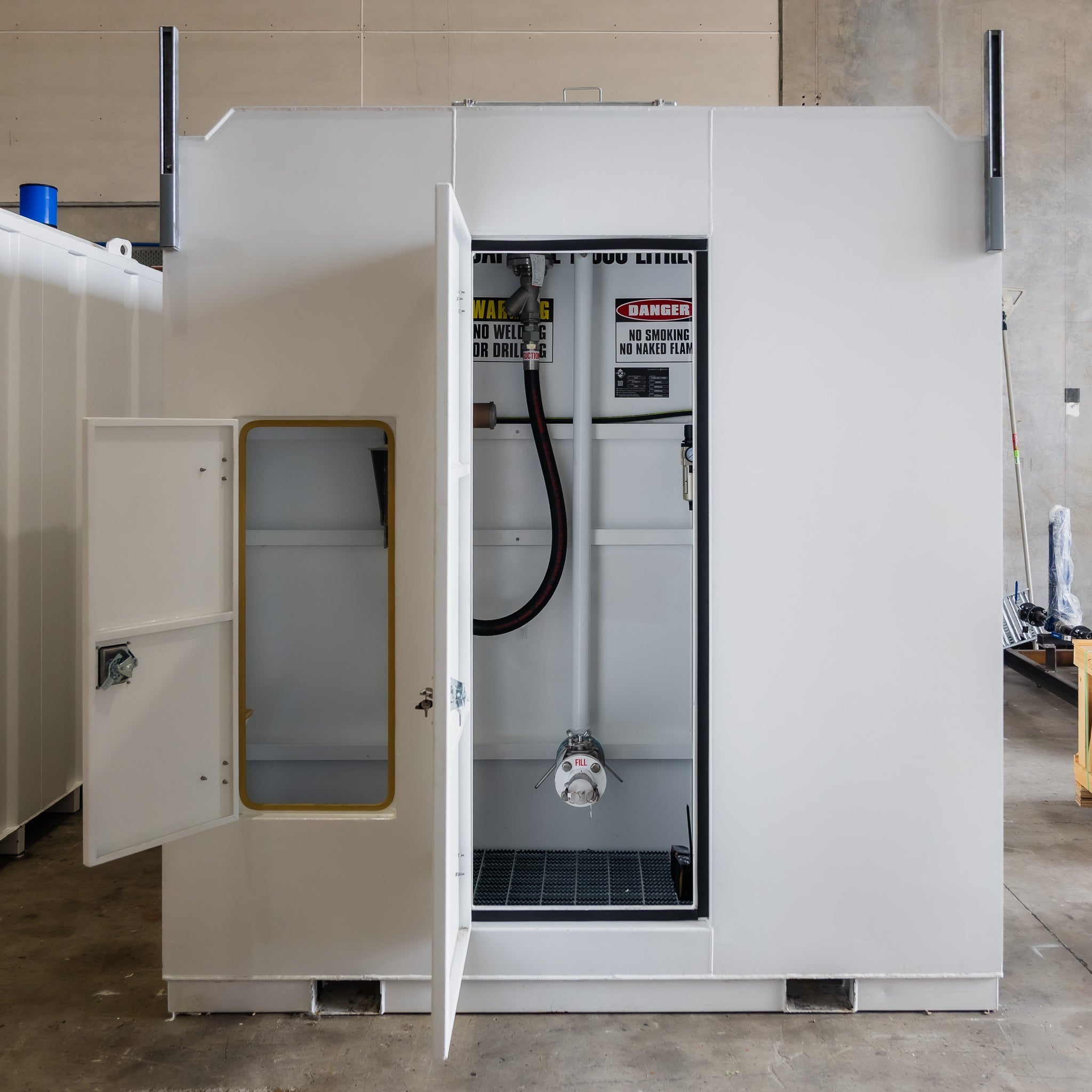

Weatherproof, lockable enclosure houses your pump, meter and filtration. Two access doors with reverse-opening hinges keep equipment secure and protected from dust, rain and tampering.
Mechanical overfill prevention valve on the fill line stops delivery before the tank reaches capacity. Backed by a 12V battery-operated audible alarm for AS1940 compliance.
Full 600mm diameter manway with internal ladder provides safe entry for inspection, cleaning and maintenance. Calibrated aluminium dipstick and interstitial dip tube included.
DN50 suction point fitted with anti-syphon foot valve prevents fuel loss during pump shutdown. Separate DN25 spare suction outlet for secondary dispensing or transfer lines.
Grated bund area with dedicated drain point captures spills during filling and dispensing. Galvanised finish resists corrosion. Letterbox-style hose inlet/outlet keeps connections tidy.
RAL9003 Hempel three-stage marine coating system provides long-term corrosion protection in harsh environments. UV-stable topcoat resists fading and chalking in direct sun.

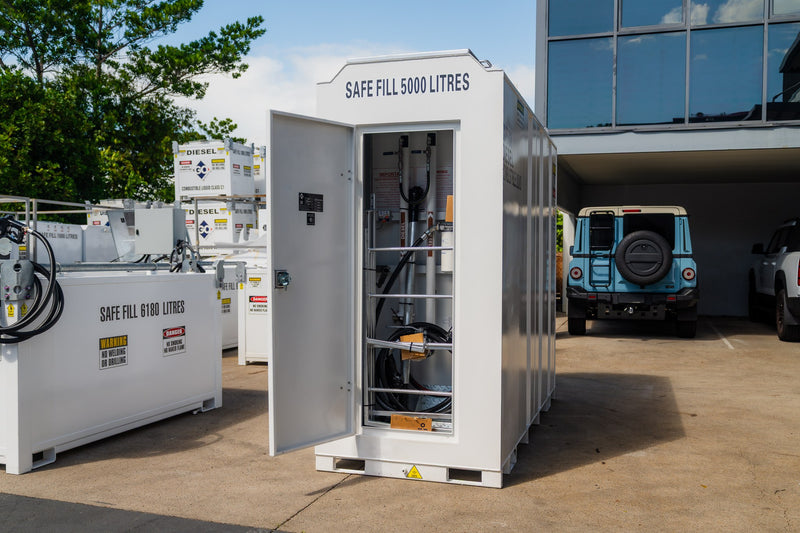

WHAT'S INCLUDED
Every GO STORE ships with these standard fittings and accessories. The pump bay housing is included - you choose the dispensing kit separately.
SITE & INSTALLATION REQUIREMENTS
The GO STORE is a fixed-installation tank. Proper site preparation ensures safe operation, regulatory compliance and long service life.
Compare
Compare similar products
5,500L – 16,000L (3 models)
—
250L - 11,000L (11 models)
21 kPa (3 psi)
—
—
DN50 (2") with anti-syphon valve
—
—
DN25 (1") outlet
—
—
Double-walled mild steel (Q235B)
—
Double-walled mild steel, 4mm Q235B plate
RAL9003 Hempel marine 3-stage
—
AS N14 white marine-grade epoxy
Mild steel Q235B
—
—
Sandblasted to SA2 standard
—
—
Hempel 3-stage marine (180 um DFT)
—
—
RAL9003 Signal White
—
—
Free-air updraft + interstitial relief
—
—
1" line to tank low point
—
—
AS1940 / AS1692
—
—
2 years
—
2 years
Certified
—
—
Certified
—
—
Certified
—
—
Certified
—
—
Certified
—
—
Certified
—
—
110% of inner tank
—
110% of inner tank
DN50 (2") camlock with OPV
—
50 mm (2") splash fill only
600 mm dia with internal ladder
—
—
Certified lugs (empty lift only)
—
4 x certified lugs (up to BOX-6.6)

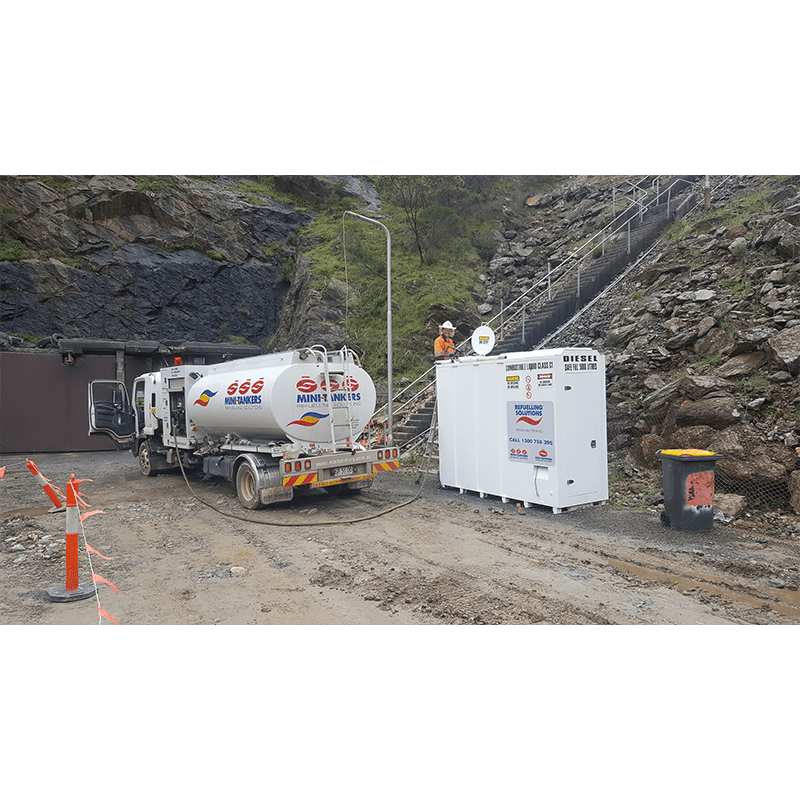

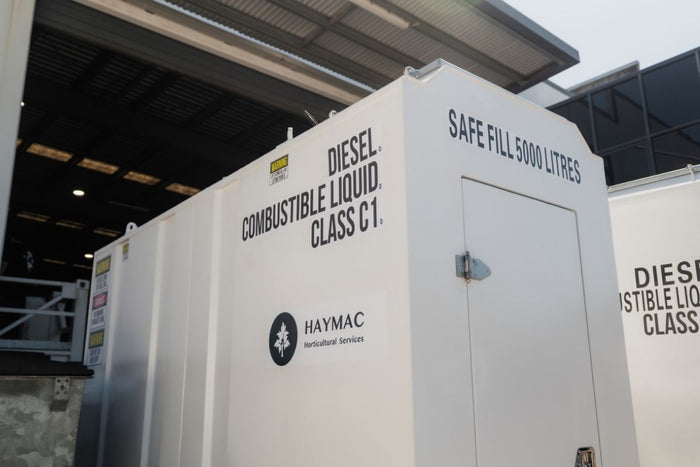

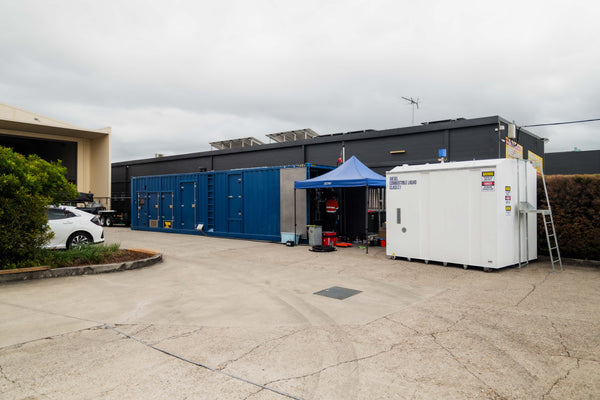

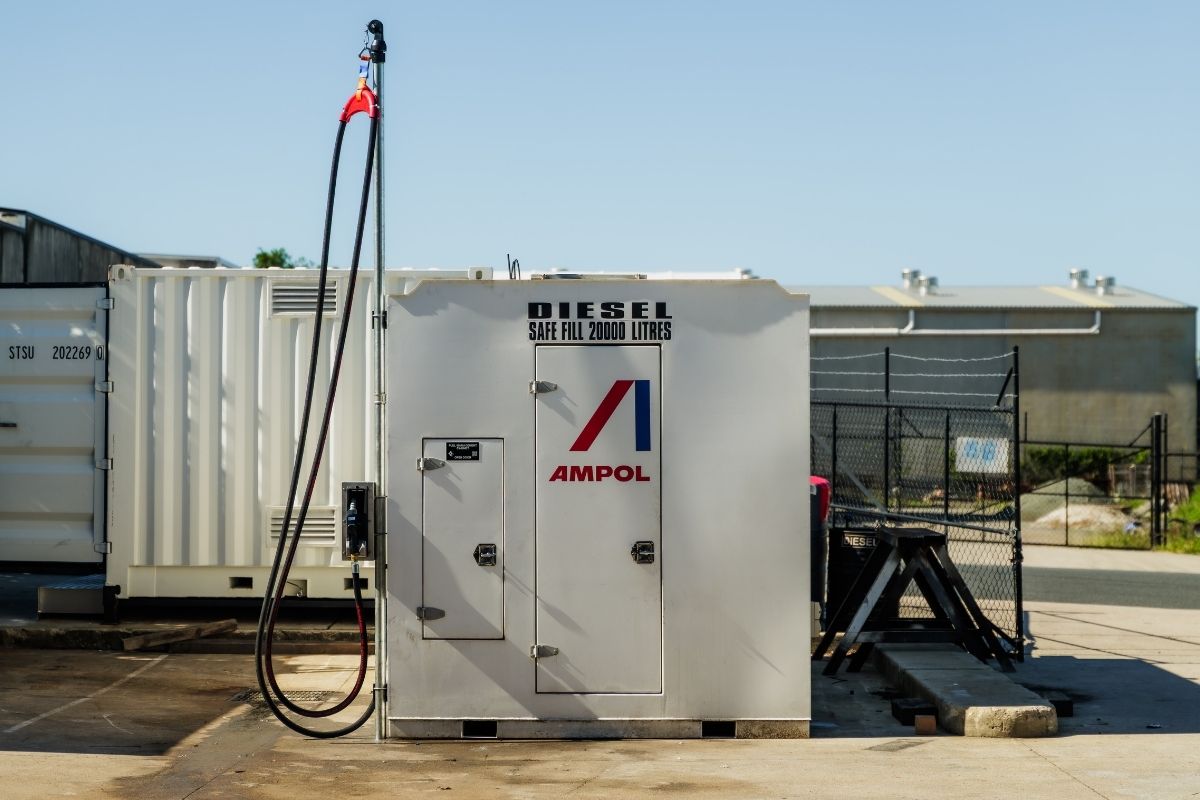

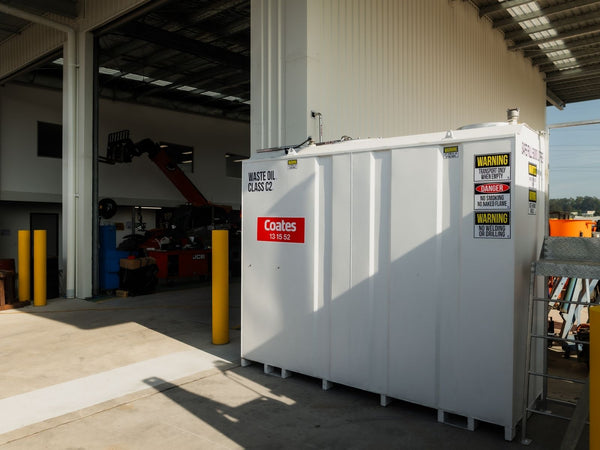

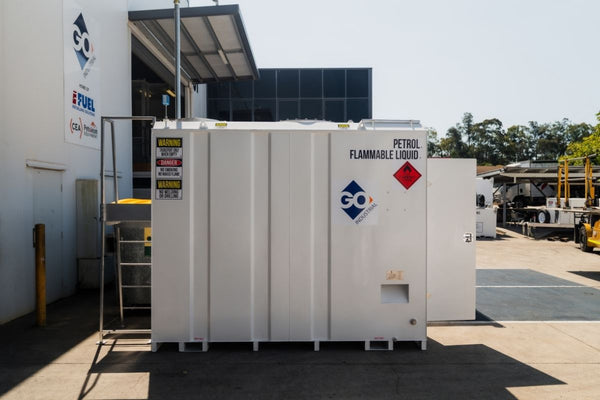

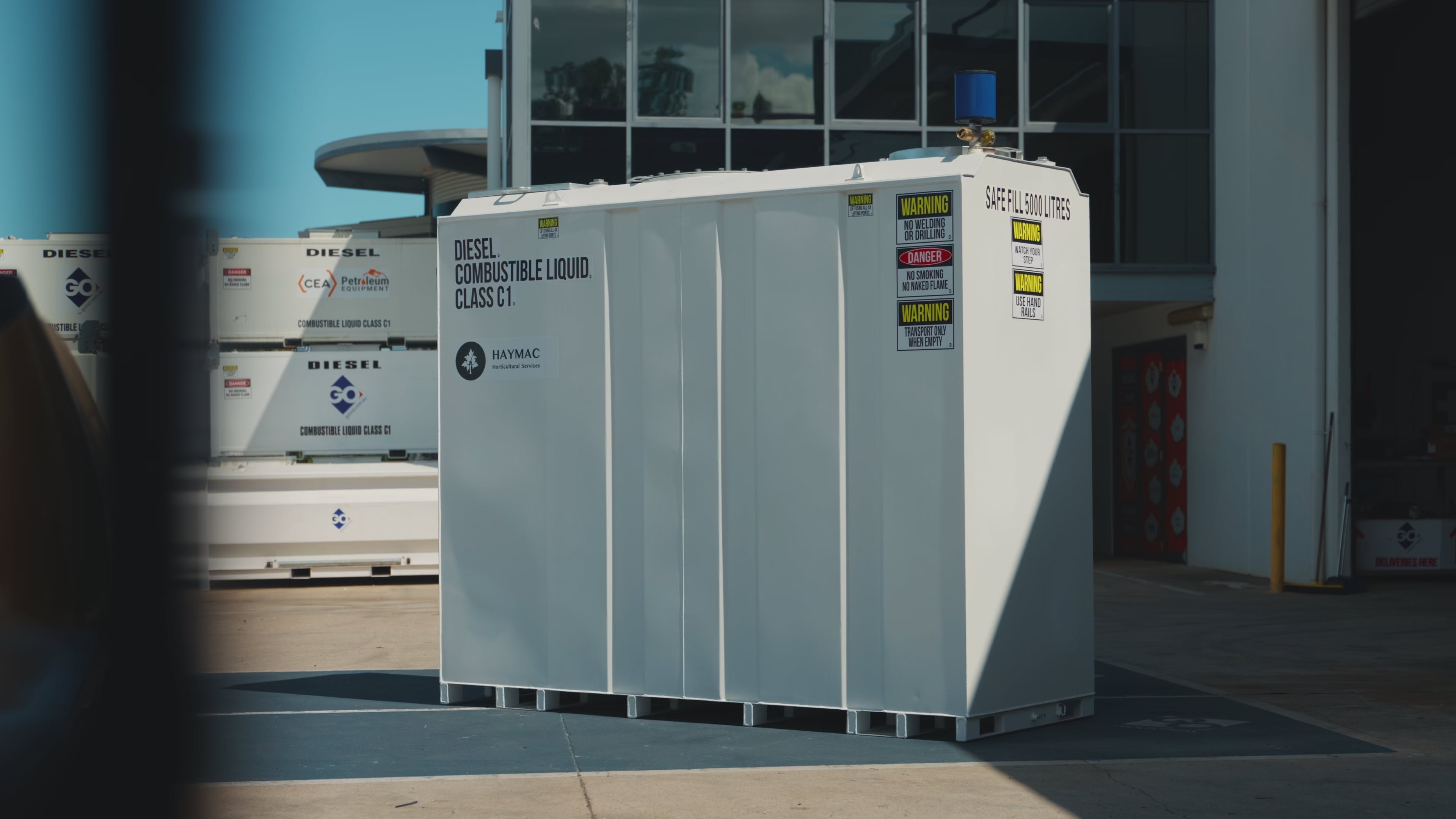

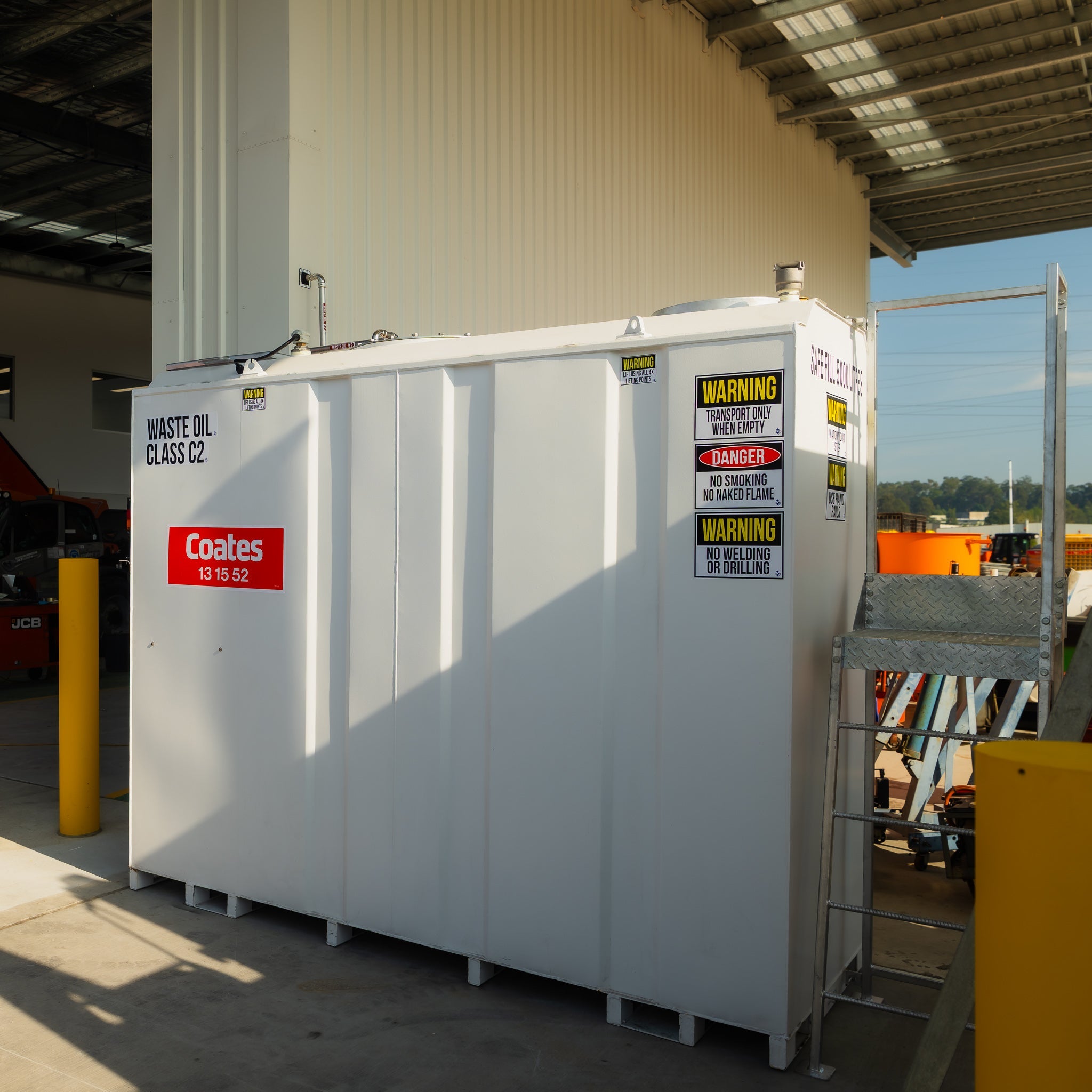

See It on Site
Real installations across construction, mining, fleet, and remote operations.
Downloads & Documentation
Everything you need for procurement, compliance and installation planning.
Real Feedback from Real Installations
The STORE 5,500L fits perfectly beside our shed, doesn't take up much width at all. The 100LPM pump kit makes filling our farm equipment quick and easy. Buying fuel in bulk and owning our own storage has made a real difference to our operating costs. Wish we'd done it sooner.
Frequently Asked Questions
Can't find your answer?
Contact UsWhat is the difference between a GO BOX and a GO STORE?
The GO BOX is a portable, self-contained tank designed for transport and temporary site storage. The GO STORE is a larger, fixed-installation tank with a full-height lockable pump bay housing. If you need to move the tank between sites regularly, choose a GO BOX. If you need a permanent fuel depot with integrated dispensing, choose a GO STORE.
Does the GO STORE come with a pump?
No. The GO STORE ships as a bare tank with pump bay housing included. This lets you choose the right dispensing kit for your flow rate, power supply and metering requirements. We offer a full range of compatible pump packages from 70 LPM to 200 LPM, including explosion-proof options for petrol storage.
Can I store petrol in a GO STORE?
Yes. The GO STORE is rated for diesel, petrol (ULP), kerosene, lubricants, waste oil and AdBlue. For petrol storage, we recommend an explosion-proof pump kit (Piusi EX50) and additional safety signage per AS1940 requirements.
What site preparation is needed?
You need a level hardstand or concrete pad capable of supporting the full weight of the tank, minimum 1 metre clearance on all sides, an earthing point within 3 metres, and a fire extinguisher within 15 metres. All installations must comply with AS1940:2017. We can provide a free site assessment - contact our team.
Can the GO STORE be transported when full?
No. The GO STORE is not transport approved. It must be emptied before relocation. For transport-approved tanks, see the GO BOX range (up to 3,300L) or our GO TRAILER fuel trailers.
What overfill protection is fitted?
Every GO STORE includes a DN50 mechanical overfill prevention valve on the fill line and a 12V battery-operated audible alarm. The OPV mechanically stops fuel delivery before the tank reaches capacity, and the alarm provides an audible warning to the tanker driver. Both are AS1940 compliant.
How is fuel level monitored?
A calibrated anodised aluminium dipstick is included as standard. For remote monitoring, we can integrate electronic tank gauges and telemetry systems that report fuel levels to your office or fleet management platform.
What maintenance is required?
Routine maintenance includes checking the interstitial space for moisture (monthly), testing the overfill alarm battery (quarterly), inspecting the anti-syphon valve (6-monthly), and a full compliance inspection annually. We offer scheduled service plans - contact our team for details.
