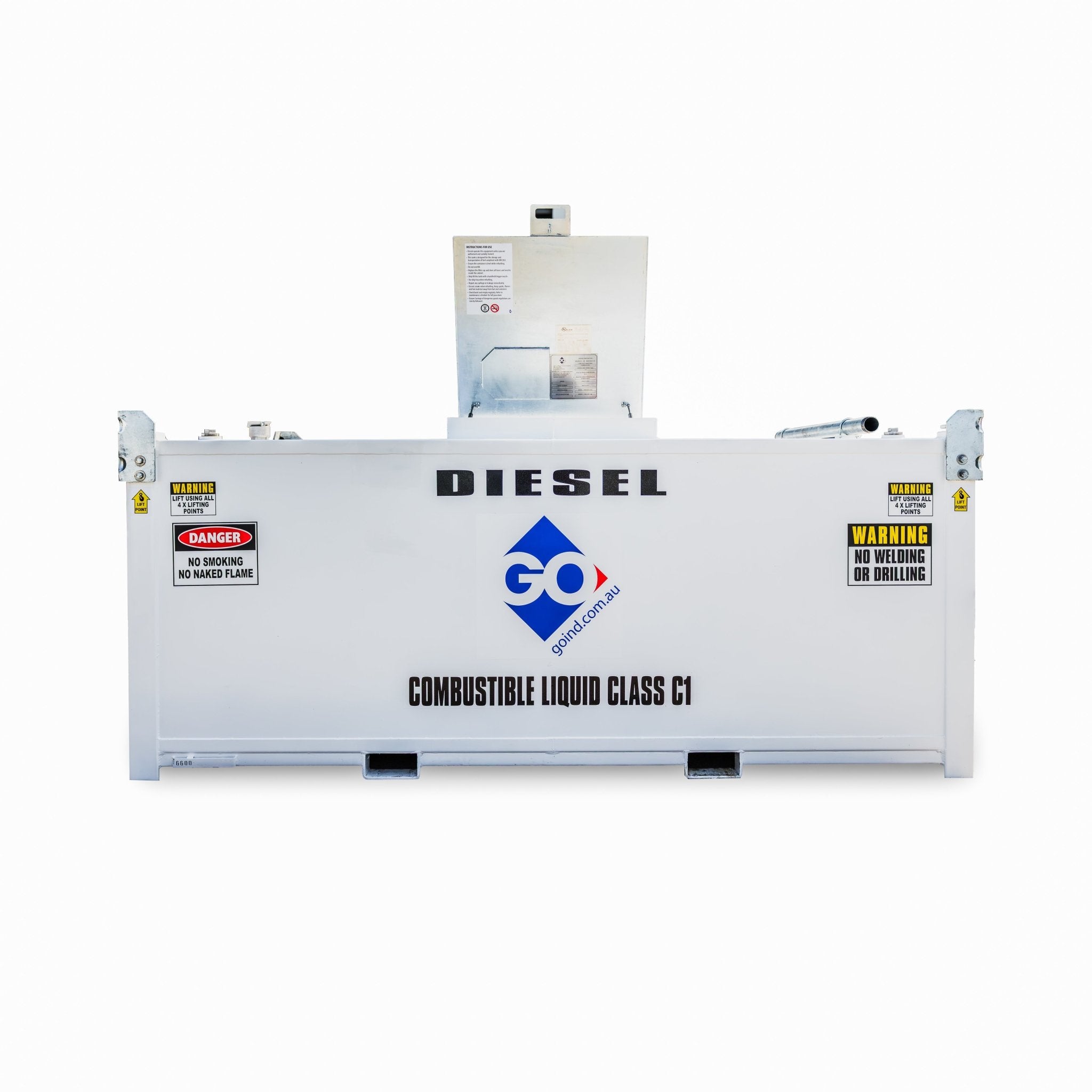

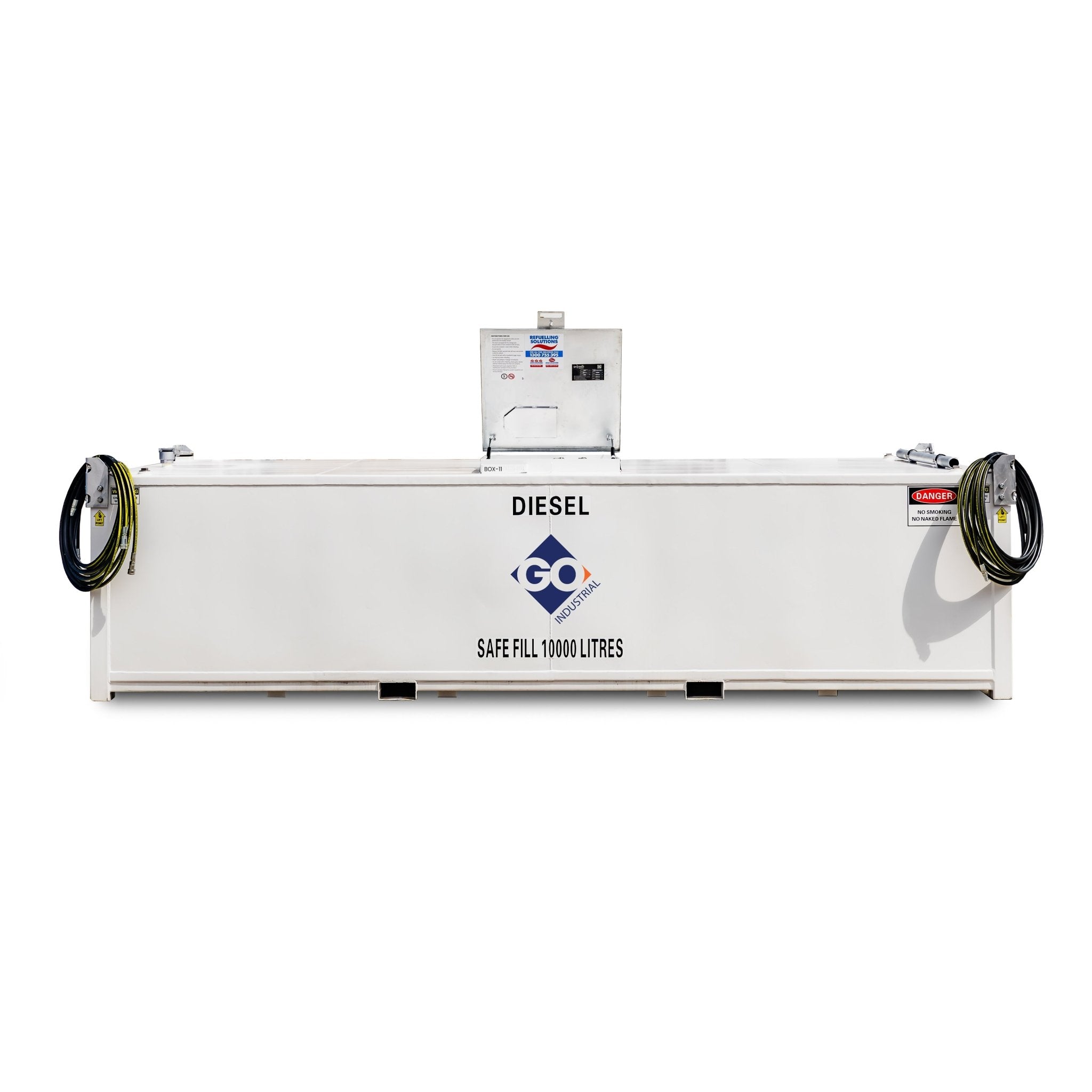

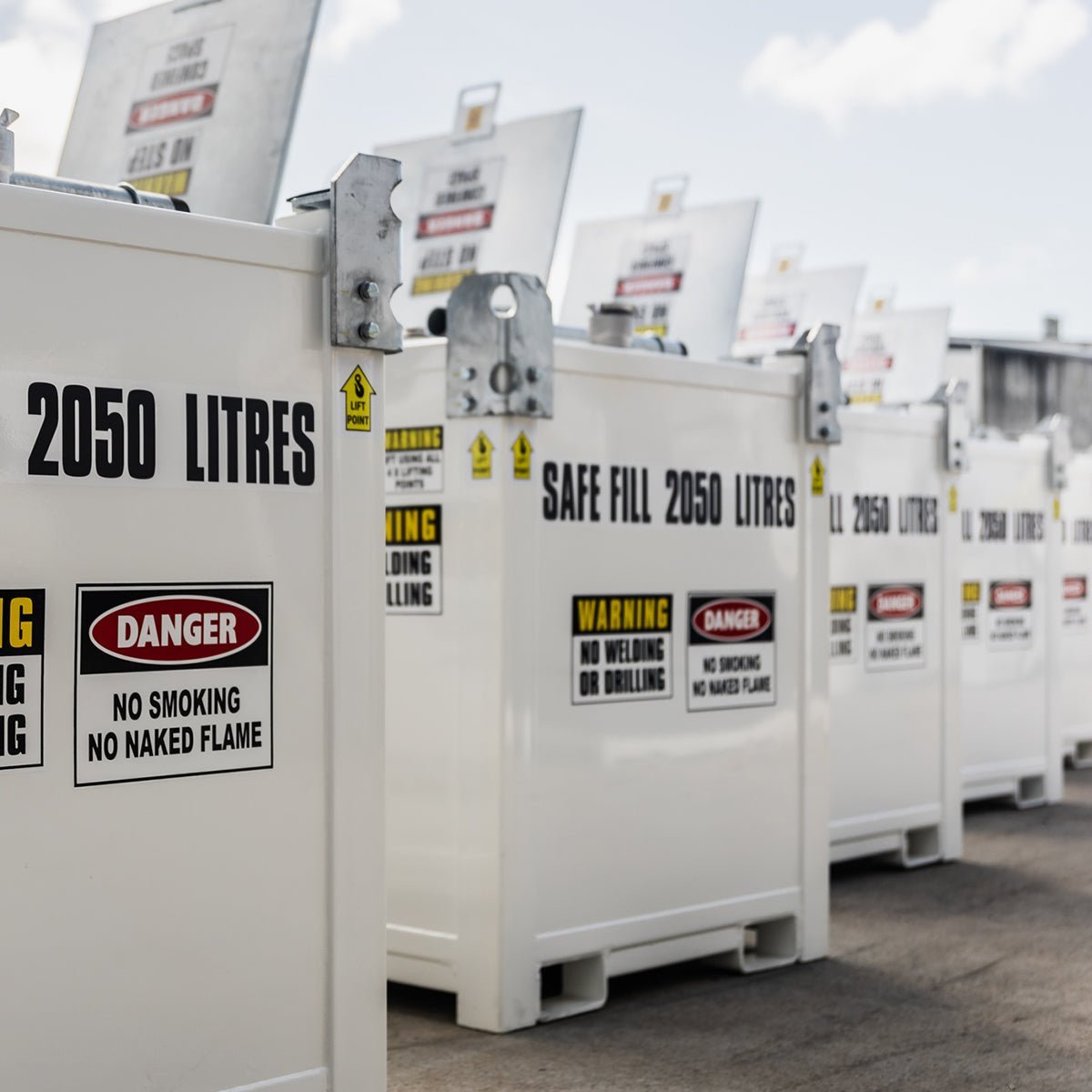

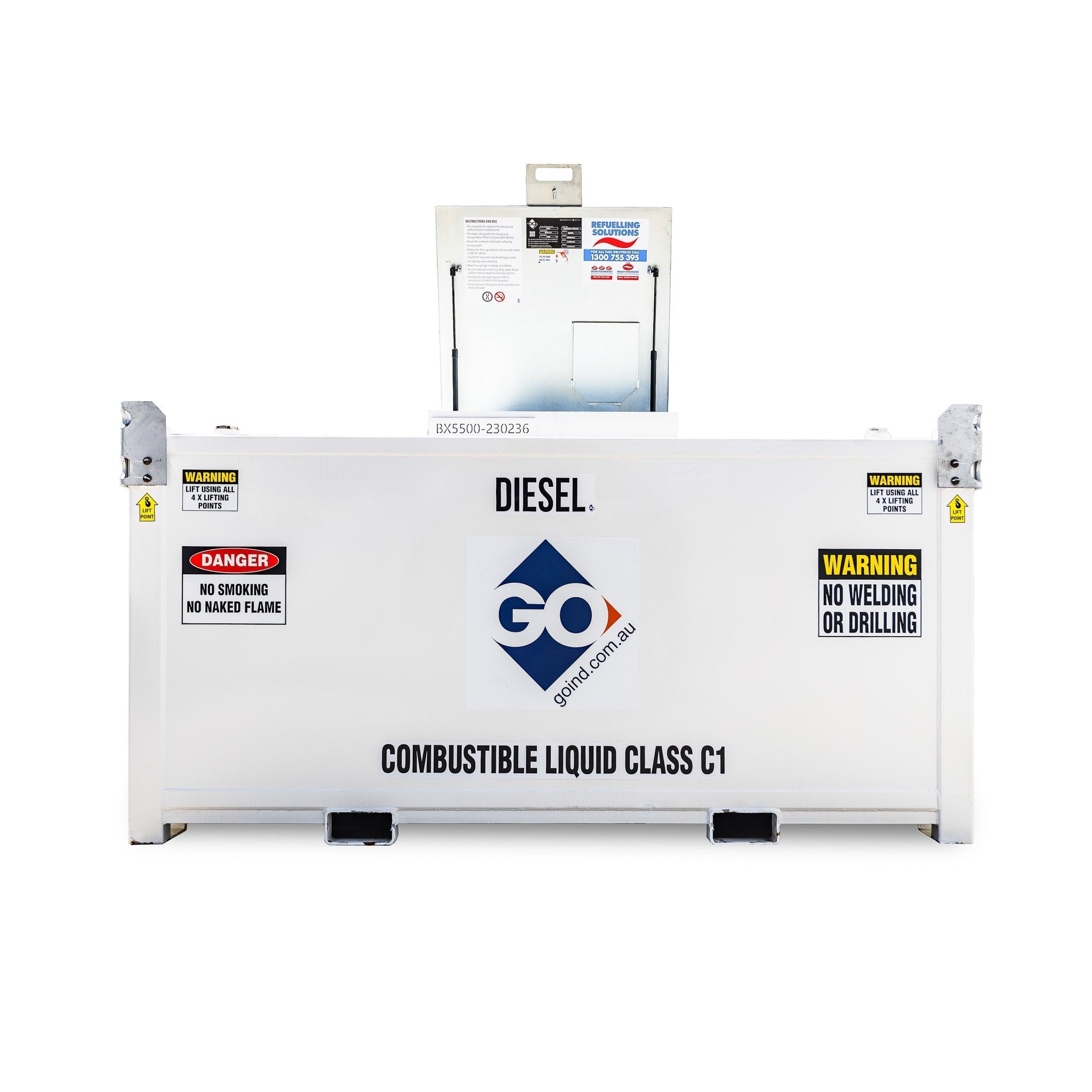

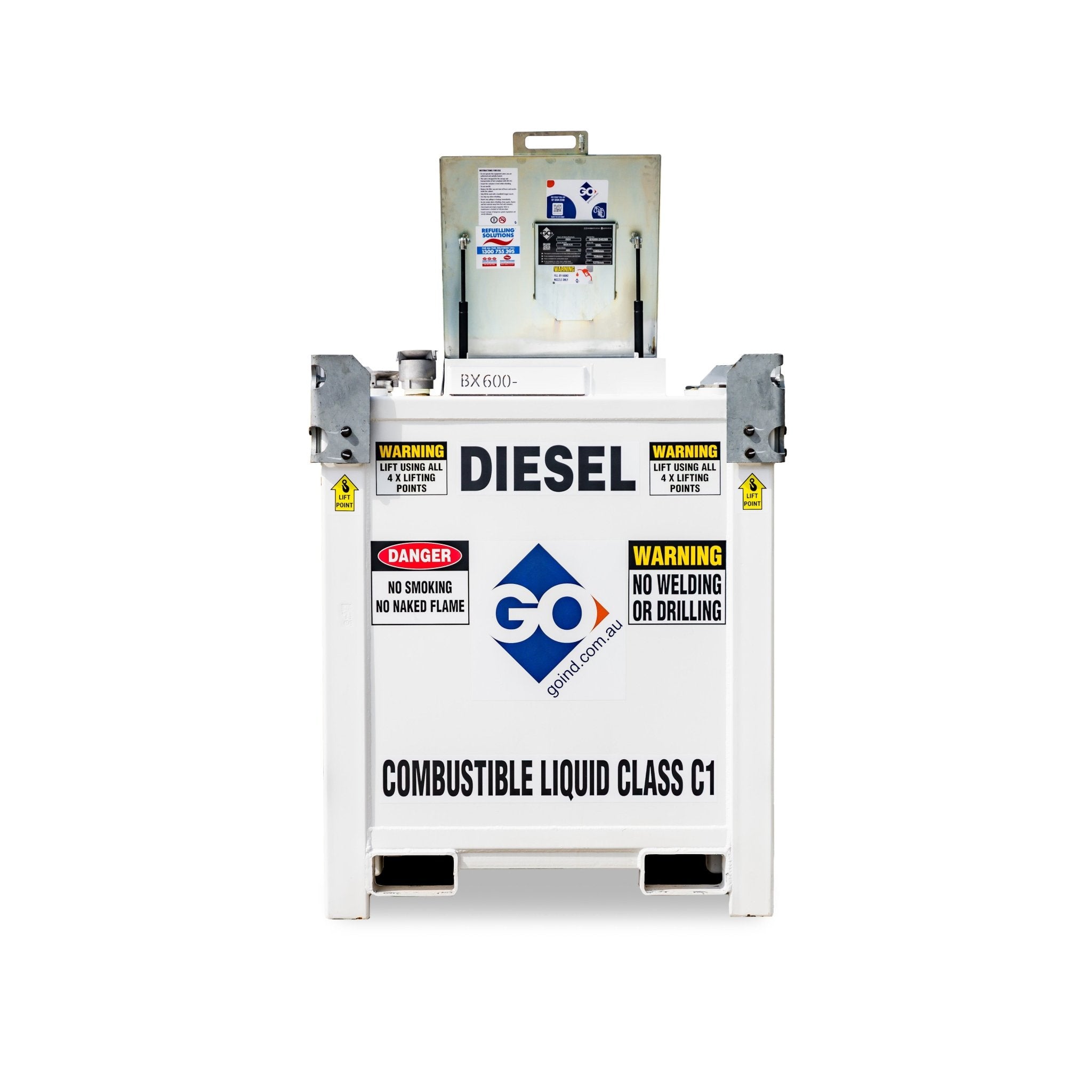

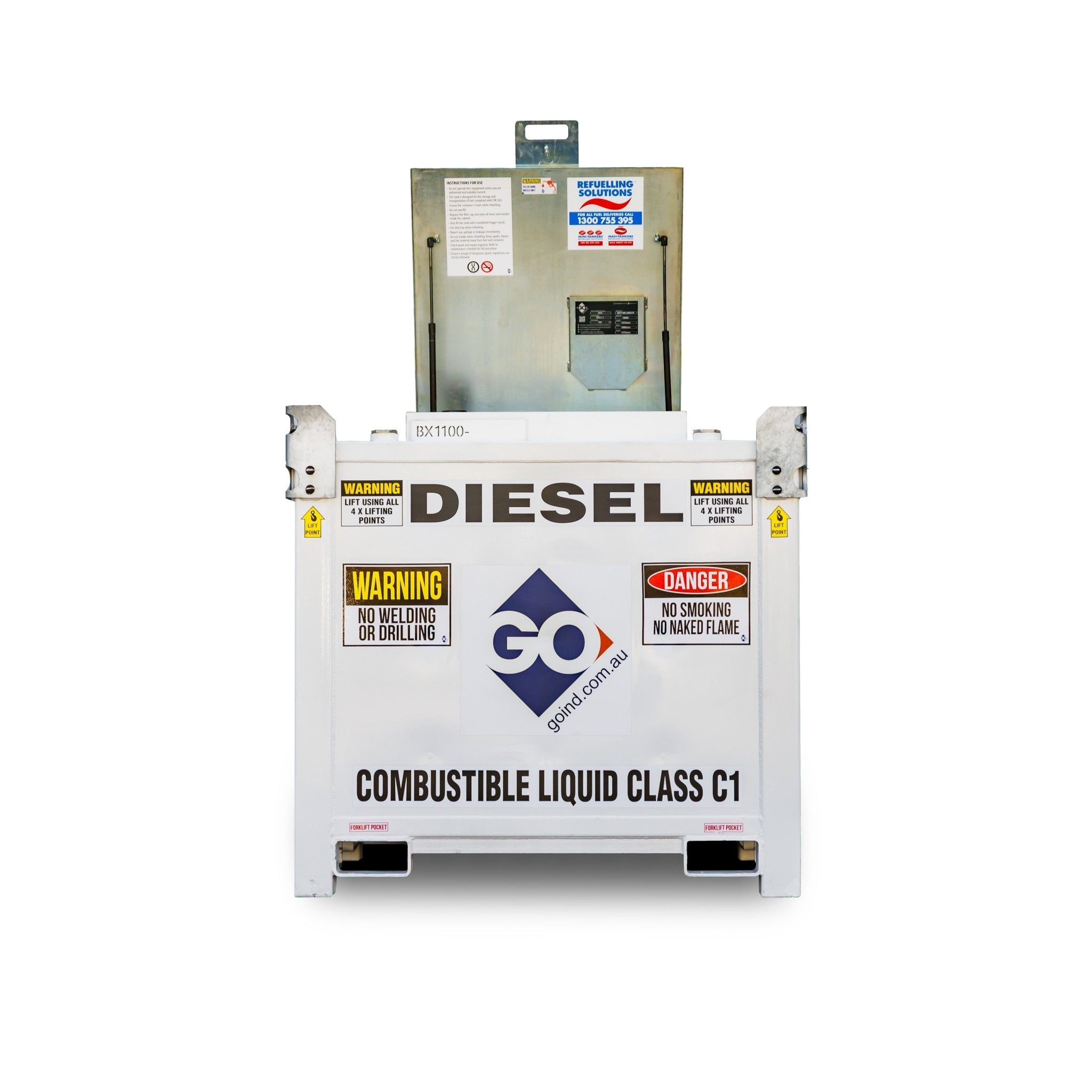

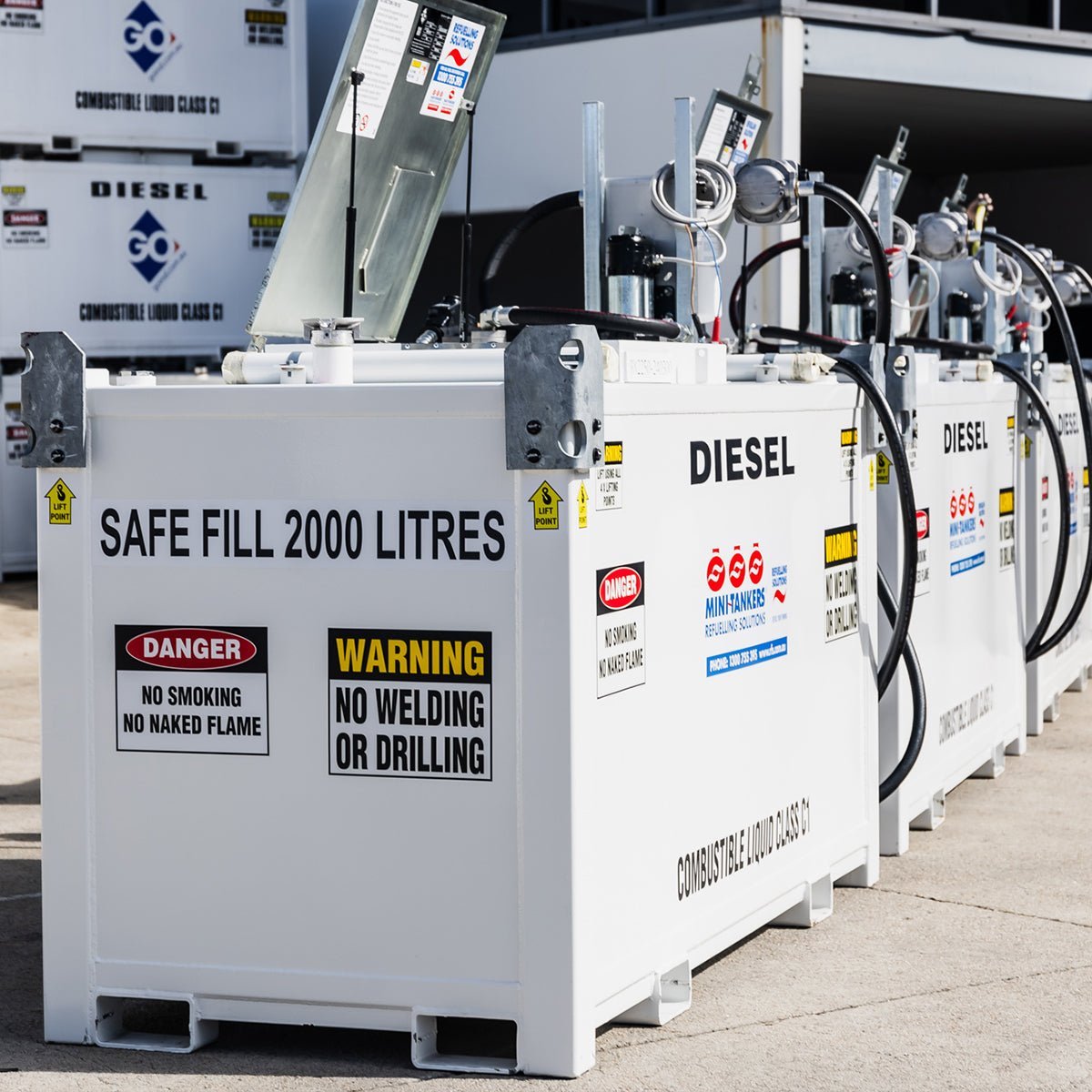

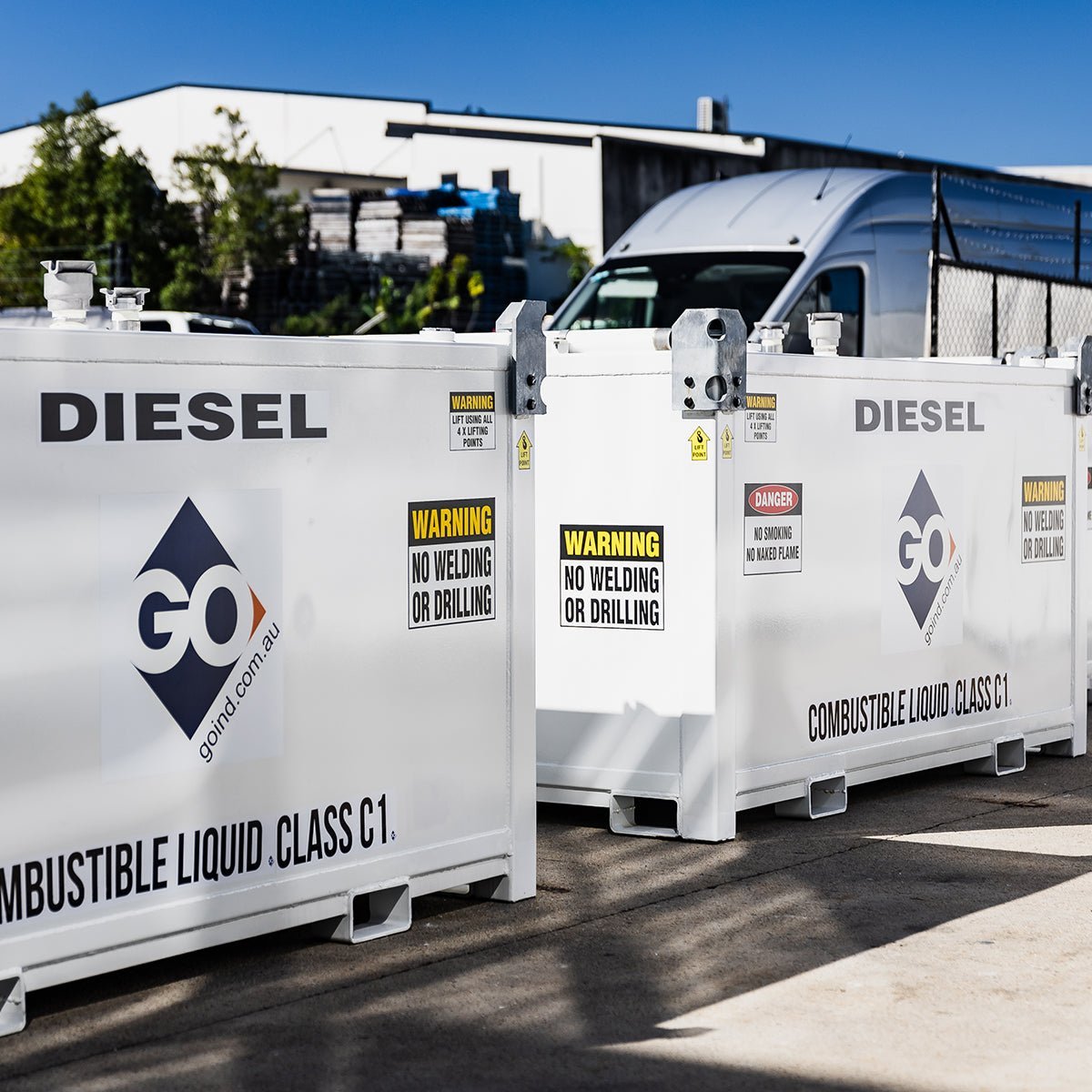

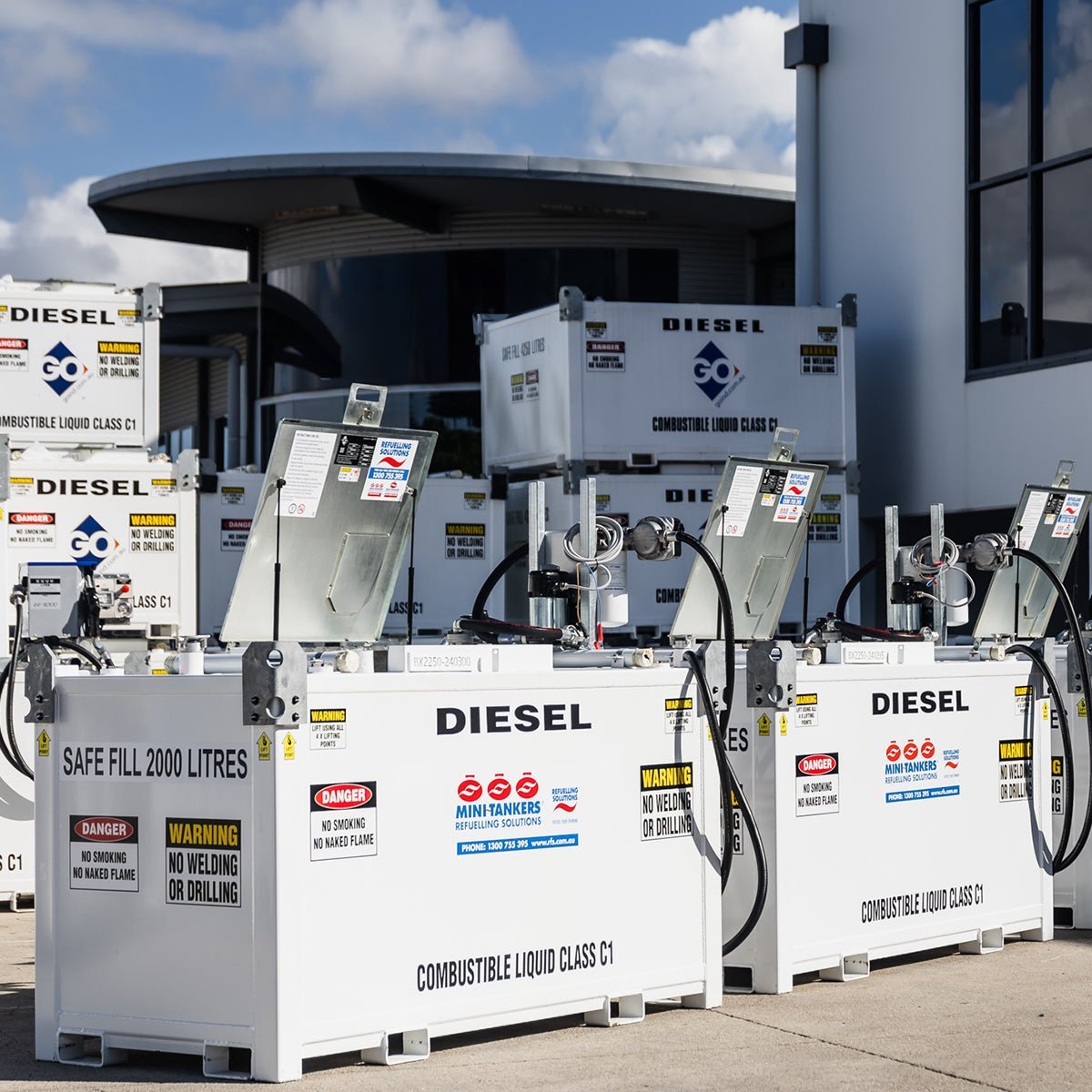

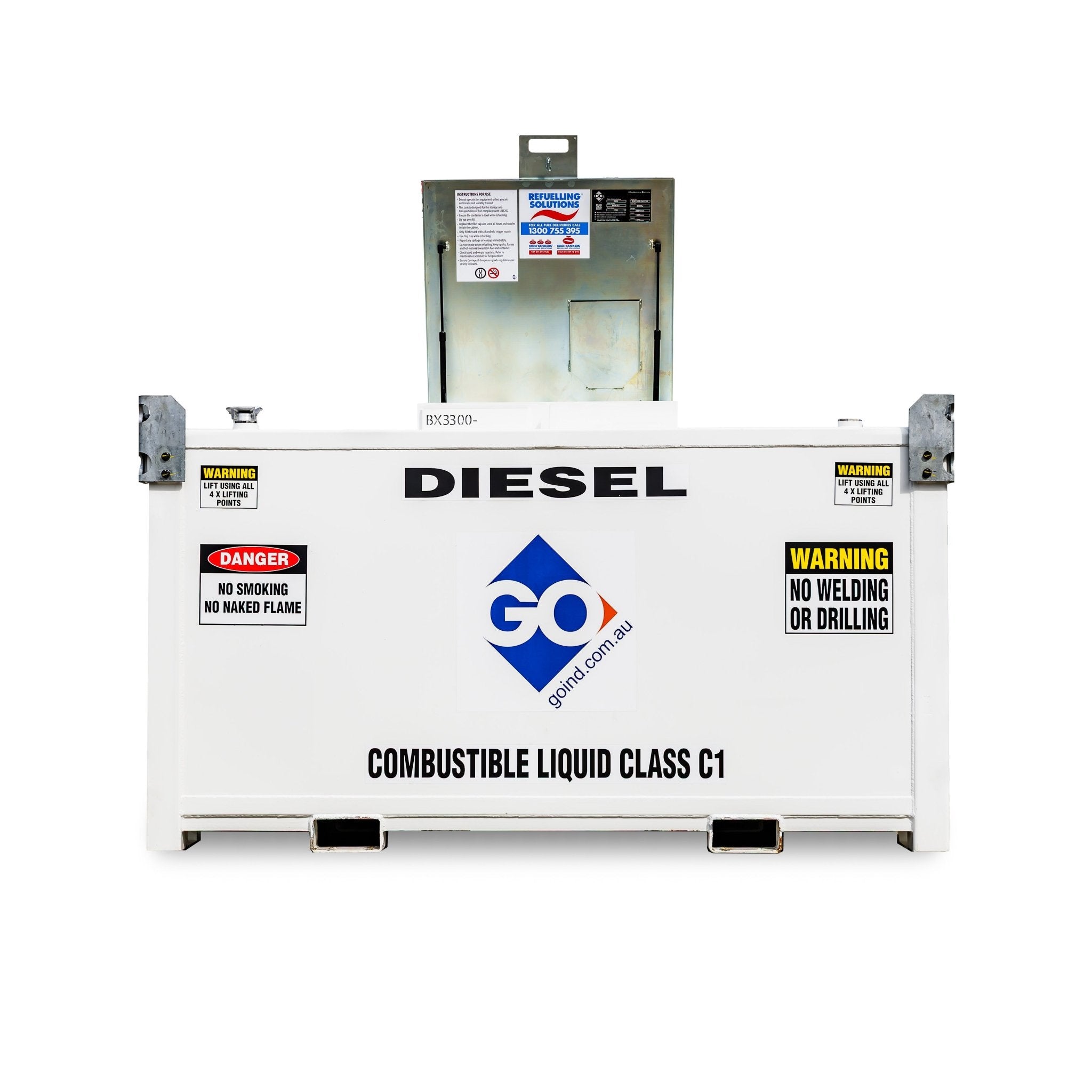

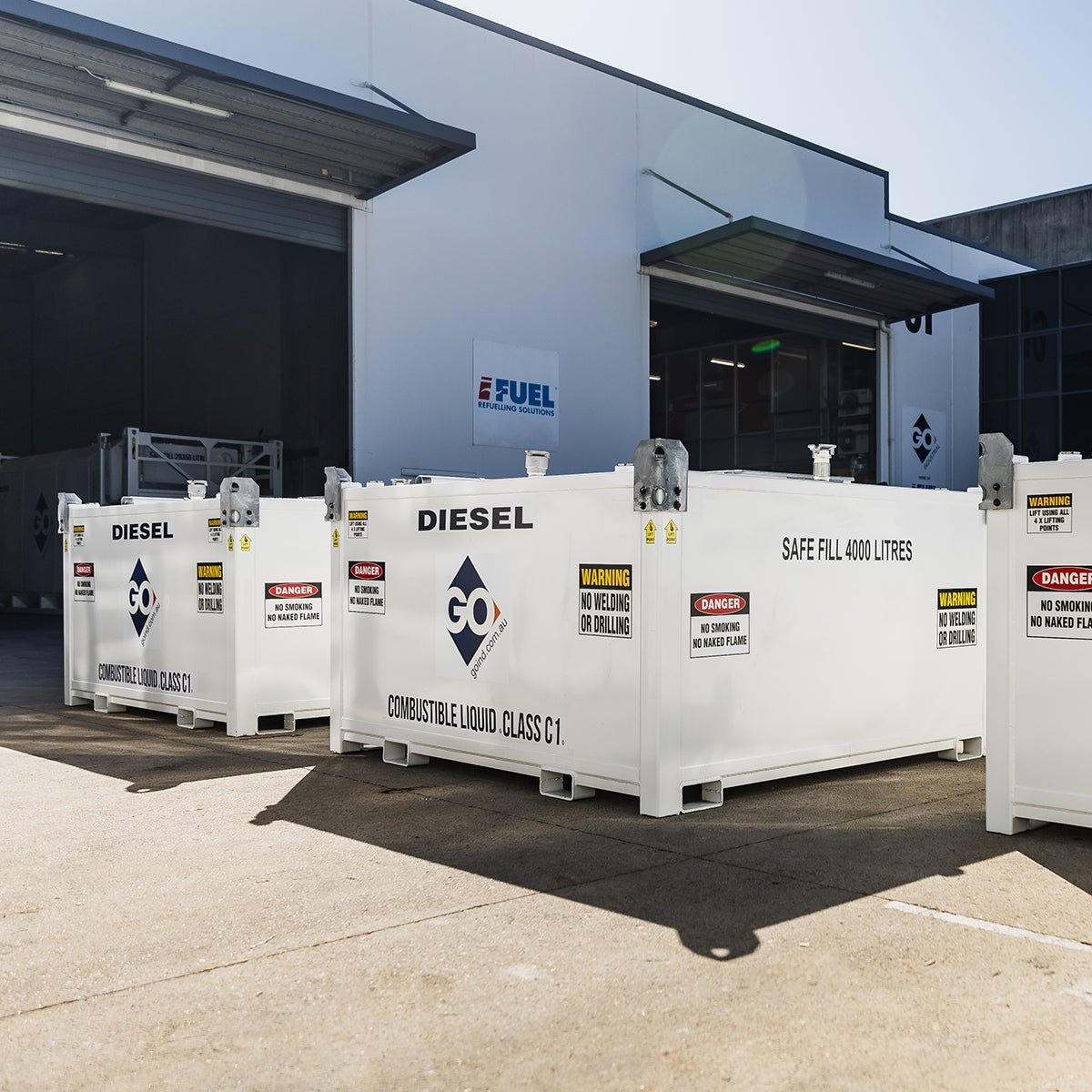

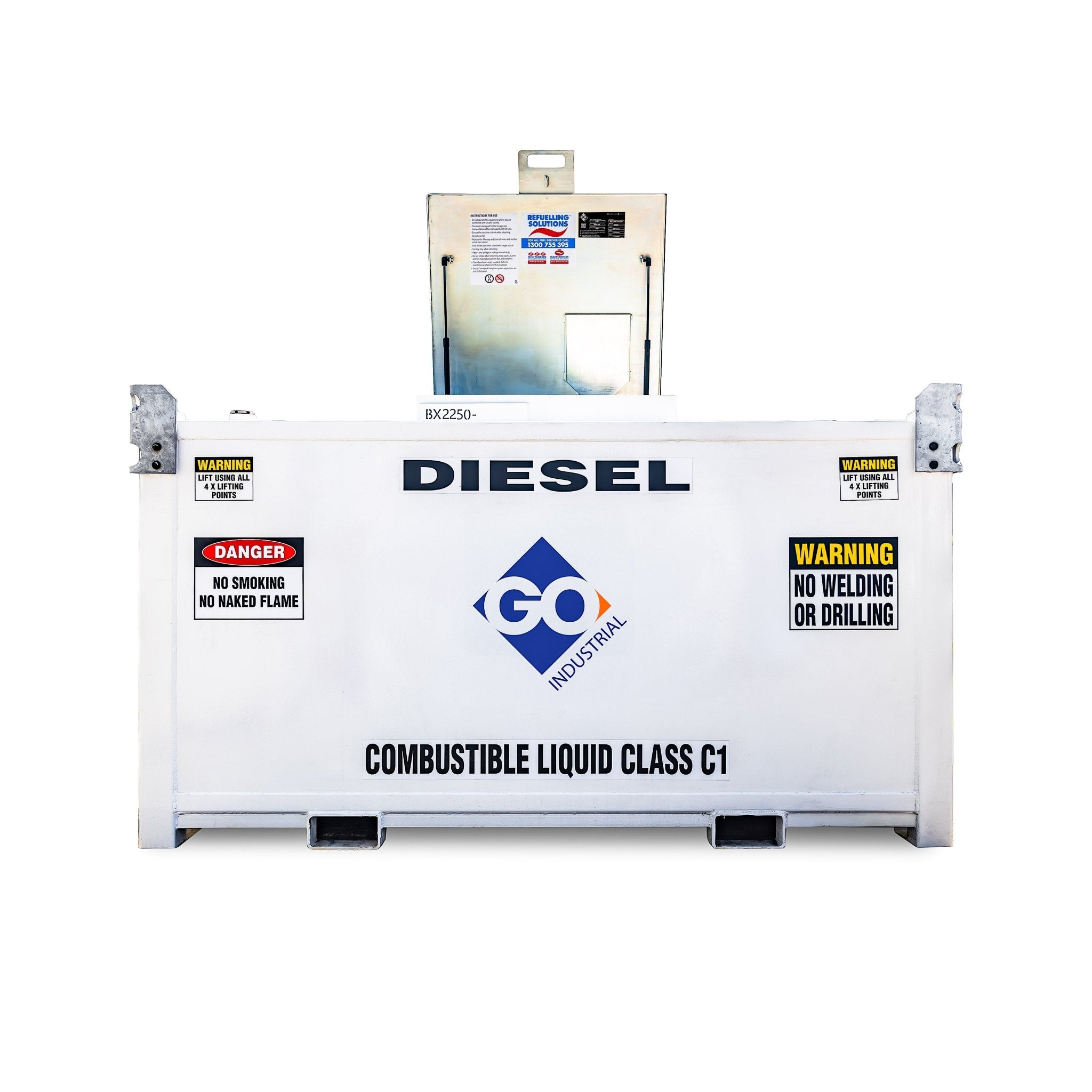

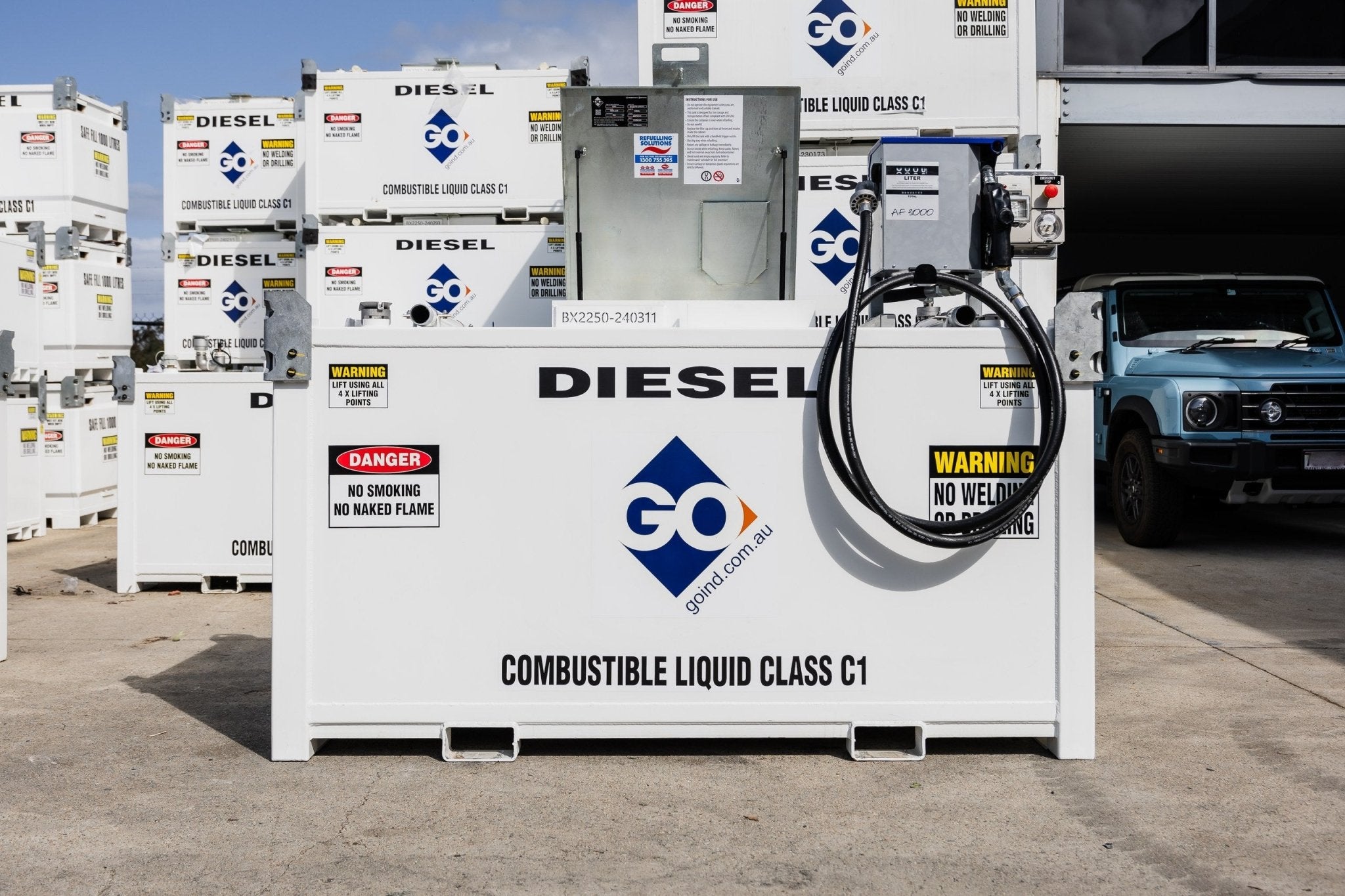

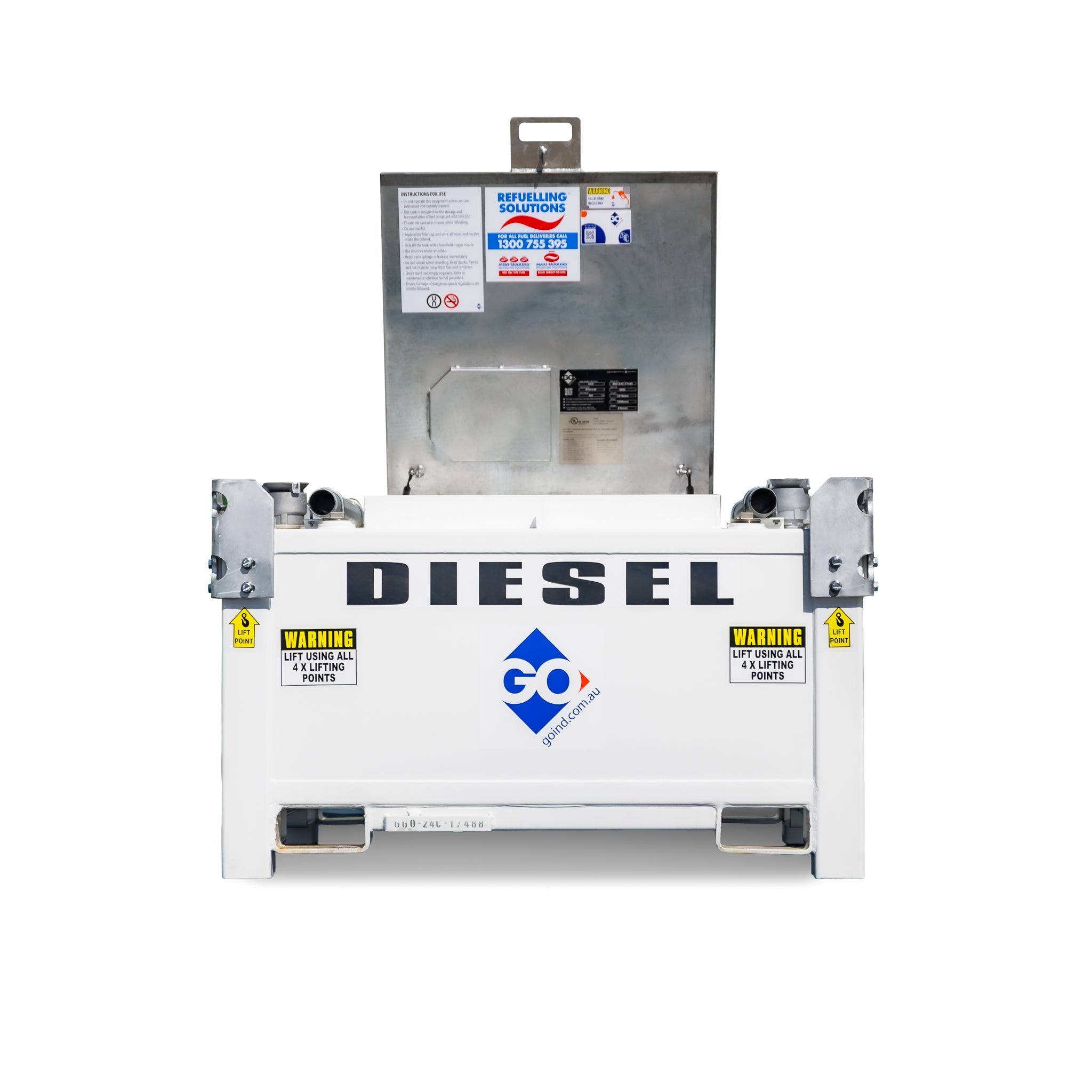

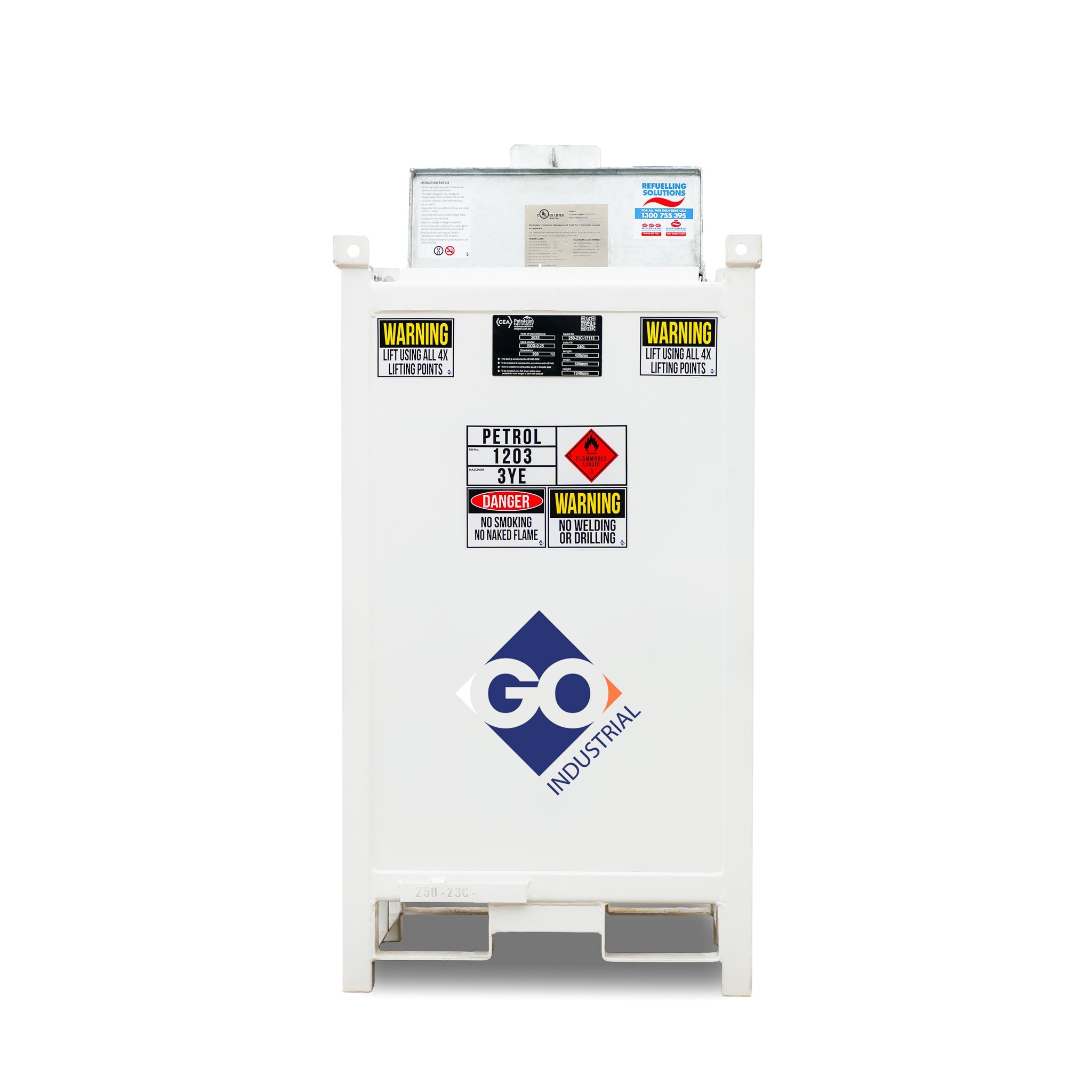

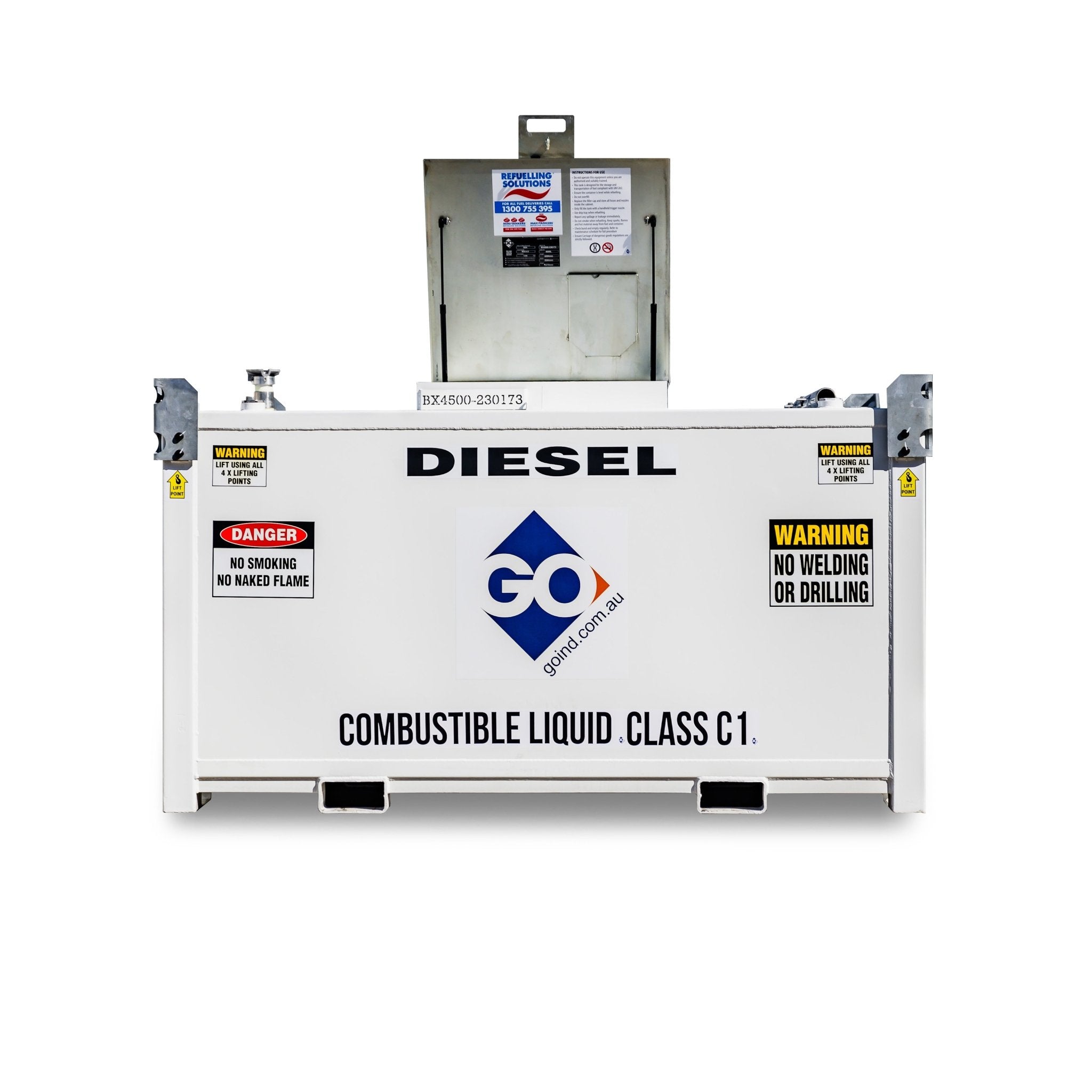

GO Box Self Bunded Tanks

Safe storage and dispensing of diesel, petrol, kerosene, lubricants and waste oil. 250L to 11,000L capacity range.
SKU: BOX-0.25
Sale price$2,950.00

Tax excluded. Shipping calculated at checkout

All prices are in AUD and exclude GST.
GST (10%) is calculated at checkout. Tax invoices provided with all orders.

Pickup available at GO Fill - 59-61 Kabi Cct, Deception Bay, QLD, 4508

Usually ready in 4 hours

GO Box Self Bunded Tanks - GO Fill

GO Box Self Bunded Tanks

250L

GO Fill - 59-61 Kabi Cct, Deception Bay, QLD, 4508

Pickup available, Usually ready in 4 hours

59-61 Kabi Cct
Deception Bay QLD 4508
Australia

Re-stocking soon
Capacity: 250L
Bare Tank - No Pump Included. This is a base storage tank ready for your configuration. Request a custom build →
Request Custom Quote
BARE TANK
Australian owned & operated
Direct from manufacturer
Freight quoted separately - nationwide delivery
ABN invoicing & purchase orders accepted
Ordering 3+ units? Talk to our projects team for volume pricing.Get volume pricing →
Performance
Pressure Test 35 kPa
Pressure Test
35 kPa
Construction
Construction Double-walled mild steel, 4mm Q235B plate
Finish AS N14 white marine-grade epoxy
Construction
Double-walled mild steel, 4mm Q235B plate
Finish
AS N14 white marine-grade epoxy
Compliance
Warranty 2 years
Warranty
2 years
Tank Specifications
Capacity Range 250L - 11,000L (11 models)
Bund Capacity 110% of inner tank
Fill Point 50 mm (2") splash fill only
Suction Points 1 x 25 mm + 2 x 13 mm spears
Return Points 3 x 40 mm (1-1/2")
Crane Lifting 4 x certified lugs (up to BOX-6.6)
Plate Thickness 4 mm / 4 mm Q235B steel
Breather 2" hot-dip galvanised pipe
Lifting Hardware Hot-dip galvanised lugs
Cover / Hatch Hot-dip galvanised, lockable
Interstitial Space Monitored via 2" dip point
Capacity Range
250L - 11,000L (11 models)
Bund Capacity
110% of inner tank
Fill Point
50 mm (2") splash fill only
Suction Points
1 x 25 mm + 2 x 13 mm spears
Return Points
3 x 40 mm (1-1/2")
Crane Lifting
4 x certified lugs (up to BOX-6.6)
Plate Thickness
4 mm / 4 mm Q235B steel
Breather
2" hot-dip galvanised pipe
Lifting Hardware
Hot-dip galvanised lugs
Cover / Hatch
Hot-dip galvanised, lockable
Interstitial Space
Monitored via 2" dip point
Compliance & Certifications
AS1940:2017 Storage and handling of flammable and combustible liquids
AS1692 Steel tanks for flammable and combustible liquids
AS1170 Structural design actions
AS4100 Steel structures
AS/NZS1554.1 Structural steel welding
UN3A/Y Dangerous goods transport (BOX-0.25 to BOX-3.3)
International UL142 / ULC/S601 / BS799 / PP02
Transport Approval UN3A/Y (BOX-0.25 to BOX-3.3)
AS1940:2017
Storage and handling of flammable and combustible liquids
AS1692
Steel tanks for flammable and combustible liquids
AS1170
Structural design actions
AS4100
Steel structures
AS/NZS1554.1
Structural steel welding
UN3A/Y
Dangerous goods transport (BOX-0.25 to BOX-3.3)
International
UL142 / ULC/S601 / BS799 / PP02
Transport Approval
UN3A/Y (BOX-0.25 to BOX-3.3)
110% Bund Containment
Certified Crane Lifting
4-Way Forklift Pockets
Lockable Under-Hatch
UN3A/Y Transport Approved
Generator-Ready Connections
Not sure which tank is right for you? Compare Tank Ranges
CONFIGURE YOUR TANK

Your Tank. Your Configuration.

The GO BOX is supplied as a base storage unit, ready to be configured with pumping, metering, and dispensing equipment to suit your operation. Select your tank size, then add your preferred pump kit, filter, meter, and nozzle.

Request Custom Configuration Browse Tank Packages
Construction Sites
Mining Operations
Transport & Fleet Depots
Generator Supply
Agriculture
Fuel Storage Depots
ENGINEERED FOR THE WORKSITE

Key Features

Every GO BOX is designed to keep your operation running safely, compliantly, and without compromise.

110% Bund Containment

Double-walled steel construction with outer tank holding the full inner volume plus 10%. Keeps your site clean and compliant with AS1940.

Certified Crane & Forklift Handling

4 x engineered crane lifting lugs rated for full-load lifts (up to BOX-6.6). Integrated 4-way forklift pockets. Stackable 3-high empty, 2-high full.

UN3A/Y Transport Approved

Models BOX-0.25 to BOX-3.3 are UN3A/Y certified for road, rail and sea transport - Packaging Groups II and III. Move fuel legally between sites.

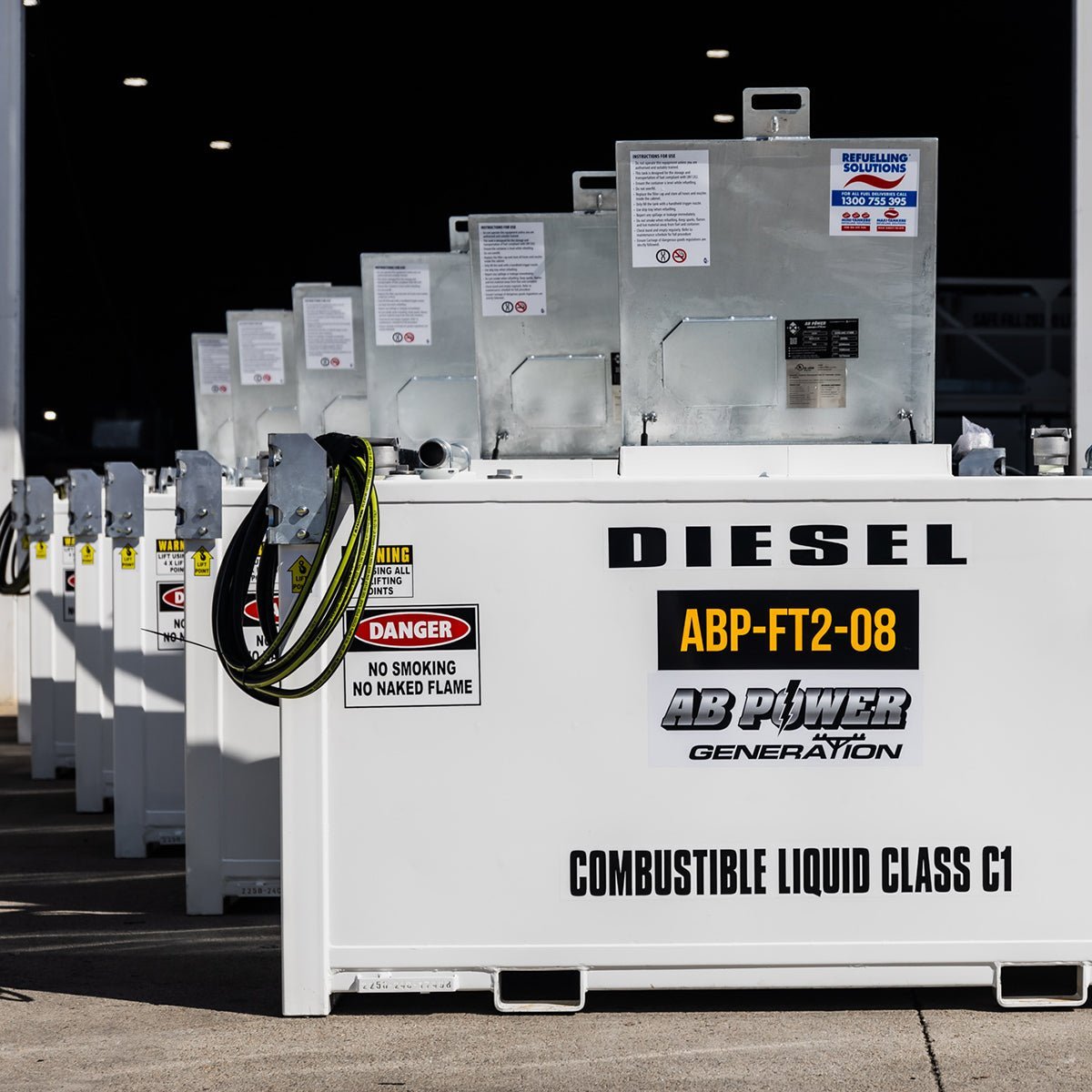

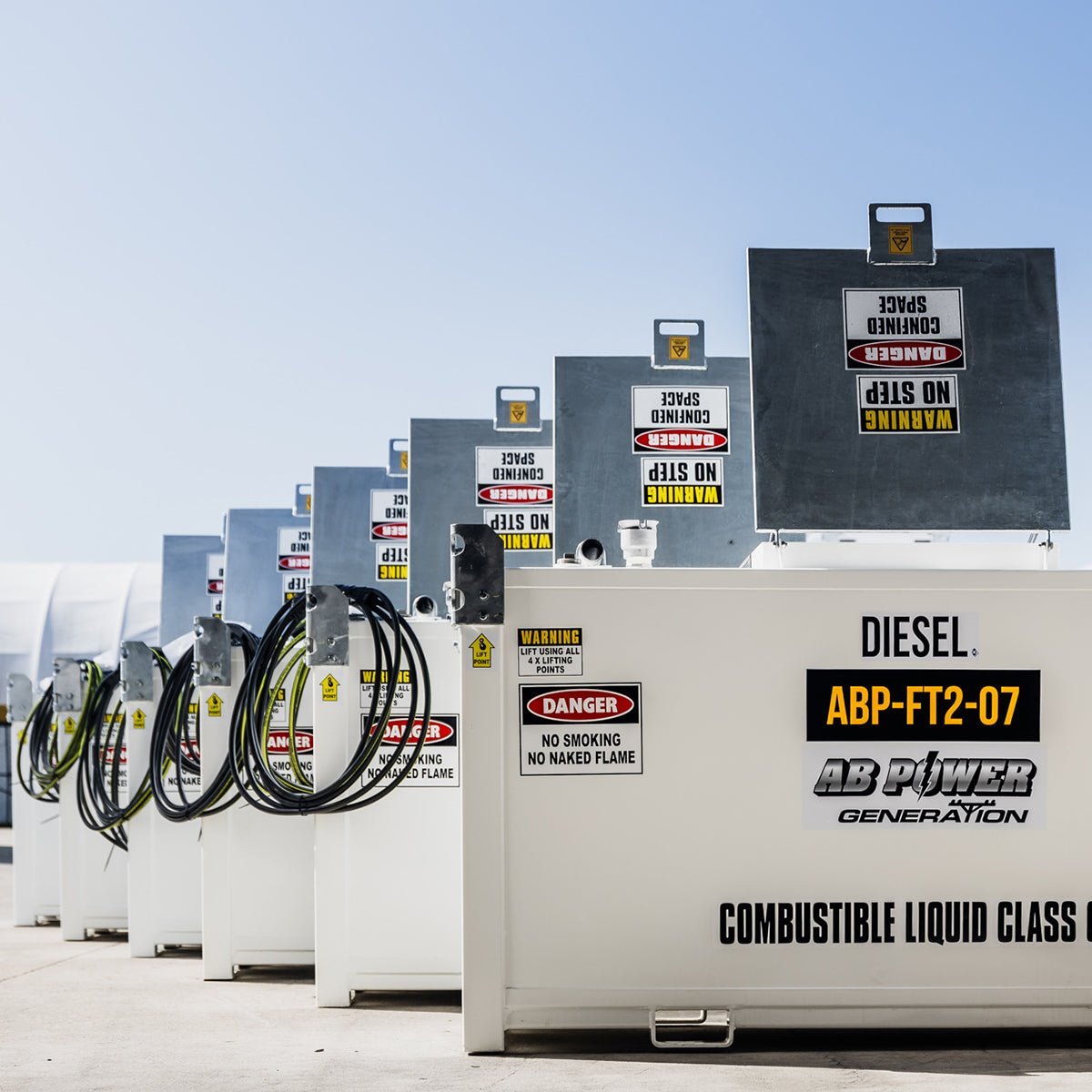

Generator-Ready Connections

Under-hatch suction and return points configured for up to 3 generators simultaneously. Lockable lid means connections stay secure.

Multi-Fluid Compatible

Store diesel, petrol, kerosene, lubricants, or waste oil. Marine-grade epoxy internal finish resists corrosion across all compatible fluids.

11 Sizes, One Design

From 250L portable units to 11,000L bulk storage. Same proven double-walled construction, same AS1940 compliance, across the full range.

STANDARD INCLUSIONS

What's Included

Every GO BOX ships with these standard fittings and accessories. No hidden extras.

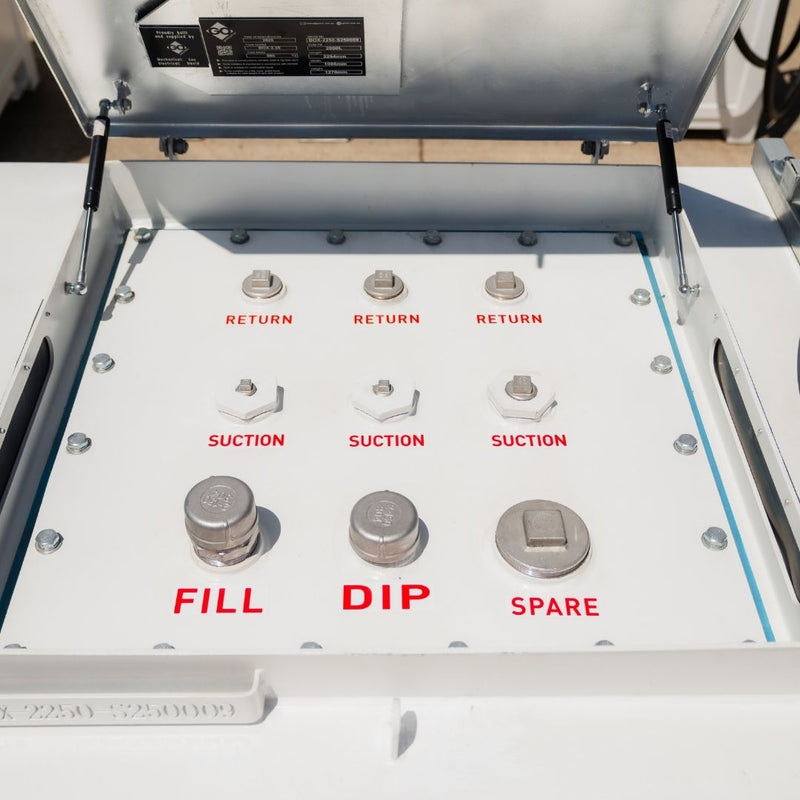

GO Box Self Bunded Tanks — standard inclusions
Suction Spears - 1 x 25 mm (1") primary suction spear plus 2 x 13 mm (1/2") secondary spears. Under-hatch mounted with foot valves for reliable fuel draw.
Return Points x3 - 3 x 40 mm (1-1/2") return sockets under the hatch. Configured for up to 3 generator return lines running simultaneously.
Calibrated Dipstick - Anodised aluminium dipstick calibrated to each tank capacity. Accurate fuel level reading via the dedicated dip point on the hatch.
Forklift Pockets + Crane Lugs - 4-way integrated forklift pockets on every model. Engineered crane lifting lugs at each corner, rated for full-load lifts up to BOX-6.6.
Spare Sockets - 1 x 80 mm (3") spare socket plus 4 x 50 mm (2") sockets on top of tank. Ready for hose entry, overflow alarms or tank gauges.
Statutory Signage + Finish - Full AS1940/AS1692 compliant decal set including product labels, warning signage, fill/dip/suction markers. Painted AS N14 white marine specification.
BEFORE YOU ORDER

Site & Installation Requirements

Ensure your site is ready before your GO BOX arrives. Most installations are straightforward - here's what you'll need.

Level HardstandConcrete pad, compacted gravel, or engineered surface rated for the full-load weight of your chosen model.
Spill ContainmentWhile the GO BOX has 110% bund containment, AS1940 may require additional bunding depending on your site classification.
Fire SeparationMaintain required separation distances from buildings, boundaries, and ignition sources as per AS1940.
Access for DeliveryEnsure crane or forklift access for offloading. BOX-0.25 to BOX-3.3 can be transported on a standard truck.
Electrical SupplyIf using a 240V pump kit, a licensed electrician must install a weatherproof power point within reach of the pump.
Signage & ComplianceStatutory signage is included. Your site may require additional placarding depending on stored volume and fluid type.
Not sure if your site is suitable? Our team can review your site plan and advise on requirements — no obligation.
Request a free site assessment →
GO Box Self Bunded Tanks — installation
All installations must comply with AS1940 storage and handling requirements

Compare

Compare similar products

Viewing GO Box Self Bunded Tanks
GO Box Self Bunded Tanks $2,950.00
GO Containerised Self Bunded Tank
GO Containerised Self Bunded Tank $25,900.00
GO Store Self Bunded Tanks
GO Store Self Bunded Tanks $12,400.00
Pressure Test

35 kPa

—

—

Construction

Double-walled mild steel, 4mm Q235B plate

—

Double-walled mild steel (Q235B)

Finish

AS N14 white marine-grade epoxy

—

RAL9003 Hempel marine 3-stage

Warranty

2 years

—

2 years

Capacity Range

250L - 11,000L (11 models)

—

5,500L – 16,000L (3 models)

Bund Capacity

110% of inner tank

—

110% of inner tank

Fill Point

50 mm (2") splash fill only

—

DN50 (2") camlock with OPV

Suction Points

1 x 25 mm + 2 x 13 mm spears

—

—
Resources

Downloads & Documentation

Everything you need for procurement, compliance and installation planning.

PDF

Product Data Sheet

PDF · 0.4 MB Download →
PDF

Operations Manual

PDF · 3 MB Download →
DWG

GA Drawing

250L Download →
PDF

Capability Statement

PDF · 1.5 MB Download →
As Seen on Site With

Frequently Asked Questions

Can't find your answer?

Contact Us
What fluids can the GO BOX store?

The GO BOX is compatible with diesel, petrol (gasoline), kerosene, lubricants, and waste oil. The marine-grade epoxy internal finish resists corrosion across all these fluid types.

Does the GO BOX come with a pump?

No - the GO BOX is supplied as a base storage tank. This lets you choose the exact pump, filter, meter, and nozzle configuration for your operation. We offer compatible pump kits from 12V DC through to 240V AC, plus manual hand pumps.

Can the GO BOX be transported between sites?

Yes. Models BOX-0.25 to BOX-3.3 are UN3A/Y certified for road, rail, and sea transport (Packaging Groups II and III). Larger models can be moved when empty via crane or truck.

What site preparation is needed?

A level hardstand rated for the full-load weight. AS1940 separation distances must be maintained. The 110% bund containment is built-in, but additional site bunding may be required depending on your classification.

How do I check the fuel level?

Every GO BOX includes a calibrated anodised aluminium dipstick specific to your tank capacity. Optional electronic tank gauges are also available.

Is the GO BOX stackable?

Yes - all models are stackable: 3-high when empty, 2-high when full. Ideal for tight laydown areas and transport staging.

What warranty does the GO BOX have?

All GO BOX tanks come with a 2-year manufacturer warranty covering structural integrity and workmanship.

What compliance standards does it meet?

AS1940, AS1692, AS1170, AS4100, AS/NZS1554.1. Transport-rated models also meet UN3A/Y requirements.

GO On site team
Service & Support

Keep Your Equipment Running

GO Fill offers scheduled maintenance programs covering pump servicing, filter replacement, meter calibration, and tank inspections. Our qualified technicians service your equipment on-site, keeping your operation compliant and running smoothly.
