GO Containerised Self Bunded Tank
Tax excluded. Shipping calculated at checkout
GST (10%) is calculated at checkout. Tax invoices provided with all orders.

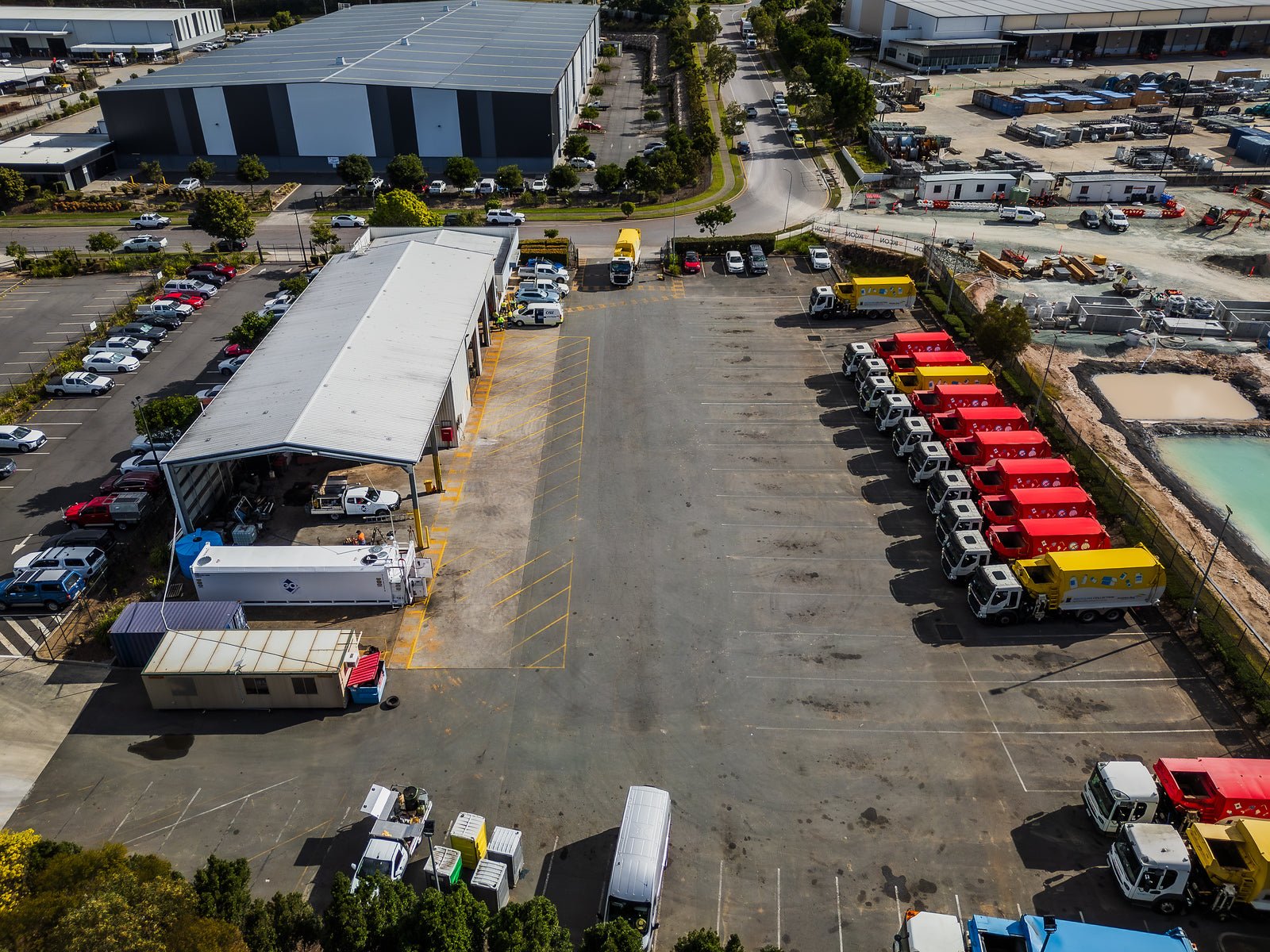

Pickup available at GO Fill - 59-61 Kabi Cct, Deception Bay, QLD, 4508
Usually ready in 4 hours
GO Containerised Self Bunded Tank
12,000L Capacity
GO Fill - 59-61 Kabi Cct, Deception Bay, QLD, 4508
59-61 Kabi Cct
Deception Bay QLD 4508
Australia

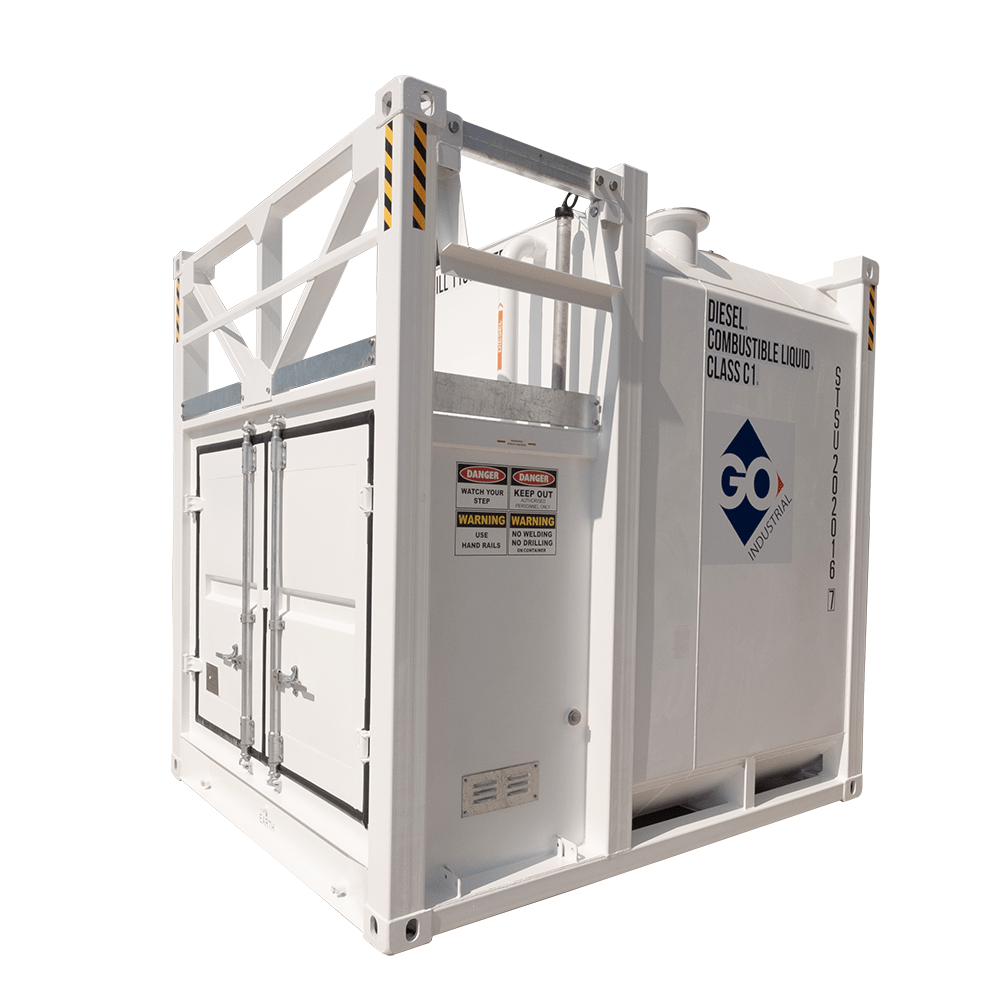

KEY FEATURES

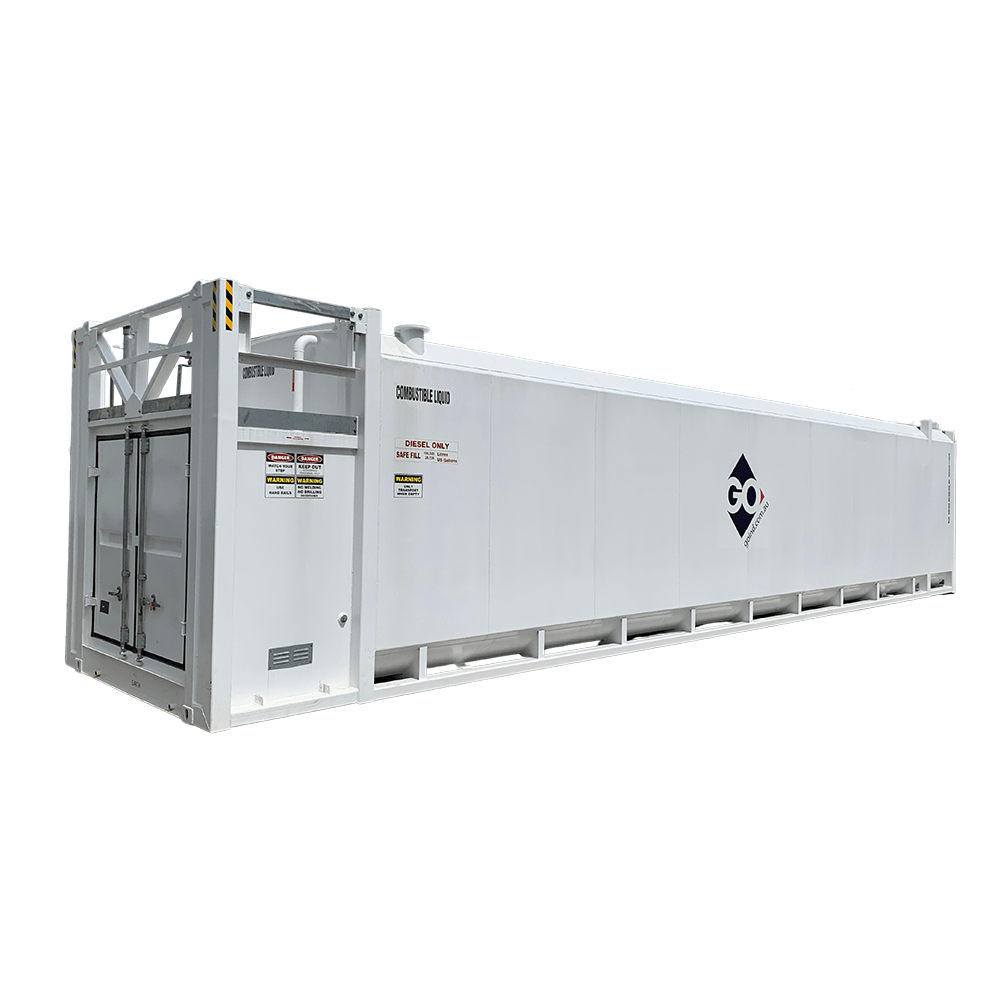

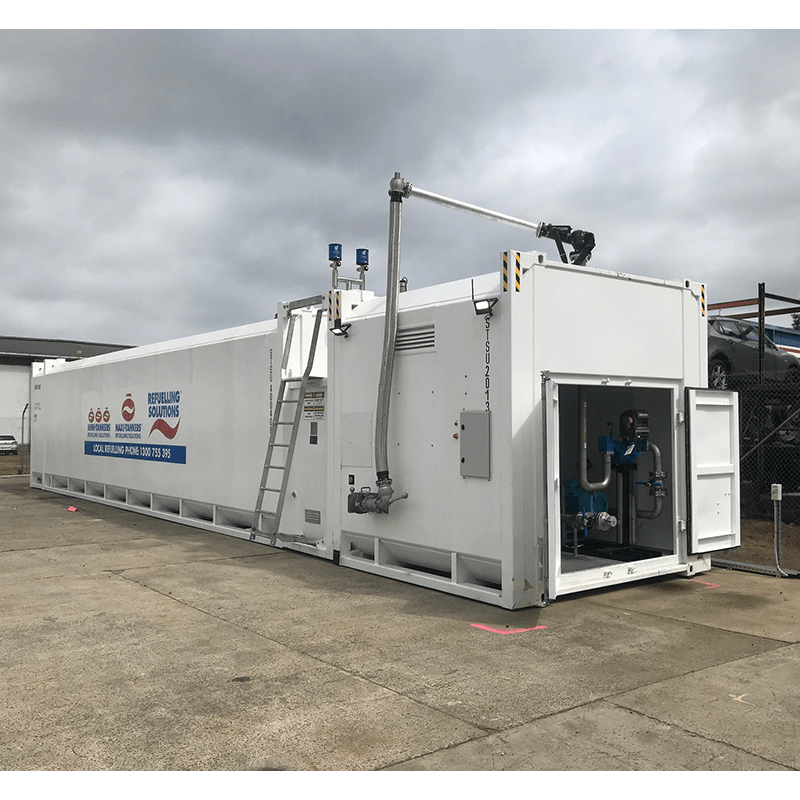

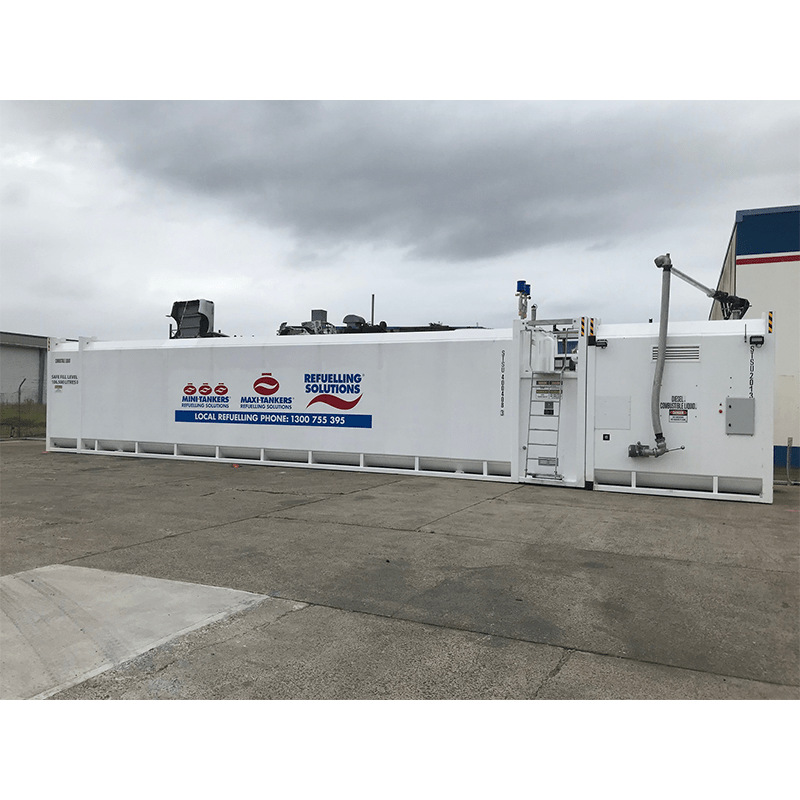

The GO CON is a containerised self bunded tank built for permanent, high-capacity fuel storage. Standard container dimensions mean transport by flat-top or side-loader with no oversize permits. Once on site, the tank is ready for pump installation and commissioning.

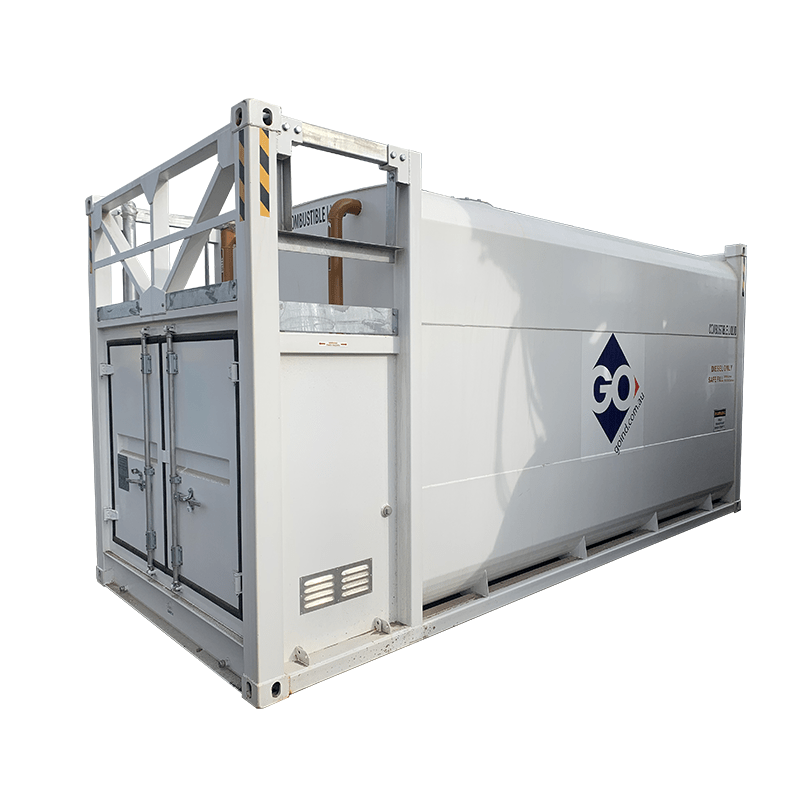

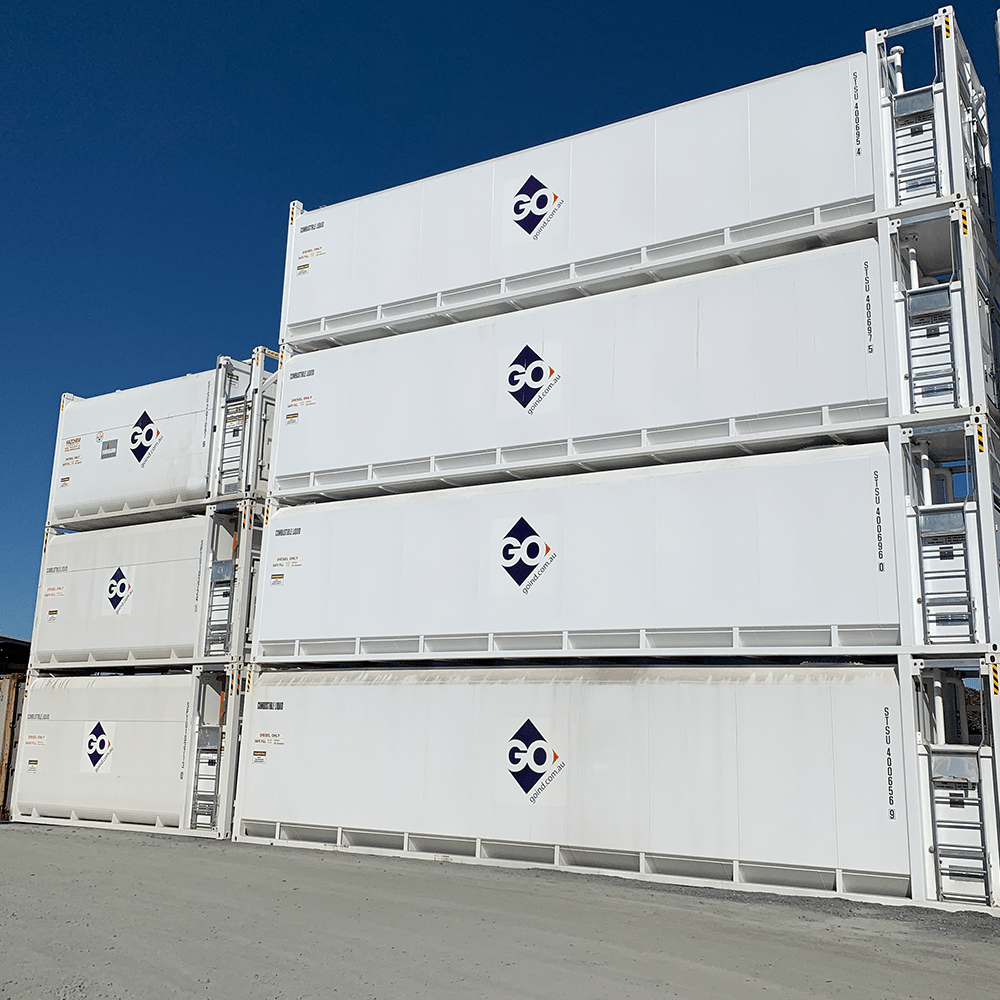

Every GO CON is CSC plated to 10ft, 20ft, 40ft or 48ft standard container dimensions. Ship by flat-top truck, side-loader or rail without oversize permits. Crane onto your pad and connect.
Fill and suction lines fitted with DN80 150# fire-safe cast steel ball valves with 316 stainless steel ball and stem, PTFE seats. Designed to maintain seal integrity during a fire event.
High-level alarm certified to ATEX and IECEx standards. 9V battery powered with audible warning to the tanker driver. Works alongside the DN80 mechanical overfill prevention valve.

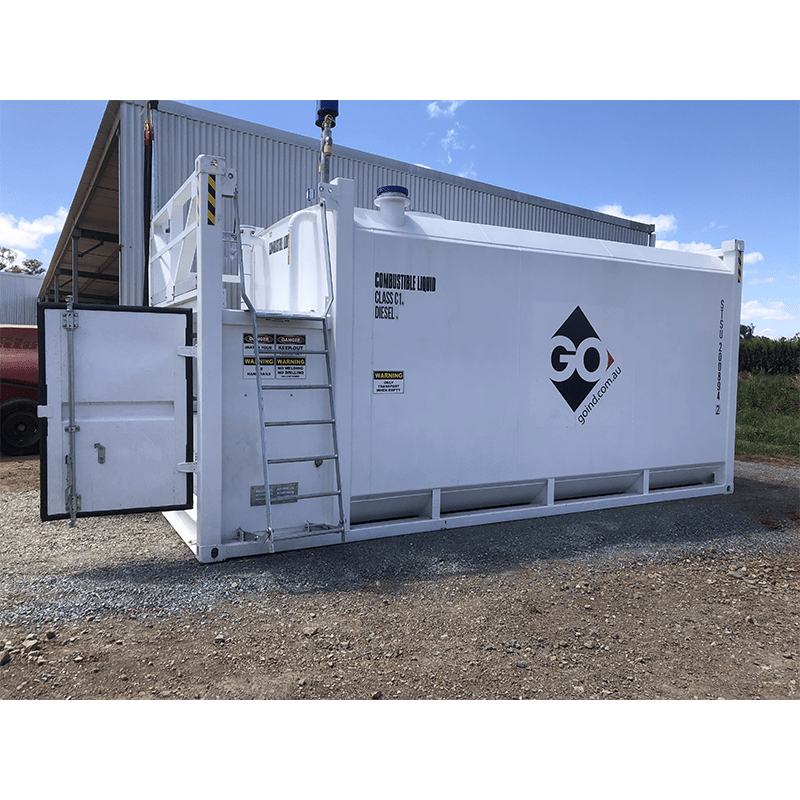

Fold-out dipping platform with reversible ladder and gateway safety barrier. Provides safe access to manways, dip points and vent connections for inspection and maintenance.
Two 600mm diameter manways with internal ladders provide safe entry for inspection, cleaning and confined space access. Located for optimal reach to all internal areas of the tank.
Removable linking plates allow multiple GO CON units to be connected into a shared fuel farm with common suction and return lines. Scale your storage capacity as demand grows without replacing infrastructure.
WHAT'S INCLUDED
Every GO CON ships with these standard fittings and safety equipment. Pump bay housing and access platform are standard - you choose the dispensing configuration.
SITE & INSTALLATION REQUIREMENTS
The GO CON requires crane delivery and placement. Proper site preparation is critical for tanks of this scale.

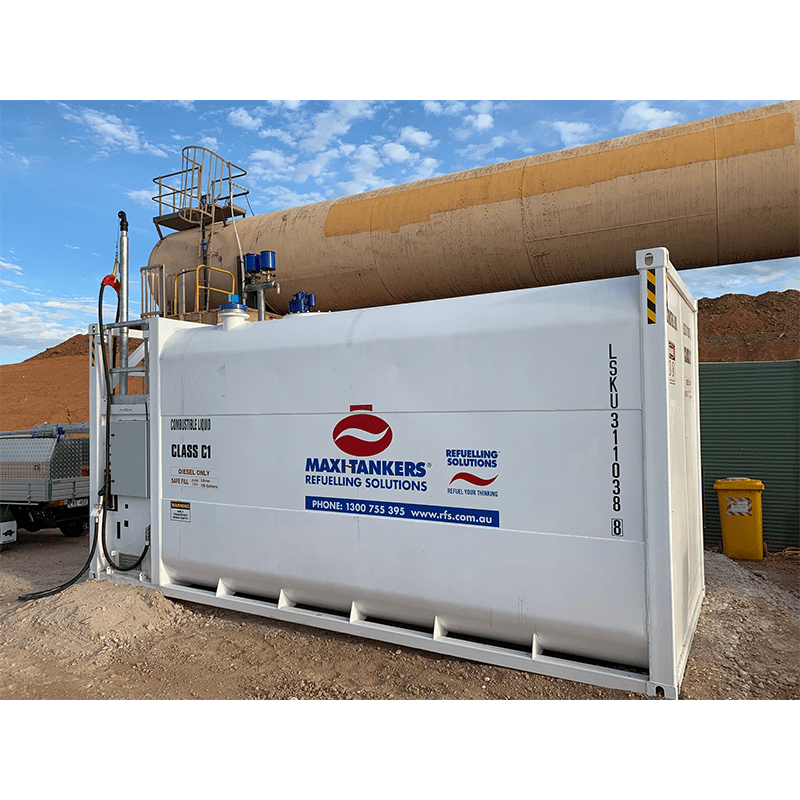

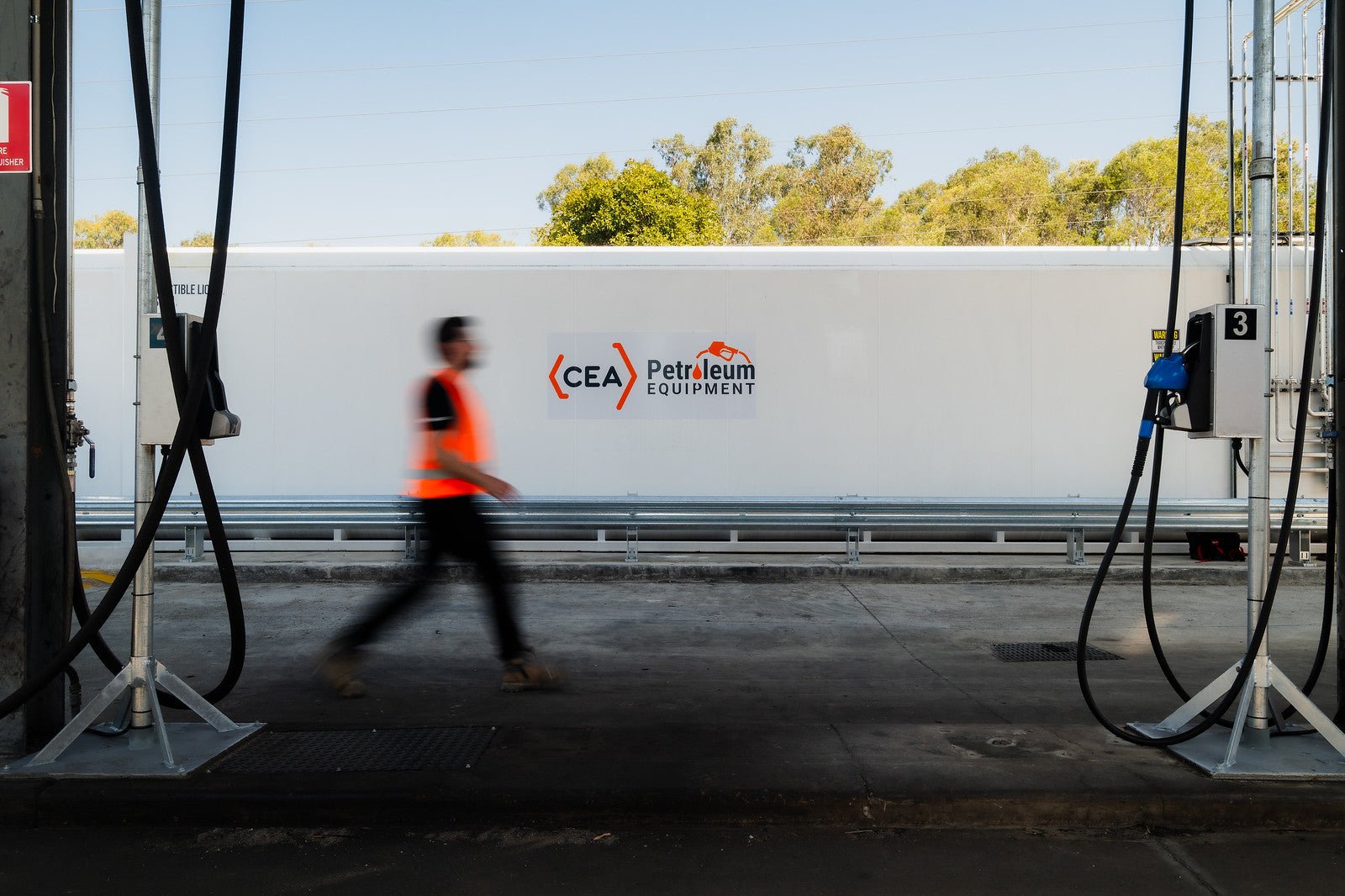

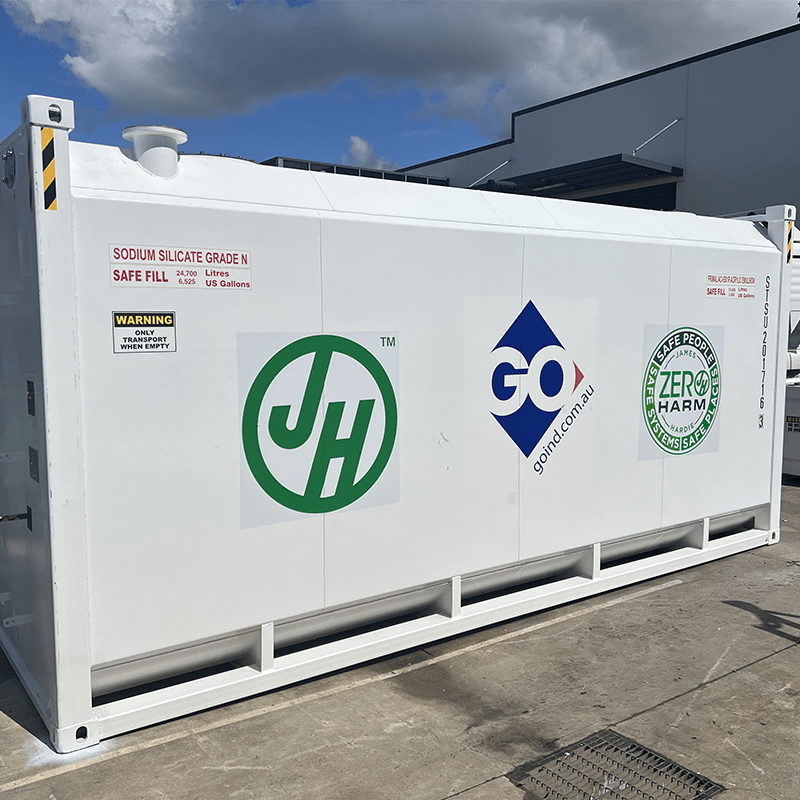

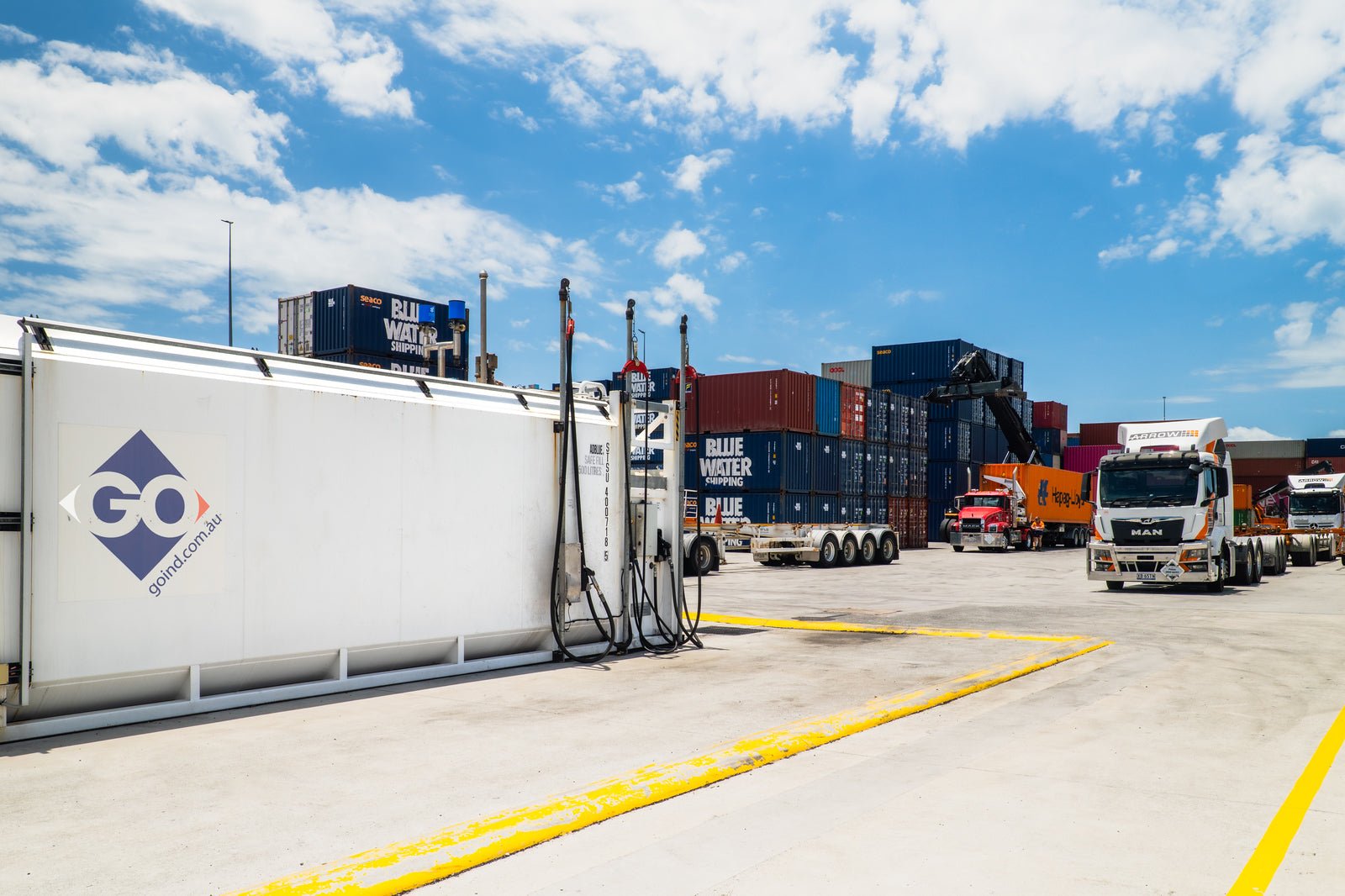

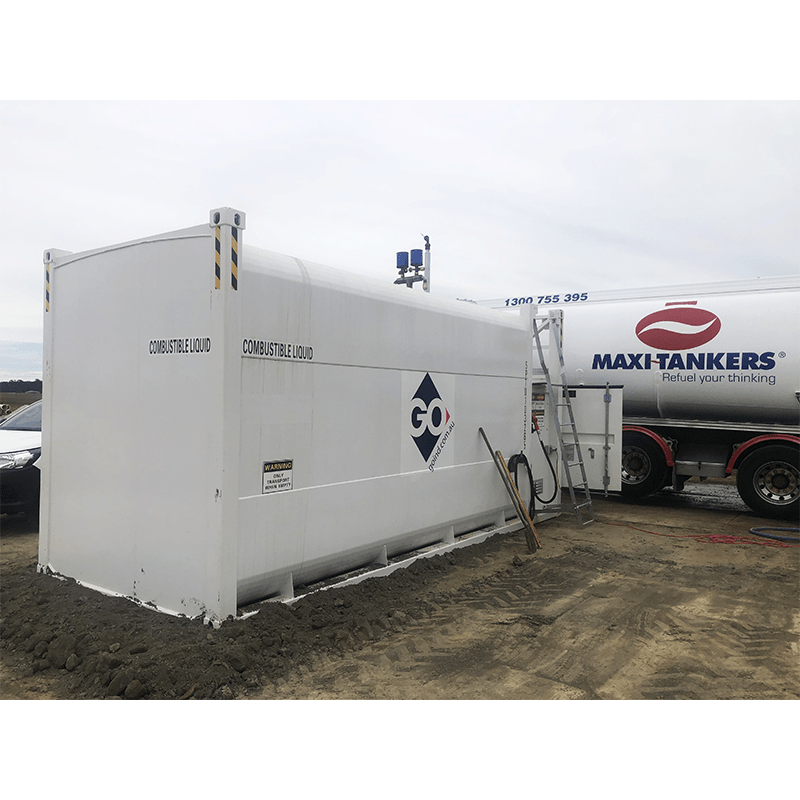

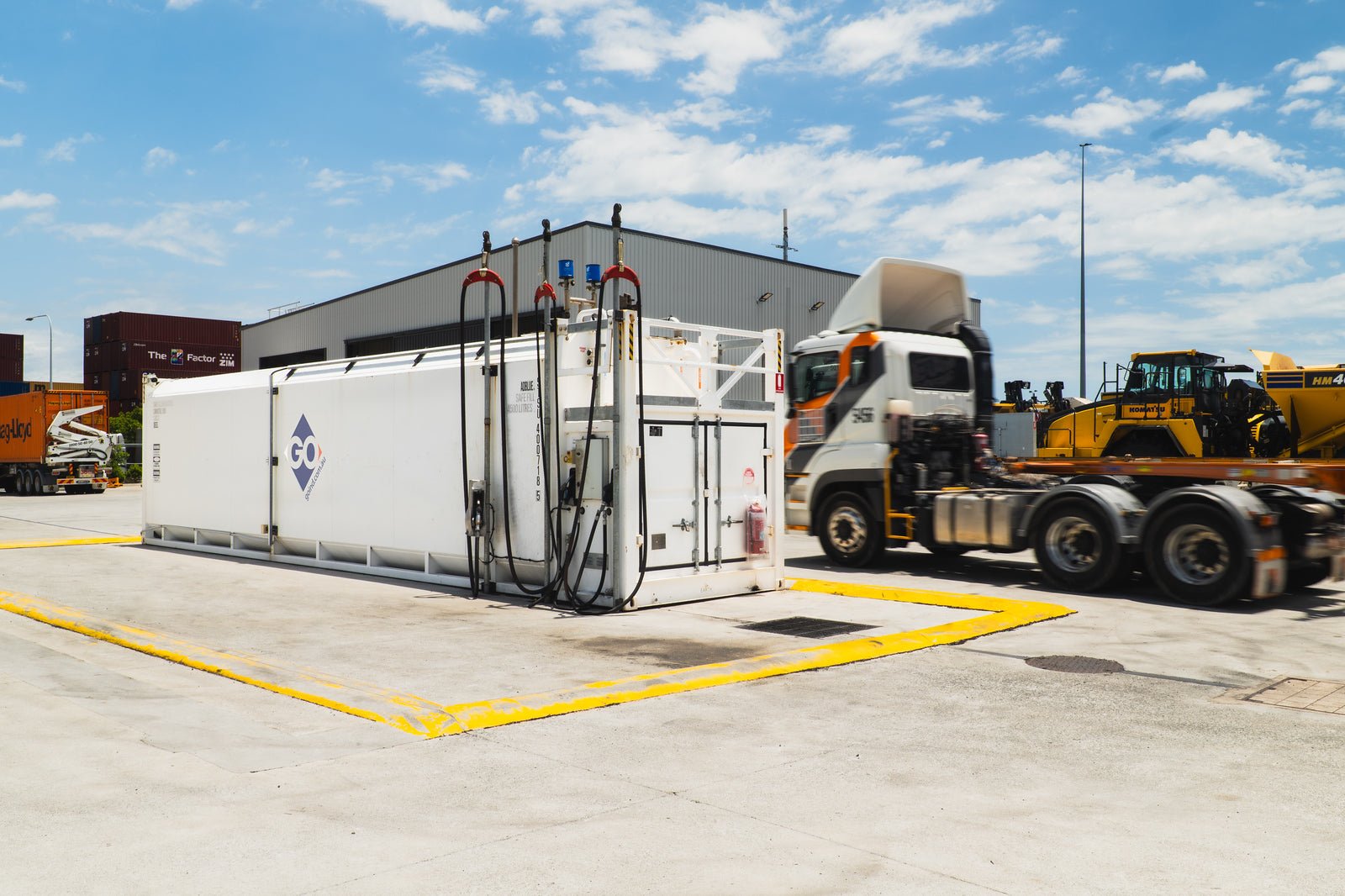

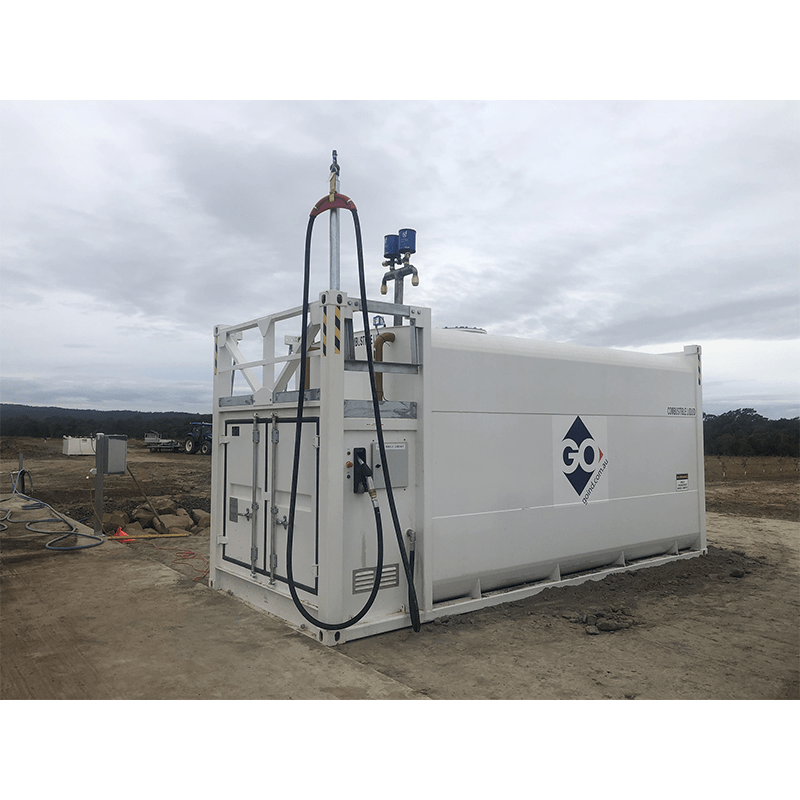

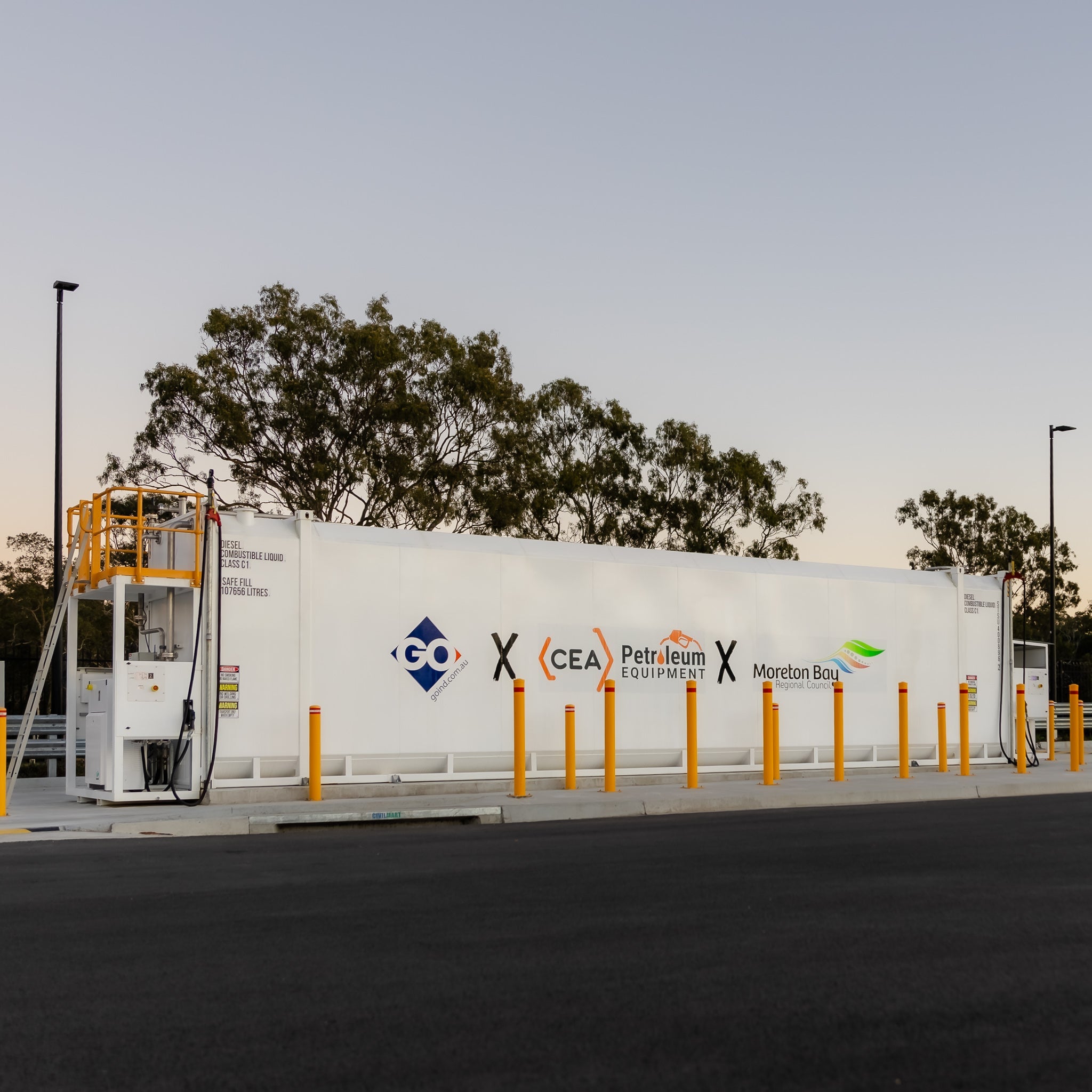

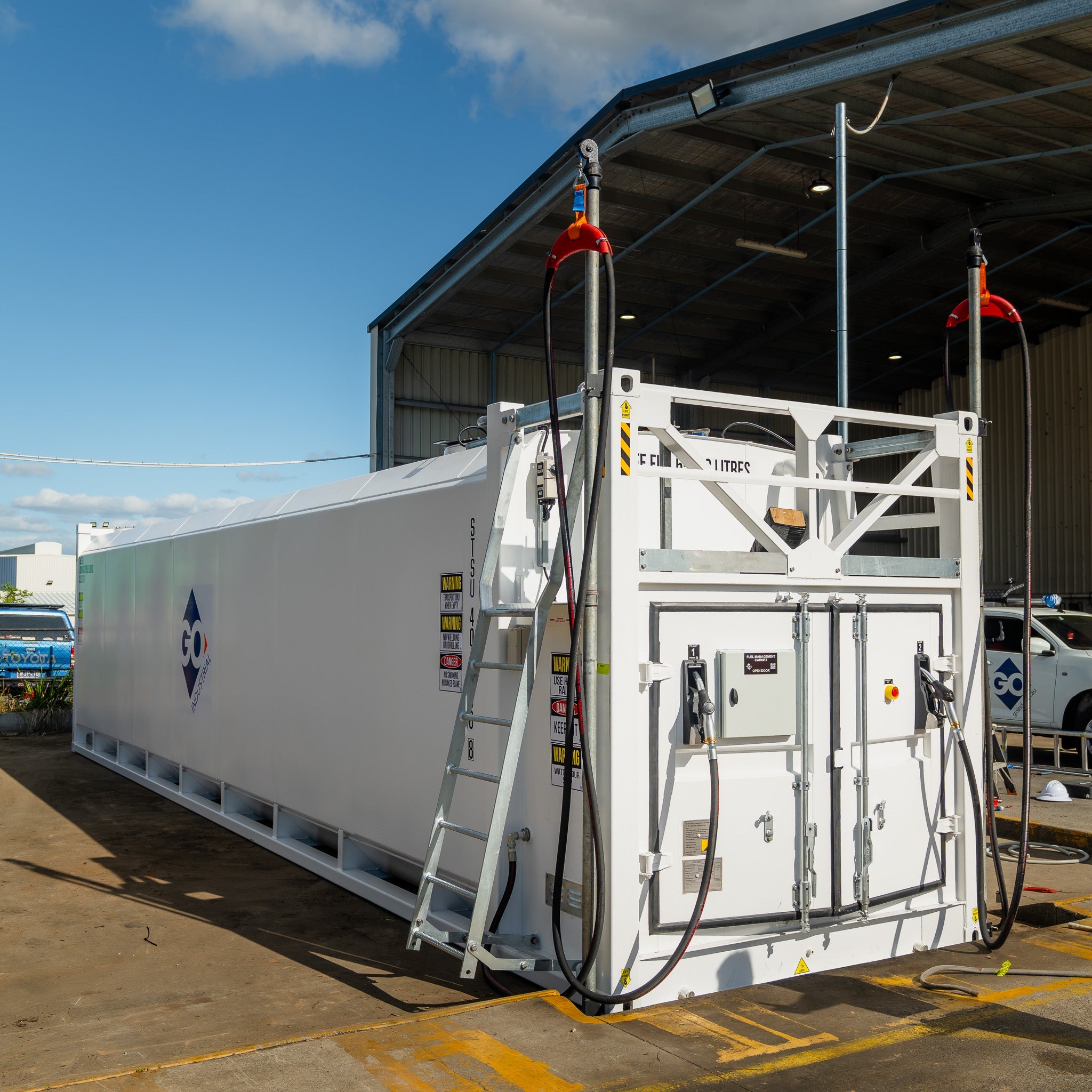

See It on Site
Real installations across construction, mining, fleet, and remote operations.
Downloads & Documentation
Everything you need for procurement, compliance and installation planning.
Frequently Asked Questions
Can't find your answer?
Contact UsWhat does "CSC plated" mean?
CSC stands for Convention for Safe Containers. A CSC plate certifies that the container meets international standards for structural integrity and safe handling. It means your GO CON can be transported by flat-top truck, side-loader, rail or ship using standard container handling equipment - no oversize permits required.
Can I link multiple GO CON tanks together?
Yes. Removable linking plates are included as standard. You can connect multiple GO CON units into a shared fuel farm with common suction and return lines. This lets you scale storage capacity as your operation grows without replacing infrastructure.

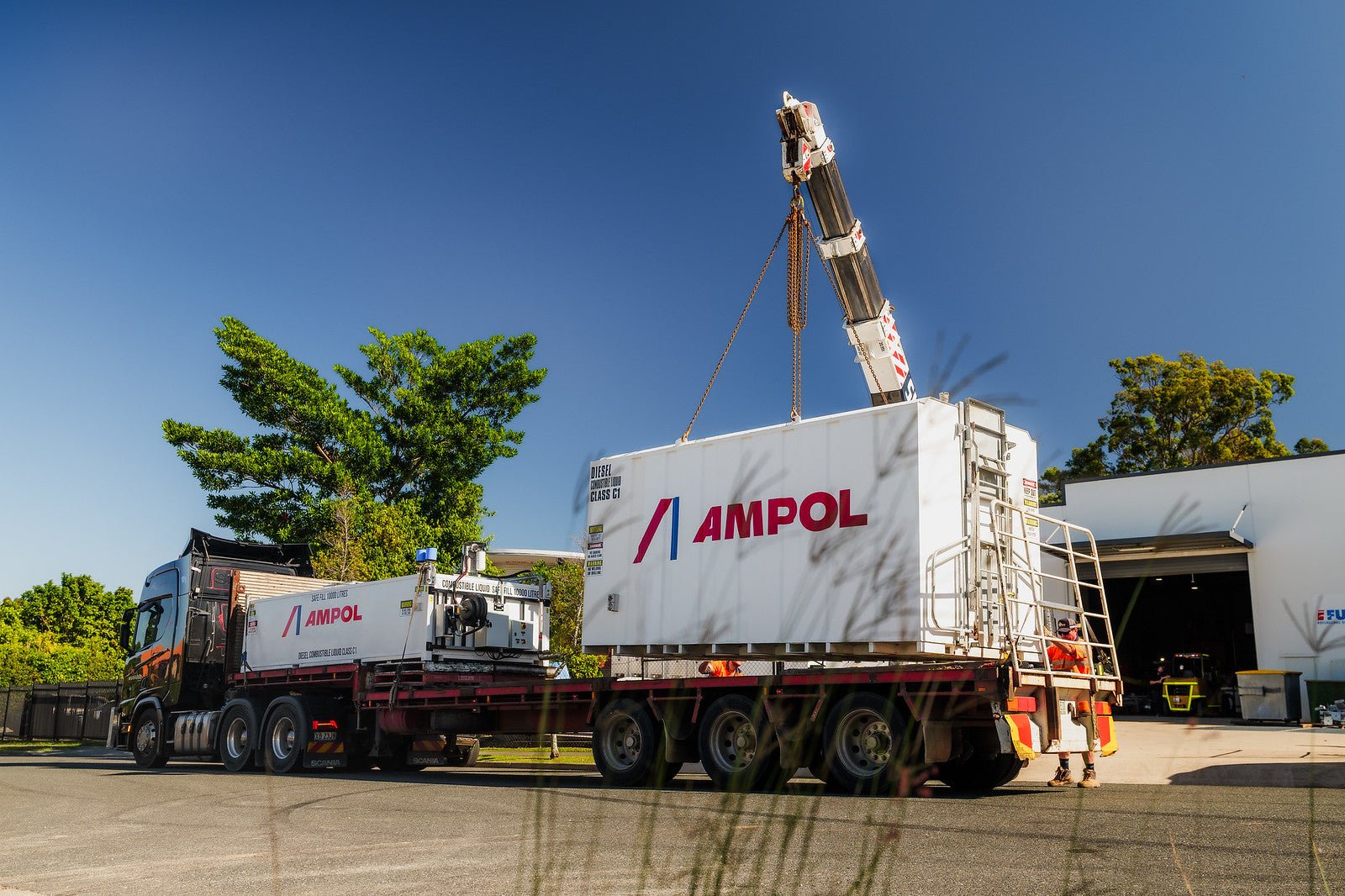

What crane capacity do I need for delivery?
It depends on the model. A CON-12 (empty) weighs approximately 4,200 kg. A CON-110 (empty) weighs approximately 19,500 kg. You need a crane with sufficient capacity at the required radius. We can provide lifting plans and weights on request.
Does the GO CON come with a pump?

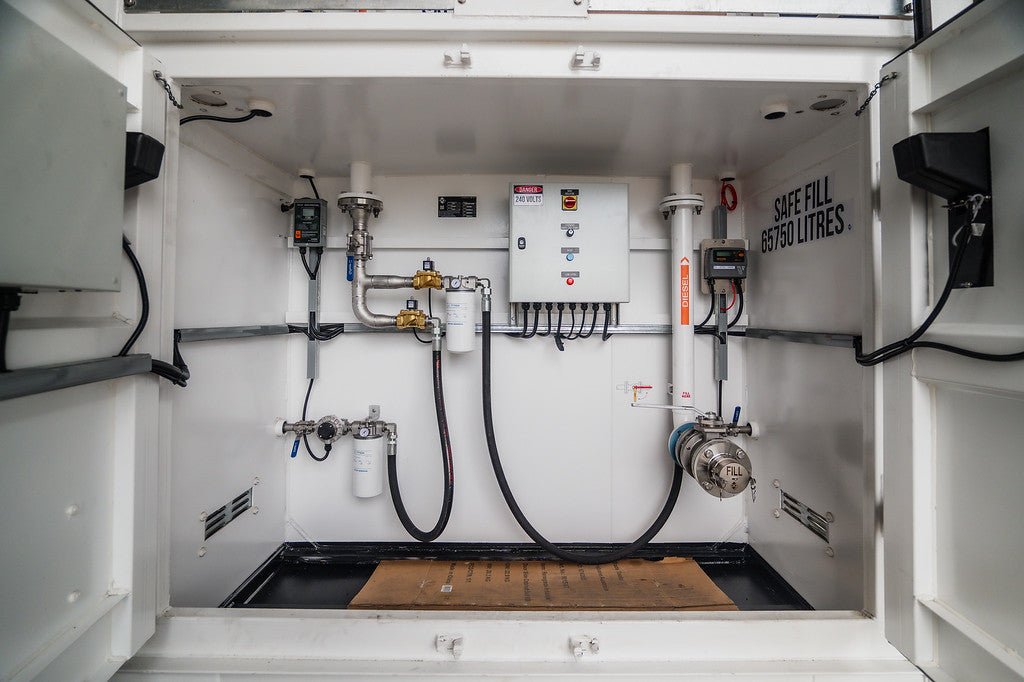

No. The GO CON ships with an integrated pump bay and container doors, but the dispensing kit is sold separately. This lets you choose the right pump, meter, filtration and control system for your operation. We offer packages from simple 100 LPM transfer pumps to full NMI-approved bowser setups.
What are the fire-safe valves for?
The DN80 fire-safe ball valves are designed to maintain a seal during a fire event. The 316 stainless steel ball and stem with PTFE seats ensure the valve doesn't fail and release fuel if exposed to extreme heat. This is a critical safety feature for large-volume fuel storage.
Can the GO CON store petrol?
Yes. The GO CON is rated for diesel, petrol, kerosene, lubricants, waste oil and AdBlue. Petrol storage requires explosion-proof dispensing equipment and additional safety measures per AS1940. We can specify the correct configuration for your fluid type.
What about split-compartment tanks for diesel and AdBlue?
We offer the GO CON-AB, a purpose-built split-compartment containerised tank with independent diesel and AdBlue circuits in a single 40ft container. Contact our team for details and pricing.
What maintenance is required?
Regular maintenance includes monthly interstitial space checks, quarterly overfill alarm testing, 6-monthly anti-syphon valve inspection, annual compliance inspection, and access platform structural checks. We offer scheduled service plans - contact us for details.
