Piusi|F00208A10

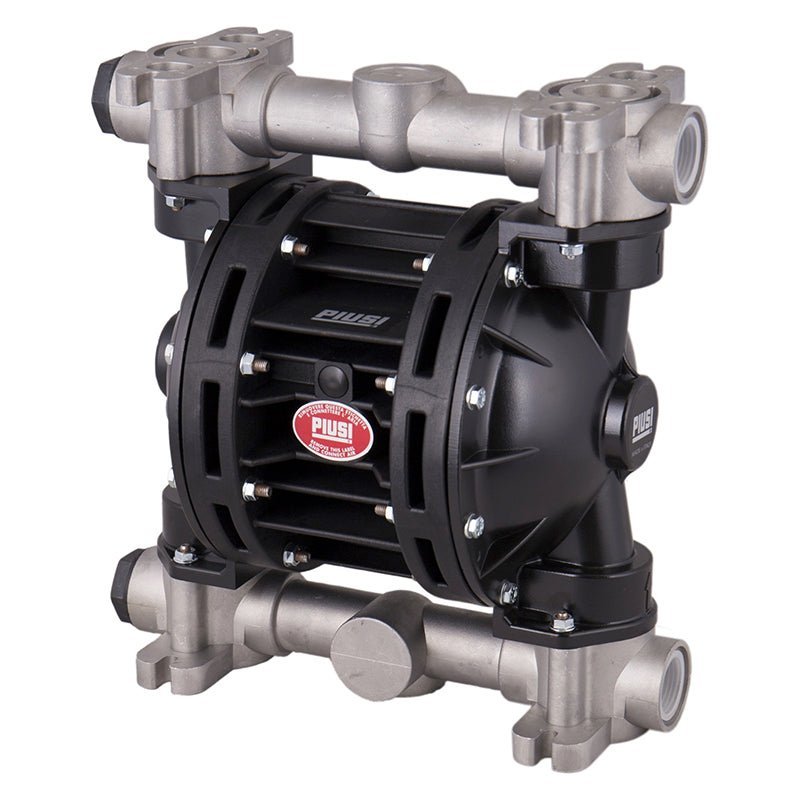

PIUSI MA 180 Air-Operated Diaphragm Pump for Oil F00208A10
Tax excluded. Shipping calculated at checkout
GST (10%) is calculated at checkout. Tax invoices provided with all orders.
Contact for live availability
Our inventory signal hasn't refreshed today. We update twice daily but the latest reading is stale.
Email sales@goind.com.au or call 07 3204 2240 for live availability.
Ships from Brisbane warehouse. Standard delivery 2-5 business days Australia-wide.
150 L/MIN PNEUMATIC TRANSFER FOR OILS AND DIESEL
Pneumatic diaphragm pump delivering 150 L/min through DN25 (1 inch) ports. Built for transferring oils and waste fluids in workshop and industrial settings.
Air-driven, spark-free
Pneumatic operation means no electric motor and no ignition risk when you're pumping diesel or volatile fluids. Plug into your workshop air line and you're transferring. Sites with existing compressed air infrastructure get a fast, intrinsically safe pump without new electrical runs or hazardous-area wiring.
Waste oil capable
The diaphragm design handles contaminated fluids that would choke a vane or gear pump. Workshop waste oil collection, hydraulic tank draining, sump service - the MA180 moves it without complaint. NBR seals are rated for petroleum products across the board.
Features & Benefits
Key Features
- In/Out Interchangeable
- Long Life Diaphragm
- Built-in Diffuser
- Suitable for Immersed Installations
- Heavy Duty
- Study Design
| Flow Rate | 150 L/min |
| Weight | 31.1 kg |
| Material | NBR |
| Ports | DN25 (1 inch) |
| Air | driven - requires workshop compressor (typically 6-8 bar) |
| Suitable For | new and waste oil transfer |
| Self | priming - handles suction lift from drums and tanks |
| Deadhead Safe | can run against closed valve without damage |
| NBR Seals | compatible with petroleum oils and diesel |
Shipping & Dimensions
Ships from Brisbane warehouse. Standard delivery 2-5 business days.
Downloads
Compare
Compare Similar Products
150 L/min
—
—
31.1 kg
—
—
NBR
—
—
DN25 (1 inch)
—
—
driven - requires workshop compressor (typically 6-8 bar)
—
—
new and waste oil transfer
—
—
priming - handles suction lift from drums and tanks
—
—
can run against closed valve without damage
—
—
compatible with petroleum oils and diesel
—
—
Frequently Asked Questions
Can't find your answer?
Contact UsWhat is the Piusi MA180 diaphragm pump?
It's a pneumatic pump that moves diesel and oils at 150 L/min using compressed air instead of electric power. Designed for workshop and industrial bulk transfer where spark-free operation matters.
What air pressure does it need?
Typically 6-8 bar from a workshop compressor. Check your site air supply can deliver adequate CFM for the pump at your desired flow rate.
Can it handle waste oil or just clean fluids?
It's rated for both new and waste oil. The NBR seals tolerate petroleum products and the diaphragm design handles contaminated fluids better than most rotary pumps.
What's the port size?
DN25, which is 1 inch nominal. You'll need matching hose and fittings to suit your tanks and drums.
What warranty and support comes with it?
12-month warranty on manufacturing defects. Diaphragms and seals are wear items. For technical advice or parts availability, contact sales@goind.com.au or 07 3204 2240.
