Graco|24G590

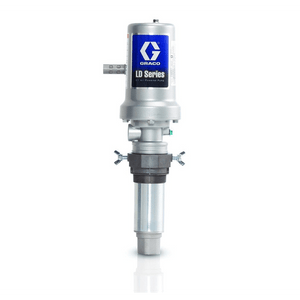

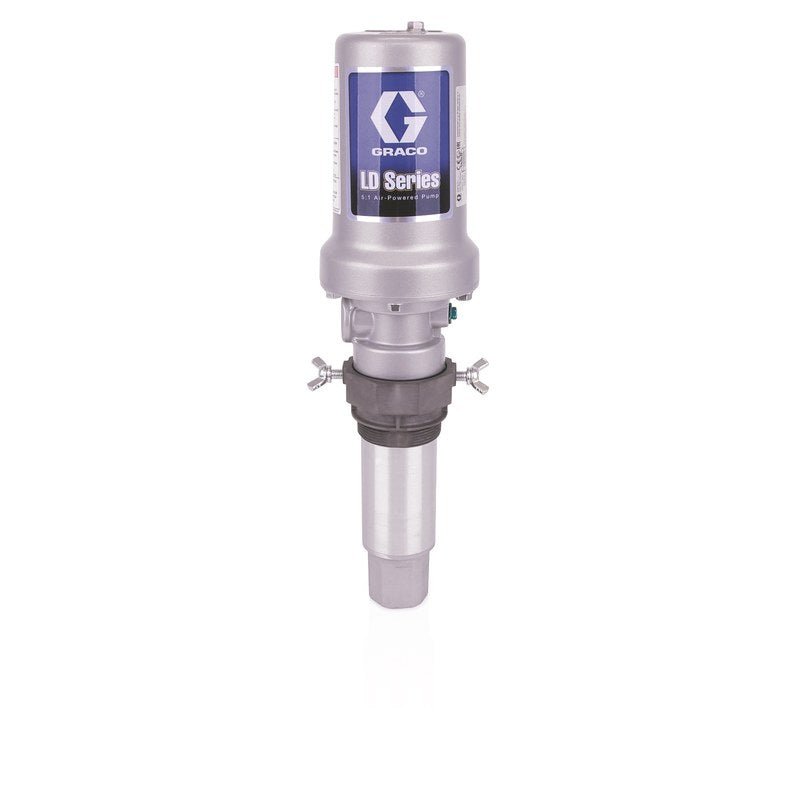

GRACO LD Pump 5:1 Oil Pumps
Tax excluded. Shipping calculated at checkout
GST (10%) is calculated at checkout. Tax invoices provided with all orders.
Contact for live availability
Our inventory signal hasn't refreshed today. We update twice daily but the latest reading is stale.
Email sales@goind.com.au or call 07 3204 2240 for live availability.
Ships from Brisbane warehouse. Standard delivery 2-5 business days Australia-wide.
25 L/MIN OIL TRANSFER WITHOUT RUNNING POWER LEADS
5:1 air-driven piston pump pushing 25 L/min through oil and lubricants. Workhorse kit for drum transfers and lubrication systems where you already run compressed air.
Air-driven simplicity
Plug into your air line and you are pumping. No electrical compliance, no extension leads across the floor, no tripped breakers. The 5:1 ratio gives steady flow without needing high air pressure, and the piston design handles the viscosity swings in typical workshop oils without choking.
Who this suits
This is a workhorse drum pump for sites that already run compressed air and need a no-fuss way to empty 205 L drums into day tanks or service rigs. It is not the fastest pump on the market and it is not built for continuous high-volume duty. It does the bread-and-butter job of getting oil out of a drum reliably, shift after shift, without asking much in return.
Features & Benefits
Key Features
- 5:1 air piston drive
- Flow rate 25 L/min
- Suitable for oil and light lubricants
- No electric supply needed
- Drum mount configuration
- Weight 5.1 kg
Benefits
- Use existing shop air, no electrical permits or outlets
- Faster drum changeovers than hand pumping
- Light enough to move between bays
- Keeps running in wet or dirty workshops
| Maximum Air Inlet Pressure (bar) | 10.34 |
| Maximum Air Inlet Pressure (psi) | 150 |
| Max Working Pressure | 51.7 |
| Air Inlet Size | 1/4 |
| Fluid Outlet Size | 12.7 |
| Fluid Inlet Size (mm) | 25.4 |
| Fluid Inlet Size (in) | 1 |
| Air Inlet Size (mm) | 6.35 |
Shipping & Dimensions
Ships from Brisbane warehouse. Standard delivery 2-5 business days.
Downloads
Compare
Compare Similar Products
10.34
—
—
150
—
—
51.7
—
—
1/4
—
—
12.7
—
—
25.4
—
—
1
—
—
6.35
—
—
Compatible Products
Frequently Asked Questions
Can't find your answer?
Contact UsWhat is the Graco 5:1 air piston pump?
Pneumatic pump that uses compressed air to move oil and light lubricants from drums at 25 L/min. Mounts on standard drums, no electricity needed.
What air pressure does it need?
Designed for typical workshop air supply. Check your compressor output matches the inlet requirement before ordering.
Will it handle heavier greases?
This unit is rated for oil and light lubricants. Heavier greases or high-viscosity fluids may need a different ratio pump. Contact sales@goind.com.au for grease pump options.
What is the warranty and how do I get support?
12-month warranty on manufacturing defects. Seals and packings are wear items. For warranty claims or technical help, email sales@goind.com.au or call 07 3204 2240.
