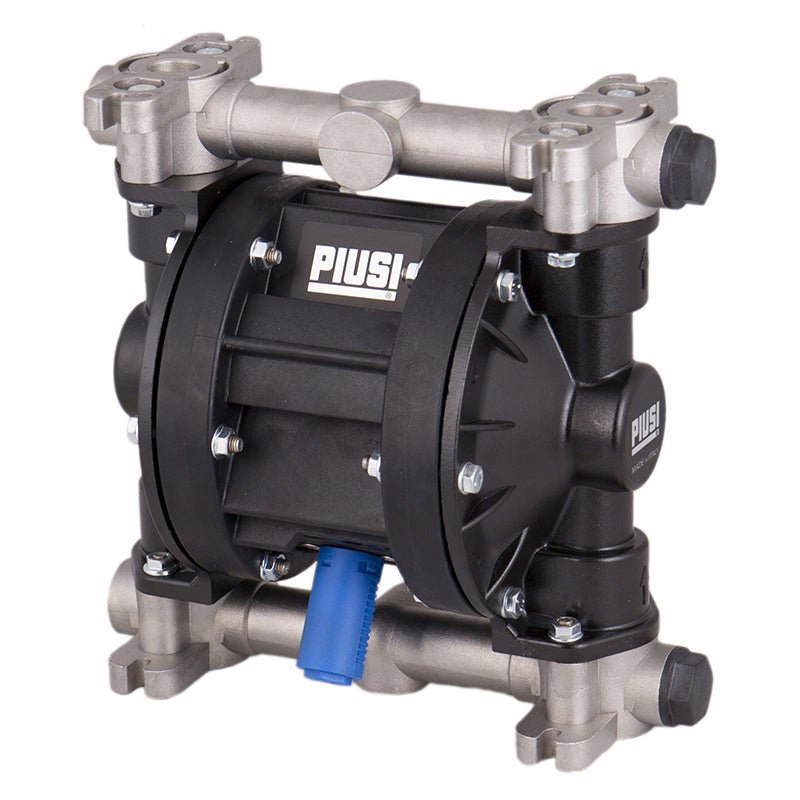

PIUSI MA 130 Air-Operated Diaphragm Pump for Oil F00208A00
Tax excluded. Shipping calculated at checkout
GST (10%) is calculated at checkout. Tax invoices provided with all orders.
Contact for live availability
Our inventory signal hasn't refreshed today. We update twice daily but the latest reading is stale.
Email sales@goind.com.au or call 07 3204 2240 for live availability.
Ships from Brisbane warehouse. Standard delivery 2-5 business days Australia-wide.
50 L/MIN AIR PUMP FOR OILS WHERE SPARK RISK MATTERS
Premium 50 L/min air-operated diaphragm pump for clean or waste oils, 1/2 BSP ports. Safe for hazardous areas, self-priming to 3 metres dry.
Why air-driven
Electric pumps spark. In a confined workshop with flammable vapour, that's a risk you don't take. Air diaphragm pumps eliminate ignition sources entirely. You can pump diesel, waste oil, or hydraulic fluid in close quarters without permits or exclusion zones. Plug in your shop air line and run.
Self-priming, no prep
Drop the suction hose into a drum, open the air valve, and it lifts. No foot valve. No hand-priming. Handles 3 metres of dry suction without fuss. When the drum empties mid-transfer, the pump just cycles air until you refill or shut it off. Won't seize, won't burn out.
Features & Benefits
Key Features
- In/Out Interchangeable
- Long Life Diaphragm
- Built-in Diffuser
- Suitable for Immersed Installations
- Heavy Duty
- Study Design
| Flow Rate | 50 L/min at typical shop air pressure |
| Connection | DN15 (1/2 BSP) inlet and outlet |
| Weight | 5.5 kg |
| Material | NBR |
| Self | priming - handles dry starts, lifts from drums and sumps |
| Air | operated - no electric motor, intrinsically safe design |
| Run | dry safe - won't seize or overheat if the tank empties mid-transfer |
| Reversible Operation | swap air ports to reverse flow for tank purging |
| Field Serviceable | diaphragm and valve kits available for rebuild |
| Diaphragm Seals | NBR construction for petroleum products |
Shipping & Dimensions
Ships from Brisbane warehouse. Standard delivery 2-5 business days.
Downloads
Compare
Compare Similar Products
50 L/min at typical shop air pressure
—
—
DN15 (1/2 BSP) inlet and outlet
—
—
5.5 kg
—
—
NBR
—
—
priming - handles dry starts, lifts from drums and sumps
—
—
operated - no electric motor, intrinsically safe design
—
—
dry safe - won't seize or overheat if the tank empties mid-transfer
—
—
swap air ports to reverse flow for tank purging
—
—
diaphragm and valve kits available for rebuild
—
—
NBR construction for petroleum products
—
—
Frequently Asked Questions
Can't find your answer?
Contact UsWhat is the Piusi air diaphragm pump?
A 50 L/min air-driven pump with 1/2 BSP ports, designed for clean and waste oils. No electric motor, self-priming, safe for flammable liquids.
What air pressure does it need?
Typical shop air supply at 6-8 bar will deliver rated flow. Lower pressure reduces output proportionally. Check your compressor capacity for continuous duty.
Can it handle dirty or contaminated oil?
Yes. Diaphragm design tolerates debris and sludge better than vane or gear pumps. Strain large solids upstream to protect the valves.
Will it run dry without damage?
Yes. Air diaphragm pumps are run-dry safe. The pump will stall or cycle empty without seizing. Resume flow when liquid returns.
What warranty and support apply?
12-month warranty covers manufacturing defects. Diaphragm and valve rebuild kits available. Contact sales@goind.com.au or 07 3204 2240 for service parts or technical advice.
