GPI|165100-06
METER GPI M30-L8B 3 Digit Mechanical 25mm FF 9-114lpm Litre Display 165100-06
Tax excluded. Shipping calculated at checkout
GST (10%) is calculated at checkout. Tax invoices provided with all orders.
Contact for live availability
Our inventory signal hasn't refreshed today. We update twice daily but the latest reading is stale.
Email sales@goind.com.au or call 07 3204 2240 for live availability.
Ships from Brisbane warehouse. Standard delivery 2-5 business days Australia-wide.
MECHANICAL FUEL TRACKING FOR DIESEL AND PETROL AT A FAIR PRICE
Mechanical fuel meter for diesel and petrol. 9-114 L/min flow range, 1 inch BSP female inlet, non-resettable totaliser. Aluminium body, UL certified.
What it does
The GPI M30-L8B tracks fuel volume dispensed. 3-digit litre display shows each delivery. Non-resettable totaliser logs cumulative volume over the meter's life. Flow range 9-114 L/min suits most workshop and site diesel or petrol setups. Mechanical operation means no batteries, no wiring, no power interruptions.
Build and fittings
Aluminium body, 5 kg total weight. DN25 (1 inch) BSP female inlet fits standard Australian fuel hose and pipe fittings. UL certified. Diesel and petrol compatible. Designed for continuous duty in workshop pump stations, portable fuel trailers, and farm refuelling rigs.
Features & Benefits
Key Features
- Easily attaches to the G20 and V25 fuel transfer pumps, litre register.

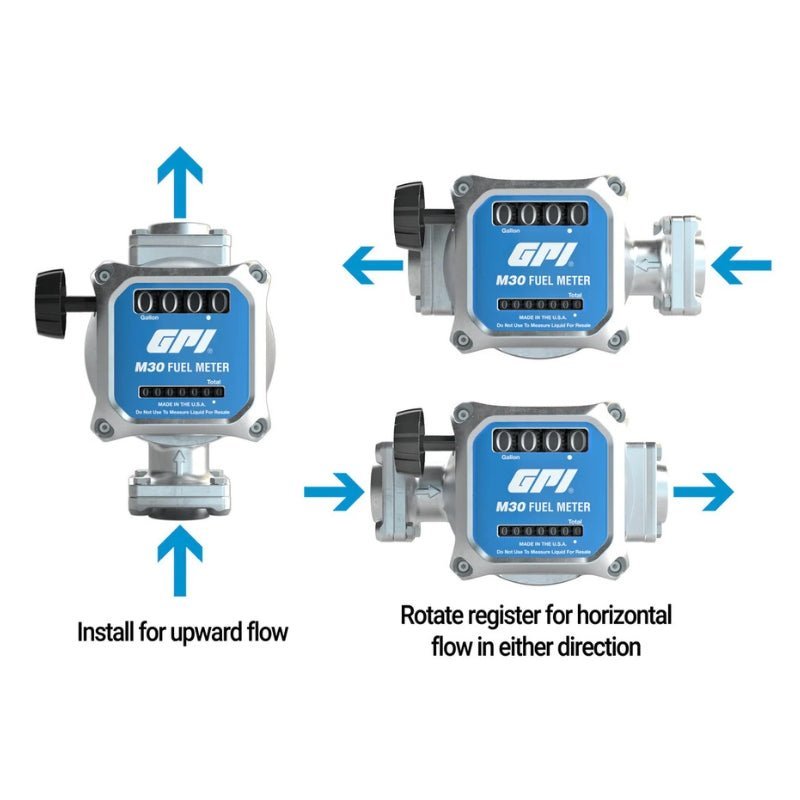

- Features simple four-bolt connections that allow the meter to be mounted in multiple directions
- Unsurpassed accuracy. Within a +/-2% accuracy across a flow range from 9 to 114 L/min
- Durable aluminum housing; magnetic drive replaces the driveshaft and seal, eliminating driveshaft leaks
- Twist knob reset; batch total and cumulative total display
| Accuracy | ± 2.0% of reading (Accuracy is factory calibrated using diesel fuel) |
| Repeatability | ± 0.5% |
| Flow Rate | 19 to 114 L/min |
| Type | Nutating Disc with Magnetic Drive |
| Pressure Rating | 50 PSI (3.4 BAR) |
| Operating Temperature Range | -29°C TO 52°C |
| Meter Housing | Aluminum |
| Wetted Parts | Nutator Assembly: PBT (Polybutylene Terephthalate), Stainless Steel | Seals: NBR (Nitrile Butadiene Rubber) | Mag-Drive: Acetal, Stainless Steel, Neodymium (Nickel Plated) |
Shipping & Dimensions
Ships from Brisbane warehouse. Standard delivery 2-5 business days.
Downloads
Compare
Compare Similar Products
± 2.0% of reading (Accuracy is factory calibrated using diesel fuel)
+/- 1%
+/-1% after calibration
± 0.5%
0.2%
—
19 to 114 L/min
7-120lpm
20-120ltr Per Min
Nutating Disc with Magnetic Drive
—
—
50 PSI (3.4 BAR)
—
—
-29°C TO 52°C
—
—
Aluminum
—
—
Nutator Assembly: PBT (Polybutylene Terephthalate), Stainless Steel | Seals: NBR (Nitrile Butadiene Rubber) | Mag-Drive: Acetal, Stainless Steel, Neodymium (Nickel Plated)
—
—
Frequently Asked Questions
Can't find your answer?
Contact UsWhat is the GPI M30-L8B meter?
A mechanical fuel meter for diesel and petrol. DN25 (1 inch) BSP female connection, 9-114 L/min flow range, non-resettable totaliser. Aluminium body, UL certified. No power required.
What does non-resettable totaliser mean?
The totaliser tracks cumulative litres dispensed over the life of the meter. It cannot be reset to zero. Useful for tracking total fuel moved through the meter for audit or maintenance scheduling.
Can I use this meter with biodiesel blends?
This meter is rated for diesel and petrol. For biodiesel or other fluids, contact sales@goind.com.au or 07 3204 2240 to confirm compatibility with your blend and operating conditions.
What accuracy can I expect?
GPI mechanical meters are workhorse units built for volume tracking, not precision custody transfer. For accuracy specs or if you need certified accuracy, contact sales@goind.com.au or 07 3204 2240.
What warranty and support is included?
12-month manufacturer warranty on defects. Mechanical register components and seals are consumables. For warranty claims or technical support, contact sales@goind.com.au or 07 3204 2240.
