GO Guardian Filtration Kit - Water & Particulate Filtration with Indicators GO-GUARDIAN
Tax excluded. Shipping calculated at checkout
GST (10%) is calculated at checkout. Tax invoices provided with all orders.
Contact for live availability
Our inventory signal hasn't refreshed today. We update twice daily but the latest reading is stale.
Email sales@goind.com.au or call 07 3204 2240 for live availability.
Ships from Brisbane warehouse. Standard delivery 2-5 business days Australia-wide.
DUAL-STAGE FILTRATION AT FLOW RATES THAT KEEP SITES MOVING
High-flow dual-stage filter removes water and particles from diesel and petrol before dispensing. DN32 BSP female, 160 L/min, 16 bar rated.

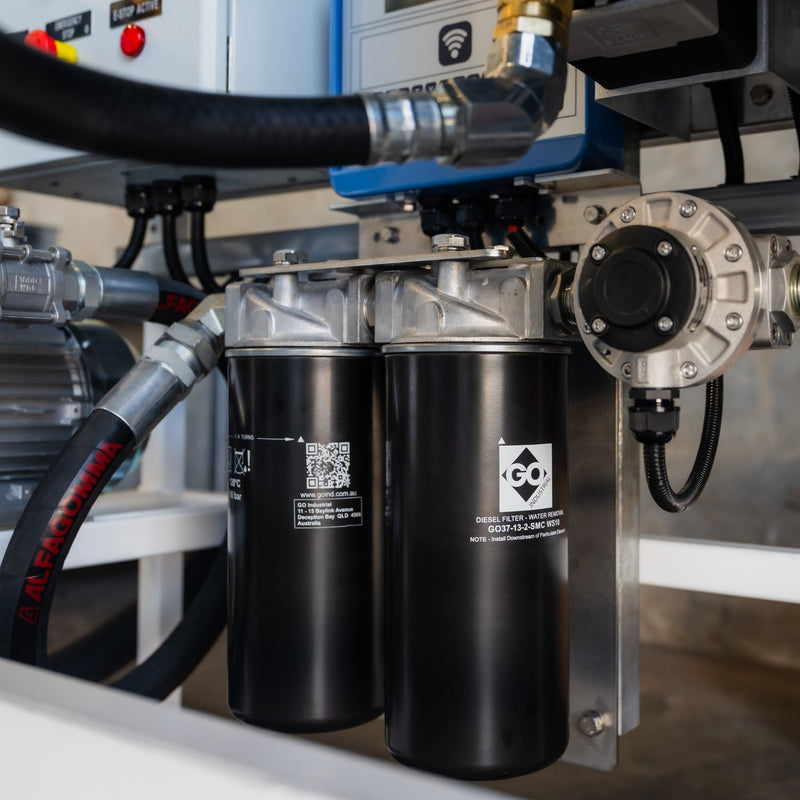

Water and dirt, gone
Most fuel contamination comes from condensation and sediment sitting in bulk tanks. The GO Guardian catches free water in the first stage and traps particles in the second, before either reaches your engines. A clear bowl lets you spot water buildup at a glance and drain it before the next fill.
Built for commercial flow
At 160 L/min through DN32 fittings, this filter handles truck and ute refuelling without slowing the job. Pressure rated to 16 bar, it sits inline on pumped systems without restrictor issues. When elements need changing, you swap cartridges, not the whole unit.
Features & Benefits
Key Features
- Comprehensive Two-Stage Filtration: Dedicated water removal stage followed by a fine particulate filtration stage for optimal fluid purity.
- High-Efficiency Water Removal: Specialised absorbent media effectively removes free and emulsified water, protecting against corrosion and fluid degradation.
- Fine Particulate Capture: High-performance element captures solid containments, reducing wear and extending component life.
- Integrated Dual Indicators (Per Stage): Each filter head equipped with Mechanical (visual pop-up) differential pressure indicator.
- Electrical output module for remote signalling of filter status (extra).
- Robust Joined Head Assembly: Pre-configured, series-flow design for easy integration into fluid handling systems.
- Durable Construction: Designed for demanding industrial environments.
- FKM Seals Standard: Ensures wide fluid and temperature compatibility, suitable for hydrocarbons, oils, and diesel fuels.
- Enhanced System Protection: Minimises downtime and maintenance costs by maintaining fluid cleanliness.
- Promotes Timely Maintenance: Clear local and remote indication when filter elements require replacement.
| Filtration Stages | 2 (Series Flow: Water Removal then Particulate) |
| Filter Head Assembly | GO2214-047 |
| Number of Heads | 2 (Joined in series) |
| Nominal Flow Rate | Application dependent; Suitable for up to approx. 160-300 LPM (40-80 GPM) depending on fluid viscosity and pressure drop constraints (Consult specific performance curves). |
| Port Connections (Typical) | G 1 1/4" (DN32) BSP Female |
| Stage 1 Water Removal | GO37-13-2-SMX10WS |
| Element Type | Water Absorbing / Coalescing |
| Nominal Rating | Approx. 10µm (particulate), high water retention capacity |
| Stage 2 Particulate | GO37-13-2-SMX6 |
| Absolute Rating | 6µm |
| Material (Typical) | Aluminium |
| Max Operating Pressure | Up to 24 bar (350 psi) |
| Element Thread | 1"3/4 - 12 UN |
| Operating Temperature | Approx. -20°C to +100°C (FKM seal limited, system dependent). |
| Compatible Fluids | Diesel fuels, hydraulic oils, lubrication oils, other hydrocarbons. |
| Seal Material | FKM (Fluoroelastomer) |
Shipping & Dimensions
Ships from Brisbane warehouse. Standard delivery 2-5 business days.
Downloads
Compare
Compare Similar Products
2 (Series Flow: Water Removal then Particulate)
—
—
GO2214-047
—
—
2 (Joined in series)
—
—
Application dependent; Suitable for up to approx. 160-300 LPM (40-80 GPM) depending on fluid viscosity and pressure drop constraints (Consult specific performance curves).
—
—
G 1 1/4" (DN32) BSP Female
—
—
GO37-13-2-SMX10WS
—
—
Water Absorbing / Coalescing
—
—
Approx. 10µm (particulate), high water retention capacity
—
—
GO37-13-2-SMX6
—
—
6µm
—
—
Aluminium
—
—
Up to 24 bar (350 psi)
—
—
1"3/4 - 12 UN
—
—
Approx. -20°C to +100°C (FKM seal limited, system dependent).
—
—
Diesel fuels, hydraulic oils, lubrication oils, other hydrocarbons.
—
—
FKM (Fluoroelastomer)
—
—
Replacement Elements & Indicators
Frequently Asked Questions
Can't find your answer?
Contact UsWhat is the GO Guardian filter kit?
A dual-stage fuel filter that removes water and particulates before dispensing. It mounts inline between your tank and nozzle, handling diesel or petrol at up to 160 L/min.
What size fittings does it use?
DN32 (1 1/4 BSP) female threads on both inlet and outlet, standard across most commercial fuel handling gear in Australia.
How often do I change the elements?
Depends on fuel cleanliness and throughput. Inspect the clear bowl regularly. If you see water buildup or flow drops, drain the bowl and replace elements as needed.
Can I use this with petrol as well as diesel?
Yes, the GO Guardian is compatible with both diesel and unleaded petrol within its pressure and flow ratings.
What warranty and support is included?
12-month warranty on the housing. Filter elements are wear items. For installation advice or replacement element orders, contact sales@goind.com.au or 07 3204 2240.
