GO Fill|GO2214-047

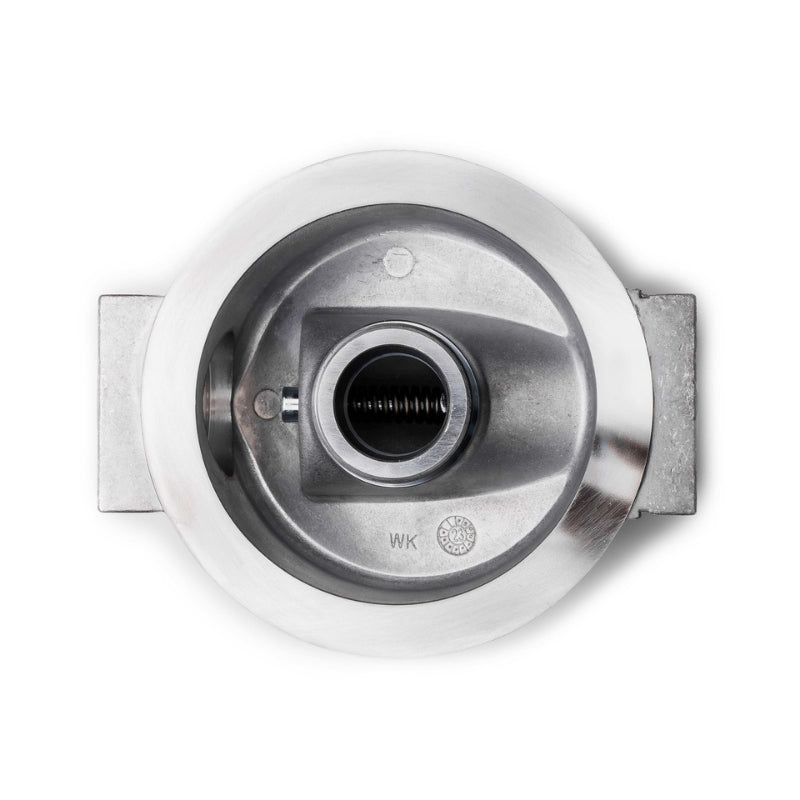

GO Filter Head DN32 (11/4") BSP F 160LPM 16 Bar GO2214-047
Tax excluded. Shipping calculated at checkout
GST (10%) is calculated at checkout. Tax invoices provided with all orders.
Contact for live availability
Our inventory signal hasn't refreshed today. We update twice daily but the latest reading is stale.
Email sales@goind.com.au or call 07 3204 2240 for live availability.
Ships from Brisbane warehouse. Standard delivery 2-5 business days Australia-wide.
SPIN-ON FILTER HEAD FOR WORKSHOP AND FIELD FUEL SYSTEMS
Spin-on filter head for diesel or petrol transfer systems. DN32 female BSP ports, rated to 160 L/min and 16 bar working pressure.
Standard plumbing, standard cartridges
DN32 female BSP ports match most mid-range transfer pumps without adapters. Spin-on mount takes widely stocked filter elements, so you are not hunting for proprietary cartridges when it is time to change.
160 L/min flow, 16 bar rating
Handles high-volume bowser and mobile refuelling setups without choking flow. Rated to 16 bar working pressure, suited to most vane and gear pump installations.
Features & Benefits
Key Features
- Designed for pipe installation
- Connection: 1 1/4" BSPP Female (G 1 1/4)
- Nominal Flow Rate: Up to 160 LPM (NG 160 size)
- Max Operating Pressure: 10 bar / 140 psi (per datasheet)
- Housing Material: Aluminium
- Seal Material: NBR (Standard)
- Temperature Range: -10°C to +100°C (with NBR seals)
| Nominal Flow Rate | 160 L/min |
| Head Material | Aluminium |
| Connection (A) | G 1 1/4 (1 1/4" BSPP Female) |
| Element Connection Thread | 1 1/2"-16 UN |
| Mounting Bolt Holes (D) | 2 x M8 |
| Mounting Hole Spacing (E) | 100mm |
| Overall Width (B) | 144mm |
| Overall Height (F) | 110mm |
| Port Centreline Height (H) | 51mm |
| Seal Material (Standard) | NBR |
| Type | GO2214-047 |
| Filter Media | Glass Fiber (Sm-x) |
| Nominal Pressure | 10 bar (140 psi) |
| Temperature Range (NBR Seals) | 10 bar (140 psi) |
Shipping & Dimensions
Ships from Brisbane warehouse. Standard delivery 2-5 business days.
Downloads
Compare
Compare Similar Products
160 L/min
—
—
Aluminium
—
Aluminium
G 1 1/4 (1 1/4" BSPP Female)
—
—
1 1/2"-16 UN
—
—
2 x M8
—
—
100mm
—
—
144mm
—
—
110mm
—
—
51mm
—
—
NBR
—
—
GO2214-047
—
—
Glass Fiber (Sm-x)
—
—
10 bar (140 psi)
—
—
10 bar (140 psi)
—
—
Compatible Elements & Indicators
Frequently Asked Questions
Can't find your answer?
Contact UsWhat is the GO FILL Filter Head DN32?
A filter head that accepts standard spin-on cartridges for diesel or petrol transfer. DN32 female BSP ports, rated to 160 L/min and 16 bar.
What filter cartridges does it take?
Standard spin-on elements with the correct thread pitch. Most 10-micron and 30-micron diesel filters fit. Check cartridge specs before ordering.
What are the port sizes?
DN32 (1 1/4 inch) female BSP on inlet and outlet. Matches most mid-range transfer pumps and bowser plumbing.
What is the warranty and how do I get support?
12-month warranty on defects. Filter cartridges are consumables and not covered. For warranty claims or technical questions, contact sales@goind.com.au or 07 3204 2240.
