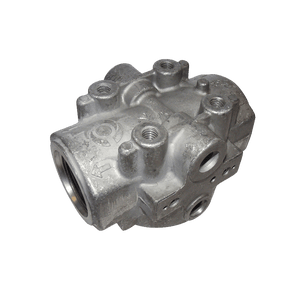

DONALDSON Single DN32 Filter Head 1 1/4" NPT Female P570330
Tax excluded. Shipping calculated at checkout
GST (10%) is calculated at checkout. Tax invoices provided with all orders.
Contact for live availability
Our inventory signal hasn't refreshed today. We update twice daily but the latest reading is stale.
Email sales@goind.com.au or call 07 3204 2240 for live availability.
Ships from Brisbane warehouse. Standard delivery 2-5 business days Australia-wide.
DONALDSON SPIN-ON FILTER HEAD FOR CLEAN DIESEL DELIVERY
Donaldson P570330 spin-on filter head. 1 1/4 inch NPT female connections, 246 L/min flow rate, 24.1 bar working pressure. Aluminium body with threaded steel inserts and Viton seals - rated for diesel, lubricants, and bulk fluids on the pressure side of transfer pumps.
Built for bulk transfer, not retail dribble
246 L/min flow capacity on a single head puts the P570330 in workshop dispenser and mobile refueller territory, not bench-top hobby use. Working pressure of 24.1 bar handles the pressure side of most diesel transfer pumps without breaking a sweat. The pre-ported indicator point means you can spec a Donaldson differential pressure gauge or your own service indicator and actually know when the cartridge is loaded.
Aluminium body, steel inserts, Viton seals
The aluminium head keeps overall weight at 1.13 kg, light enough to handle solo on a ladder or in a tight install. Threaded steel inserts on the filter mounting face stop the cartridge base from galling into the head over years of swap cycles - a small detail that matters when a customer is changing cartridges quarterly. Viton seals resist diesel swell and cold-weather cracking, so the head is leak-free across Australian conditions.
Features & Benefits
Key Features
- 246 L/min (65 gpm) maximum flow - sized for bulk diesel transfer
- 24.1 bar working pressure, 55.2 bar static burst rating
- 1 1/4 inch NPT female inlet and outlet (DN32)
- Aluminium head with threaded steel inserts - no metal-to-metal galling
- Viton seals compatible with diesel, lubricants, and most bulk fluids
- Pre-ported for optional pressure gauge or service indicator
- Operating temperature -40 to 118 °C - cold-start ready
- Accepts 7 Donaldson Clean Solutions spin-on cartridges
Benefits
- NPT threads drop into existing Australian fuel system plumbing
- Steel inserts mean the filter base seats cleanly without seizing the head
- Pre-ported indicator port lets you catch clogged elements before flow drops
- Viton handles cold mornings and hot summer fuel without weeping
- Donaldson cartridges stocked locally - no import lead times
| Maximum Flow Rate | 246 L/min (65 gpm) |
| Working Pressure | 24.1 bar (350 psi / 2413 kPa) |
| Rated Static Burst | 55.2 bar (800 psi / 5520 kPa) |
| Operating Temperature | -40 to 118 °C |
| Filter Quantity | 1 (single station) |
| Inlet | 1 1/4 inch NPT Female (DN32) |
| Outlet | 1 1/4 inch NPT Female (DN32) |
| Indicator Port | Pre-ported (gauge / indicator sold separately) |
| Mounting | 3/8-16 UNC, 4 holes |
| Head Material | Aluminium |
| Inserts | Threaded steel (anti-galling) |
| Seal Material | Viton (FKM) |
| Length | 127.8 mm |
| Width | 95.5 mm |
| Height | 73.2 mm |
| Weight | 1.13 kg |
| Fluid Compatibility | All diesel fuels and lubricants |
| Compatible Filters | DBB8664, DBB8665, DBB8666, DBB5333, DBB0248, DBB8777, DBB7733 |
| Brand | Donaldson Clean Solutions |
| Manufacturer Part | P570330 |
| Warranty | 12 months |
Shipping & Dimensions
Ships from Brisbane warehouse. Standard delivery 2-5 business days.
Downloads
Compare
Compare Similar Products
246 L/min (65 gpm)
—
—
24.1 bar (350 psi / 2413 kPa)
—
—
55.2 bar (800 psi / 5520 kPa)
—
—
-40 to 118 °C
—
—
1 (single station)
—
—
1 1/4 inch NPT Female (DN32)
—
—
1 1/4 inch NPT Female (DN32)
—
—
Pre-ported (gauge / indicator sold separately)
—
—
3/8-16 UNC, 4 holes
—
—
Aluminium
Aluminium
—
Threaded steel (anti-galling)
—
—
Viton (FKM)
—
—
127.8 mm
—
—
95.5 mm
—
—
73.2 mm
—
—
1.13 kg
—
—
All diesel fuels and lubricants
—
—
DBB8664, DBB8665, DBB8666, DBB5333, DBB0248, DBB8777, DBB7733
—
—
Donaldson Clean Solutions
—
—
P570330
—
—
12 months
—
—
Frequently Asked Questions
Can't find your answer?
Contact UsWhat is the maximum flow rate for the P570330?
246 L/min (65 gpm) at typical diesel viscosities. Actual flow varies with fluid viscosity, pumping pressure, and how loaded the filter cartridge is.
What working pressure can it handle?
Continuous working pressure 24.1 bar (350 psi / 2413 kPa). Rated static burst 55.2 bar (800 psi). Not for use in high-pressure systems above the working pressure rating.
Which filter cartridges fit this head?
Donaldson Clean Solutions spin-on cartridges DBB8664, DBB8665, DBB8666, DBB5333, DBB0248, DBB8777, and DBB7733. For cartridge selection by application, contact sales@goind.com.au.
Does it come with a pressure gauge or service indicator?
No. The head is pre-ported for an optional gauge or indicator, but the gauge or indicator is sold separately so you can spec to your monitoring system.
What connections does it use?
1 1/4 inch NPT female on both inlet and outlet (DN32). NPT is a tapered pipe thread, so use thread sealant on installation.
Will it work with petrol, AdBlue, or hydraulic fluid?
Rated for all diesel fuels and lubricants. Viton is broadly compatible but check chemical compatibility for petrol, AdBlue, or specific hydraulic fluids - email sales@goind.com.au with your fluid spec and we will confirm.
