Piusi|F1398000C

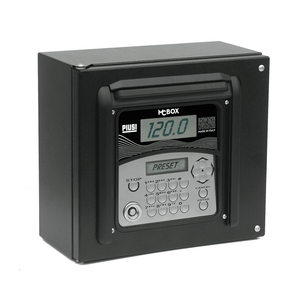

PIUSI FMS 240V AC MC Box F1398000C
Tax excluded. Shipping calculated at checkout
GST (10%) is calculated at checkout. Tax invoices provided with all orders.
Contact for live availability
Our inventory signal hasn't refreshed today. We update twice daily but the latest reading is stale.
Email sales@goind.com.au or call 07 3204 2240 for live availability.
Ships from Brisbane warehouse. Standard delivery 2-5 business days Australia-wide.
FUEL ACCOUNTABILITY FOR UP TO 16 USERS IN ONE WALL-MOUNT BOX
Control box for Piusi fuel management systems. Coordinates up to 16 user codes, transaction logging, and dispenser access control in a wall-mount enclosure.
Who dispensed what
The FMS MC Box logs every transaction against a user code. That means you can track fuel draw by driver, vehicle, or department without spreadsheets or guesswork. Sixteen codes cover most small-to-medium fleets; larger operations can chain multiple units.
Access control that sticks
No valid code, no fuel. The box authorises each dispense before the pump runs. It's a straightforward way to stop casual pilferage and keep your fuel budget honest. Wall-mount enclosure keeps the electronics out of harm's way.
Features & Benefits
Key Features
- Integrated roller shutter to provide sun protection to the screen and pin pad assembly
- Console interfaces include: External Nozzle Switch
- Automatic Tank Gauge
- Pulse Meter Input
- Pump Relay
- The Piusi MC Box will: Authorise dispensing of fluids to approved users
- Authorisation can be via a PIN or Yellow User Key (i Button)
- Record the date / time / volume of fluid dispensed, the user details, vehicle details suxch as number plate (system accepts up to 10 alphanumeric characters) and odometer / engine hours (system accepts up to 6 numeric characters)
- Allow for the dispensing of preset volumes of fluid
- Operate an external nozzle switch
| Maximum Power Supply | 6.5 amps |
| Voltage | 240V AC 50hz |
| Package Size | 480mm L x 370mm W x 265mm H - 5.3kg |
| Console Size | 286mm L x 163mm W x 267mm H |
| Number of Users | 80 |
| Transaction Memory | 255 |
Shipping & Dimensions
Ships from Brisbane warehouse. Standard delivery 2-5 business days.
Downloads
Compare
Compare Similar Products
6.5 amps
6.5 amps
6.5 amps
240V AC 50hz
240V AC 50hz 800W 3.9 amps
240V AC 50hz 1100W 5.5 amps
480mm L x 370mm W x 265mm H - 5.3kg
400mm L x 400mm W x 460mm H - 25kg
488mm L x 460mm W x 1478mm H - 75kg
286mm L x 163mm W x 267mm H
—
—
80
80
80
255
255
255
Compatible Products
Frequently Asked Questions
Can't find your answer?
Contact UsWhat is the Piusi FMS MC Box?
It's the control unit for Piusi fuel management systems, handling up to 16 user codes and logging every dispense transaction for fleet accountability.
How many users can it manage?
Up to 16 individual user codes. Each code can be assigned to a driver, vehicle, or department for tracking purposes.
What information does it log?
User ID, volume dispensed, and date/time stamp for each transaction. Data can be retrieved for reporting and reconciliation.
Does it work with existing Piusi dispensers?
Yes, it integrates with Piusi FMS-compatible dispensers and keypads. Confirm compatibility with your specific hardware before ordering.
What warranty and support is included?
12-month manufacturer warranty covers defects in materials and workmanship. For technical support or installation guidance, contact sales@goind.com.au or 07 3204 2240.
