Piusi|F0059400D

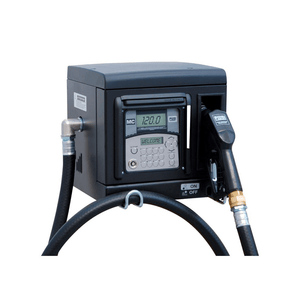

PIUSI FMS 240V AC Cube MC F0059400D
Tax excluded. Shipping calculated at checkout
GST (10%) is calculated at checkout. Tax invoices provided with all orders.
Contact for live availability
Our inventory signal hasn't refreshed today. We update twice daily but the latest reading is stale.
Email sales@goind.com.au or call 07 3204 2240 for live availability.
Ships from Brisbane warehouse. Standard delivery 2-5 business days Australia-wide.
FUEL ACCOUNTABILITY WITHOUT THE GUESSWORK
230V fuel management system with integrated pump, meter, and tank-level monitoring. Tracks every litre dispensed, records every transaction, built for Australian mining and fleet ops.
Track every litre
The FMS CUBE MC logs every transaction: who dispensed, when, how much. PIN, card, or tag authentication means no unauthorised fills. Export reports for fleet audits, cost-centre allocation, or compliance. Real-time tank-level monitoring keeps you ahead of runouts and helps catch discrepancies before they compound.
All in one cabinet
Pump, meter, hose reel, and monitoring electronics are integrated in a self-contained 55 kg cabinet. Runs on 230V single-phase, so you do not need three-phase infrastructure. Compact footprint suits depots, workshops, or mining sites where floor space is tight.
Features & Benefits
Key Features
- Integrated roller shutter to provide sun protection to the screen and pin pad assembly
- Console interfaces include: External Nozzle Switch
- Automatic Tank Gauge
- Pulse Meter Input
- Pump Relay
- The Piusi CUBE MC will: Authorise dispensing of fluids to approved users
- Authorisation can be via a PIN or Yellow User Key (i Button)
- Record the date / time / volume of fluid dispensed, the user details, vehicle details suxch as number plate (system accepts up to 10 alphanumeric characters) and odometer / engine hours (system accepts up to 6 numeric characters)
- Allow for the dispensing of preset volumes of fluid
- Operate an external nozzle switch
| Accuracy | +/- 0.5% |
| Maximum Power Supply | 6.5 amps |
| Voltage | 240V AC 50hz 800W 3.9 amps |
| Package Size | 400mm L x 400mm W x 460mm H - 25kg |
| Console Size (with nozzle fitted) | 345mm L x 500mm W x 346mm H |
| Hose | 25mm ID x 4m |
| Number of Users | 80 |
| Transaction Memory | 255 |
| Pump Type | Piusi Panther 72 |
| Pulse Meter Type | Piusi K600 |
| Nozzle Type | Piusi A60 Automatic Shut Off |
Shipping & Dimensions
Ships from Brisbane warehouse. Standard delivery 2-5 business days.
Downloads
Compare
Compare Similar Products
+/- 0.5%
+/- 0.5%
—
6.5 amps
6.5 amps
—
240V AC 50hz 800W 3.9 amps
240V AC 50hz 1100W 5.5 amps
230V
400mm L x 400mm W x 460mm H - 25kg
488mm L x 460mm W x 1478mm H - 75kg
—
345mm L x 500mm W x 346mm H
457mm L x 368mm W x 1387mm H
—
25mm ID x 4m
25mm ID x 4m
—
80
80
—
255
255
—
Piusi Panther 72
Piusi E120
—
Piusi K600
Piusi K600
—
Piusi A60 Automatic Shut Off
Piusi A120 Automatic Shut Off
—
Compatible Products
Frequently Asked Questions
Can't find your answer?
Contact UsWhat is the Piusi FMS CUBE MC?
A 230V fuel management system with integrated pump, meter, hose reel, and monitoring electronics. Tracks every transaction and tank level in real time for fleet or site fuel control.
What power supply does it need?
230V single-phase. Standard Australian workshop or depot power. Does not require three-phase infrastructure.
How does it control who can dispense fuel?
User authentication via PIN pad, RFID card, or tag. Each user is logged with date, time, and volume dispensed. Reporting software exports data for audits.
Does it monitor tank levels?
Yes. Real-time tank-level monitoring is integrated. You can track inventory and set low-level alerts through the reporting software.
What is the warranty and support?
12-month warranty on electronics and mechanical assemblies. Wear parts excluded. Software updates and tech support included for 12 months. For post-warranty service or parts, contact sales@goind.com.au or 07 3204 2240.
