Piusi|F0074101D
PIUSI FMS 240V AC Self Service MC F0074101D
Tax excluded. Shipping calculated at checkout
GST (10%) is calculated at checkout. Tax invoices provided with all orders.
Contact for live availability
Our inventory signal hasn't refreshed today. We update twice daily but the latest reading is stale.
Email sales@goind.com.au or call 07 3204 2240 for live availability.
Ships from Brisbane warehouse. Standard delivery 2-5 business days Australia-wide.
PREMIUM FUEL CONTROL FOR FLEETS THAT TRACK EVERY LITRE
Piusi FMS Self Service MC: premium fuel management controller for self-service refuelling. 230V operation, web-based reporting, RFID access control.
Who this suits
The FMS Self Service MC is built for sites where multiple operators refuel from a shared tank and you need accountability down to the driver and vehicle. Depots running 10+ trucks, hire yards with casual staff, municipal fleets where fuel theft or misreporting is a budget concern. If you're still reconciling with a logbook and guesswork, this closes the gap.
What it does
RFID tags at the nozzle identify driver and vehicle before the pump runs. Every transaction logs time, user, litres dispensed, and totaliser reading. Web interface lets you pull reports, set user limits, and monitor tank levels (if you add a probe). The pump won't start without a valid tag, so unauthorised fills stop at the source.
Features & Benefits
Key Features

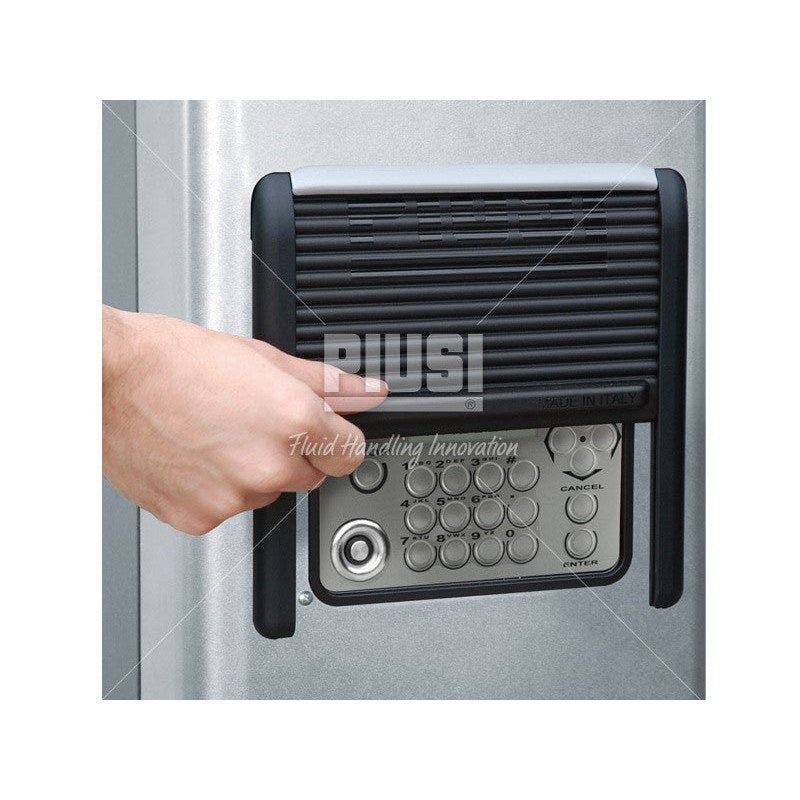

- Integrated roller shutter to provide sun protection to the screen and pin pad assembly
- Console interfaces include: External Nozzle Switch
- Automatic Tank Gauge
- Pulse Meter Input
- Pump Relay
- The Piusi Self Service MC will: Authorise dispensing of fluids to approved users
- Authorisation can be via a PIN or Yellow User Key (i Button)
- Record the date / time / volume of fluid dispensed, the user details, vehicle details suxch as number plate (system accepts up to 10 alphanumeric characters) and odometer / engine hours (system accepts up to 6 numeric characters)
- Allow for the dispensing of preset volumes of fluid
- Operate an external nozzle switch
| Accuracy | +/- 0.5% |
| Maximum Power Supply | 6.5 amps |
| Voltage | 240V AC 50hz 1100W 5.5 amps |
| Package Size | 488mm L x 460mm W x 1478mm H - 75kg |
| Console Size (with nozzle fitted) | 457mm L x 368mm W x 1387mm H |
| Hose | 25mm ID x 4m |
| Number of Users | 80 |
| Transaction Memory | 255 |
| Pump Type | Piusi E120 |
| Filter Type | Piusi Water Captor 30um |
| Pulse Meter Type | Piusi K600 |
| Nozzle Type | Piusi A120 Automatic Shut Off |
Shipping & Dimensions
Ships from Brisbane warehouse. Standard delivery 2-5 business days.
Downloads
Compare
Compare Similar Products
+/- 0.5%
+/- 0.5%
—
6.5 amps
6.5 amps
—
240V AC 50hz 1100W 5.5 amps
240V AC 50hz 800W 3.9 amps
230V
488mm L x 460mm W x 1478mm H - 75kg
400mm L x 400mm W x 460mm H - 25kg
—
457mm L x 368mm W x 1387mm H
345mm L x 500mm W x 346mm H
—
25mm ID x 4m
25mm ID x 4m
—
80
80
—
255
255
—
Piusi E120
Piusi Panther 72
—
Piusi Water Captor 30um
—
—
Piusi K600
Piusi K600
—
Piusi A120 Automatic Shut Off
Piusi A60 Automatic Shut Off
—
Compatible Products
Frequently Asked Questions
Can't find your answer?
Contact UsWhat is the Piusi FMS Self Service MC?
A premium fuel management controller that logs transactions, controls pump access via RFID, and provides web-based reporting for self-service refuelling sites. Suited to fleets and depots needing detailed fuel accountability.
Do I need a tank probe for this to work?
No, the controller manages pump access and transaction logging without a probe. A probe is optional if you want live tank level monitoring and low-level alerts. Probes sold separately.
Can I view reports remotely?
Yes, the FMS Self Service MC includes web-based reporting. Log in from any browser to view transactions, user activity, tank levels, and generate CSV exports for reconciliation.
How many users or vehicles can I track?
The system supports hundreds of RFID tags. Each tag can be assigned to a driver, vehicle, or both, with individual usage limits and time windows. Scalable for growing fleets.
What about warranty and support?
12-month manufacturer warranty covers electronics and hardware. Software updates supported. For technical queries or integration advice, contact sales@goind.com.au or 07 3204 2240.
