Piusi|F00408Y00

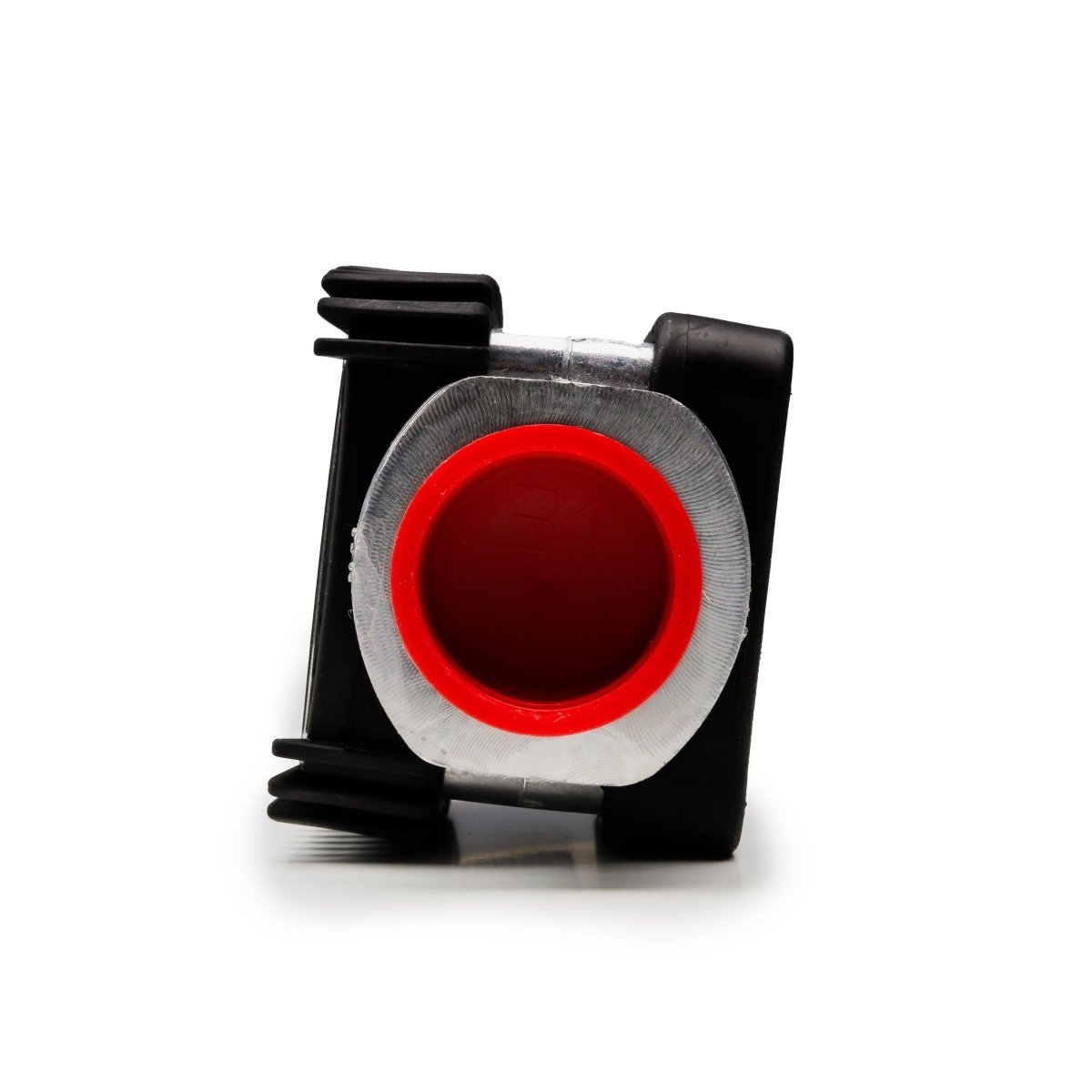

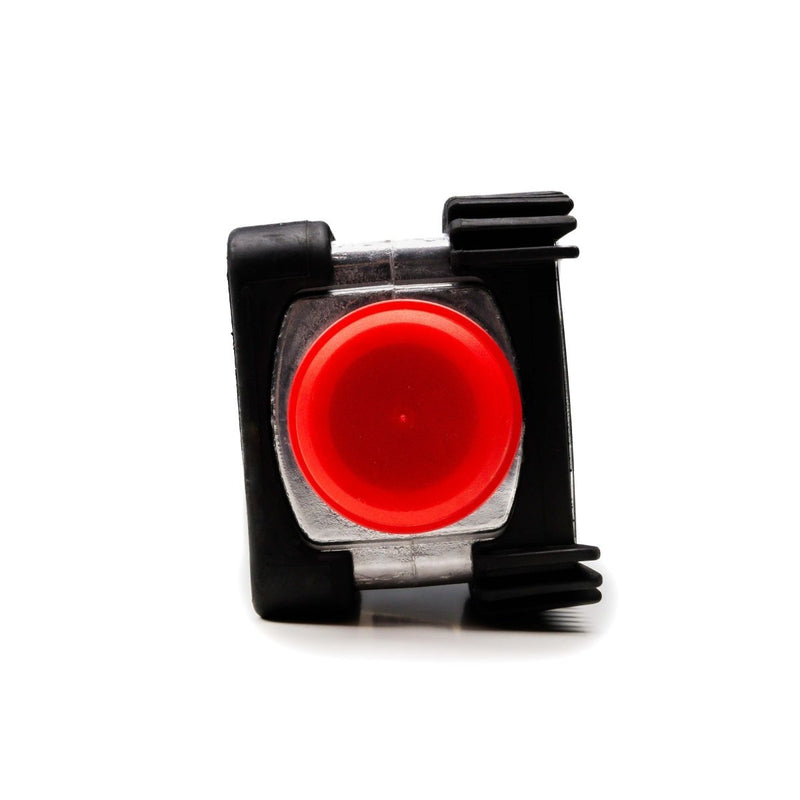

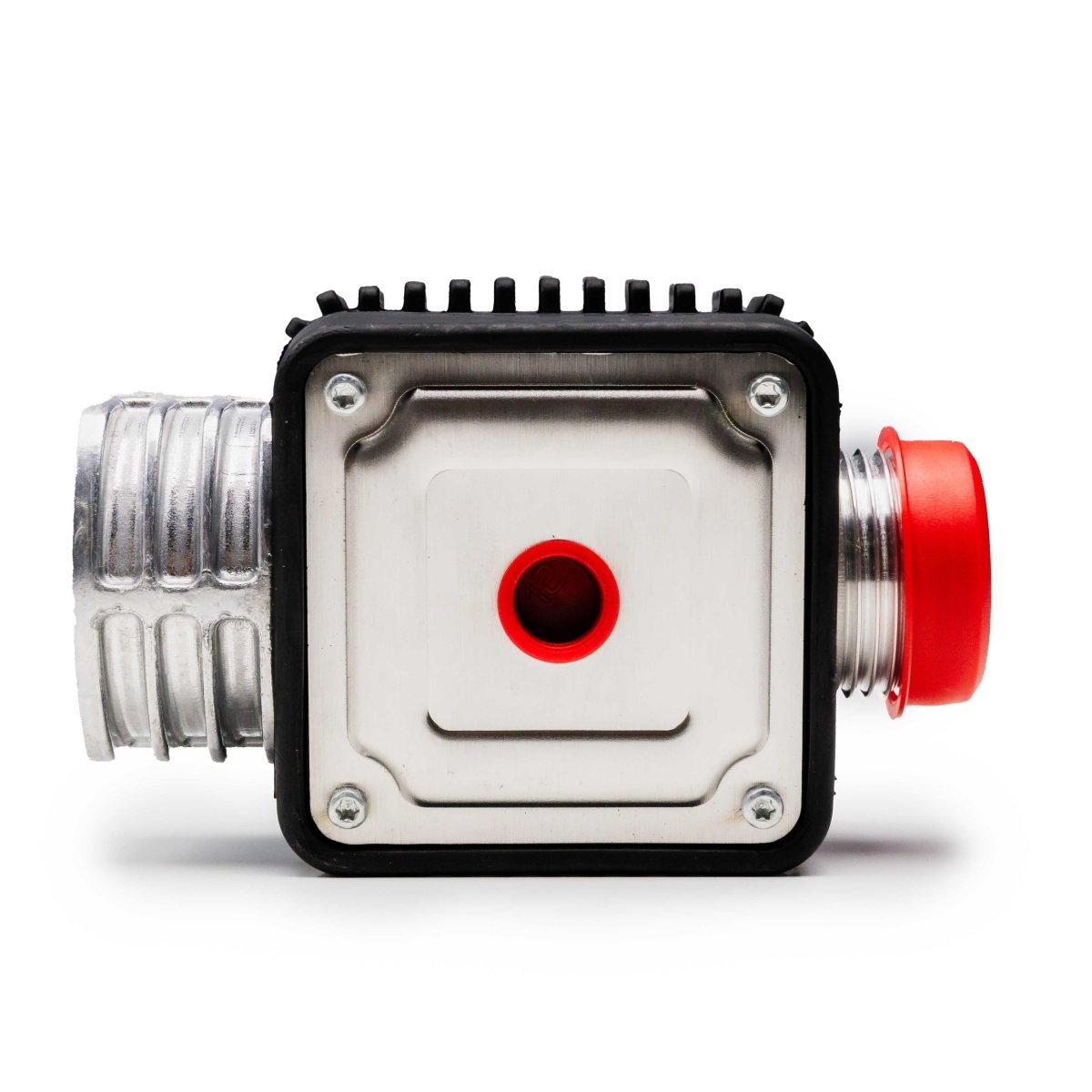

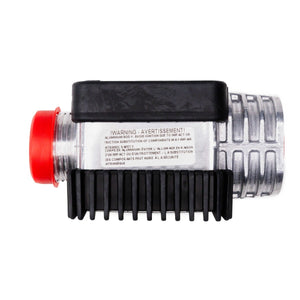

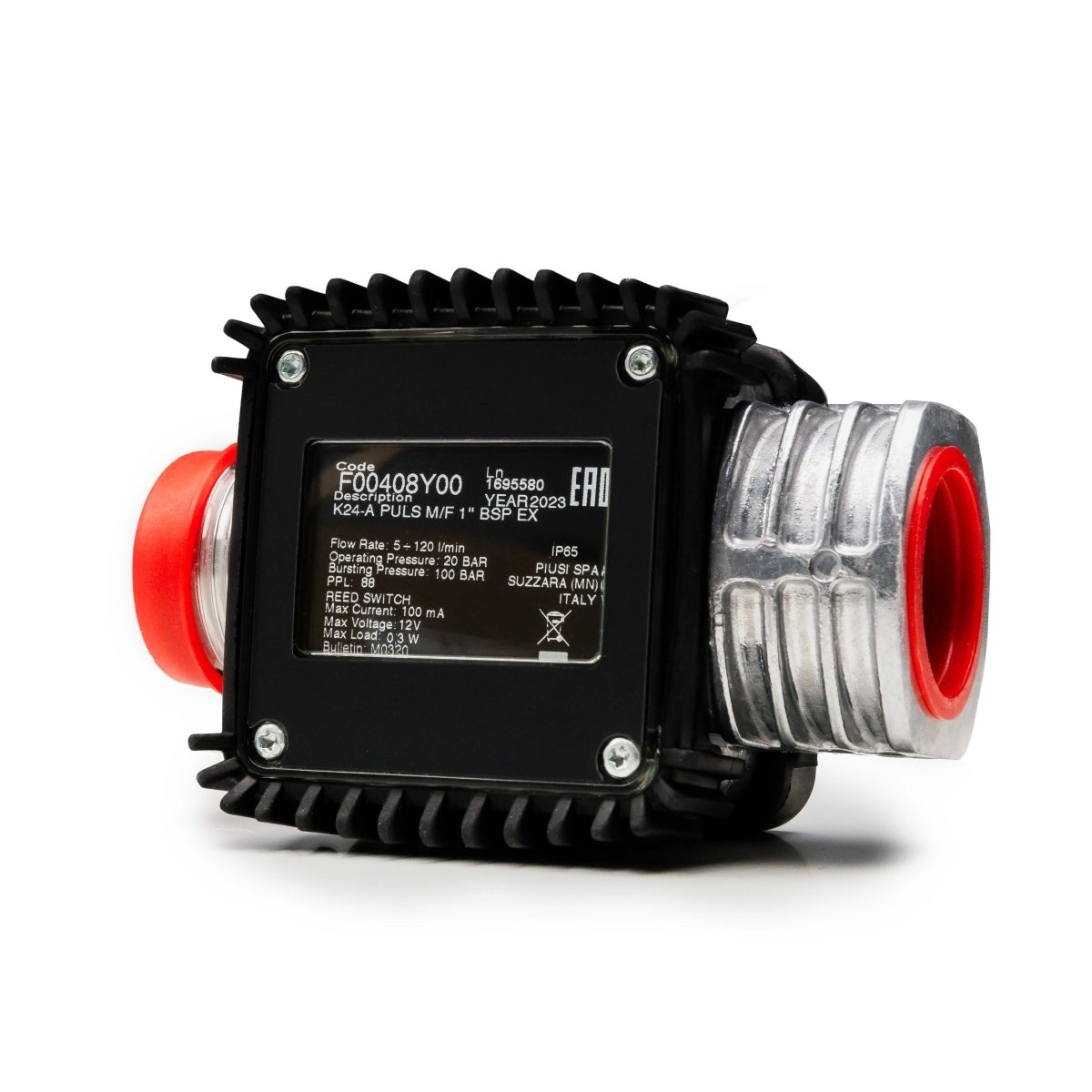

PIUSI K24 Pulse Meter M/F 1" BSP ATEX/IECEX F00408Y00
Tax excluded. Shipping calculated at checkout
GST (10%) is calculated at checkout. Tax invoices provided with all orders.
Contact for live availability
Our inventory signal hasn't refreshed today. We update twice daily but the latest reading is stale.
Email sales@goind.com.au or call 07 3204 2240 for live availability.
Ships from Brisbane warehouse. Standard delivery 2-5 business days Australia-wide.
PETROL FLOW TRACKING FOR FUEL MANAGEMENT AT A WORKHORSE PRICE
Mechanical pulse meter for petrol dispensing, DN25 (1 inch) BSP female thread. Aluminium construction, 100 bar max pressure. Outputs pulses to fuel management systems.
Pulse metering explained
The K24 sits inline between your pump and nozzle. As petrol flows through, an internal rotor turns and triggers pulses. Each pulse represents a fixed volume. Your fuel controller counts the pulses and converts them to litres dispensed. No batteries, no display on the meter itself, just a clean signal output that feeds your management system or PLC.
Install and integrate
Female BSP threads both ends mean you screw this meter straight into standard Australian fittings. Aluminium body keeps weight down (0.4 kg) so it does not stress hose connections. The pulse wires run to a KCD2-SOT-Ex1.LB barrier (sold separately), which provides the intrinsically safe interface petrol applications demand. From there, the signal feeds your fuel management software for per-vehicle tracking and reporting.
Features & Benefits
Key Features
- Pulse output for petrol flow tracking
- DN25 (1 inch) BSP female connections
- Aluminium body, 100 bar max pressure
- Weight 0.4 kg
- Requires KCD2-SOT-Ex1.LB barrier (sold separately)
- Integrates with fuel management controllers
Benefits
- Track every litre dispensed to vehicles or plant
- Connects to standard BSP plumbing
- Compact and light for tight pump installations
- Pulse signal feeds directly into your fleet management software
| Flow Rate | 7-120ltr Per Min |
| Accuracy | +/-1% after calibration |
| Pulses | 88 per ltr |
| Fluid Viscosity | 2-5.35 cSt |
| Max Fluid Temperature | +50ºc |
Shipping & Dimensions
Ships from Brisbane warehouse. Standard delivery 2-5 business days.
Downloads
Compare
Compare Similar Products
7-120ltr Per Min
19 to 114 L/min
20-120ltr Per Min
+/-1% after calibration
± 2.0% of reading (Accuracy is factory calibrated using diesel fuel)
+/-1% after calibration
88 per ltr
—
—
2-5.35 cSt
—
—
+50ºc
—
—
Compatible Products
Frequently Asked Questions
Can't find your answer?
Contact UsWhat is the Piusi K24 pulse meter?
A mechanical flow meter that generates electrical pulses as petrol passes through it. The pulse count corresponds to volume dispensed, allowing your fuel management system to log and track consumption.
What does the pulse output connect to?
The pulse wires connect to an intrinsically safe barrier (KCD2-SOT-Ex1.LB, sold separately), which then feeds into your fuel management controller or PLC. The barrier is mandatory for safe operation in petrol applications.
Can I use this for diesel?
No. This model is calibrated and rated for petrol only. For diesel pulse metering, contact us for the correct K-series diesel variant.
What thread size do I need?
Both inlet and outlet are DN25 (1 inch) BSP female. If your pump or nozzle hose has male BSP fittings, this meter threads straight on. For other thread types you will need adapters.
What warranty and support apply?
12-month manufacturer warranty covers defects in materials and workmanship. Internal mechanism wear is normal over time and not covered. For technical support or bulk orders, contact sales@goind.com.au or 07 3204 2240.
