Piusi|F00540000
PIUSI K700 Meter Mechanical 40mm FF 20-220lpm Litre Display F00540000
Tax excluded. Shipping calculated at checkout
GST (10%) is calculated at checkout. Tax invoices provided with all orders.
Contact for live availability
Our inventory signal hasn't refreshed today. We update twice daily but the latest reading is stale.
Email sales@goind.com.au or call 07 3204 2240 for live availability.
Ships from Brisbane warehouse. Standard delivery 2-5 business days Australia-wide.
MECHANICAL DIESEL METERING AT DN40 SCALE WITHOUT THE WIRING HEADACHE

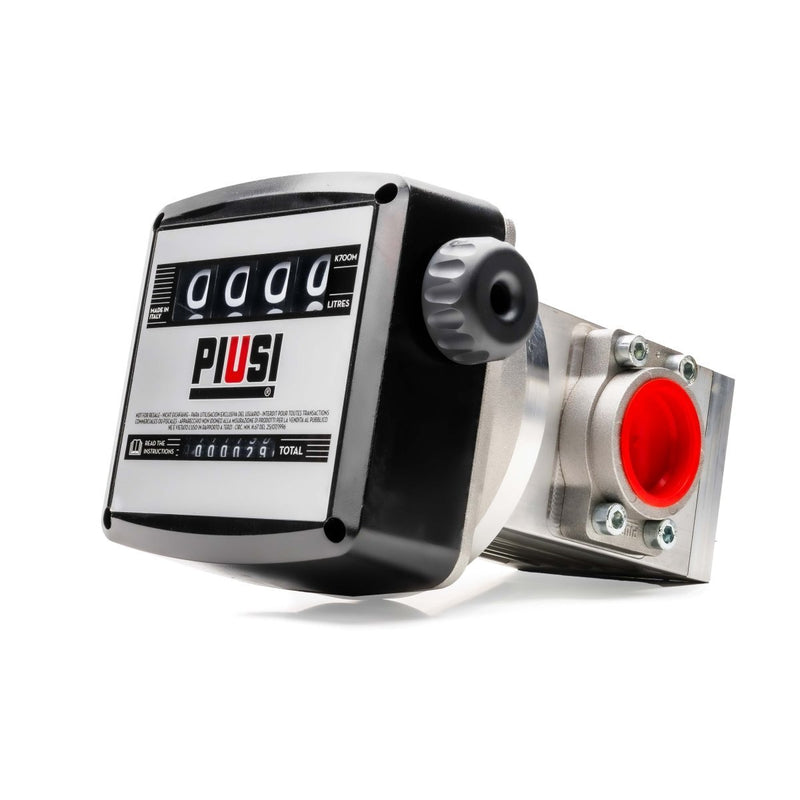

Mechanical flow meter with 4-digit totaliser, rated 20-220 L/min for diesel. DN40 (1 1/2 BSP female) inlet/outlet, aluminium body, non-resettable batch display.
No power, no drama
Mechanical meters run off flow alone. No batteries to swap, no terminals to corrode, no calibration drift from voltage sag. The K700 sits inline, counts litres, and keeps running. 4-digit display shows batch volume; non-resettable totaliser tracks cumulative throughput so you know exactly how much diesel has passed since install. Simple, visible, auditable.
DN40 for bigger jobs
20-220 L/min flow range suits depot pumps, high-capacity mobile bowsers, and fleet stations running larger hose assemblies. 1 1/2 BSP female connections match standard industrial fittings. Aluminium body keeps weight manageable at 5.8 kg without sacrificing strength. If you are moving diesel at volume and need a physical record without digital complexity, this is the bracket.
Features & Benefits
Key Features
- Made in Italy by Piusi
- Elliptical Gears for the high precision measurement
- Supplied with inlet strainer
- Designed to be calibrated, refer Manual for instruction
- Suitable for use in gravity dispensing and pumped dispensing applications
| Flow Rate | 40-220 l/min |
| Repeatability | 0.3% |
| Weight | 5.8kg |
| Meter Dimensions | 181mm L x 151mm W x 238mm H |
| Operating Pressure | 10 Bar (145 PSI) |
| Precision | ± 1.5% |
| Packaging | 240mm L x 240mm W x 275mm H |
| Body | Aluminium |
| Gears | Technopolymer |
Shipping & Dimensions
Ships from Brisbane warehouse. Standard delivery 2-5 business days.
Downloads
Compare
Compare Similar Products
40-220 l/min
19 to 114 L/min
20-120 l/min
0.3%
± 0.5%
—
5.8kg
—
1.9
181mm L x 151mm W x 238mm H
—
—
10 Bar (145 PSI)
—
—
± 1.5%
—
± 1% >
240mm L x 240mm W x 275mm H
—
—
Aluminium
—
—
Technopolymer
—
—
Compatible Products
Frequently Asked Questions
Can't find your answer?
Contact UsWhat is the Piusi K700 mechanical meter?
A DN40 mechanical flow meter with 4-digit display and non-resettable totaliser, rated 20-220 L/min for diesel. No power required.
What does non-resettable totaliser mean?
The cumulative volume counter cannot be zeroed, preventing accidental or deliberate tampering. Batch display still resets per fill.
Will this fit my existing plumbing?
Inlet and outlet are 1 1/2 BSP female. Confirm your hose or pipe ends are 1 1/2 BSP male before ordering.
Can I use this for petrol or AdBlue?
No. This meter is specified for diesel only. Using it with other fluids may damage seals and void warranty.
What is covered under warranty?
12-month manufacturer warranty on defects. Wear items (seals, gears) excluded. For warranty claims or technical support, contact sales@goind.com.au or 07 3204 2240.
