Graco|205626
GRACO PUMP AIR PISTON 10:1 46lpm Universal FIRE-BALL 425 205626
Tax excluded. Shipping calculated at checkout
GST (10%) is calculated at checkout. Tax invoices provided with all orders.
Contact for live availability
Our inventory signal hasn't refreshed today. We update twice daily but the latest reading is stale.
Email sales@goind.com.au or call 07 3204 2240 for live availability.
Ships from Brisbane warehouse. Standard delivery 2-5 business days Australia-wide.

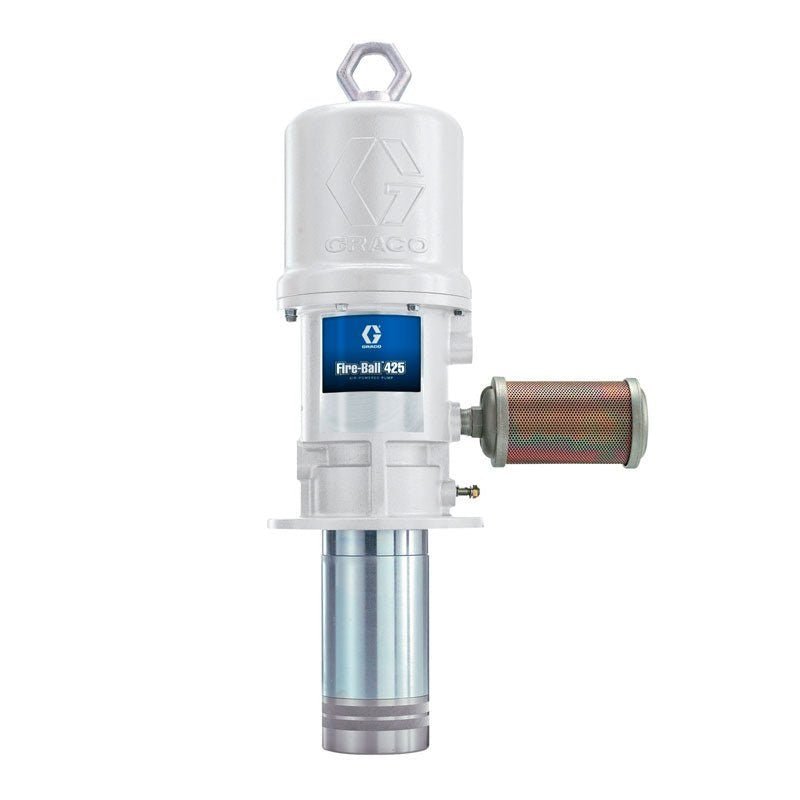

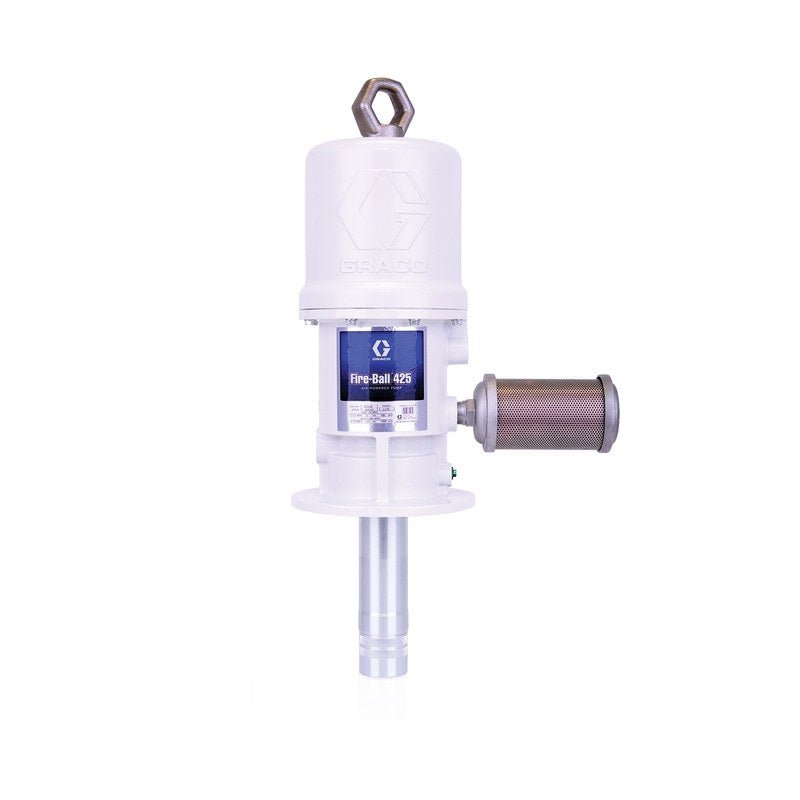

GRACO FIRE-BALL 425 AIR-DRIVEN PISTON PUMP FOR OIL DISPENSING
10:1 ratio air-driven piston pump delivering 46 L/min for oil transfer and lubrication. Graco Fire-Ball 425 series, built for workshop and industrial dispensing.
46 L/min continuous duty
The Fire-Ball 425 delivers 46 litres per minute at a 10:1 ratio, powered by compressed air. No electrical components means safe operation in workshops and service bays where oil mist and flammable vapours are present. Continuous-duty construction handles back-to-back fills without thermal shutdown.
Field-serviceable Graco design
Graco Fire-Ball pumps are built for on-site service. Wear parts (seals, packings, valves) are replaceable in the field, and parts availability in Australia is strong. You keep the pump running without downtime waiting on depot repairs or full unit replacements.
Features & Benefits
Key Features
- 10:1 ratio air-driven piston pump
- Flow rate 46 L/min
- Continuous duty design
- Graco Fire-Ball 425 series
- Suited to oil and lubrication fluids
- Field-serviceable construction
- Weight 15.4 kg
Benefits
- Reliable flow for high-volume oil dispensing
- Air power eliminates electrical hazards in workshops
- Field-serviceable parts reduce downtime
- Graco pedigree means parts and support availability
| Max Working Pressure | 1800 |
| Maximum Intermittent Cycle Rate (CPM) | 66 |
| Maximum Air Inlet Pressure (bar) | 12.41 |
| Maximum Air Inlet Pressure (psi) | 180 |
| Maximum Continuous Cycle Rate (CPM) | 66 |
| Air Inlet Size | 0.5 |
| Fluid Outlet Size | 19.05 |
| Fluid Outlet Thread | Female |
| Air Inlet Size (mm) | 12.7 |
| Air Inlet Thread Gender | Female |
| Fluid Inlet Size (in) | 1-1/2 |
| Fluid Inlet Size (mm) | 38.1 |
| Fluid Inlet Thread Gender | Female |
Shipping & Dimensions
Ships from Brisbane warehouse. Standard delivery 2-5 business days.
Downloads
Compare
Compare Similar Products
1800
—
—
66
—
—
12.41
—
—
180
—
—
66
—
—
0.5
—
—
19.05
—
—
Female
—
—
12.7
—
—
Female
—
—
1-1/2
—
—
38.1
—
—
Female
—
—
Compatible Products
Frequently Asked Questions
Can't find your answer?
Contact UsWhat is the Graco Fire-Ball 425 pump?
A 10:1 ratio air-driven piston pump delivering 46 L/min, designed for oil transfer and lubrication dispensing in workshop and industrial settings.
What fluids can this pump handle?
Suitable for oils and lubrication fluids. For compatibility with specific products, contact sales@goind.com.au.
What does 10:1 ratio mean?
For every 10 bar of air pressure supplied, the pump delivers 1 bar of fluid pressure. Higher ratios suit heavier fluids or longer hose runs.
Is this pump field-serviceable?
Yes. Graco Fire-Ball pumps are built for on-site service. Wear parts are replaceable without returning the unit.
What warranty and support is included?
12-month manufacturer warranty on defects. Wear parts are consumables. For service, parts, or technical advice, contact sales@goind.com.au or 07 3204 2240.
