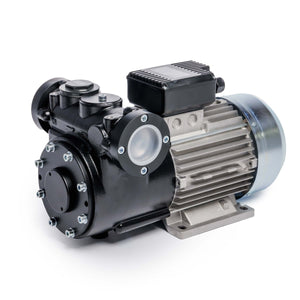

GO Elephant Diesel Transfer Pump 200LPM 240V DETP0855
Tax excluded. Shipping calculated at checkout
GST (10%) is calculated at checkout. Tax invoices provided with all orders.
Contact for live availability
Our inventory signal hasn't refreshed today. We update twice daily but the latest reading is stale.
Email sales@goind.com.au or call 07 3204 2240 for live availability.
Ships from Brisbane warehouse. Standard delivery 2-5 business days Australia-wide.
200 L/MIN DIESEL TRANSFER FOR SITES THAT RUN MAINS POWER
240V AC diesel transfer pump delivering 200 L/min at 4 bar, DN50 connection. Built for high-volume fuel handling on heavy transport, mining, and industrial sites.
High flow, mains fed
When your site has 240V single-phase power and you need to fill large tanks fast, this pump delivers. 200 litres per minute means a 1000-litre truck tank fills in five minutes. DN50 connection suits commercial pipework. Continuous duty design handles daily refuelling loads without stepping down to intermittent-rated kit.
Heavy unit, fixed installs
At 38 kg, this is not a portable setup you throw in the back of a ute. It suits workshop service bays, depot fuel islands, mining refuelling points, or agricultural bulk storage where the pump stays put and the vehicles come to it. Proper mounting and hose support matter at this flow rate.
Features & Benefits
Key Features
- High Flow: DN50 (2") BSP Female Inlet and Outlet providing a consistent 200lpm flow rate
- Made in Italy Quality
- Self-Priming: The Pump automatically draws fuel without manual priming.
- Pump Seal: The pump is equipped with a 6 bar mechanical seal. This high-quality seal prevents leaks and ensures a long service life.
- Integrated Bypass: protects the pump and motor from damage caused by excessive pressure and heat.

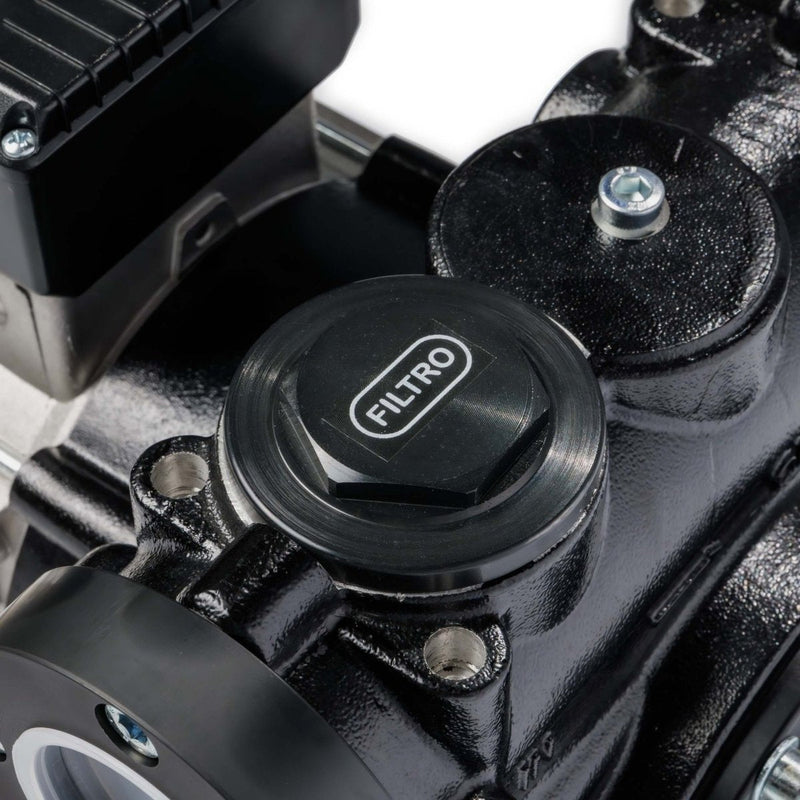

- Inlet Strainer: 130µm inlet strainer, which helps to remove impurities from the fuel, protecting the pump's internal components from damage and ensuring clean fuel transfer

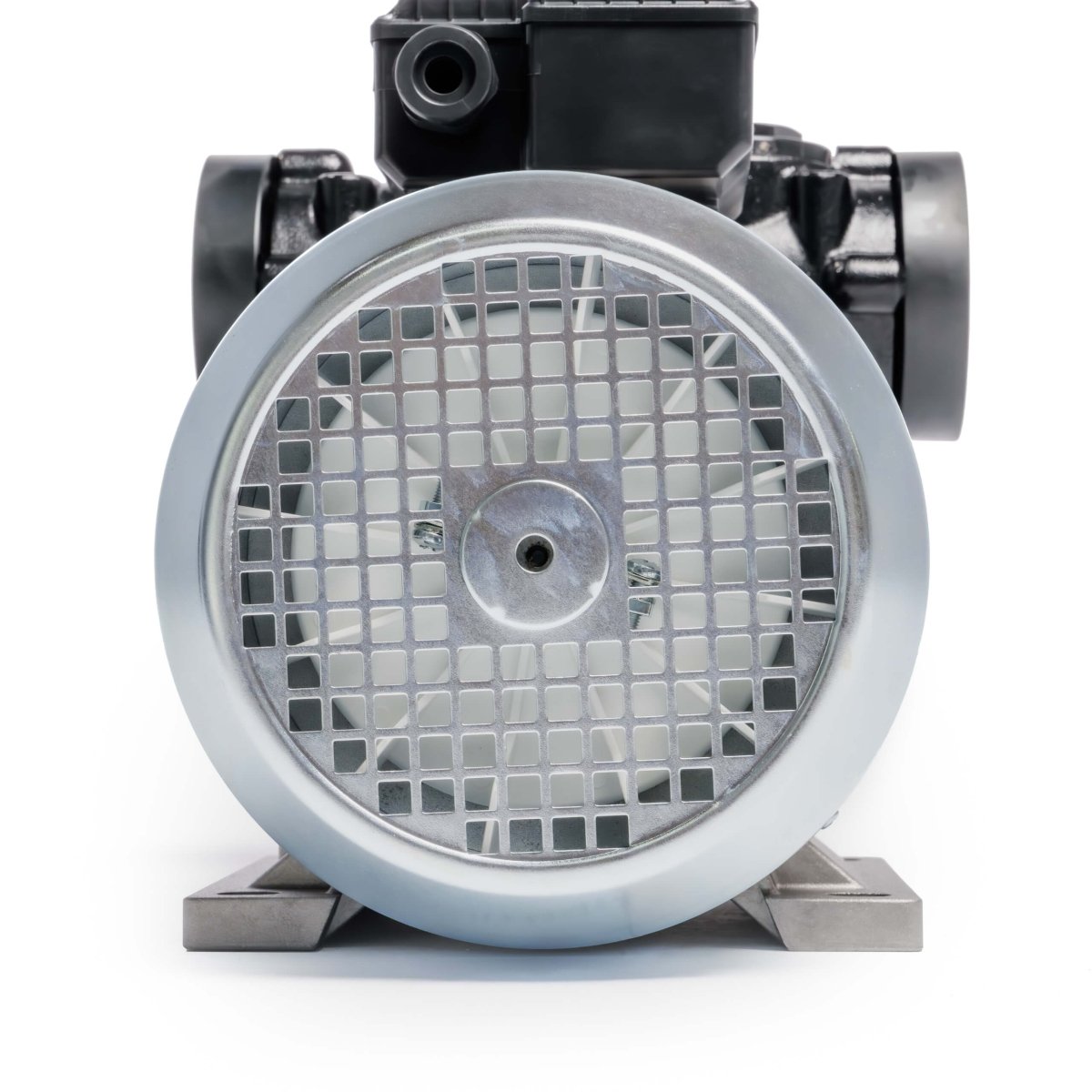

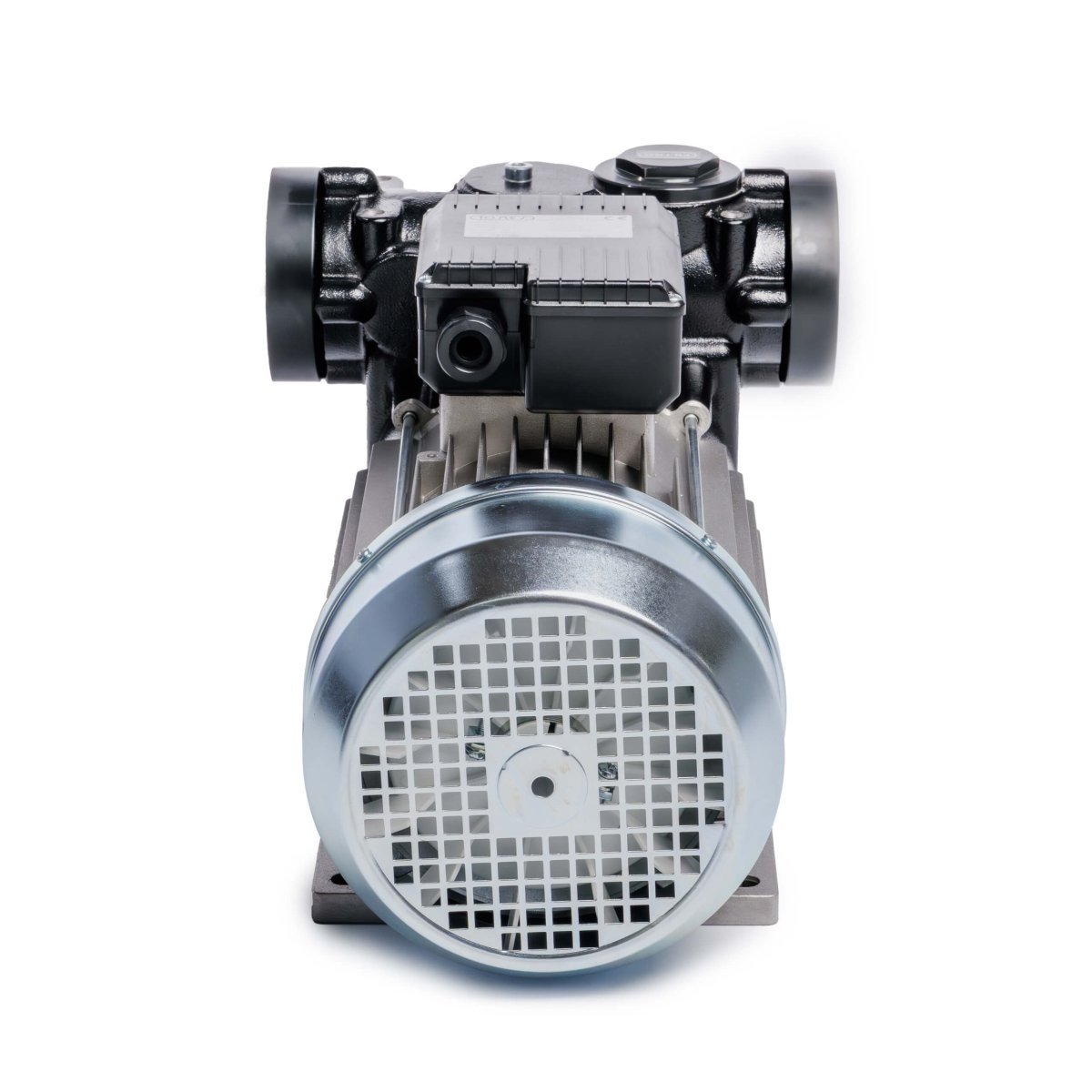

- Electric Motor: powered by asynchronous continuous duty AC motor with integrated auto reset thermal protection.
| Flow Rate (1 bar) | 200 lpm |
| Max Pressure | 4 Bar |
| Watt | 2237 |
| Product Dimensions | 44cm L x 26cm W x 27cm H |
| Packaging Dimensions | 46cm L x 26cm W x 37cm H |
| Weight | 38 kg |

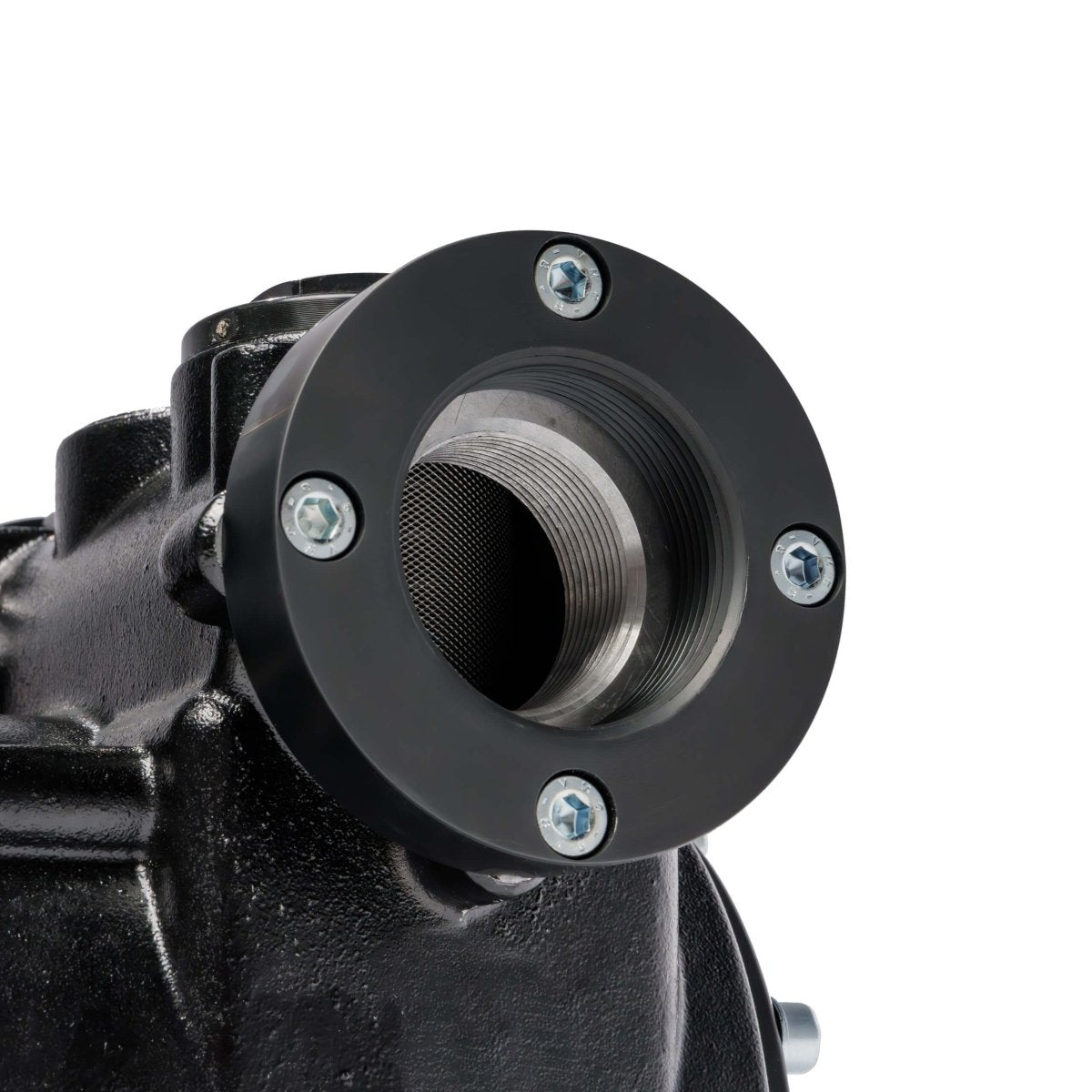

| IN | DN50 (2") BSP F |
| OUT | DN50 (2") BSP F |
| Flange IN-OUT | Yes |
| Suction | 3 mt |
| HP | 3 |
| Power Draw | 11.7 amp |
| Engine Rotation | 1400 rpm |
| Valve Start Eased | Included |
| Compatible Liquids | Diesel and Low Viscosity Lubricants |
| Seal | 6 bar Mechanical Seal |
Shipping & Dimensions
Ships from Brisbane warehouse. Standard delivery 2-5 business days.
Downloads
Compare
Compare Similar Products
200 lpm
—
240 lpm
4 Bar
—
2.5 Bar
2237
—
—
44cm L x 26cm W x 27cm H
—
45cm L x 37.5cm W x 37cm H
46cm L x 26cm W x 37cm H
—
58cm L x 68cm W x 63cm H
38 kg
46 kg
59 kg
DN50 (2") BSP F
—
DN50 (2") BSP F
DN50 (2") BSP F
—
DN50 (2") BSP F
Yes
—
Yes
3 mt
—
2.5 mt
3
—
—
11.7 amp
—
—
1400 rpm
—
3600 rpm
Included
—
Included
Diesel and Low Viscosity Lubricants
—
Diesel and Low Viscosity Lubricants
6 bar Mechanical Seal
—
6 bar Mechanical Seal
Frequently Asked Questions
Can't find your answer?
Contact UsWhat is the GO Fill 240V AC 200 L/min pump?
A high-flow diesel transfer pump delivering 200 litres per minute on single-phase 240V mains power. DN50 connection suits commercial fuel systems where fast tank fills are required daily.
What flow rate and pressure does this pump deliver?
200 litres per minute at up to 4 bar. That flow rate handles large truck tanks and bulk transfers significantly faster than typical 100-120 L/min workhorse units.
What connection size does this pump use?
DN50. This is larger than typical 1 inch or 32 mm fittings and matches commercial fuel handling pipework. Confirm your plumbing before ordering.
Can I mount this on a ute or trailer?
At 38 kg, this pump is heavy. It suits fixed or semi-permanent installations more than portable setups. Secure mounting and proper hose support are essential.
What warranty and support comes with this pump?
12-month manufacturer warranty on defects. Wear parts are consumables. For technical advice, system sizing, or parts availability, contact sales@goind.com.au or 07 3204 2240.
