Piusi|F0777200A
PIUSI Filter Assembly DN25 1" with 10um Particulate Element 60lpm F0777200A
Tax excluded. Shipping calculated at checkout
GST (10%) is calculated at checkout. Tax invoices provided with all orders.
Contact for live availability
Our inventory signal hasn't refreshed today. We update twice daily but the latest reading is stale.
Email sales@goind.com.au or call 07 3204 2240 for live availability.
Ships from Brisbane warehouse. Standard delivery 2-5 business days Australia-wide.
CLEAN FUEL AT 60 L/MIN WITHOUT THE PREMIUM PRICE TAG
Inline diesel and petrol filter with 10-micron element, 1" BSP female connections, rated to 60 L/min and 12 bar. Suits workshop dispensers and mobile refuelling setups.

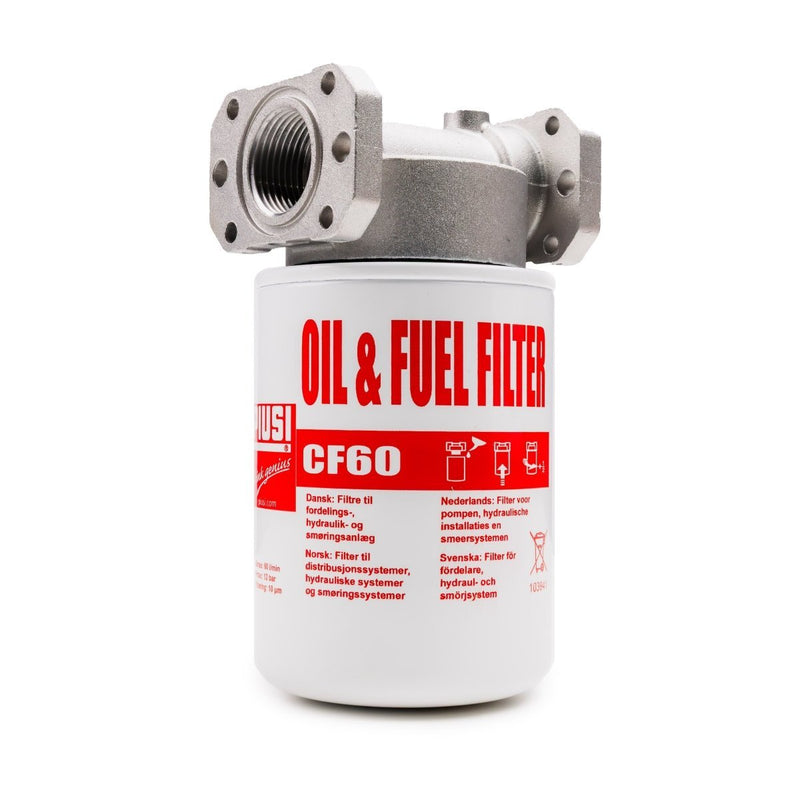

What it does
Inline filter that catches rust, dirt, and sediment down to 10 microns before it reaches your nozzle or meter. Rated to 60 L/min and 12 bar, so it keeps up with most workshop and mobile refuelling pumps without starving flow. Spin-off bowl design means you swap the element in a couple of minutes when it loads up.

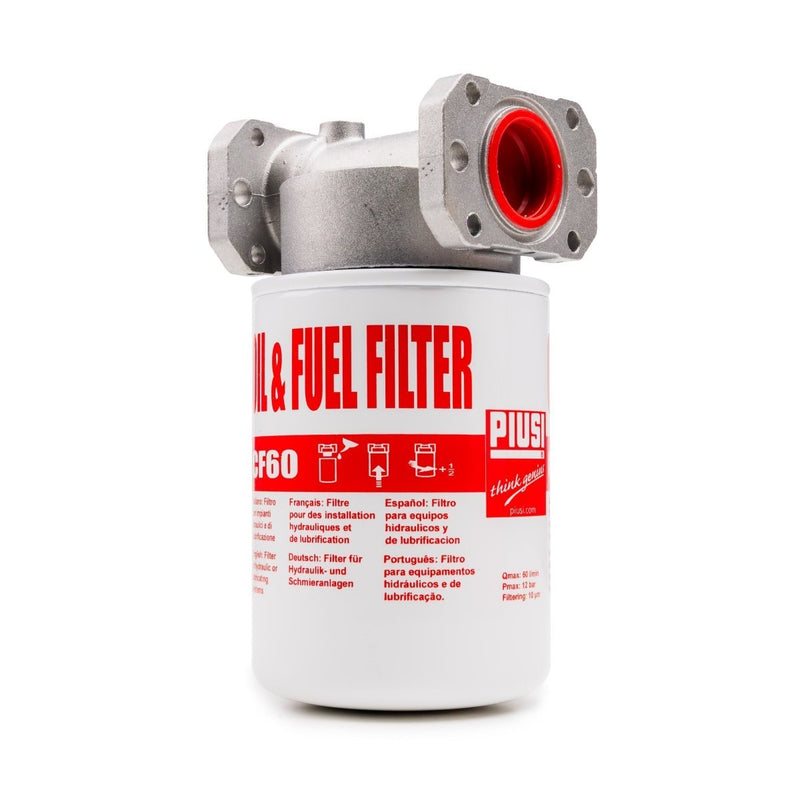

Standard fittings, standard job

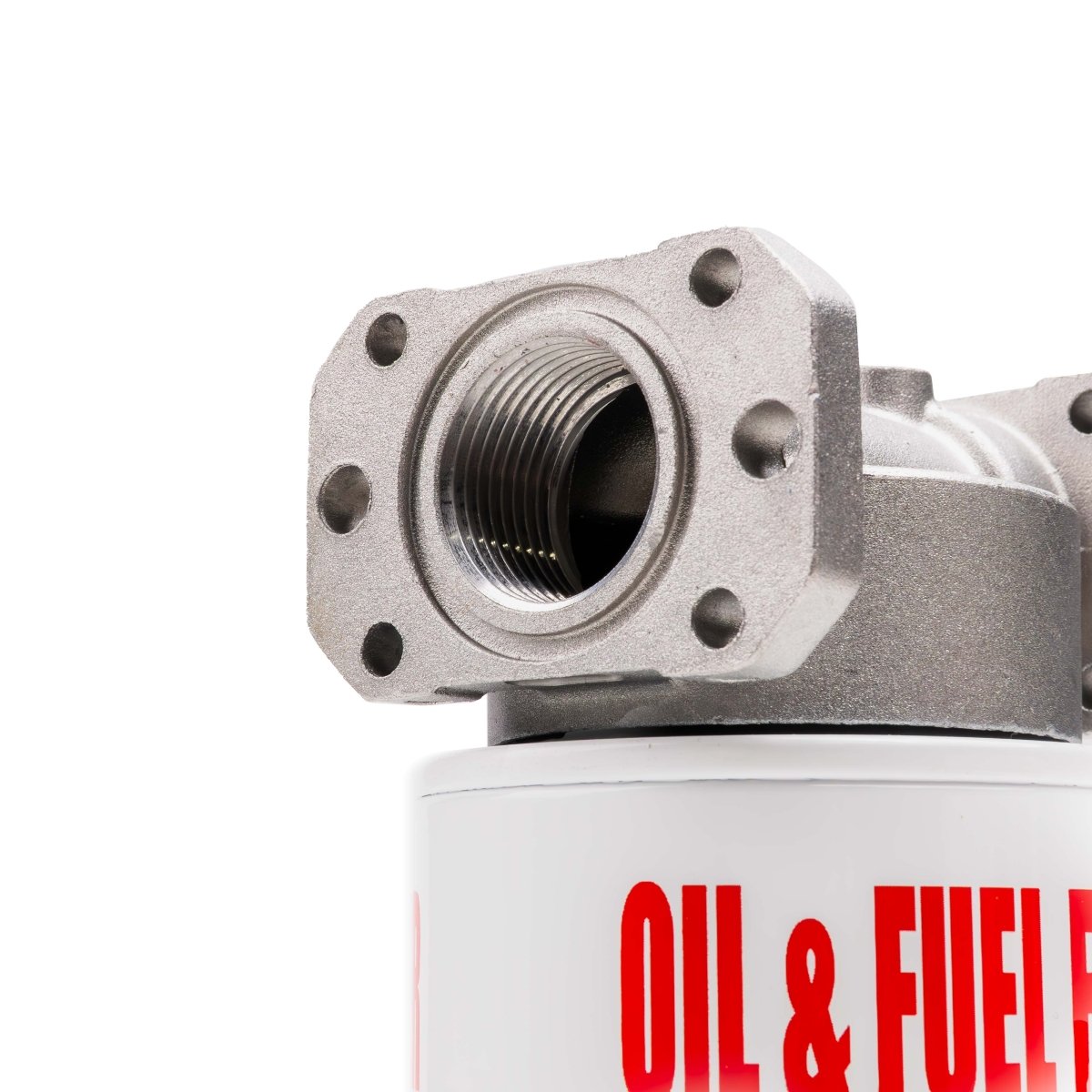

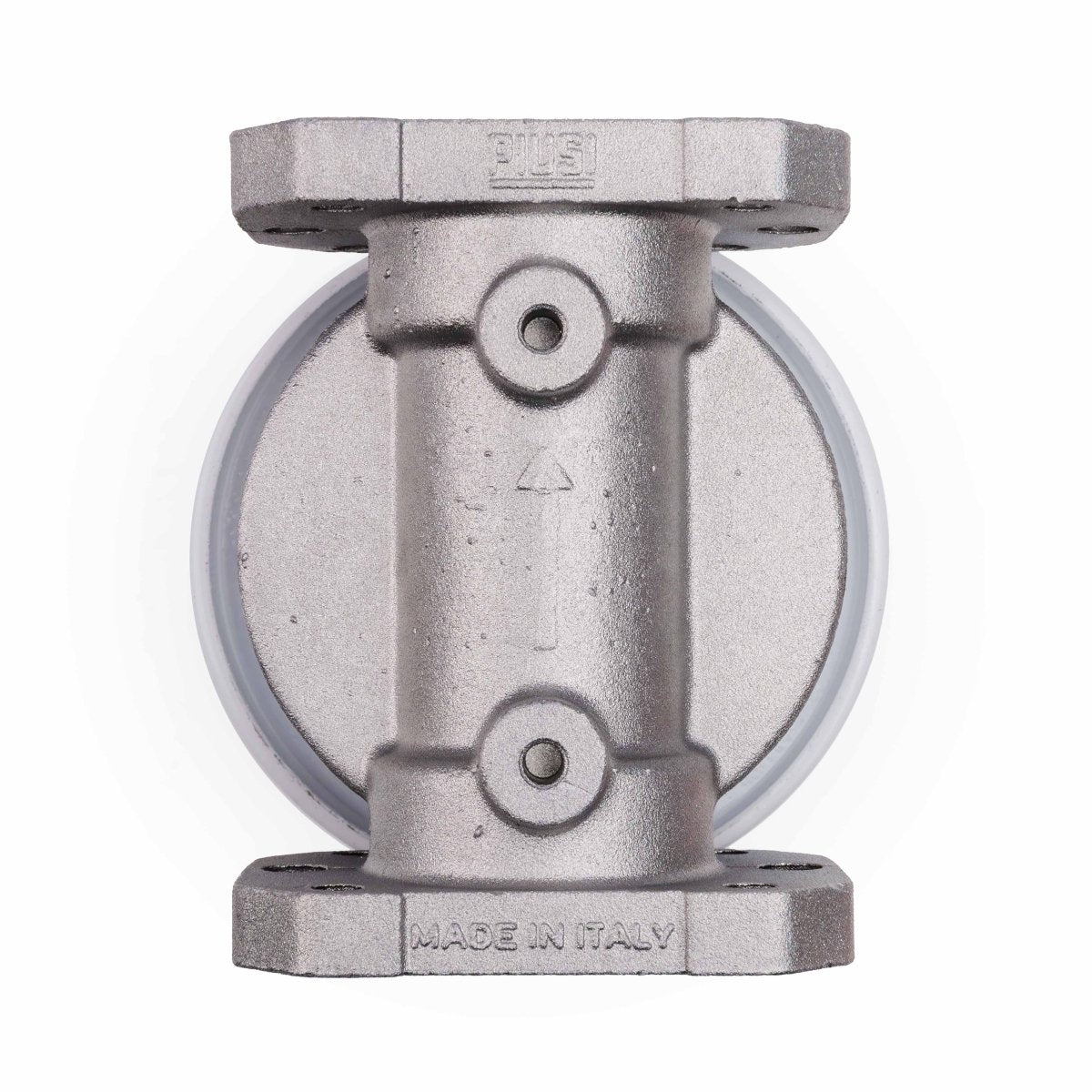

1" BSP female at inlet and outlet. Threads straight into most Australian fuel plumbing without hunting down adapters. Light enough (1 kg) to mount inline on a hose reel frame or between pump and meter without extra brackets. Compatible with diesel, petrol, and lubricants.
Features & Benefits
Key Features
- Cartridge filter assembly supplied c.w Head and Element
- Spin On Style Replacement Element
- Recommended installation location is the downstream / pressure side of a pump, before the meter.
| Flow Rate | 60 L/min |
| Max Working Pressure | 12 |
| Micron Rating | 10 µm |
| Connection | 1" BSP f |
| Weight | 1 |
| Dimensions | Width In Line: 100mm |
| Overall Height | 160mm |
| Fluid Compatibility | diesel, petrol, and lubricants |
| Maximum Pressure Rating | 12 Bar (174 psi) |
Shipping & Dimensions
Ships from Brisbane warehouse. Standard delivery 2-5 business days.
Downloads
Compare
Compare Similar Products
60 L/min
60 L/min
60 L/min
12
12
—
10 µm
30
—
1" BSP f
1" BSP f
1" BSP
1
2
2 kg
Width In Line: 100mm
—
—
160mm
—
—
diesel, petrol, and lubricants
—
diesel, light lubricants, low-viscosity oils
12 Bar (174 psi)
—
—
Compatible Products
Frequently Asked Questions
Can't find your answer?
Contact UsWhat is the Piusi Filter DN25 (1") BSP F 60lpm?
Inline fuel filter with 1" BSP female connections and a 10-micron replaceable element. Rated to 60 L/min and 12 bar, suits diesel, petrol, and lubricant dispensing.
What does 10-micron filtration remove?
Catches rust, scale, and sediment particles down to 10 microns. Protects nozzles, meters, and injectors from clogging without restricting flow on typical workshop pumps.
How often do I replace the element?
Depends on fuel cleanliness and volume pumped. Most workshop users swap at 6 to 12 months. Spin-off bowl makes replacement a 2-minute job.
Will this fit my existing plumbing?
If your pump and hose are 1" BSP female threaded, yes. Measure your current fittings or send a photo to sales@goind.com.au if unsure.
What warranty and support do I get?
12-month warranty on housing and fittings. Filter elements are wear items. For technical questions or bulk orders, contact sales@goind.com.au or 07 3204 2240.
