100 L/MIN DIESEL FILTRATION WITH PRESSURE GAUGE SATURATION MONITORING
Premium inline diesel filter with built-in water separator, 100 L/min flow, 30-micron filtration, and pressure gauge for saturation monitoring.

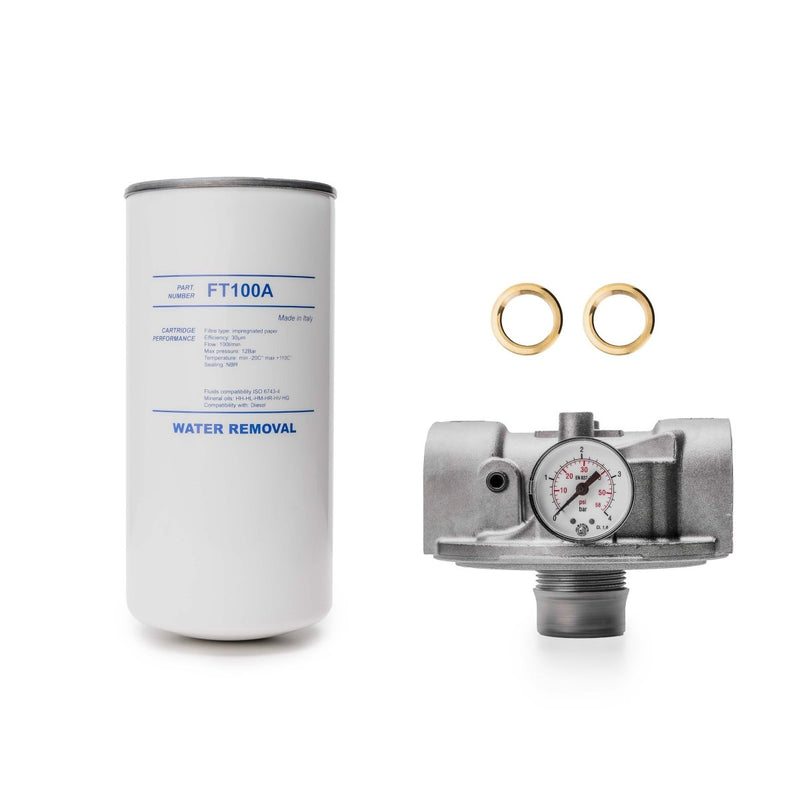

Clean fuel, visible status
This filter pulls particulate down to 30 microns and separates water in one inline pass. The integrated pressure gauge shows differential across the element, so you swap it when saturation climbs instead of guessing by flow drop. Keeps your pumps and nozzles fed with clean diesel.
Fits standard plumbing

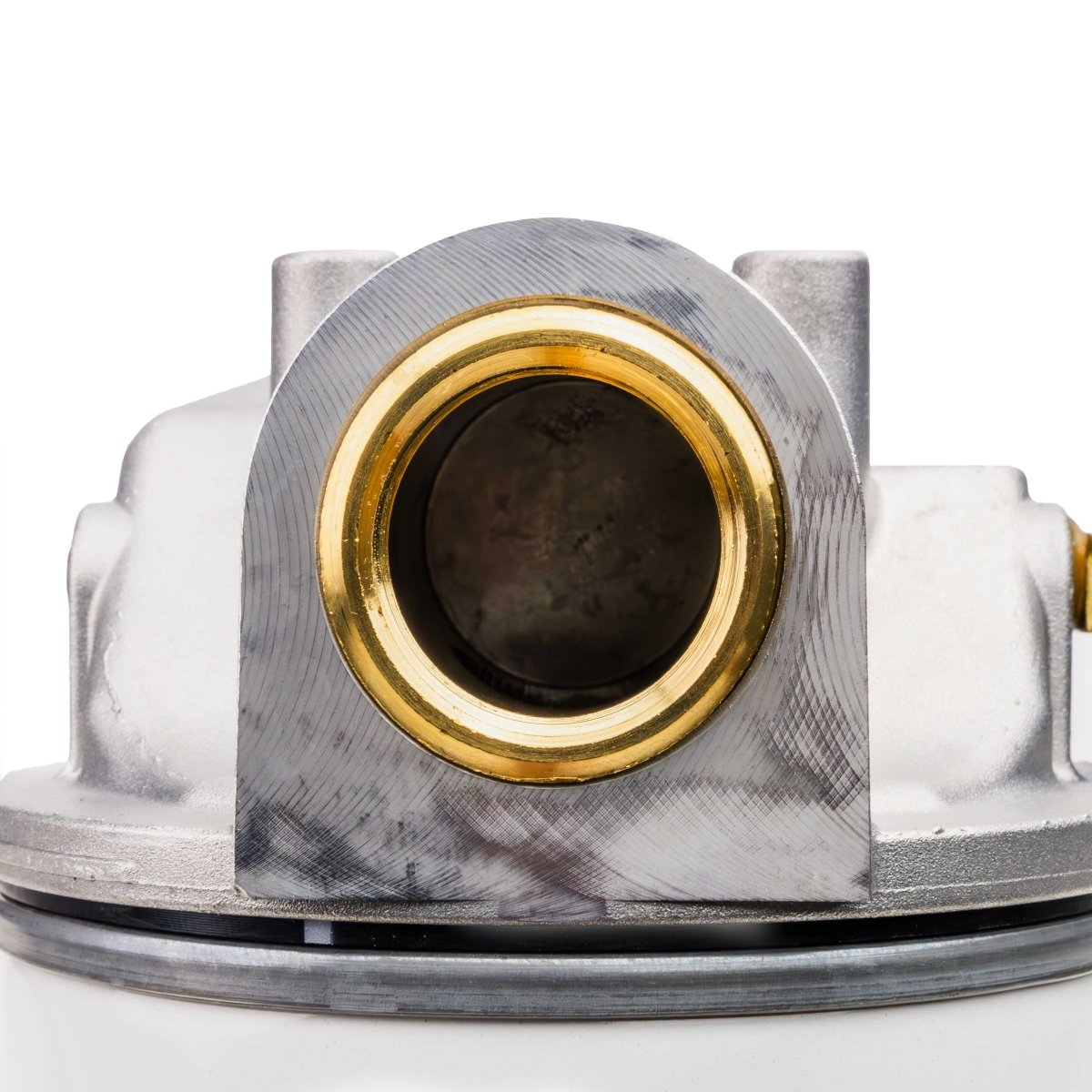

Native ports are DN32 (1.25 inch BSP female), but the unit ships with DN25 (1 inch BSP female) reducing inserts installed. Drop it into your existing 1 inch line without hunting for adapters. If you're building a higher-flow system, pull the inserts and plumb DN32 direct.
Features & Benefits
Key Features
- DN32 (1-1/4") BSP Female Inlet and Outlet supplied with DN25 (1") BSP Female Reducing Inserts
- 30um Particulate and Water Removal
- Flow Direction Cast on the Housing

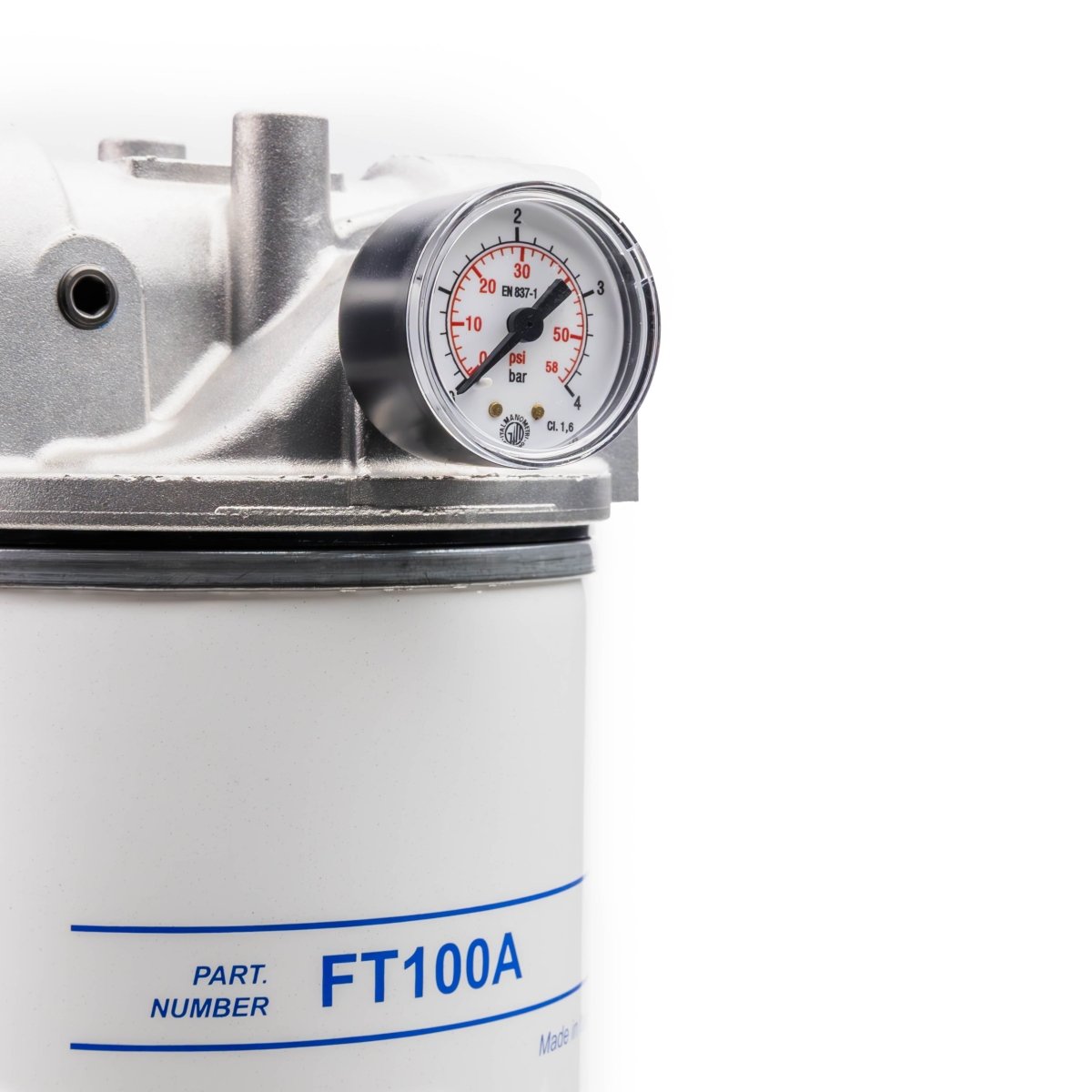

- Saturation Level Indicator Pressure Gauge
- Flow Rate up to 100lpm
- Package Size 220mm L x 150mm W x 220mm H - 1.3kg
- Suitable for use with Diesel

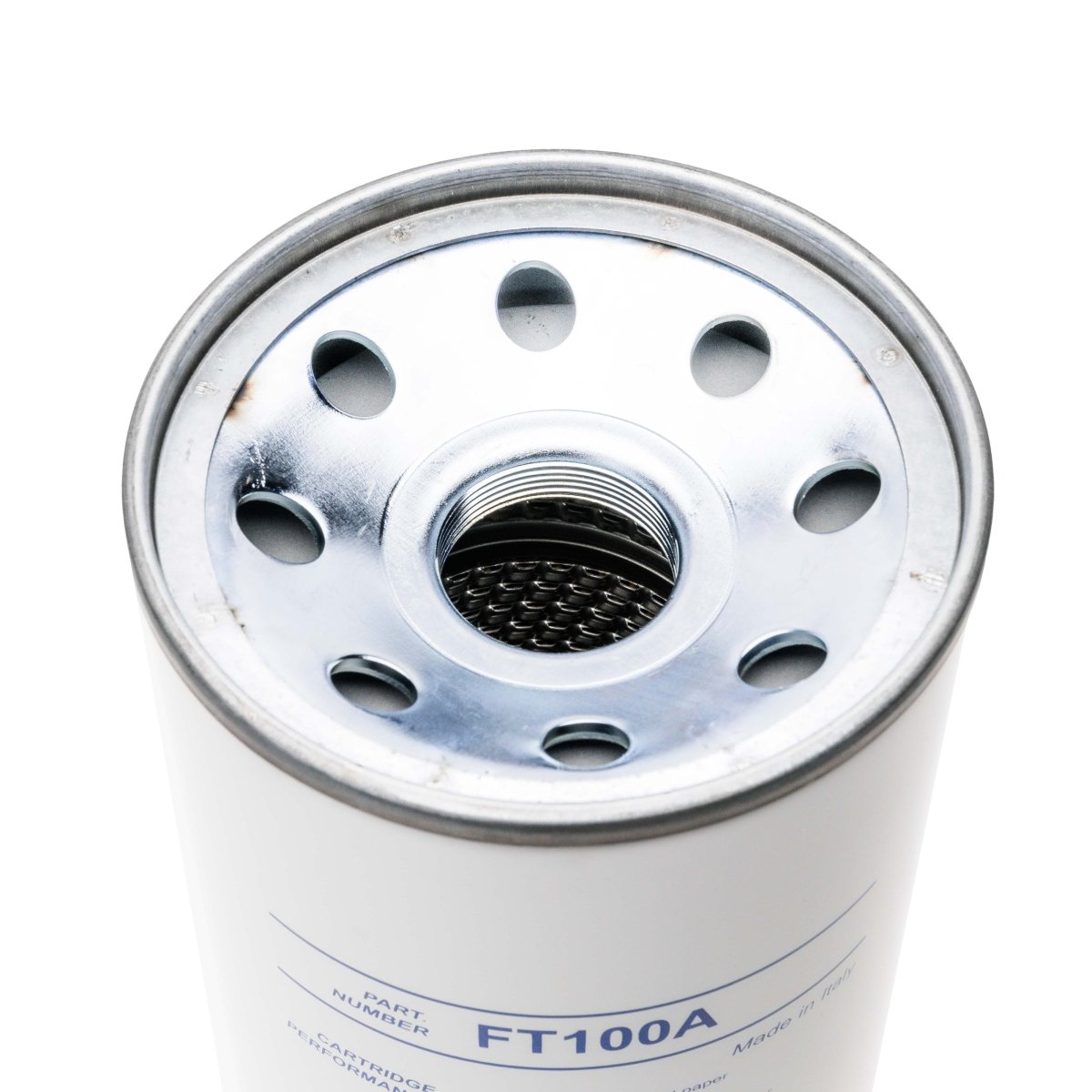

- Replacement Element Code FT100A
| Flow Rate | 60 L/min |
| Connection | 1" BSP |
| Weight | 2 kg |
| Connections | DN32 (1.25 inch BSP female) inlet/outlet, DN25 (1 inch BSP female) reducing inserts supplied |
| Material | NBR |
| Filtration | 30 micron particulate and water removal |
| Saturation Indicator | pressure gauge shows differential across element |
| Maximum Working Pressure | 14 bar (203 psi) |
| Maximum Differential Pressure | 5 bar (72 psi) |
| Fluid Compatibility | diesel, light lubricants, low-viscosity oils |
| Seals | NBR (Nitrile) compound |
Shipping & Dimensions
Ships from Brisbane warehouse. Standard delivery 2-5 business days.
Downloads
Compare
Compare Similar Products
60 L/min
60 L/min
60 L/min
1" BSP
1" BSP f
1" BSP f
2 kg
1
2
DN32 (1.25 inch BSP female) inlet/outlet, DN25 (1 inch BSP female) reducing inserts supplied
—
—
NBR
—
—
30 micron particulate and water removal
—
—
pressure gauge shows differential across element
—
—
14 bar (203 psi)
—
—
5 bar (72 psi)
—
—
diesel, light lubricants, low-viscosity oils
diesel, petrol, and lubricants
—
NBR (Nitrile) compound
—
—
Compatible Products
Frequently Asked Questions
Can't find your answer?
Contact UsWhat is the Piusi inline filter?
An inline diesel and light-oil filter that removes particulate down to 30 microns and separates water. Built-in pressure gauge shows cartridge saturation so you know when to swap the element.
What size fittings does it have?
Native inlet and outlet are DN32 (1.25 inch BSP female). Supplied with DN25 (1 inch BSP female) reducing inserts so it drops straight into standard 1 inch plumbing.
What fluids can I run through it?
Diesel, light lubricants, and low-viscosity oils. NBR seals are compatible with those fluids. Not for petrol or aggressive solvents.
How do I know when to change the element?
The pressure gauge shows differential across the cartridge. When it climbs toward 5 bar or flow drops noticeably, swap the element.
What warranty and support do I get?
12-month manufacturer warranty on the housing and gauge. Filter elements are wear parts. For replacement cartridges or technical questions, contact sales@goind.com.au or 07 3204 2240.
