Elaflex|ZVA2 4.1 Blk

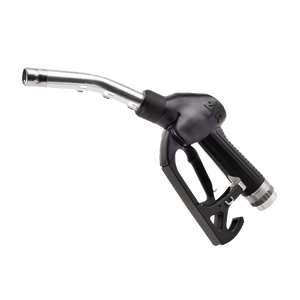

ELAFLEX ZVA Slimline 2 Automatic Nozzle with Swivel Diesel 80lpm ZVA2 4.1 Blk
Tax excluded. Shipping calculated at checkout
GST (10%) is calculated at checkout. Tax invoices provided with all orders.
Contact for live availability
Our inventory signal hasn't refreshed today. We update twice daily but the latest reading is stale.
Email sales@goind.com.au or call 07 3204 2240 for live availability.
Ships from Brisbane warehouse. Standard delivery 2-5 business days Australia-wide.
ATEX AUTO SHUT-OFF AT 80 L/MIN FOR EVERYDAY DIESEL
ATEX-certified automatic shut-off diesel nozzle with easy-rotating swivel and integrated drip catcher. HiFlo flow up to 80 L/min, 1" BSP female inlet, DN19 stainless-tipped spout. ~1.0 kg.
Swivel and shut-off
The easy-rotating swivel keeps the hose from kinking on awkward fills, and Venturi automatic shut-off triggers the moment the tank is full — so you can step away without overflow. HiFlo flow up to 80 L/min keeps fleet and workshop diesel fills quick.
Clean, durable, certified
A DN19 spout with a stainless steel tip resists wear for a long service life, while the integrated diesel drip catcher keeps the dispenser area clean. Aluminium body with brass, stainless steel, acetal and PEEK internals and polyurethane/NBR seals.
Features & Benefits
Key Features
- Automatic shut-off when the tank is full
- Easy-rotating swivel inlet prevents hose kink
- HiFlo flow up to 80 L/min
- Stainless steel-tipped DN19 spout resists wear
- Integrated diesel drip catcher keeps the dispenser clean
- ATEX Ex II 1G certified for hazardous areas
- Aluminium body with brass/stainless/acetal/PEEK internals
- Suitable for diesel, biodiesel and fuel oil
Benefits
- No overflow mess — auto shut-off does the watching
- Swivel saves wrestling kinked hoses on tight fills
- Fast fills for fleet, workshop and yard refuelling
- Long service life with no early spray shut-off
- Less drip means a cleaner, safer dispensing area
- Run it legally in classified zones
| Flow Rate | Up to 80 L/min (HiFlo) |
| Working Pressure | 0.5 – 3.5 bar |
| Temperature Range | -20°C to +55°C |
| Hose Inlet | 1" BSP female (R 1"), integrated swivel |
| Spout | DN19 aluminium, stainless steel tip |
| Operation | Venturi automatic shut-off, attitude safety cut-out, built-in check valve |
| Hold-Open Latch | 2-speed lever latch, removable latch pin (EB 280) |
| Body & Spout | Aluminium, stainless steel spout tip |
| Internal Parts | Brass, stainless steel, acetal resin and PEEK |
| Seals | Polyurethane and NBR |
| Guard | Composite plastic, PVC comfigrip (black – diesel) |
| Weight | ~1.0 kg |
| Suitable Fuels | Diesel, biodiesel, fuel oil (also gasoline). Not for viscous oils |
| Drip Control | Integrated diesel drip catcher |
| Standards | Meets EN 13012; Weights & Measures |
| Hazardous Area | ATEX Ex II 1G (SIRA 03ATEX9487U), TÜV P-TÜ7-01930 |
Shipping & Dimensions
Ships from Brisbane warehouse. Standard delivery 2-5 business days.
Downloads
Compare
Compare Similar Products
Up to 80 L/min (HiFlo)
—
200 L/min
0.5 – 3.5 bar
—
—
-20°C to +55°C
—
—
1" BSP female (R 1"), integrated swivel
—
—
DN19 aluminium, stainless steel tip
—
—
Venturi automatic shut-off, attitude safety cut-out, built-in check valve
—
—
2-speed lever latch, removable latch pin (EB 280)
—
—
Aluminium, stainless steel spout tip
—
—
Brass, stainless steel, acetal resin and PEEK
—
—
Polyurethane and NBR
—
—
Composite plastic, PVC comfigrip (black – diesel)
—
—
~1.0 kg
1.05 kg
—
Diesel, biodiesel, fuel oil (also gasoline). Not for viscous oils
—
—
Integrated diesel drip catcher
—
—
Meets EN 13012; Weights & Measures
—
—
ATEX Ex II 1G (SIRA 03ATEX9487U), TÜV P-TÜ7-01930
—
—
Compatible Products
Frequently Asked Questions
Can't find your answer?
Contact UsWhat is the Elaflex ZVA Slimline 2 (ZVA2 4.1) nozzle?
A compact ATEX-certified automatic shut-off nozzle for diesel, biodiesel and fuel oil. The black guard denotes diesel service. HiFlo flow up to 80 L/min with an integrated swivel and diesel drip catcher.
What inlet connection does it have?
A 1" BSP female (R 1") inlet with an easy-rotating swivel. The DN19 spout is aluminium with a stainless steel tip.
Can I use this nozzle in a hazardous area?
Yes. It carries ATEX Ex II 1G certification (SIRA 03ATEX9487U) and TUV approval, provided you follow safe fuelling procedures and maintain it per the manual.
What flow rate and pressure does it run at?
Up to 80 L/min (HiFlo type) at a working pressure of 0.5 to 3.5 bar, across a -20C to +55C temperature range.
What does the swivel joint do?
The easy-rotating swivel lets the hose turn freely during a fill, so you're not fighting kinks or torque when the vehicle parks at an angle.
