Piusi|F00580030
PIUSI PUMP 240V AC 56lpm Panther EX56 · F00580030
Tax excluded. Shipping calculated at checkout
GST (10%) is calculated at checkout. Tax invoices provided with all orders.
Contact for live availability
Our inventory signal hasn't refreshed today. We update twice daily but the latest reading is stale.
Email sales@goind.com.au or call 07 3204 2240 for live availability.
Ships from Brisbane warehouse. Standard delivery 2-5 business days Australia-wide.

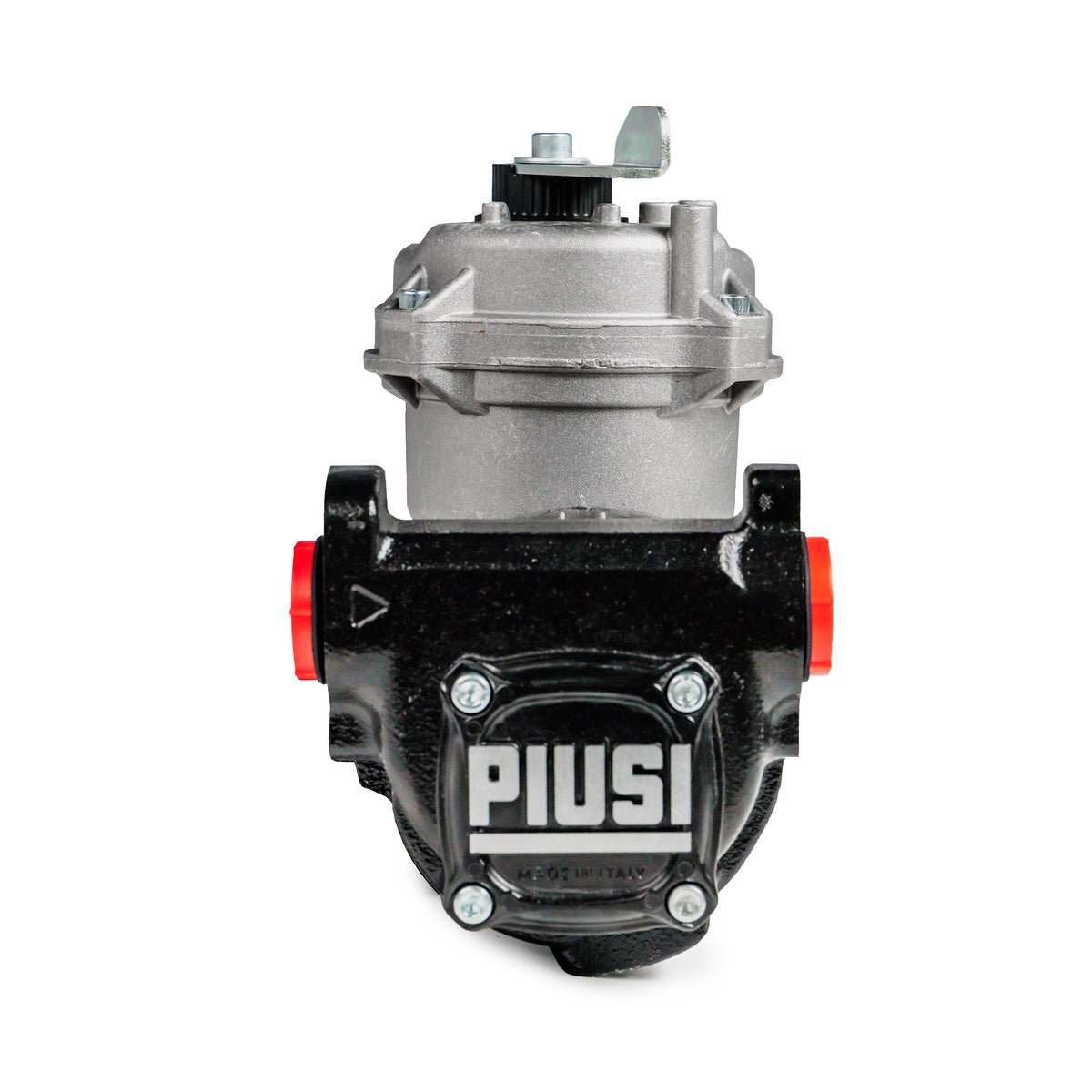

PIUSI PANTHER EX 56 ATEX TRANSFER PUMP
ATEX Zone 1 cast-iron transfer pump. 56 lpm at 240V AC, continuous duty, feet-mounted. Suits petrol, diesel, kerosene in hazardous-area installations.

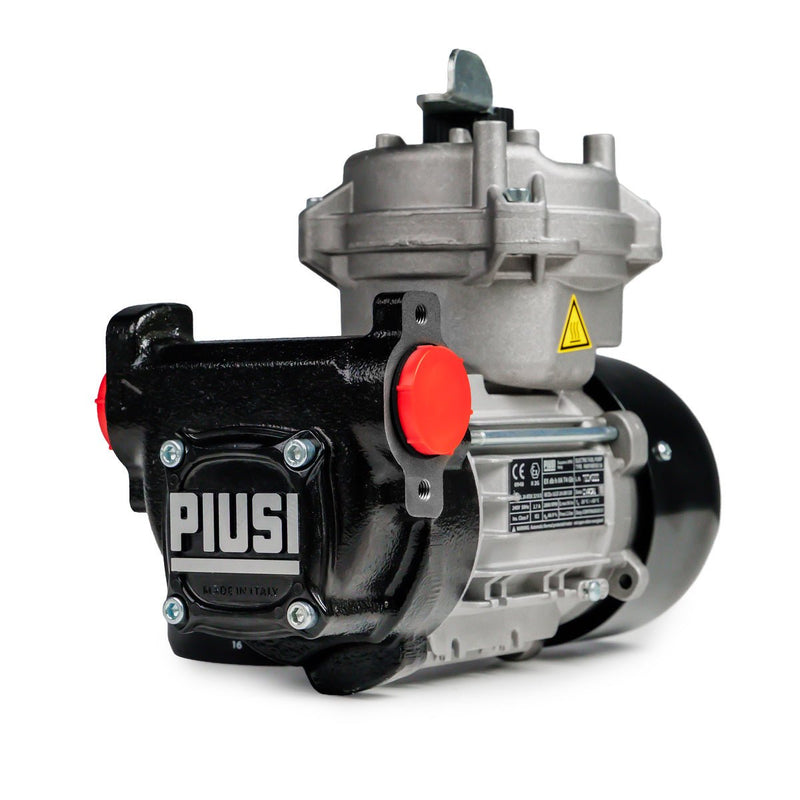

The transfer pump that scales from drum to bowser
The Panther 56 is the most-installed mid-size pump in the Piusi range because it just works. The Panther EX 56 takes the same proven cast-iron architecture and adds ATEX II 2 G certification - which means you can legally handle petrol, kerosene, and other flammable liquids in a Zone 1 / Zone 2 hazardous area without re-engineering your installation around a different pump.
FLOW RATE
Bolt-down installation for fixed transfer stations
The feet version (F00580030) is the right pick when you're plumbing the pump into a fixed installation - tank-side transfer station, wall mount, or custom skid. Removable feet bolt to four standard mounting points, and you get a magnetic ON/OFF switch positioned for easy access. The drum version (F00580010) ships with a telescopic suction tube and is the choice for direct 200L drum / IBC mounting - speak to us if that's what you actually need.
INSTALL
Features & Benefits
Key Features
- ATEX II 2 G Ex d IIA T4 Gb explosion-proof rating for Zone 1 hazardous areas
- 56 l/min continuous duty at 240V AC, 500W single-phase motor

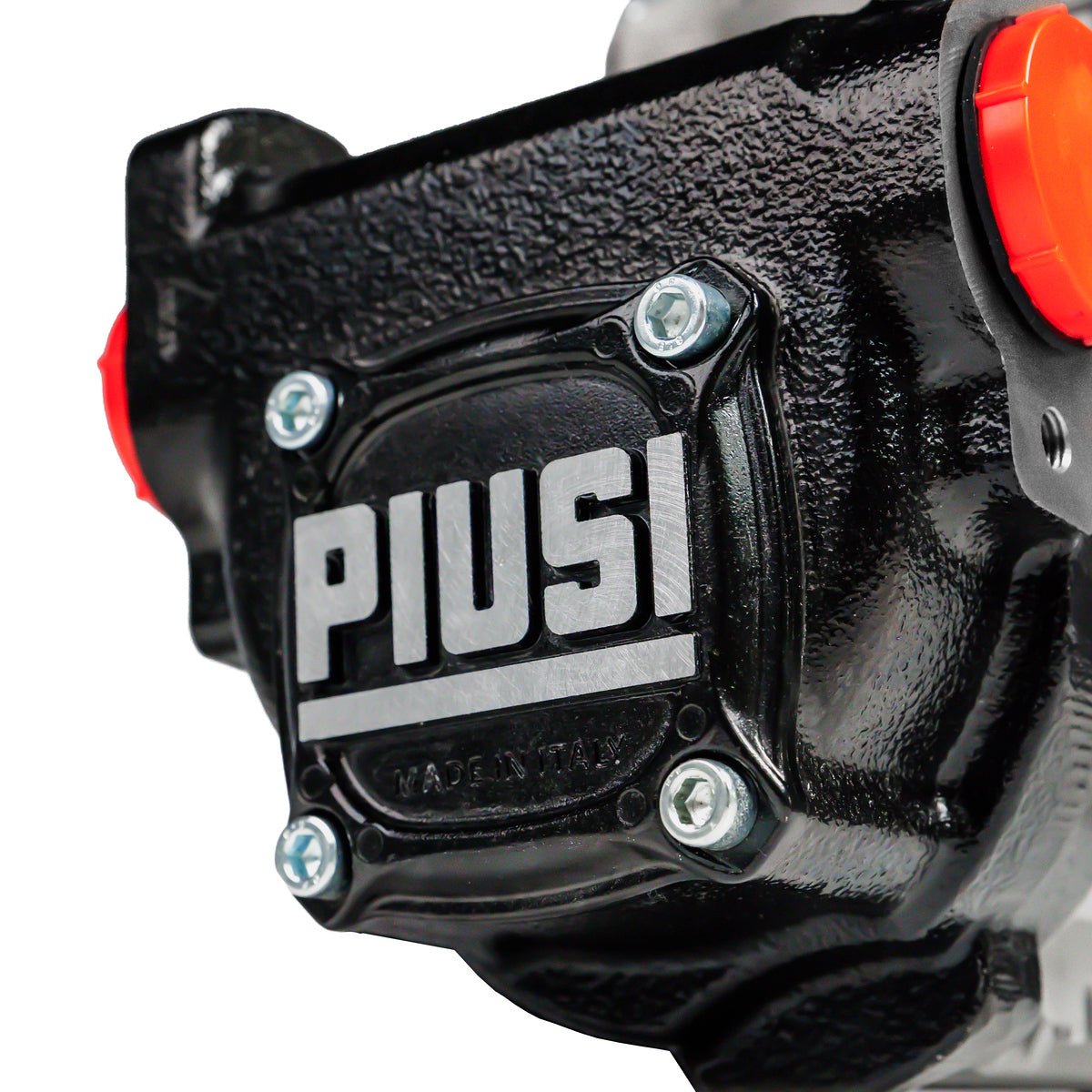

- Cast-iron pump body with sintered-steel rotor and Viton seals

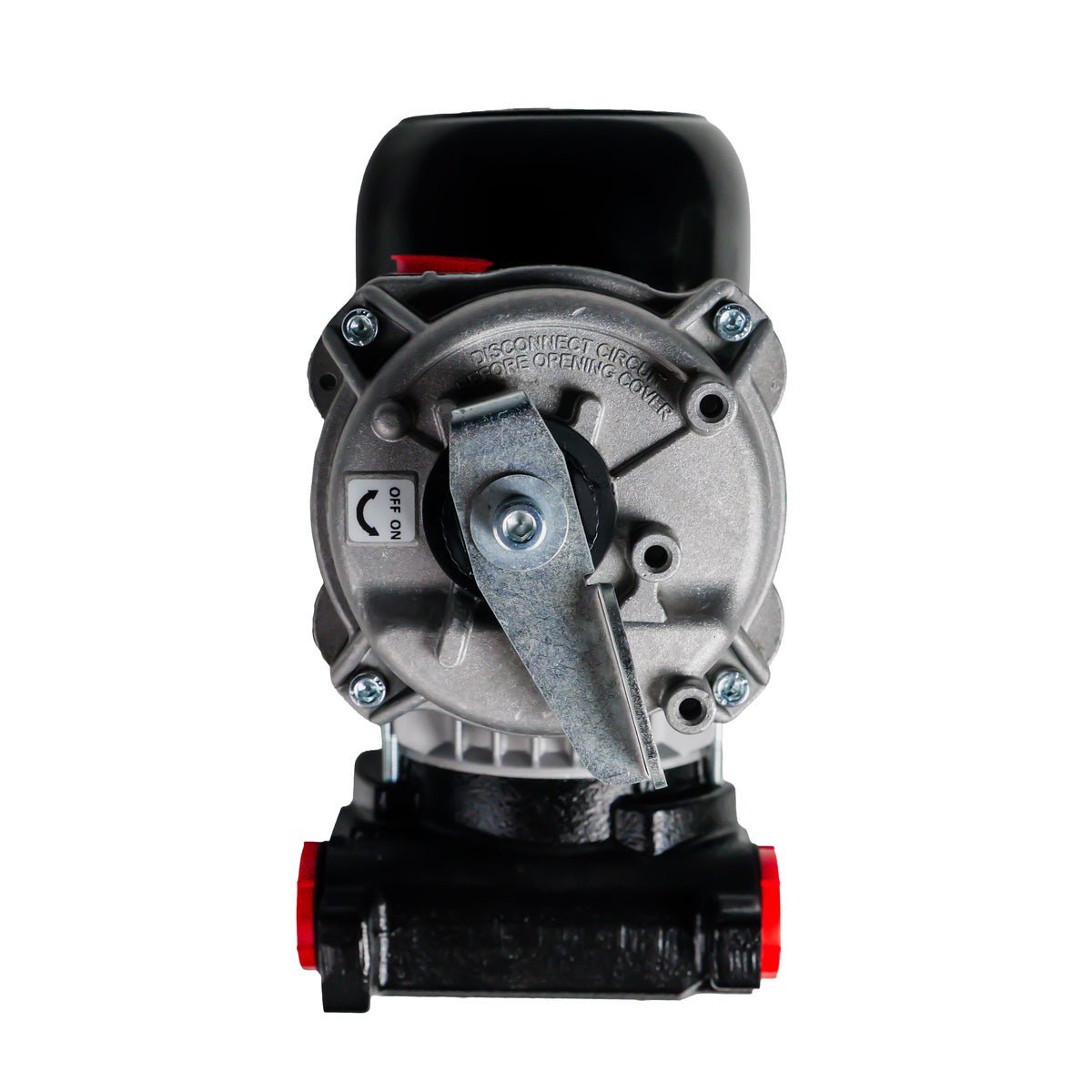

- Magnetic ON/OFF switch and integrated bypass valve
- 1" BSP inlet and outlet for standard fuel-line plumbing
- Suitable for diesel, petrol, and kerosene
- Removable feet for permanent bolt-down installation
- 12-month Piusi manufacturer warranty plus ATEX/IECEx certificate
| Flow Rate | 56 l/min (14.7 GPM) |
| RPM | 2800 |
| Inlet Thread | 1" BSP |
| Outlet Thread | 1" BSP |
| Body Material | Cast iron |
| Mounting | Feet (removable, bolt-down) |
| Weight | 12.4 kg |
| Voltage | 230V / 50Hz (compatible 240V AU) |
| Power | 500 W |
| Max Current | 2.3 A |
| Rotor | Sintered steel |
| Vanes | Technopolymer |
| Seal | Viton |
| Shaft | Steel |
| Pump Type | Self-priming vane with bypass |

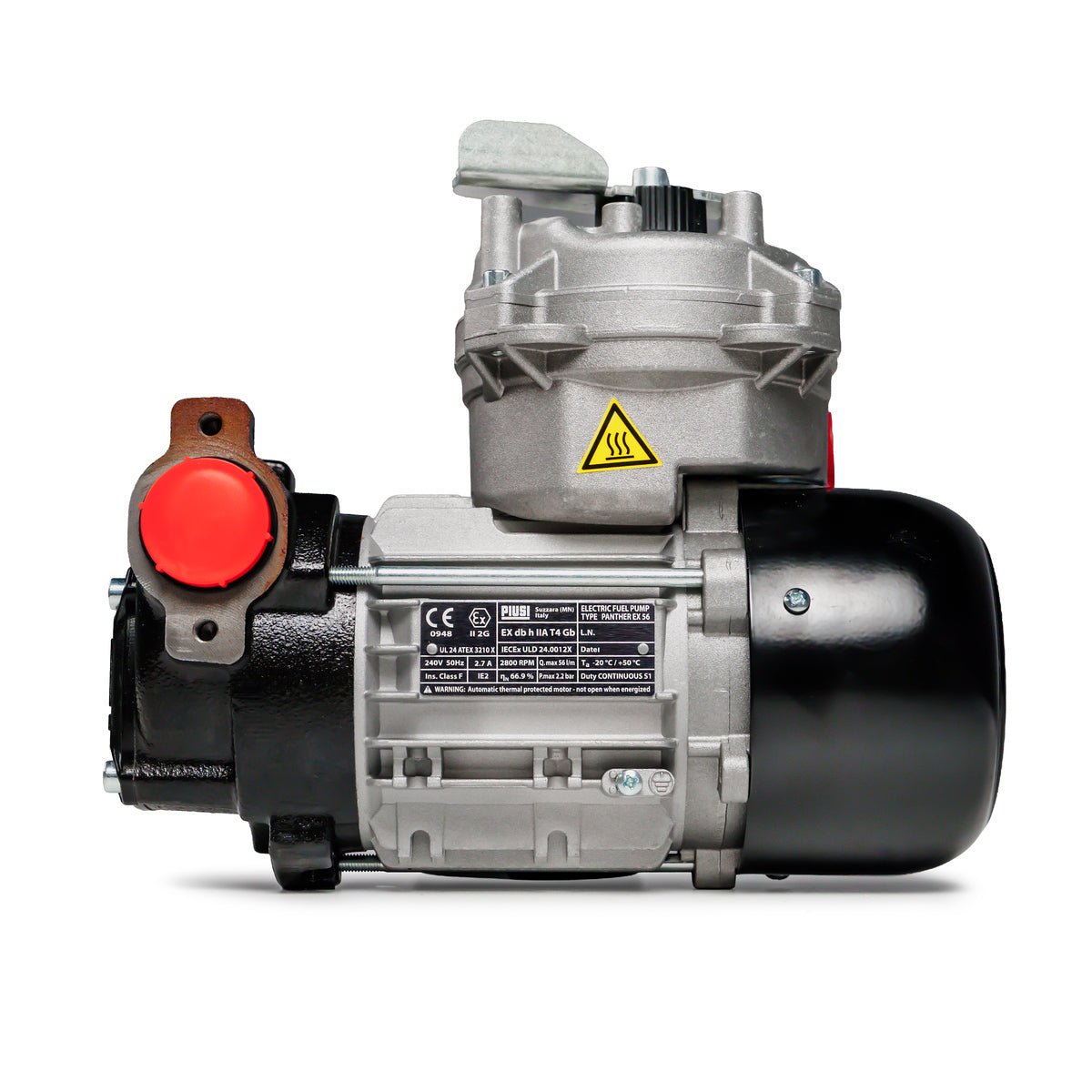

| ATEX Marking | II 2 G Ex d IIA T4 Gb |
| Country of Origin | Italy |
| Warranty | 12 months |
| Manufacturer Code | F00580030 |
| Model | Panther EX 56 (Feet) |
| Duty Cycle | Continuous (S1) |
| Switch | Magnetic ON/OFF |
| Fluid Compatibility | Diesel, petrol, kerosene |
| Packaging | 400 x 240 x 300 mm |
Shipping & Dimensions
Ships from Brisbane in original Piusi packaging. 400 x 240 x 300 mm carton.
Downloads
Compatible Products
Frequently Asked Questions
Can't find your answer?
Contact UsWhat's the difference between the Panther 56 and the Panther EX 56?
The Panther 56 is rated for diesel only. The Panther EX 56 carries ATEX II 2 G certification for petrol, kerosene, and other flammable liquids in Zone 1 / Zone 2 hazardous areas. Same pump architecture, hardened for hazardous service.
Is this the feet or drum version?
Feet version (F00580030). Comes with removable mounting feet for bolt-down installation. The drum version (F00580010 in Piusi's catalogue) ships with a drum connector and nozzle holder for IBC / 200L drum mounting - speak to us if that's what you need.
Why ATEX for diesel?
Diesel itself is not flagged as Zone 1, but if you're sharing a yard, workshop, or storage area with petrol or other flammable hydrocarbons, your hazardous-area classification may require ATEX-certified equipment across the whole installation. Many WHS-conscious sites standardise on ATEX as a future-proofing measure.
Does it run continuously or have a duty cycle?
Continuous duty (S1). You can run it back-to-back for shift-long fills without thermal cut-out, unlike the Cube cabinet dispensers which have a 30-minute on/off cycle.
What flow meter pairs with it?
For ATEX-compliant metering, pair with the Piusi K600 ATEX or K33 ATEX mechanical meter. Non-ATEX meters cannot legally be used in the same Zone 1 installation.
Does it come with a nozzle and hose?
No - this is the pump-only version. Speak to us about matched ATEX-rated nozzles, hoses, and suction kits to build a complete petrol or diesel transfer station.
