Piusi|F00755160

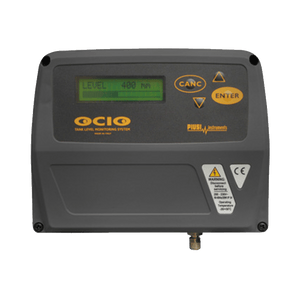

PIUSI OCIO Tank Gauge 4-20ma Output
Tax excluded. Shipping calculated at checkout
GST (10%) is calculated at checkout. Tax invoices provided with all orders.
In Stock
Ready for dispatch from GO Industrial. We co-ordinate freight end-to-end, direct to your site, business or home.
Ships from Brisbane warehouse. Standard delivery 2-5 business days Australia-wide.
PREMIUM 4-20mA LEVEL SENSING FOR SITES THAT RUN ON DATA
24V analogue gauge with 4-20mA output for real-time fuel level monitoring on bulk tanks. Piusi premium-grade sensor for SCADA and automated reorder systems.
Built for automation
The Piusi OCIO outputs a 4-20mA analogue signal that feeds directly into SCADA, PLC, or telemetry systems. Real-time tank levels drive automated reorder triggers, usage analytics, and stock reconciliation without manual dipping. This is the gauge for sites where fuel data matters as much as fuel delivery.
Premium grade, not overkill
This is Piusi's top-spec analogue gauge, built for outdoor bulk installations and continuous duty. Premium here means proven materials, stable calibration, and compatibility with industrial control standards. It costs more than a basic float switch because it does more: it turns your tank into a data point your systems can act on.
Features & Benefits
Key Features
- 24V DC operation
- 4-20mA analogue output
- SCADA and PLC compatible
- Bulk tank level monitoring
- Premium Piusi construction
- Outdoor-rated enclosure
- Standard tank port mounting
Benefits
- Real-time level data feeds automated reorder systems
- Eliminates manual dipping and guesswork
- Integrates directly with existing SCADA infrastructure
- Reduces stockout risk on high-volume sites
- Field-proven in harsh Australian conditions
| Accuracy | +/-1% |
| Tank Height (mm) | 600-4000 |
| Capillary Length (m) | 10 |
| Balance Chamber Fitting | 1/2" M BSP |
| Reading Type | 0-100%/mm/inches/litres/gal |
| Capillary Type | 6 x 4 Rilsan PA12 |
| Max Working Temperature | -20ºc/+50ºc |
Shipping & Dimensions
Ships from Brisbane warehouse. Standard delivery 2-5 business days.
Downloads
Compare
Compare Similar Products
+/-1%
+/-5-7%
600-4000
—
10
—
1/2" M BSP
1/2" M BSP
0-100%/mm/inches/litres/gal
0-100% / mm / inches / litres / gallons
6 x 4 Rilsan PA12
6 x 4 Rilsan PA12
-20ºc/+50ºc
-20ºc / +50ºc
Compatible Products
Frequently Asked Questions
Can't find your answer?
Contact UsWhat is the Piusi OCIO gauge?
A 24V analogue fuel level sensor with 4-20mA output, designed for integration with SCADA, telemetry, and automated inventory systems on bulk diesel or AdBlue tanks.
What does the 4-20mA output do?
It sends a continuous analogue signal proportional to tank level. Your SCADA or PLC reads this to track fuel usage, trigger reorders, or log consumption data.
Can I use this with a non-SCADA setup?
You can, but you'll need a 4-20mA receiver or display module. This gauge is designed for systems that already have analogue input capability.
What power supply does it need?
24V DC. Most industrial sites already run 24V for control circuits, so integration is usually straightforward.
What warranty and support do I get?
12 months on electronics and sensor defects. For technical integration questions or bulk orders, contact sales@goind.com.au or 07 3204 2240.
