PIUSI PUMP 240V AC 100lpm EX100 · F00390010
Tax excluded. Shipping calculated at checkout
GST (10%) is calculated at checkout. Tax invoices provided with all orders.
Contact for live availability
Our inventory signal hasn't refreshed today. We update twice daily but the latest reading is stale.
Email sales@goind.com.au or call 07 3204 2240 for live availability.
Ships from Brisbane warehouse. Standard delivery 2-5 business days Australia-wide.
PIUSI EX100 ATEX HEAVY-DUTY PUMP
ATEX Zone 1 explosion-proof transfer pump. 100 lpm at 240V AC, continuous duty, cast-iron body. Suits petrol, diesel, kerosene, AVGAS, and Jet A/A1.

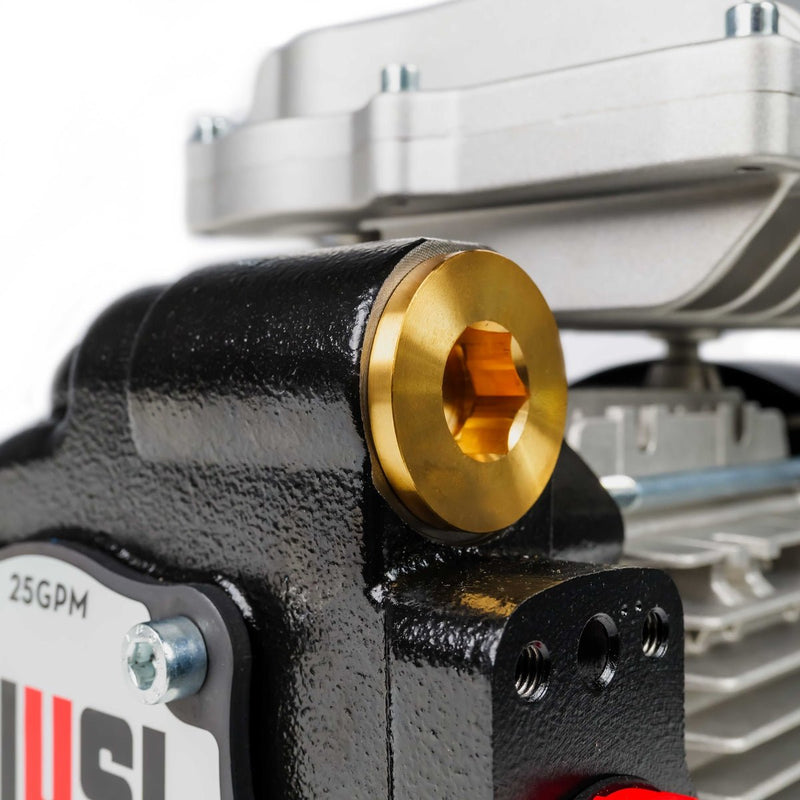

ATEX Zone 1 certified for petrol, diesel, and aviation fuels
The EX100 carries II 2 G Ex d IIA T4 Gb certification - the same hazardous-area rating you need for petrol bowsers, marine bunkering wharves, and aviation ground support. Cast-iron pump body, sintered-steel rotor, technopolymer vanes, and Viton seals are spec'd to handle the harshest hydrocarbons in continuous service. UL version available for North American projects.
CERTIFIED
1035W single-phase motor, 100 lpm with no thermal cut-off
Most ATEX pumps in this class are S1 (intermittent) duty - run them more than 30 minutes and the thermal cuts in. The EX100 runs all day. 1035W induction motor at 1450 RPM delivers a steady 100 lpm under load, with thermal protection for genuine fault states only. The 1-1/4" inlet keeps suction restriction low even with longer runs from underground tanks.
DUTY
Features & Benefits
Key Features
- ATEX II 2 G Ex d IIA T4 Gb explosion-proof rating for Zone 1 hazardous areas
- 100 l/min continuous duty at 240V AC, 1035W single-phase motor
- Cast-iron pump body with sintered-steel rotor and Viton seals
- Built-in thermal protection and bypass valve
- 1-1/4" BSP inlet, 1" BSP outlet for high-flow plumbing
- Suitable for diesel, petrol, kerosene, AVGAS, and Jet A/A1
- Removable feet for bolt-down or portable mounting
- 12-month Piusi manufacturer warranty plus ATEX/IECEx certificate
| Flow Rate | 100 l/min (25 GPM) |
| RPM | 1450 |
| Suction Lift | 2 m (no NRV) / 4 m (with NRV) |
| Max Total Head | 6 m |
| Inlet Thread | 1-1/4" BSP |
| Outlet Thread | 1" BSP |
| Body Material | Cast iron |
| Weight | 25 kg |
| Voltage | 230V / 50Hz (compatible 240V AU) |
| Power | 1035 W |
| Max Current | 4.5 A |
| Rotor | Sintered steel |
| Vanes | Technopolymer |
| Seal | Viton |
| Shaft | Steel |
| Pump Type | Self-priming vane with bypass |
| ATEX Marking | II 2 G Ex d IIA T4 Gb |
| Country of Origin | Italy |
| Warranty | 12 months |
| Manufacturer Code | F00390010 |
| Model | EX100 230/50 ATEX |
| IECEx Certificate | IECEx UL 19.0065X |
| Duty Cycle | Continuous (S1) |
| Operating Temp | -20 to +40 deg C |
| Fluid Compatibility | Diesel, petrol, kerosene, biodiesel, AVGAS, Jet A/A1, Aspen 2/4 |
| Packaging | 240 x 400 x 350 mm |
Shipping & Dimensions
Ships from Brisbane in original Piusi packaging. 240 x 400 x 350 mm carton.
Downloads
Compatible Products
Frequently Asked Questions
Can't find your answer?
Contact UsIs the EX100 legal to use with petrol in Australia?
Yes. ATEX II 2 G certification is recognised under AS/NZS 60079 for hazardous-area equipment, which is what AS 1940 references for petrol storage and transfer. Always confirm zone classification with your safety officer.
Can I run AVGAS or Jet A through it?
Yes for the pump and a compatible flow meter. The Piusi datasheet notes that for aviation fuels (AVGAS 100/100LL, Jet A/A1) only the pump and flow meter are certified - downstream filters, hoses, and nozzles must be selected for aviation use separately.
What's the difference between the EX100 and the Panther EX 56?
The EX100 doubles the flow (100 vs 56 lpm), runs continuous duty rather than S1, and has a 1-1/4" inlet vs 1" inlet. Both are ATEX Zone 1 rated. EX100 suits high-throughput refuelling and aviation; EX 56 suits drum and IBC transfer.
Does it come with a hose, meter, or nozzle?
No. The EX100 is sold as a pump head only. For complete kits, contact us and we'll spec ATEX-rated K700 meter, A120 nozzle, and matched hose options.
What ATEX zones is it rated for?
Zone 1 and Zone 2 gas atmospheres. The full marking is II 2 G Ex d IIA T4 Gb, suitable for installations where flammable vapours may be present in normal operation.
How does it self-prime?
The EX100 will dry-prime up to 2 m without a foot valve, or 4 m with a non-return valve fitted on the suction line. Maximum total suction-plus-delivery head is 6 m.
