Piusi|F00592000
PIUSI PUMP 240V 90lpm CUBE 90/44 · F00592000
Tax excluded. Shipping calculated at checkout
GST (10%) is calculated at checkout. Tax invoices provided with all orders.
Contact for live availability
Our inventory signal hasn't refreshed today. We update twice daily but the latest reading is stale.
Email sales@goind.com.au or call 07 3204 2240 for live availability.
Ships from Brisbane warehouse. Standard delivery 2-5 business days Australia-wide.

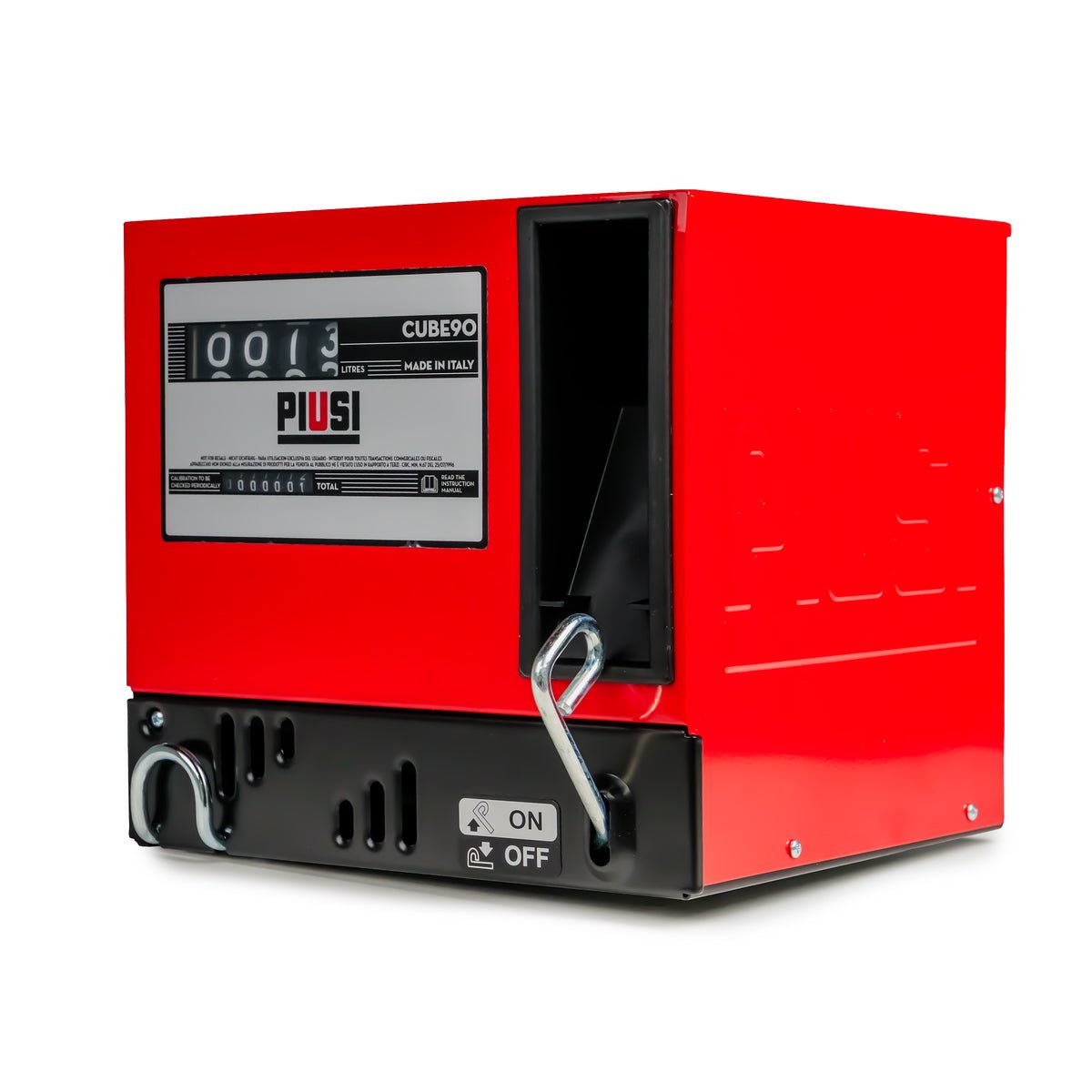

PIUSI CUBE 90 HIGH-FLOW DIESEL DISPENSER

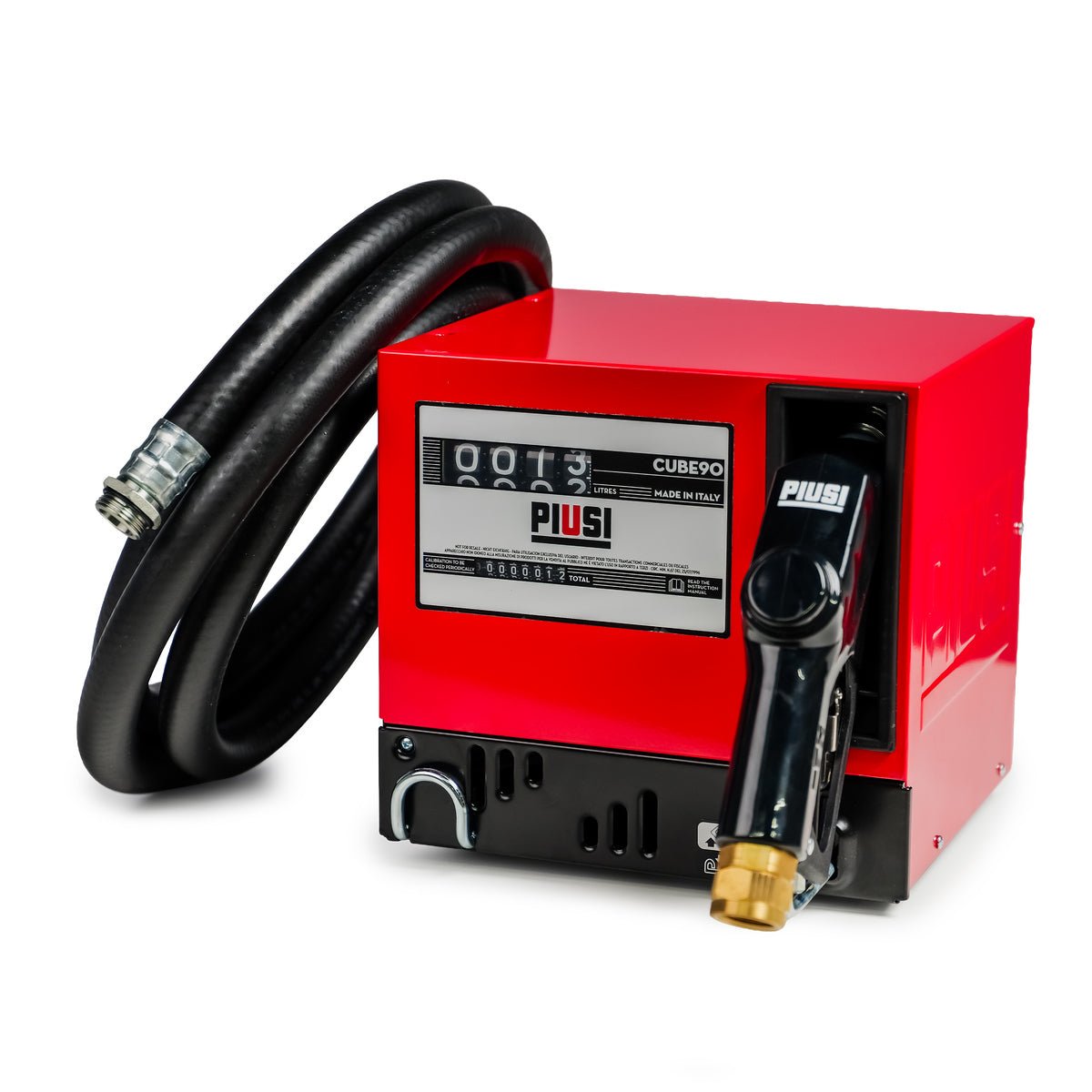

Cabinet diesel dispenser. 90 lpm at 240V AC with K44 mechanical meter, A120 auto nozzle, and 4 m delivery hose. Wall, tank, drum, or pedestal mountable.
Refuel a 400L truck tank in under 5 minutes
The Cube 56 and 70 do the job for utes and light vehicles, but a fully cabin-mounted 400 litre truck tank takes 7+ minutes at 56 lpm. The Cube 90 cuts that to 4.5 minutes. Multiplied across a 30-truck shift change at the start of the day, that's an hour you get back. The 30-minute on/off duty cycle handles back-to-back fills with no thermal cut-out at typical fleet pace.
DISPENSING

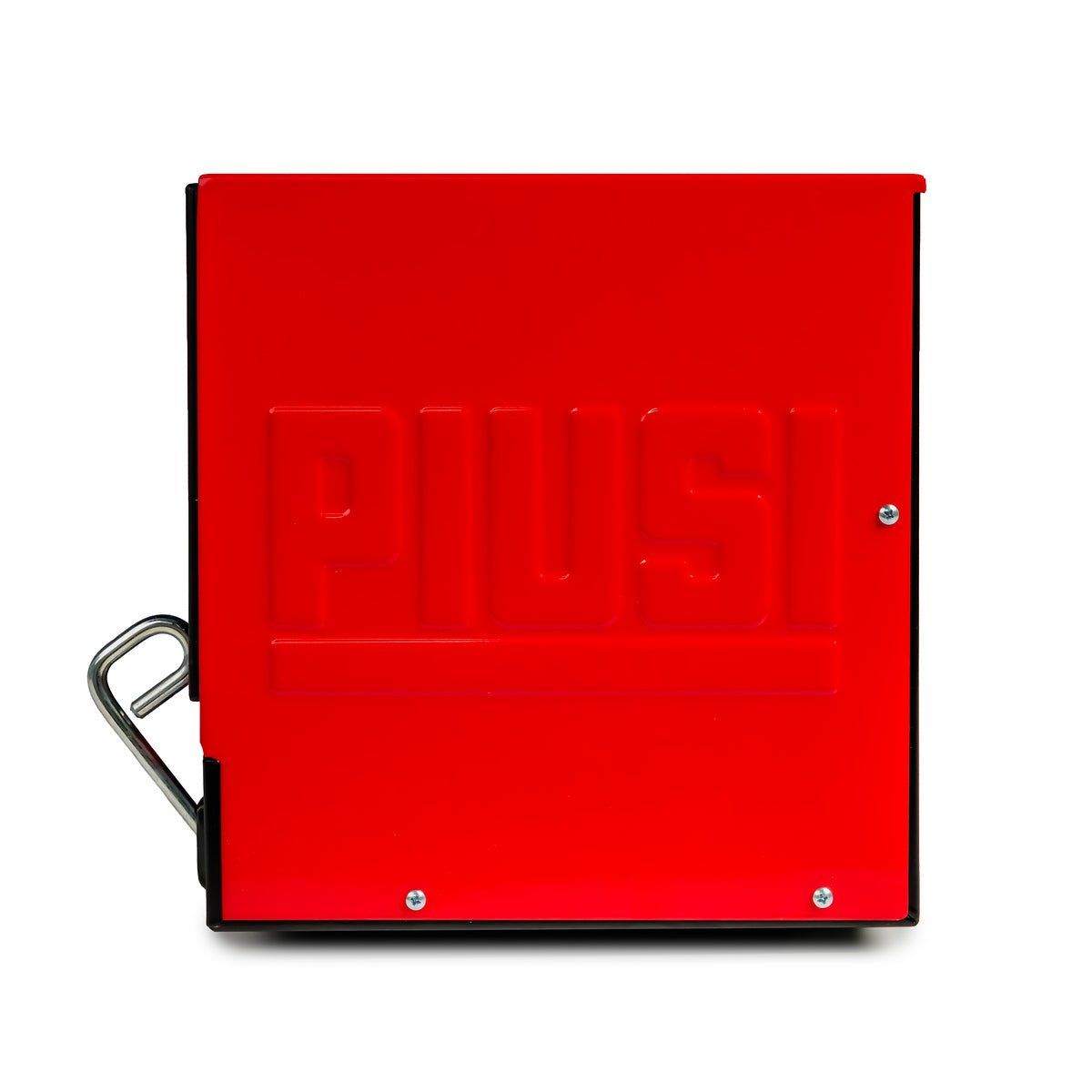

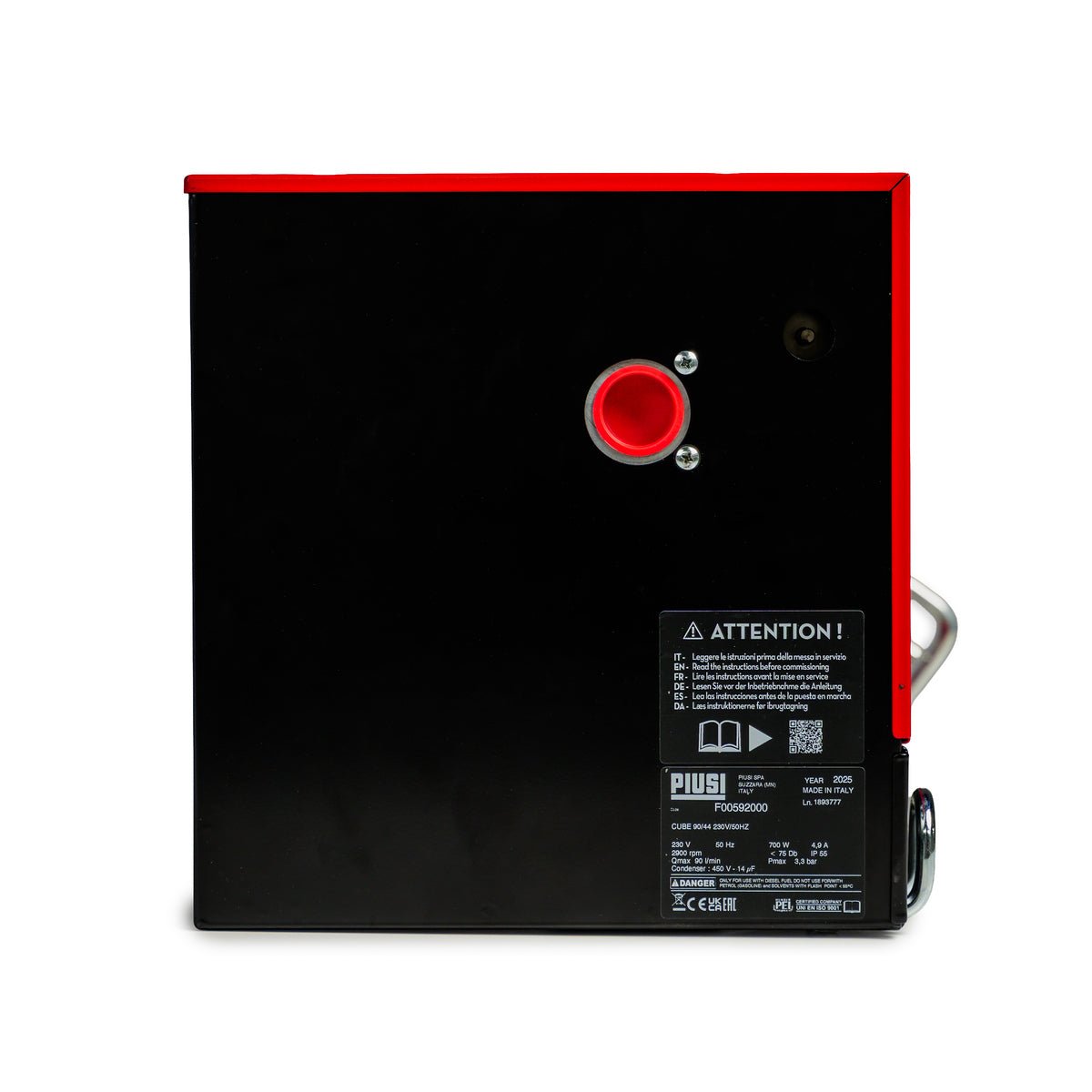

Steel cabinet, IP55, four mounting options
The Cube range is the workhorse of mid-size fuel installations because it survives. Steel cabinet construction protects the K44 meter and Panther 90 pump from weather, dust, and the inevitable forklift bump. Mount it on a wall, bolt it to a tank flange, drum-mount it, or stand it on the optional pedestal. Same Cube, four installation paths, no re-plumbing if your yard layout changes.
PROTECTION
Features & Benefits
Key Features
- 90 l/min Panther 90 self-priming vane pump with integrated bypass

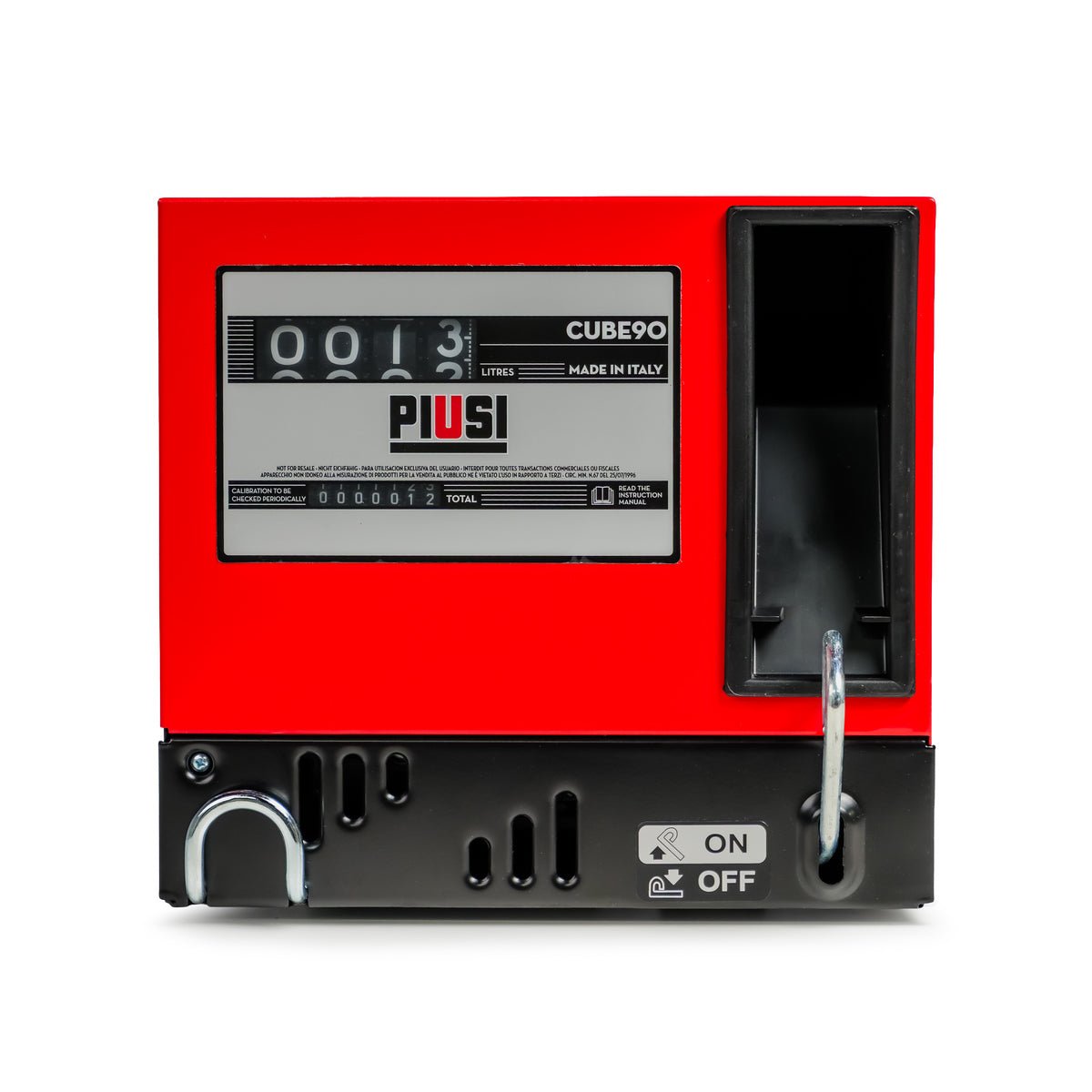

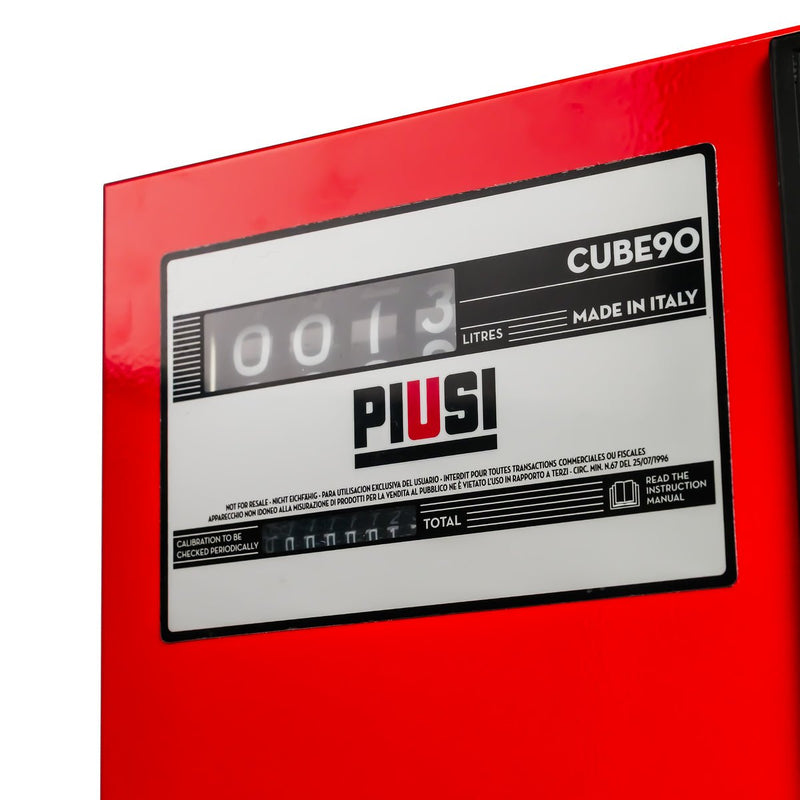

- K44 four-digit mechanical meter, +/- 1% accuracy
- Piusi A120 automatic shut-off nozzle with swivel connection
- 4 m x 1" delivery hose with crimped 1" BSP fittings
- Steel cabinet, IP55, thermal-protected induction motor
- Wall, tank, drum, or pedestal mountable

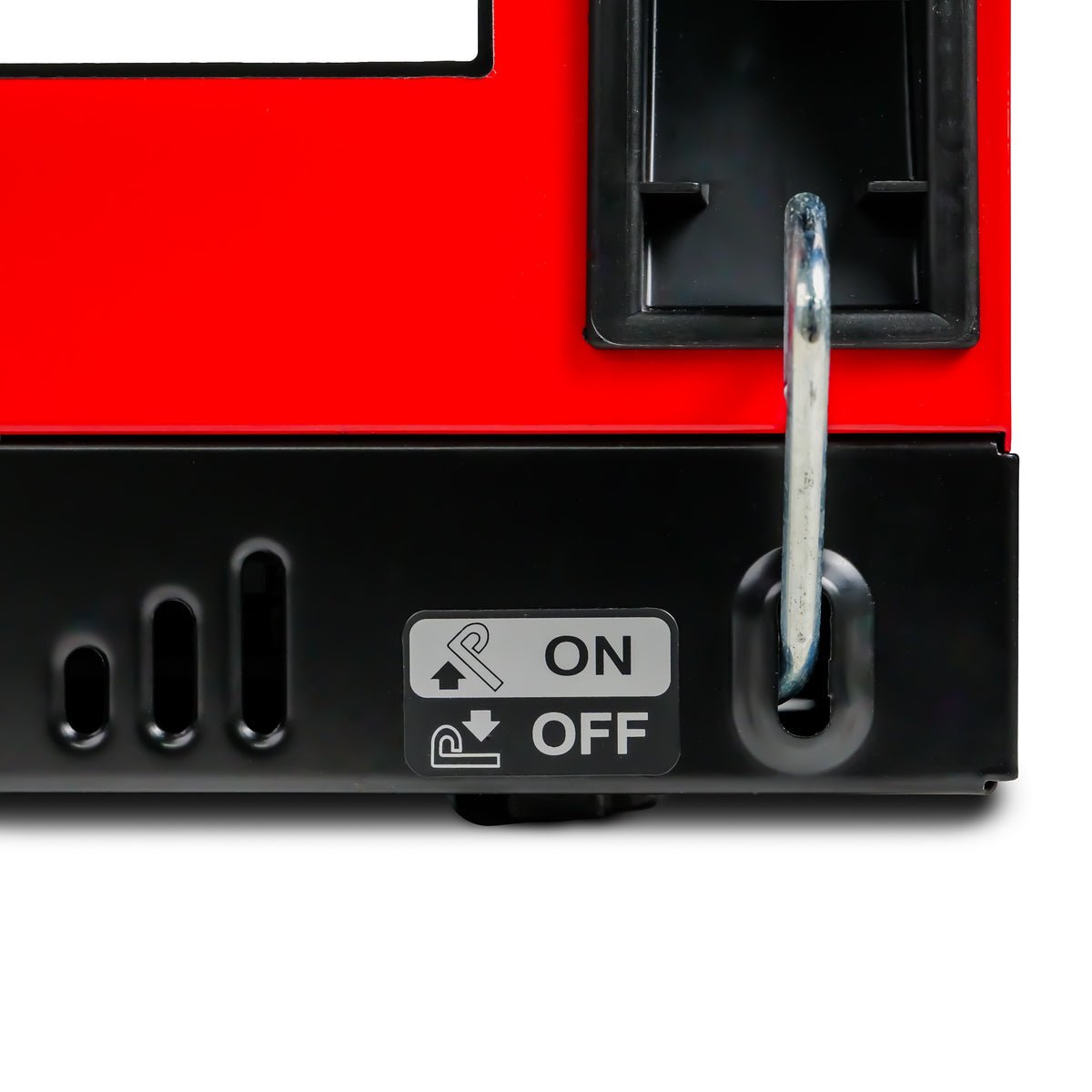

- Built-in nozzle holder with start/stop pump lever
- 12-month Piusi manufacturer warranty
| Flow Rate | 90 l/min (23.8 GPM) |
| Accuracy | +/- 1% |
| Hose | 4 m x 1" with crimped 1" BSP ends |
| Inlet | 1" BSP |
| Body Material | Steel cabinet |
| Weight | 22 kg |
| Voltage | 230V / 50Hz (compatible 240V AU) |
| Power | 700 W |
| Max Current | 4.9 A |
| IP Rating | IP55 |
| Motor Protection | Thermal + overload |
| Pump Type | Self-priming vane with bypass |
| Meter Type | K44 mechanical nutating disk |
| IP Rating | IP55 |
| Country of Origin | Italy |
| Warranty | 12 months |
| Manufacturer Code | F00592000 |
| Model | Cube 90/44 |
| Pump Engine | Panther 90 |
| Nozzle | Piusi A120 automatic shut-off |
| Filter | Built-in suction-side mesh |
| Duty Cycle | 30 min ON / OFF |
| Operating Temp | +20 to -6 deg C |
| Fluid Compatibility | Diesel |
| Packaging | 400 x 400 x 460 mm |
Shipping & Dimensions
Ships from Brisbane in original Piusi packaging. 400 x 400 x 460 mm carton.
Downloads
Compatible accessories
Frequently Asked Questions
Can't find your answer?
Contact UsCan it run continuously?
No. The Cube 90/44 has a 30-minute on / off duty cycle. For continuous duty applications, look at the Piusi EX100 or E120.
Is it suitable for petrol or AdBlue?
No. The Cube 90/44 is rated for diesel only. For petrol you need an ATEX-rated pump like the Piusi EX100 or Panther EX 56. For AdBlue use a dedicated AdBlue pump.
What's the maximum suction lift?
The Panther 90 vane pump will draw approximately 2 m without a non-return valve, or 4 m with one fitted on the suction line.
Can I add a pulse output for tank monitoring?
Not on the K44 meter. If you need pulse output for a fleet management or telematics system, swap to the K44 pulser variant or a separate K600/K700 pulser meter inline.
Does it come with the pedestal stand?
No. The Cube ships ready for wall, tank flange, or drum mounting. The optional pedestal stand is sold separately.
How loud is it in operation?
The induction motor runs at around 70 dB(A) at 1 m, similar to a household fridge compressor.
