Piusi|F00250V00
PIUSI FMS 3000 Supreme 12-24V DC 50lpm · F00250V00
Tax excluded. Shipping calculated at checkout
GST (10%) is calculated at checkout. Tax invoices provided with all orders.
Contact for live availability
Our inventory signal hasn't refreshed today. We update twice daily but the latest reading is stale.
Email sales@goind.com.au or call 07 3204 2240 for live availability.
Ships from Brisbane warehouse. Standard delivery 2-5 business days Australia-wide.

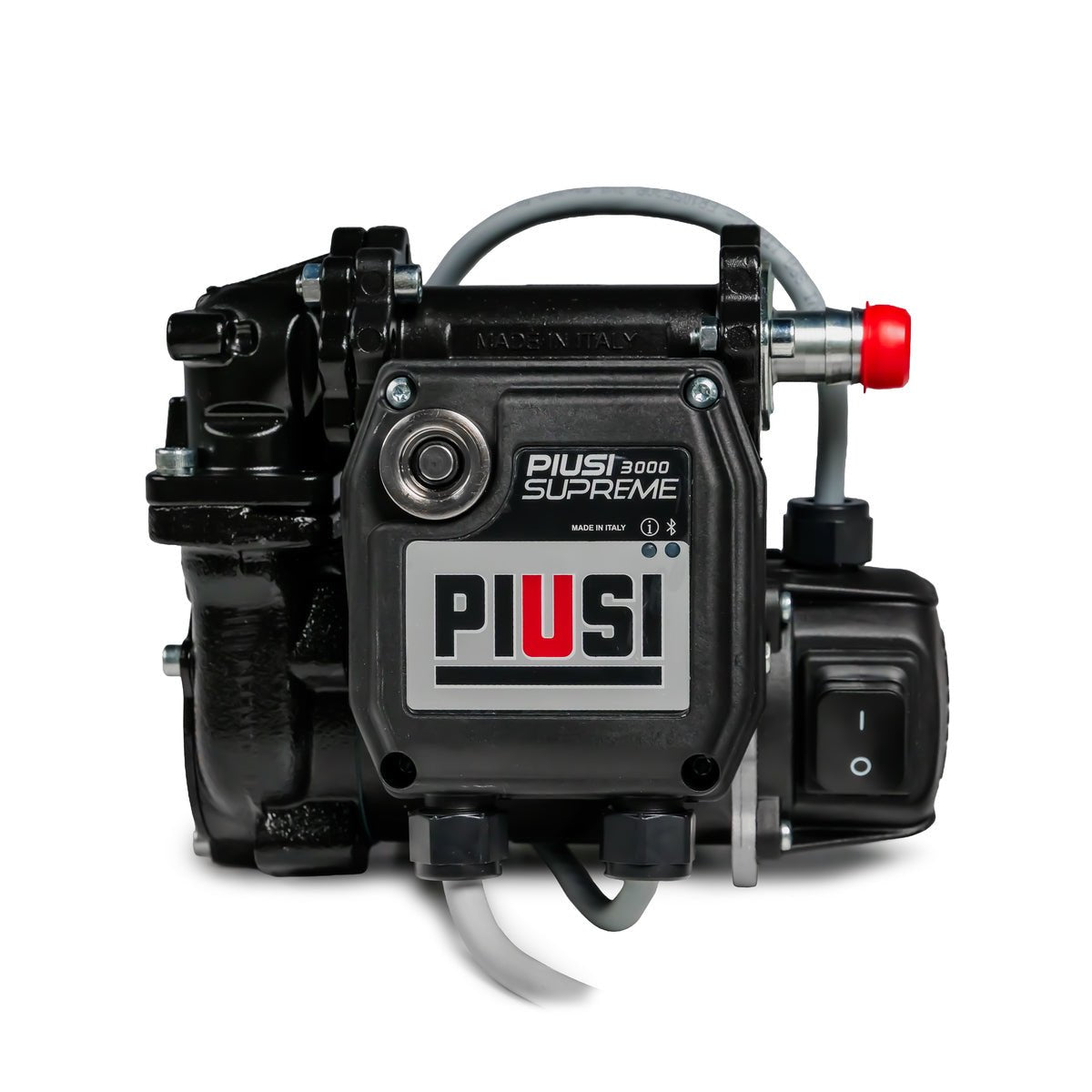

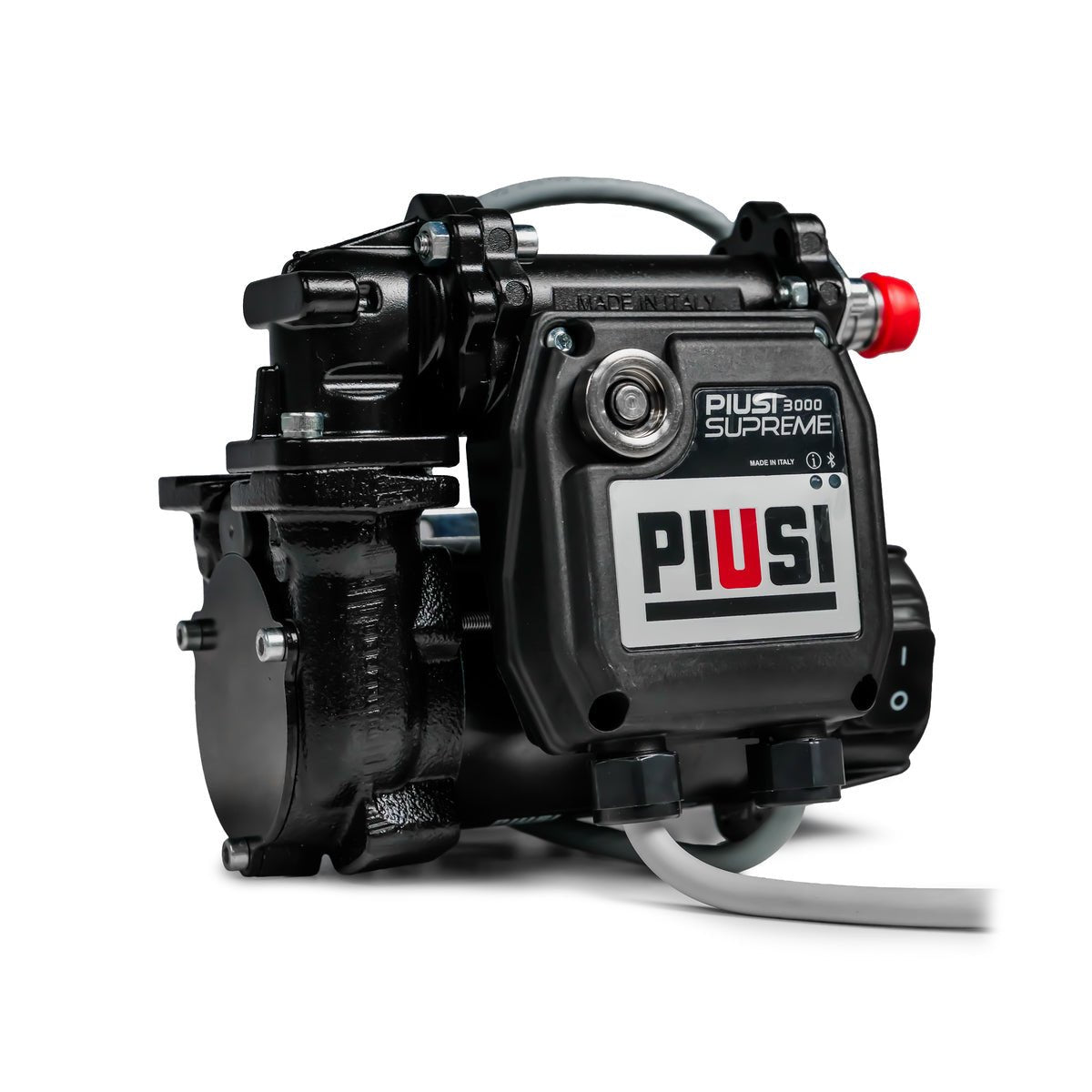

PIUSI 3000 SUPREME SMART DIESEL PUMP
Bluetooth-controlled portable diesel pump, vertical-port pump-only version. 50 lpm at 12-24V DC with smartphone app fuel management and +/- 0.5% accuracy.
Bluetooth control replaces wired keypads and kiosks
The 3000 Supreme connects to your phone over Bluetooth and runs the entire dispensing workflow through the Piusi app - per-driver authorisation, per-fill volume tracking, downloadable reports. No keypad to vandalise, no kiosk to wire in, no monthly subscription. Drop the pump on a transportable tank, pair the app once, and your service truck has a fleet-grade fuel management system that travels with it.
+ REPORTING
Compact in-line plumbing for tight installs

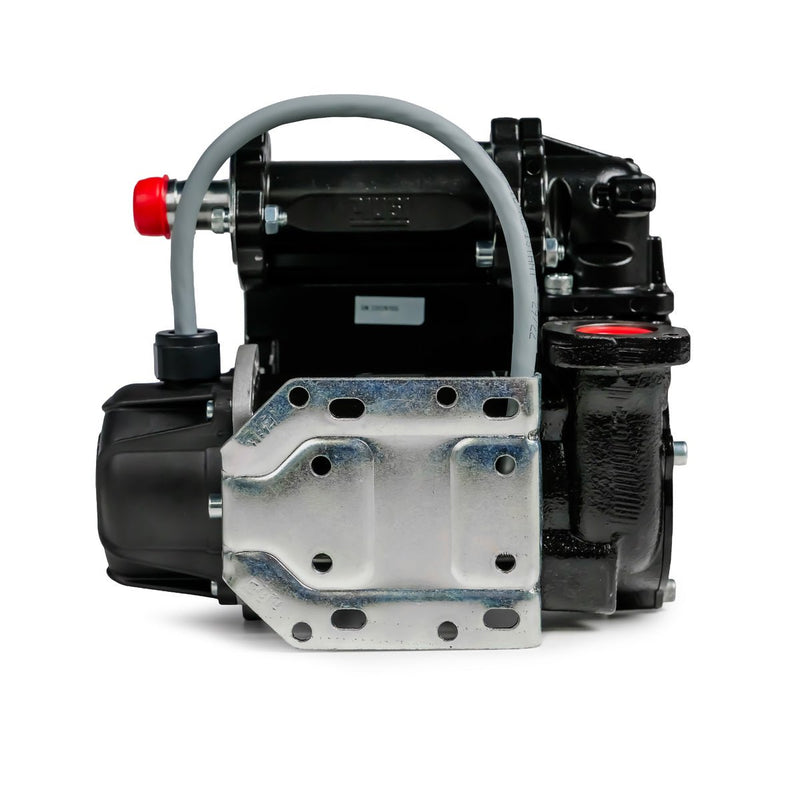

B.V. = Bracket Vertical - the inlet and outlet sit on the vertical axis of the pump body rather than the horizontal. It's the right pick when you're mounting in a tight space, integrating into a custom skid, or feeding into vertical pipework. Same internals as the horizontal version (F00250H00), same 50 lpm at +/- 0.5% accuracy. Just plumbed differently to suit how you're actually building the rig.
ACCURACY
Features & Benefits
Key Features
- 50 l/min flow rate at 12V or 24V DC, 200W motor, continuous duty
- Bluetooth connection and control via the Piusi 3000 Supreme smartphone app
- +/- 0.5% metering accuracy with internal flow control
- IP55 protection rating with vibration-resistant chassis
- Vertical port orientation for compact in-line installation
- Cast-iron body with sintered-steel rotor and acetal resin vanes
- Compatible with diesel, biodiesel up to B20, HVO, and XTL renewable diesel
- Low noise operation and integrated bypass valve
| Flow Rate | 50 l/min (13 GPM) |
| RPM | 2700 |
| Accuracy | +/- 0.5% |
| Max Pressure | 1.5 bar |
| Body Material | Cast iron |
| Weight | 5.4 kg |
| Voltage | 12V to 24V DC |
| Power | 200 W |
| Current Draw | 16 A at 12V / 8 A at 24V |
| IP Rating | IP55 |
| Rotor | Sintered steel |
| Vanes | Acetal resin |
| Seal | NBR |
| Shaft | Steel |
| Pump Type | Self-priming vane with bypass |
| Fuse Rating | 25 A |
| IP Rating | IP55 |
| Country of Origin | Italy |
| Warranty | 12 months |
| Manufacturer Code | F00250V00 |
| Model | 3000 Supreme Pump Only (Vertical) |
| Duty Cycle | Continuous |
| Connectivity | Bluetooth (Piusi 3000 Supreme app) |
| Port Orientation | Vertical (B.V.) |
| Fluid Compatibility | Diesel, biodiesel up to B20, HVO, XTL |
| Packaging | 270 x 190 x 180 mm |
Shipping & Dimensions
Ships from Brisbane in original Piusi packaging. 270 x 190 x 180 mm carton.
Downloads
Compatible Products
Frequently Asked Questions
Can't find your answer?
Contact UsWhat does B.V. mean?
B.V. stands for Vertical port orientation. The pump head's inlet and outlet sit vertically rather than horizontally (B.O. = Horizontal). It's a mounting and plumbing decision - same internals, just different port axis. F00250V00 = Vertical, F00250H00 = Horizontal.
Does the pump-only version include a nozzle and hose?

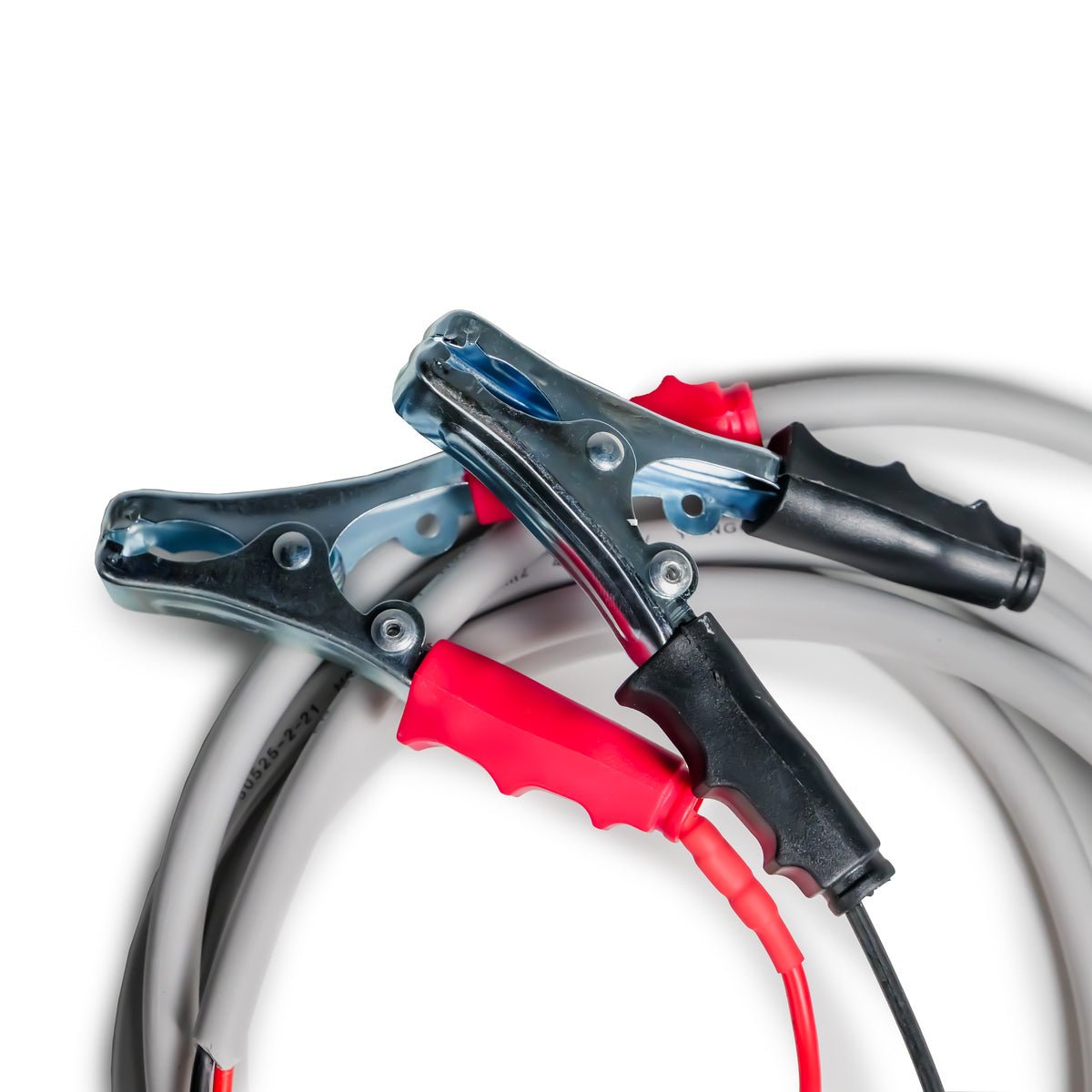

No. The pump-only B.V. version is just the pump head plus an access key. If you want a complete setup with nozzle, hose, and battery cables, look at the Base Bracket Kit (F00250K00) or 2" Direct Mount Kit (F00250D10).
Will it monitor or protect my battery?
No. Piusi explicitly state that the 3000 Supreme does not monitor battery state of charge and does not protect the battery from over-discharge. Pair it with a smart battery isolator or DC monitoring system if that's a concern on your install.
Is it ATEX rated?
No. The 3000 Supreme is not ATEX certified, so it cannot be used legally in classified hazardous areas. For petrol or aviation fuels in Zone 1 / Zone 2 environments, look at the Piusi EX100 or Panther EX 56.
What does the smartphone app do?
Pair via Bluetooth to dispense fuel, set per-driver authorisation, track volumes per fill, and download dispensing reports. It's offline-friendly - data syncs to the cloud when you have signal, useful for remote sites.
Can it run on solar setups?
Yes - the 12-24V DC range covers most off-grid solar systems. Just confirm your battery bank can deliver 16 A continuously at 12V, or 8 A at 24V, plus headroom for the start-up surge.
