Graco|247723

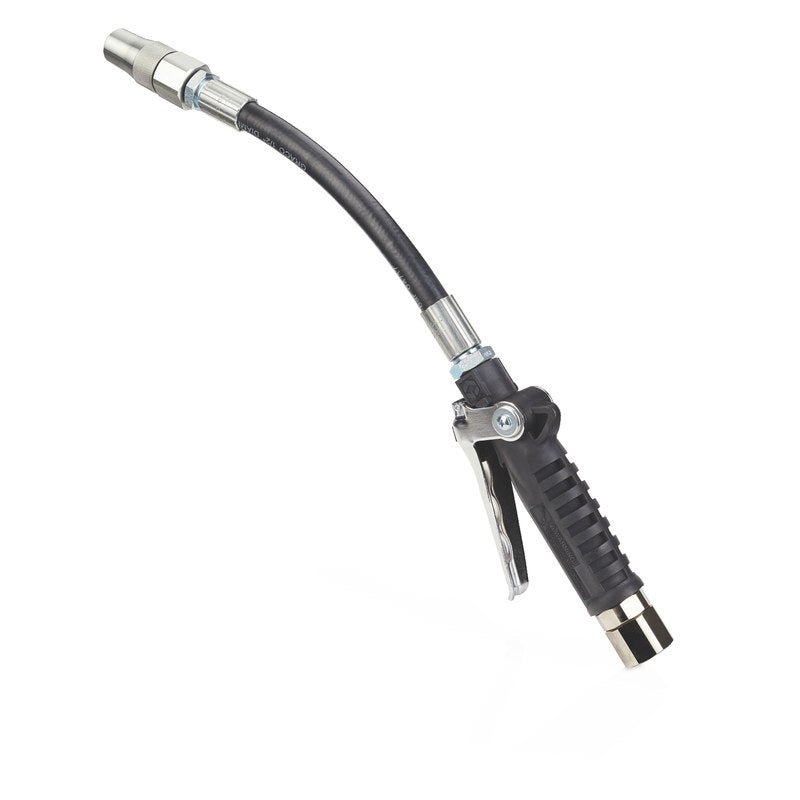

GRACO XDV20 VALVE, FLEX HF 247723
Tax excluded. Shipping calculated at checkout
GST (10%) is calculated at checkout. Tax invoices provided with all orders.
Contact for live availability
Our inventory signal hasn't refreshed today. We update twice daily but the latest reading is stale.
Email sales@goind.com.au or call 07 3204 2240 for live availability.
Ships from Brisbane warehouse. Standard delivery 2-5 business days Australia-wide.
MANUAL DIESEL VALVE FOR GRACO TRANSFER SYSTEMS
Manual diesel valve for Graco transfer pumps. Straight-through design for clean shutoff and long service life. Suits workshop and fleet refuelling rigs.
Clean flow control
Straight-through design keeps restriction low and shutoff clean. No throttling, no drips between fills. Diesel-rated internals handle fuel service without seal swell or degradation.
Drop-in Graco fit
Built to integrate with Graco pump and hose assemblies. If you're running a Graco rig and need a replacement or spare valve, this is the OEM part. Lightweight at 1.54 kg, easy to mount on mobile setups.
Features & Benefits
Key Features
- Manual handle operation
- Straight-through flow design
- Weight 1.54 kg
- Diesel service rated
- Compatible with Graco pump systems
- Low-restriction flow path
Benefits
- Clean shutoff between fills
- Drop-in fit for existing Graco rigs
- Lightweight enough for mobile setups
- Handles diesel without seal degradation
| Max Working Pressure | 103.4 |
| Maximum Working Pressure (kg/cm²) | 105.46 |
| Display Type | N/A |
| Inlet Size | 1.905 |
| Inlet Thread | Female |
| Outlet Size | 2.2225 |
| Outlet Thread | Female |
| Includes | Nozzle, Extension |
| Dispense Type | Manual |
| Extension Type | Flexible |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Trigger Lock | Locking |
| Valve Type | Non-Metered |
Shipping & Dimensions
Ships from Brisbane warehouse. Standard delivery 2-5 business days.
Downloads
Compatible Products
Frequently Asked Questions
Can't find your answer?
Contact UsWhat is the Graco XDV20 valve?
A manually operated diesel valve for Graco transfer pump systems. Straight-through design suited to workshop and fleet refuelling applications.
Does this valve have auto shutoff?
No. The XDV20 is a manual handle-operated valve. For auto shutoff, pair with a separate automatic nozzle downstream.
What pumps is this compatible with?
Designed for Graco diesel transfer pump assemblies. Contact sales@goind.com.au if you need compatibility confirmation for your setup.
What's covered under warranty?
12 months on manufacturing defects. Seals and wear parts are consumables. For support or part sourcing, call 07 3204 2240 or email sales@goind.com.au.
