Graco|24P497
Graco XD50 Hose Reel 1 1/2" x 15m Diesel, Blue 24P497
Tax excluded. Shipping calculated at checkout
GST (10%) is calculated at checkout. Tax invoices provided with all orders.
Contact for live availability
Our inventory signal hasn't refreshed today. We update twice daily but the latest reading is stale.
Email sales@goind.com.au or call 07 3204 2240 for live availability.
Ships from Brisbane warehouse. Standard delivery 2-5 business days Australia-wide.
HEAVY-DUTY FUEL REEL FOR DAILY USE AT A WORKHORSE PRICE

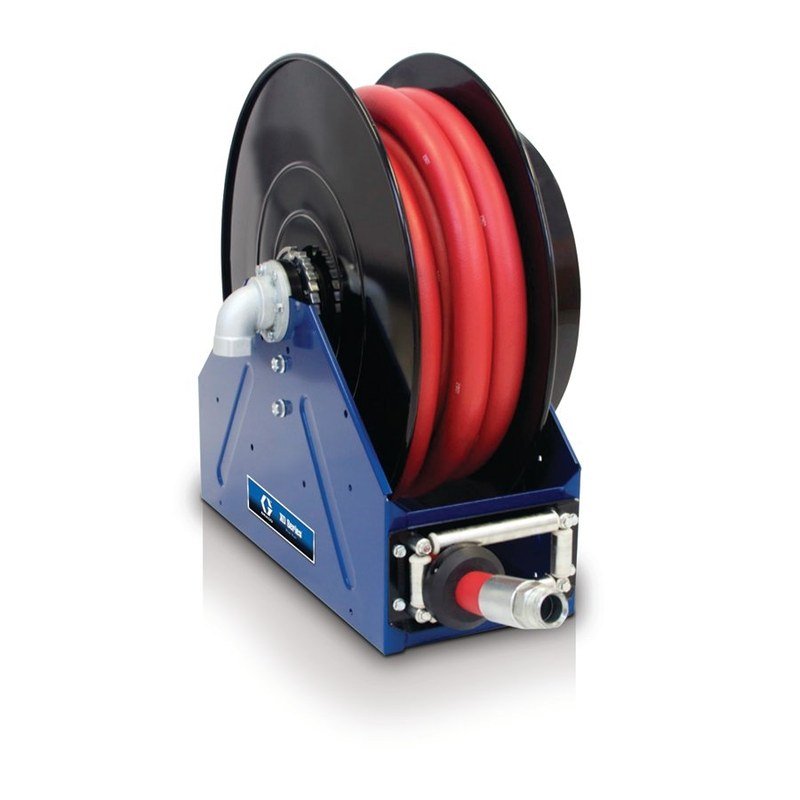

Graco XD50 hose reel with 50 feet of 1 1/2 inch fuel hose. Heavy-duty spring rewind for workshop or truck-mounted diesel dispensing.
Built for reach and rewind
Fifty feet of 1 1/2 inch hose gives you the reach to service trucks, plant equipment, or tanks without dragging loose hose across the yard. The spring mechanism rewinds automatically after each fill, so the hose stays off the ground and out of the way between jobs.
Truck or wall mount
At 118 kg, the XD50 is a substantial unit. Mount it to a service truck bed for mobile refuelling, or bolt it to a workshop wall for a fixed dispensing point. The steel frame handles daily use without flexing or shifting.
Features & Benefits
Key Features
- 50 feet of 1 1/2 inch fuel hose included
- Spring-rewind mechanism
- Heavy-duty steel frame, 118 kg
- Blue powder-coated finish
- Suits diesel, kerosene, fuel oil
- Truck or wall mount options
Benefits
- Long reach without tangled hose on the ground
- Rewinds automatically after each fill
- Mounts to service truck or workshop wall
- Handles daily use without frequent maintenance
| Max Working Pressure | 150 |
| Inlet Size | 38.1 |
| Outlet Size | 1-1/2 |
| Thread Type | NPT |
| Hose ID | 38.1 |
| Weight | 164 |
| Height | 30.13 |
| Length | 29.4 |
| Width | 18.24 |
| Reel Type | Reel with Hose |
| Frame Type | Box Frame |
| Fluid Compatibility | Diesel Fuel |
| Includes Hose | Yes |
Shipping & Dimensions
Ships from Brisbane warehouse. Standard delivery 2-5 business days.
Downloads
Compatible Products
Frequently Asked Questions
Can't find your answer?
Contact UsWhat is the Graco XD50 hose reel?
A spring-rewind reel supplied with 50 feet of 1 1/2 inch fuel hose. Designed for diesel, kerosene, and fuel oil dispensing in workshops or on service trucks.
Can I mount this on a service truck?
Yes. The steel frame is designed for truck bed or chassis mounting. At 118 kg you will need secure fastening and load distribution appropriate to your vehicle.
What hose diameter does it take?
1 1/2 inch hose is supplied. The reel is sized for that diameter; changing to a different size is not recommended without consulting Graco specifications.
Is the hose suitable for all fuels?
The supplied hose is rated for diesel, kerosene, and fuel oil. Do not use for petrol or aviation fuels without verifying compatibility.
What warranty and support applies?
12-month manufacturer warranty on defects. Hose and spring wear are consumable items. For technical support or replacement parts, contact sales@goind.com.au or 07 3204 2240.
