Graco|24P315

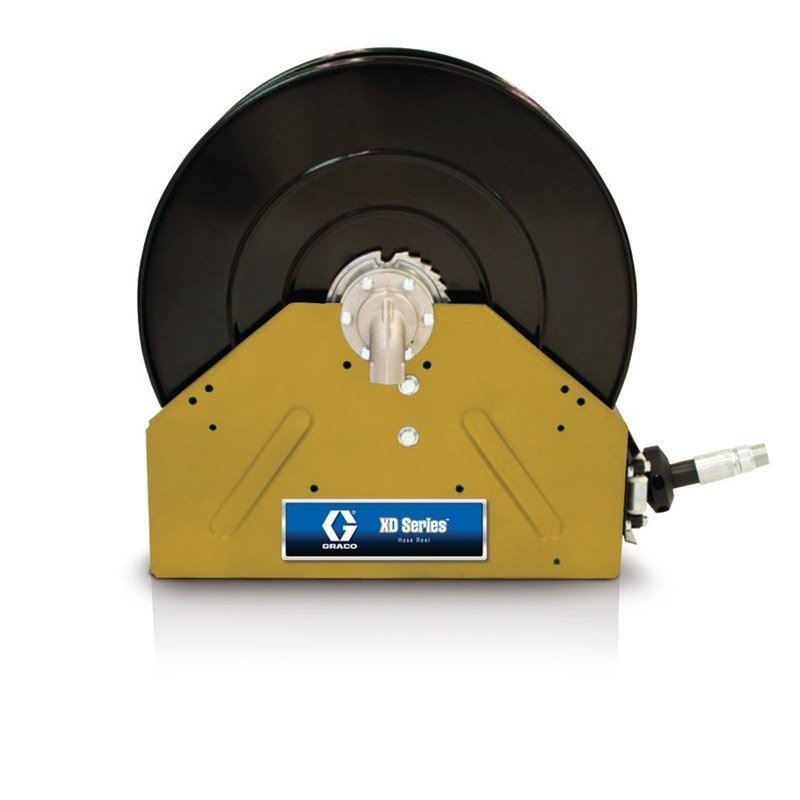

Graco XD40 Bare Reel 1" x 15m Air/Water, Yellow 24P315
Tax excluded. Shipping calculated at checkout
GST (10%) is calculated at checkout. Tax invoices provided with all orders.
Contact for live availability
Our inventory signal hasn't refreshed today. We update twice daily but the latest reading is stale.
Email sales@goind.com.au or call 07 3204 2240 for live availability.
Ships from Brisbane warehouse. Standard delivery 2-5 business days Australia-wide.
HEAVY-DUTY SPRING REEL BUILT FOR HIGH-VOLUME REFUELLING
Heavy-duty spring retract hose reel for diesel, petrol, and oils. Bare unit (no hose). Built for high-volume workshop and field refuelling.
Bare reel flexibility
Supplied without hose or swivel, the XD Series 40 lets you match hose length, diameter, and fittings to your existing plumbing. If you're retrofitting a service truck or upgrading a workshop bay, you get exactly the reach and flow rate you need without paying for a pre-built hose assembly that might not fit.
Built for daily duty
At 65 kg, this reel stays anchored under repeated pulls and retracts. The spring cartridge rewinds automatically after each fill, so operators don't waste time hand-cranking. Yellow powder coat is high-visibility in tight bays and resists chip and fade from UV and fluid splash.
Features & Benefits
Key Features
- Spring retract mechanism
- Bare reel (no hose supplied)
- 65 kg steel construction
- Yellow powder coat finish
- Suitable for diesel, petrol, oil
- Wall or truck bed mounting
- Field-serviceable spring and bearings
- High-visibility yellow finish
Benefits
- No manual cranking, hose rewinds itself after each fill
- Spec your own hose length and diameter to match existing kit
- Heavy frame stays put under daily use, no flex or creep
- Replace spring or bearings without scrapping the whole unit
- High-vis yellow helps avoid damage in tight workshop bays
| Max Working Pressure | 600 |
| Inlet Size | 25.4 |
| Outlet Size | 1 |
| Thread Type | NPT |
| Hose ID | 25.4 |
| Weight | 116 |
| Height | 26.13 |
| Length | 26.4 |
| Width | 16.54 |
| Reel Type | Bare Reel |
| Frame Type | Box Frame |
| Fluid Compatibility | Air, Water |
| Includes Hose | No |
Shipping & Dimensions
Ships from Brisbane warehouse. Standard delivery 2-5 business days.
Downloads
Compatible Products
Frequently Asked Questions
Can't find your answer?
Contact UsWhat is the Graco XD Series 40 reel?
It's a heavy-duty spring retract hose reel for diesel, petrol, and oil. Supplied bare (no hose) so you can fit your own length and diameter to suit your setup.
Why is it sold without hose?
Bare reels let you match the hose spec (length, diameter, reinforcement) to your existing fittings and flow requirements. Saves you paying for a hose you might not use.
Can I retrofit this to an existing service truck?
Yes. The reel mounts to wall or truck bed via standard bolt holes. You'll need to supply hose, swivel, and inlet plumbing to integrate it.
What fluids can it handle?
Diesel, petrol (unleaded and E10), hydraulic oil, engine oil, and most petroleum-based lubricants. Not for chemicals or solvents outside standard fuels and oils.
What warranty and support do I get?
12-month warranty covers factory defects. Spring and bearing wear from normal use is not covered, but both are field-replaceable. For service parts or technical help, contact sales@goind.com.au or 07 3204 2240.
