Graco|24P355

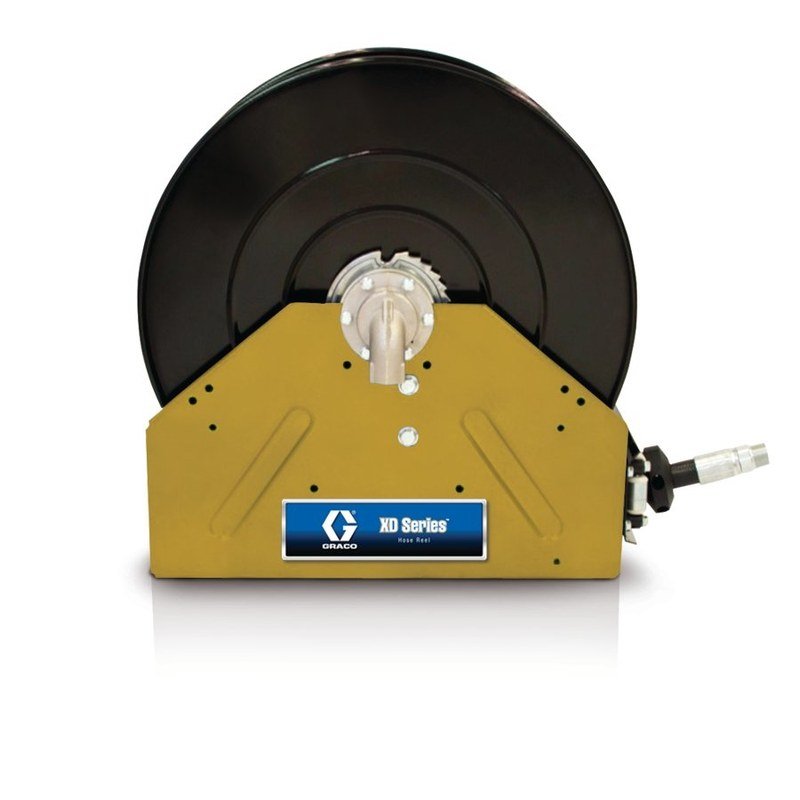

Graco XD40 Hose Reel 1" x 15m Diesel, Yellow 24P355
Tax excluded. Shipping calculated at checkout
GST (10%) is calculated at checkout. Tax invoices provided with all orders.
Contact for live availability
Our inventory signal hasn't refreshed today. We update twice daily but the latest reading is stale.
Email sales@goind.com.au or call 07 3204 2240 for live availability.
Ships from Brisbane warehouse. Standard delivery 2-5 business days Australia-wide.
15 METRES OF FUEL HOSE WHEN YOU NEED IT, OUT OF THE WAY WHEN YOU DON'T
Heavy-duty spring retraction hose reel with 15 m of 1" yellow fuel hose. Graco-built for high-traffic diesel and petrol dispensing across workshops and depots.
Graco-built for daily duty
The XD Series 40 is Graco's workhorse reel for workshops and depots where hose gets pulled 10 or 20 times a day. Heavy-gauge steel frame, spring mechanism rated for thousands of cycles, and a yellow hose that stays visible when the bay lights are off. Wall or overhead mount depending on your layout.
15 m reach, fast wind-back
Fifteen metres of 1" hose gives you the reach to service most bays or parked fleet vehicles without dragging the pump cart. Spring retraction winds the hose back cleanly so it is not coiled on the floor waiting to be driven over. Pull, fuel, release. The reel does the housekeeping.
Features & Benefits
Key Features
- 15 m hose reach, 1" bore
- Spring retraction for fast wind-back
- High-visibility yellow hose
- Heavy-gauge steel frame

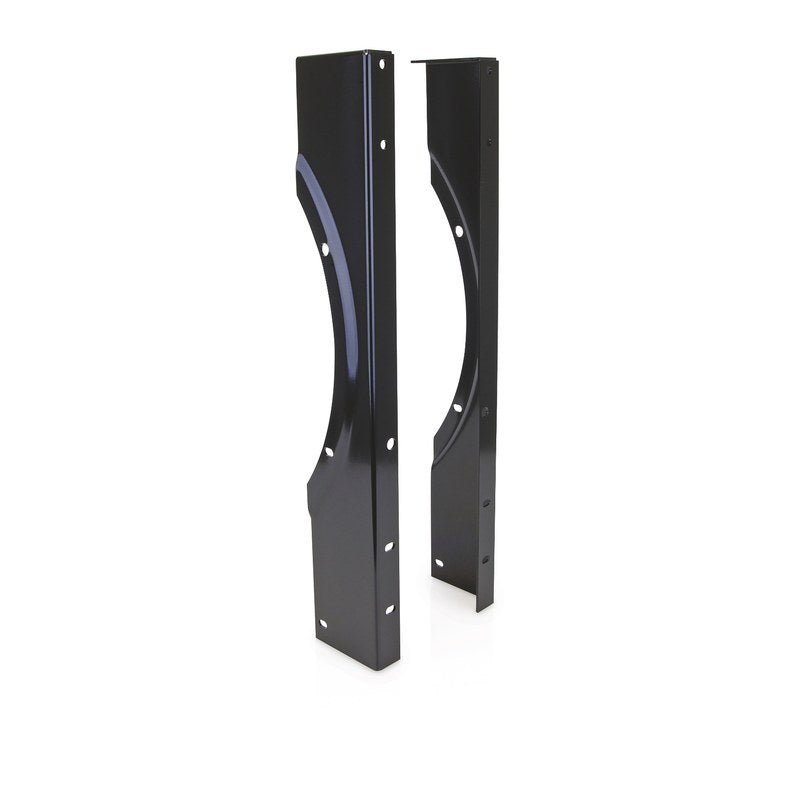

- Wall or overhead mounting bracket supplied
- Rated for diesel and petrol
- 86 kg installed weight
Benefits
- 15 m lets you reach across most service bays
- Spring wind-back keeps hose off the floor between jobs
- Yellow hose stays visible in low light
- Graco build quality, field-proven in Australian workshops
| Max Working Pressure | 250 |
| Inlet Size | 25.4 |
| Outlet Size | 1 |
| Thread Type | NPT |
| Hose ID | 25.4 |
| Weight | 125 |
| Height | 26.13 |
| Length | 26.4 |
| Width | 16.54 |
| Reel Type | Reel with Hose |
| Frame Type | Box Frame |
| Fluid Compatibility | Diesel Fuel |
| Includes Hose | Yes |
Shipping & Dimensions
Ships from Brisbane warehouse. Standard delivery 2-5 business days.
Downloads
Compatible Products
Frequently Asked Questions
Can't find your answer?
Contact UsWhat is the Graco XD Series 40 Reel?
A heavy-duty spring retraction hose reel with 15 m of 1" fuel hose. Designed for wall or overhead mounting in workshops and depots handling diesel or petrol.
How much hose does it carry?
15 metres of 1" bore fuel hose, enough to reach across a typical service bay or between fleet vehicles parked side by side.
Can I use it for both diesel and petrol?
Yes. The hose and reel are rated for both diesel and unleaded petrol dispensing in workshop environments.
What is the installed weight?
86 kg. You will need a solid wall or overhead beam and appropriate fasteners. Check your site's structural capacity before mounting.
What is covered under warranty?
12-month manufacturer warranty on defects in the reel mechanism and frame. Hose and swivel are consumables and wear over time. For support or spares, contact sales@goind.com.au or 07 3204 2240.
