Graco|HSHC5B
Graco XD30 Hose Reel 1/2" x 15m Grease, Blue HSHC5B
Tax excluded. Shipping calculated at checkout
GST (10%) is calculated at checkout. Tax invoices provided with all orders.
Contact for live availability
Our inventory signal hasn't refreshed today. We update twice daily but the latest reading is stale.
Email sales@goind.com.au or call 07 3204 2240 for live availability.
Ships from Brisbane warehouse. Standard delivery 2-5 business days Australia-wide.
WORKSHOP GREASE REEL THAT KEEPS HOSES OFF THE FLOOR

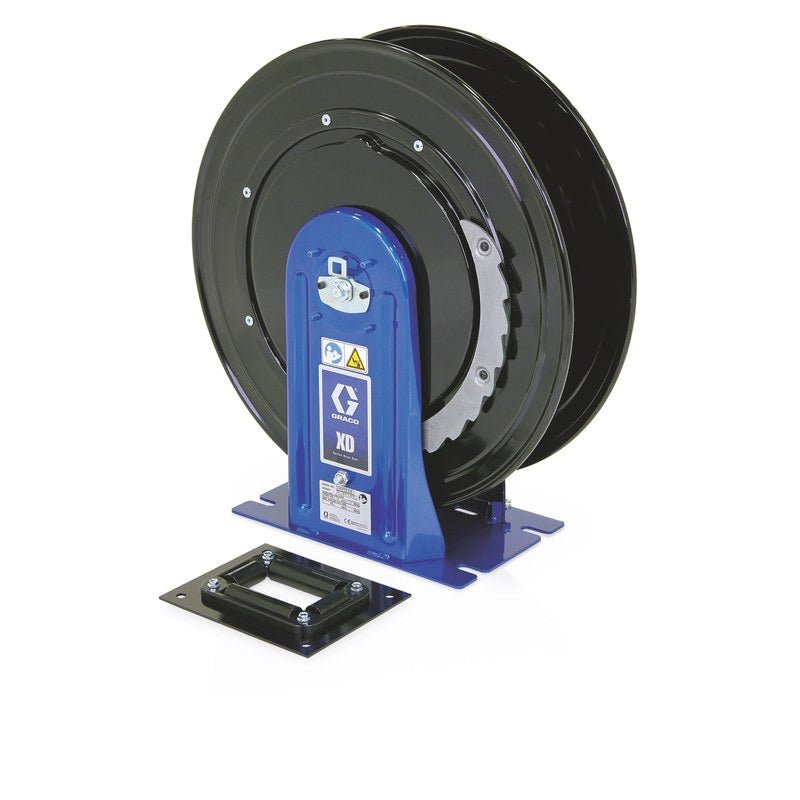

Heavy-duty 50-foot spring rewind grease reel with 1/2 inch hose. Built for workshop and field grease service where hose management matters.
Spring does the work
Pull 15 metres of grease hose to your work point, lock it with the ratchet, grease the machine. When you're done, tug the hose and the spring retracts it cleanly onto the drum. No winding by hand, no hose draped across the workshop floor collecting grit. The swivel inlet lets the hose rotate freely during retraction so it winds flat without kinking.
Mounts where you need it

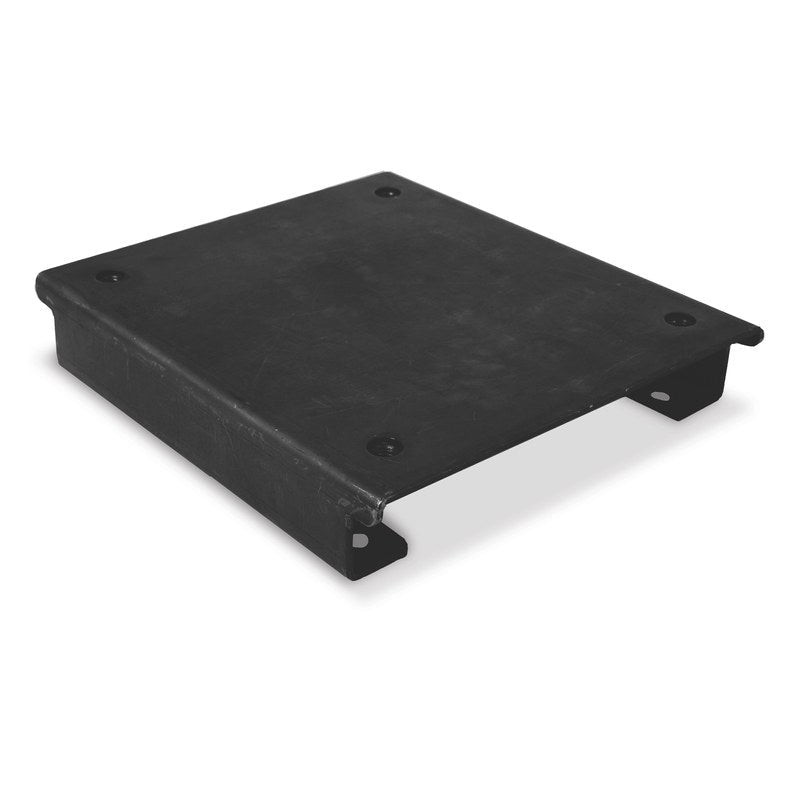

Wall or ceiling brackets ship with the reel. Mount it above your grease bench, next to a truck bay pillar, or on the ceiling over your service area. 48kg steel housing anchors securely. Swivel inlet means the reel can sit in one spot and still serve multiple grease points around the bay without the hose twisting up.
Features & Benefits
Key Features
- 15m x 1/2 inch hose capacity
- Spring rewind mechanism
- Heavy-duty steel housing
- 48kg unit weight
- Swivel inlet fitting
- Wall or ceiling mount brackets included
- Locking ratchet holds hose at length
- Built for grease service
Benefits
- Hose stays clean and off workshop floors
- Spring tension does the winding, not your back
- Swivel inlet stops hose kinking during retraction
- Mounts where you need it, saves floor space
- Ratchet lock lets you work at any hose length
| Max Working Pressure | 5000 |
| Inlet Size | 12.7 |
| Outlet Size | 1/2 |
| Thread Type | NPT |
| Hose ID | 12.7 |
| Weight | 98 |
| Height | 27.6 |
| Length | 25.96 |
| Width | 9 |
| Reel Type | Reel with Hose |
| Frame Type | Dual Pedestal |
| Fluid Compatibility | Grease |
| Includes Hose | Yes |
Shipping & Dimensions
Ships from Brisbane warehouse. Standard delivery 2-5 business days.
Downloads
Compatible Products
Frequently Asked Questions
Can't find your answer?
Contact UsWhat is the Graco XD Series 30 reel?
A spring-driven hose reel for grease service. Holds 15 metres of 1/2 inch grease hose and rewinds automatically to keep hoses managed between jobs.
How much hose does it hold?
15 metres (50 feet) of 1/2 inch grease hose. Hose not included with reel.
Can I mount it on the ceiling?
Yes. Reel ships with brackets for wall or ceiling mount. Choose the position that suits your bay layout.
Does the hose lock at different lengths?
Yes. Ratchet mechanism lets you pull hose to working length and lock it in place. Tug to release and spring retracts.
What warranty and support apply?
12-month manufacturer warranty on defects. Hose and seals are consumables. For warranty claims or technical questions, contact sales@goind.com.au or 07 3204 2240.
