Graco|273157

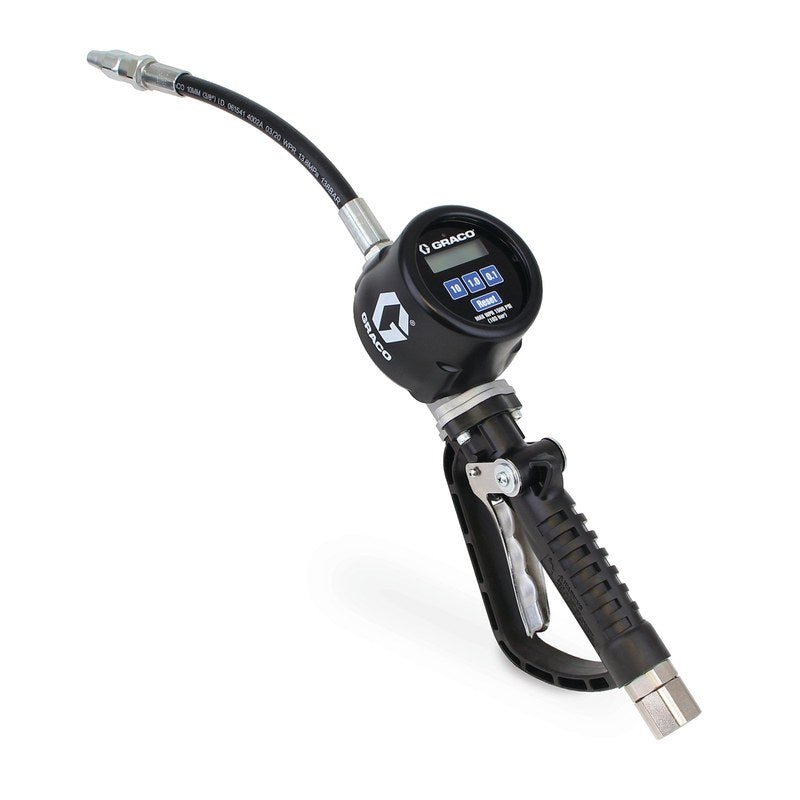

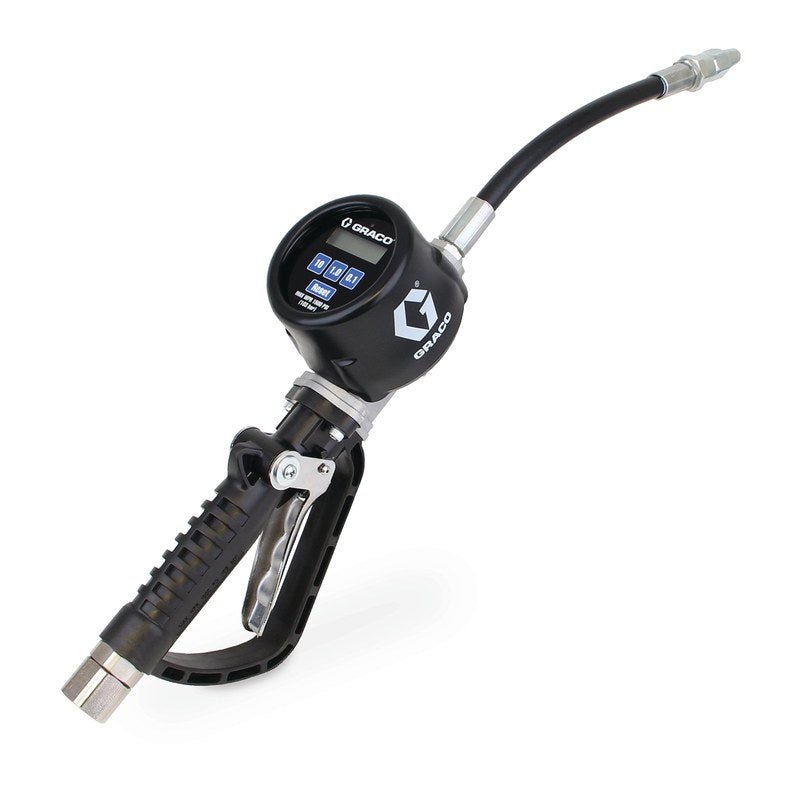

GRACO PM SERIES VALVE,PM8,NPT,FLEX 273157
Tax excluded. Shipping calculated at checkout
GST (10%) is calculated at checkout. Tax invoices provided with all orders.
Contact for live availability
Our inventory signal hasn't refreshed today. We update twice daily but the latest reading is stale.
Email sales@goind.com.au or call 07 3204 2240 for live availability.
Ships from Brisbane warehouse. Standard delivery 2-5 business days Australia-wide.
PROPORTIONAL FLOW CONTROL FOR METERING AND BLENDING
Graco PM8 proportional valve for metering systems. NPT threaded, flex line connection. Precise flow control for blending and additive injection.
What it does
The PM8 meters fluids proportionally in response to a control signal. That means consistent additive dosing in fuel blending, lubrication systems, or chemical injection setups without constant manual tweaking. NPT threads and flex line connection suit many existing installations.
Who it suits
Workshops and depots running automated blending or additive injection. If you need repeatable dosing and your system uses NPT plumbing, this is a reliable workhorse valve. Not the cheapest option, but Graco backing means parts availability and field support when you need it.
Features & Benefits
Key Features
- PM8 series proportional valve
- NPT threaded connections
- Flex line compatible
- Weight 2.81 kg
- Suits metering and blending systems
- Graco quality construction
Benefits
- Accurate additive dosing without manual adjustment
- NPT threads fit standard US-spec plumbing
- Flex line connection simplifies retrofit installs
- Field-serviceable parts reduce downtime costs
| Maximum Flow Rate (cc/min) | 30283 |
| Maximum Flow Rate (L/min) | 30.3 |
| Maximum Flow Rate (cc/sec) | 505 |
| Max Working Pressure | 1500 |
| Accuracy | ±0.5 |
| Meter Pressure Loss (psi) | 60 PSI at 6 GPM |
| Meter Pressure Loss (bar) | 4.1 Bar at 6 GPM |
| Minimum Flow Rate (GPM) | 0.25 |
| Display Type | Electronic |
| IP Rating | 69K |
| Fluid Outlet Thread | Female |
| Inlet Size | 1.27 |
| Outlet Size | 1.905 |
| Fluid Inlet Thread Gender | Female |
| Overall Height (cm) | 18.3 |
| Height | 7.2 |
| Overall Length (cm) | 78 |
| Length | 30.7 |
| Overall Width (cm) | 10.4 |
| Width | 4.1 |
| Metering Gun Weight (lb) | 5.2 |
| Metering Gun Weight (kg) | 2.4 |
| Includes | Nozzle, Extension |
| Warranty | 5 Years Structural Components, 3 Years Electronics, 1 Year Wear Parts |
| Calibration Type | Factory Calibrated |
| Dispense Type | Pre-set |
| Extension Type | Flexible |
| Maximum Recorded Dispense | 19999 |
| Maximum Storage Temperature (°F) | 185 |
| Maximum Storage Temperature (°C) | 85 |
| Meter Technology | Oval Gear |
| Trigger Protection Type | Lock Off Button |
| Trigger Lock | Locking |
| Minimum Operating Temperature (°F) | -20 |
| Minimum Operating Temperature (°C) | -29 |
| Valve Type | Metered |
| Maximum Totalizer | 19999 |
Shipping & Dimensions
Ships from Brisbane warehouse. Standard delivery 2-5 business days.
Downloads
Compatible Products
Frequently Asked Questions
Can't find your answer?
Contact UsWhat is the Graco PM8 proportional valve?
A precision flow control valve for metering and blending systems. NPT threaded with flex line connection, weighs 2.81 kg.
What thread type does it use?
NPT threads. Common in imported metering equipment and US-spec installations. Check your existing system before ordering.
Can I use this for diesel additive injection?
Yes. The PM8 suits fuel additive metering where proportional control is needed. Verify material compatibility for your specific additive.
What is the warranty and how do I get support?
12-month warranty on defects. Wear parts not covered. For technical support or bulk orders, email sales@goind.com.au or call 07 3204 2240.
