Graco|77X203

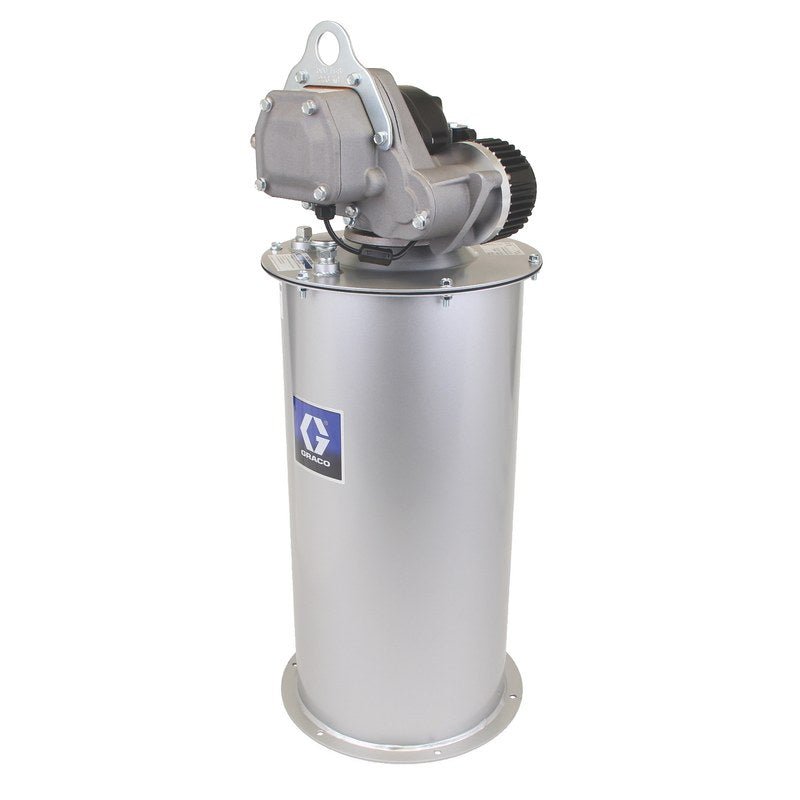

GRACO MODULE, EDS HP, AFSO, LL, 90# 77X203
Tax excluded. Shipping calculated at checkout
GST (10%) is calculated at checkout. Tax invoices provided with all orders.
Contact for live availability
Our inventory signal hasn't refreshed today. We update twice daily but the latest reading is stale.
Email sales@goind.com.au or call 07 3204 2240 for live availability.
Ships from Brisbane warehouse. Standard delivery 2-5 business days Australia-wide.
GRACO AUTO SHUT-OFF DISPENSE BUILT FOR FIXED INSTALLATIONS
Graco high-pressure auto shut-off dispense module with leak limiter. 66 kg field-ready unit built for fixed tank or bowser installations.
High-pressure, no overflow
The EDS HP module delivers high-pressure dispense with auto shut-off that triggers when the tank is full. No manual watching, no spills. The leak limiter cuts down on drips after nozzle release, keeping the work area cleaner between fills. Graco's EDS platform has a long track record in Australian fleet and ag applications.
Modular and field-proven
At 66 kg, this is a solid field-ready unit built to handle continuous dispense cycles. The modular design integrates with existing Graco systems, so you can add it to a bowser, replace a worn module, or build out a tank farm setup without custom plumbing. Parts are available locally, and Graco support is established across Australia.
Features & Benefits
Key Features
- Auto shut-off dispense module
- High-pressure rated
- Leak limiter fitted
- 66 kg unit weight
- Graco EDS platform
- Modular installation
Benefits
- No overflow spills, auto shut-off does the work
- Fits existing Graco setups without custom plumbing
- Leak limiter keeps the work area cleaner
- Heavy-duty build for continuous site use
| Max Working Pressure | 241 |
| Voltage (V dc) | 24 |
| Fluid Outlet Size | 9.5250 |
| Fluid Outlet Thread | Female |
| Maximum Fill Inlet Pressure (kPa) | 34470 |
| Maximum Fill Inlet Pressure (psi) | 5000 |
| Maximum Fill Inlet Pressure (bar) | 344.7 |
| Height | 38 |
| Width | 14.5 |

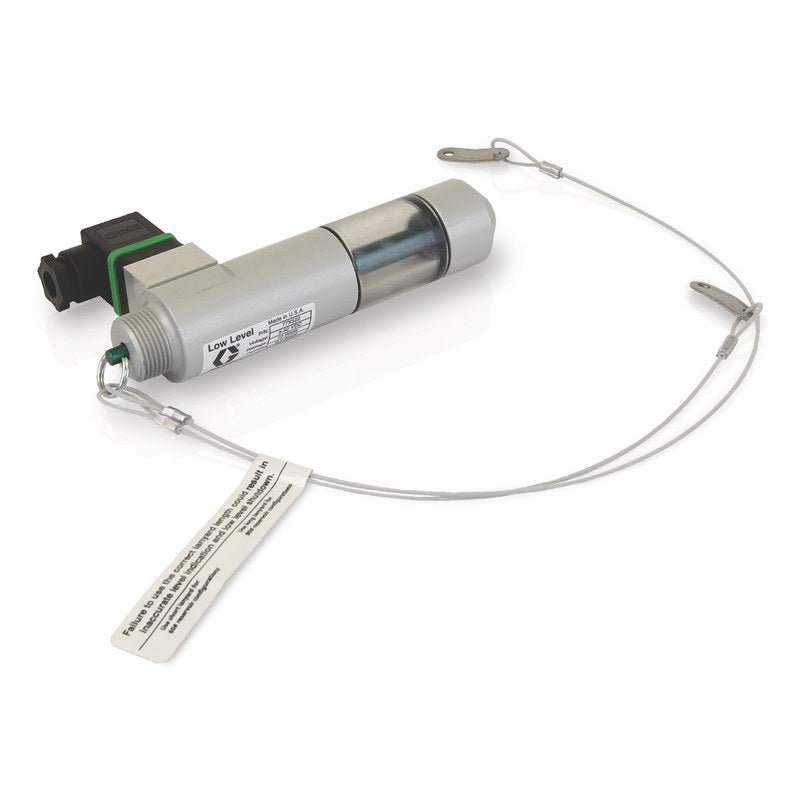

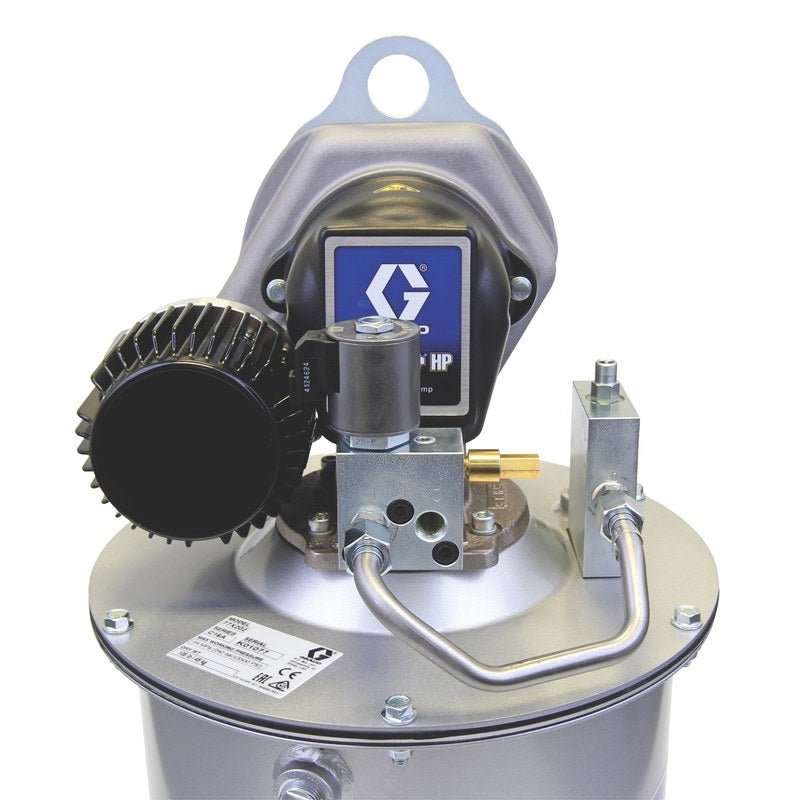

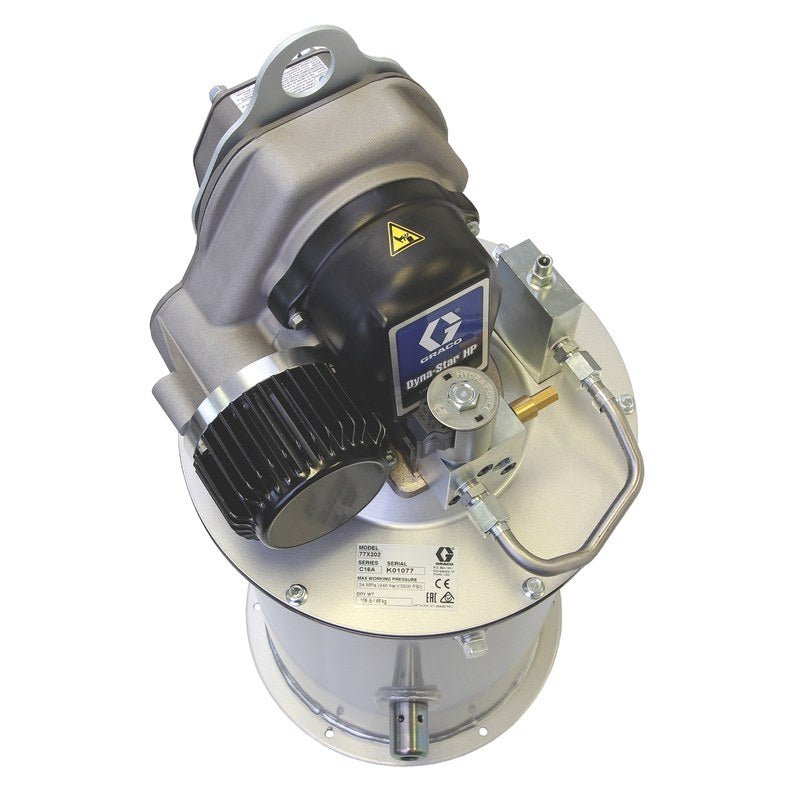

| Includes | HP Pump 24 VDC, Injector Module with Pump, Tube-in-Tube, Vent Valve, Auto-fill Shutoff, Low Level, 90 lb Reservoir |
| Overall Depth (in) | 16.13 |
| Overall Depth (mm) | 410 |
Shipping & Dimensions
Ships from Brisbane warehouse. Standard delivery 2-5 business days.
Downloads
Compatible Products
Frequently Asked Questions
Can't find your answer?
Contact UsWhat is the Graco EDS HP module?
A high-pressure auto shut-off dispense unit with leak limiter. Designed for fixed installations where you need reliable tank fills without overflow or manual monitoring.
What does the leak limiter do?
Reduces fuel drips after the nozzle is released. Keeps the work area cleaner and minimises product waste between dispenses.
Does this work with existing Graco systems?
Yes. The EDS platform is modular and integrates with standard Graco components, making it straightforward to add to an existing setup or replace a worn unit.
What fluids can it handle?
Diesel, AdBlue, oils, and similar fluids. Confirm compatibility for your specific application with sales@goind.com.au or 07 3204 2240.
What is the warranty and support?
12-month manufacturer warranty on defects. Wear parts are consumables. For installation advice or spare parts, contact sales@goind.com.au or 07 3204 2240.
