Graco|77X202
GRACO MODULE, EDS HP, AFSO, LL, 60# 77X202
Tax excluded. Shipping calculated at checkout
GST (10%) is calculated at checkout. Tax invoices provided with all orders.
Contact for live availability
Our inventory signal hasn't refreshed today. We update twice daily but the latest reading is stale.
Email sales@goind.com.au or call 07 3204 2240 for live availability.
Ships from Brisbane warehouse. Standard delivery 2-5 business days Australia-wide.
HIGH-PRESSURE DISPENSING WITHOUT THE BABYSITTING

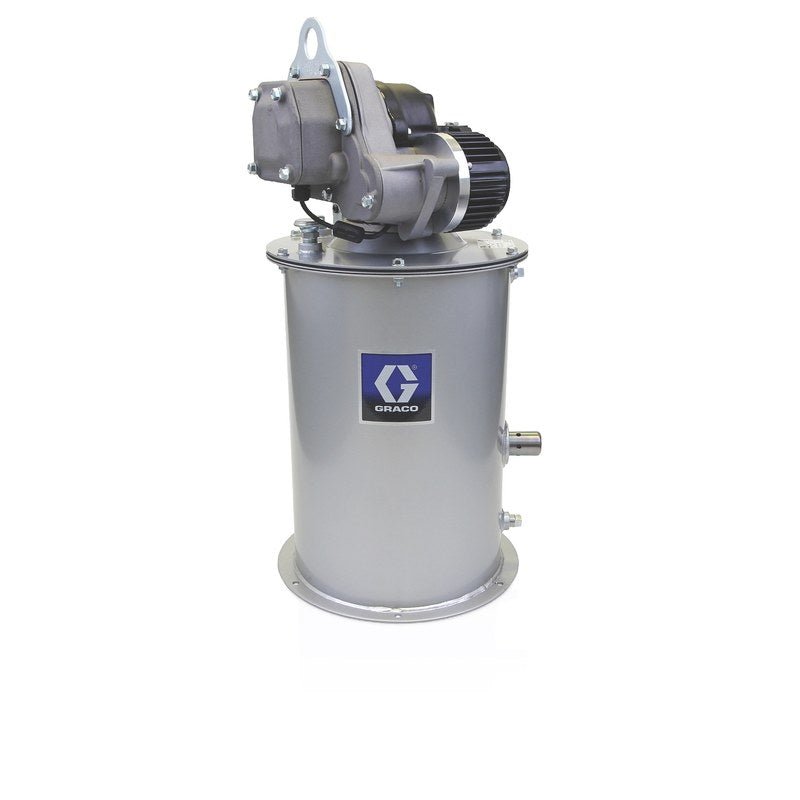

Graco high-pressure automated dispensing module rated to 60 bar. Engineered for bulk fuel, oil, and fluid transfer in workshop and industrial settings.
Auto shut-off, no guesswork
Built-in flow sensing stops the dispense at your preset volume. No standing there watching the gauge, no spillage, no cleanup. Set it, walk away, come back when the beeper goes. That is what automated means in a busy workshop.
Low-level alerts before you run dry
The integrated low-level sensor tells you when the tank is getting low, so you can schedule a fill before the next job grinds to a halt. One less thing to remember when you are juggling a dozen other tasks on site.
Features & Benefits
Key Features
- Pressure rating - 60 bar
- Auto shut-off on preset volume
- Low-level tank monitoring
- Modular rail-mount design
- Continuous duty cycle
- Weight 60.78 kg
- Suits diesel, oil, AdBlue, fluids
Benefits
- No overfills, less cleanup and waste
- Tank alerts keep you stocked, fewer run-outs
- Drops into Graco rail systems without custom brackets
- Handles commercial duty without constant babysitting
| Max Working Pressure | 3500 |
| Voltage (V dc) | 24 |
| Fluid Outlet Size | 9.5250 |
| Fluid Outlet Thread | Female |
| Height | 775 |
| Width | 14.5 |

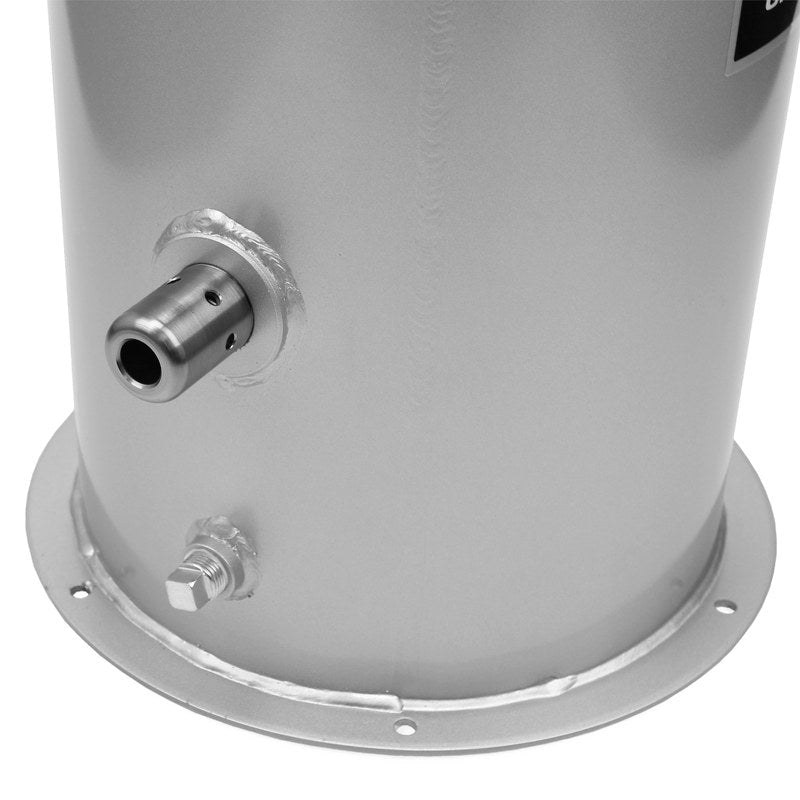

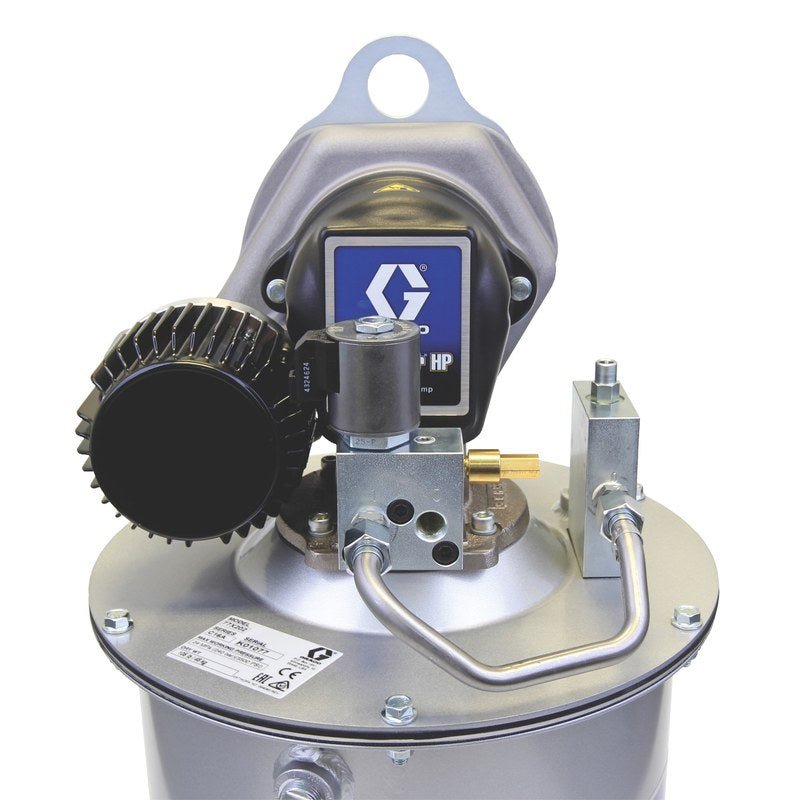

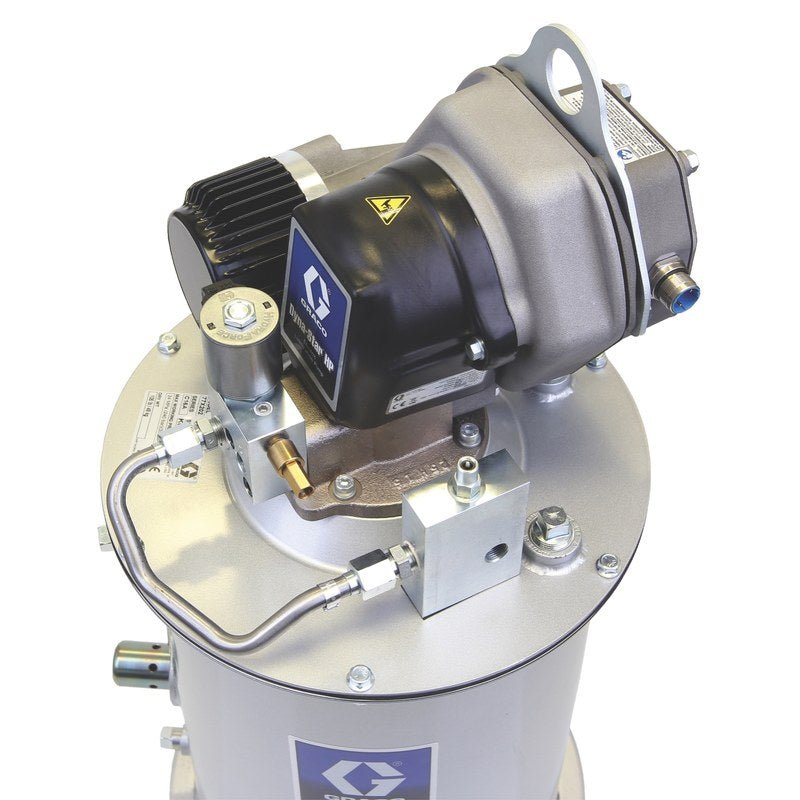

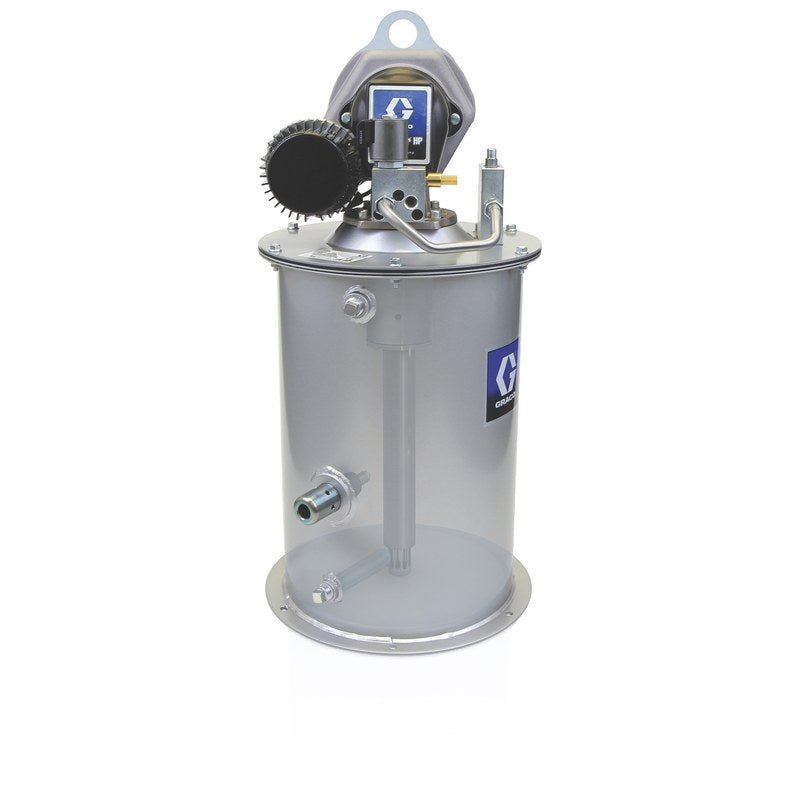

| Includes | HP Pump 24 VDC, Injector Module with Pump, Tube-in-Tube, Vent Valve, Auto-fill Shutoff, Low Level, 60 lb Reservoir |
| Overall Depth (mm) | 410 |
| Overall Depth (in) | 16.13 |
Shipping & Dimensions
Ships from Brisbane warehouse. Standard delivery 2-5 business days.
Downloads
Compatible Products
Frequently Asked Questions
Can't find your answer?
Contact UsWhat is the Graco EDS HP module?
A high-pressure dispensing module rated to 60 bar with built-in auto shut-off and low-level monitoring. Designed for bulk fuel, oil, and fluid transfer in workshop and depot environments.
What does AFSO mean?
Auto Flow Shut-Off. The module stops dispensing automatically when the preset volume is reached, preventing overfills.
What does LL mean?

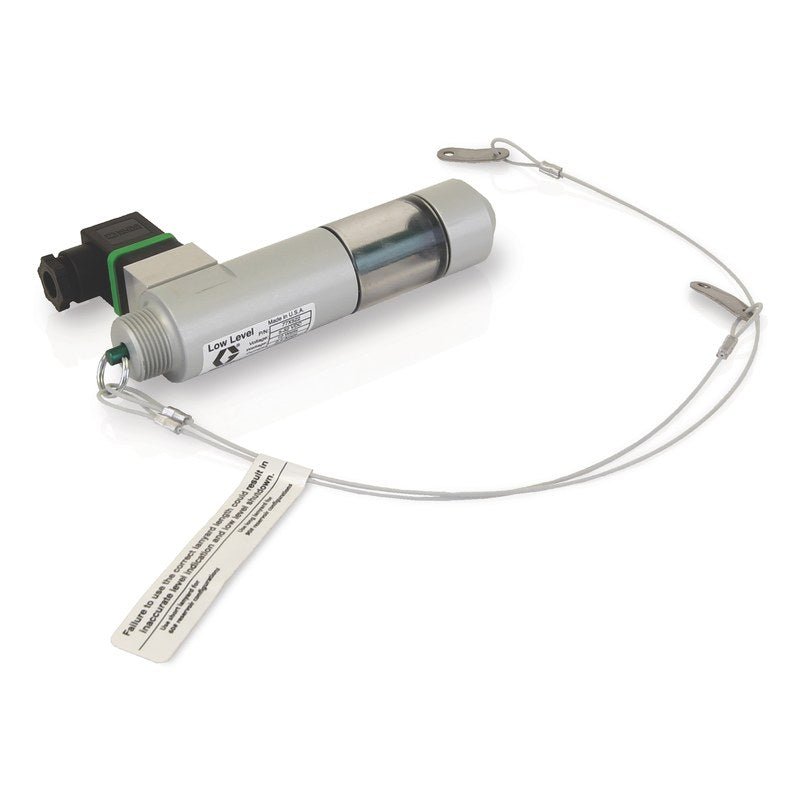

Low Level monitoring. An integrated sensor alerts you when the source tank is running low, so you can restock before you run dry.
Can this handle AdBlue and diesel?
Yes. The module is compatible with diesel, oil, AdBlue, and other bulk fluids. Confirm fluid compatibility and seal materials for your specific application before installation.
What is covered under warranty?
12-month warranty on manufacturing defects. Wear parts like seals and sensors are consumables. For warranty claims or technical support, contact sales@goind.com.au or 07 3204 2240.
