Graco|24G600
GRACO LD SERIES GREASE PUMP,50:1,16 KG,NPT 24G600
Tax excluded. Shipping calculated at checkout
GST (10%) is calculated at checkout. Tax invoices provided with all orders.
Available to Order
We source this in for you on demand. Order now and we'll secure your unit, or contact us for a firm lead time and freight to your site, warehouse, business or home address.
For a lead time or expedited dispatch, contact sales@goind.com.au or call 07 3204 2240.
Ships from Brisbane warehouse. Standard delivery 2-5 business days Australia-wide.
50:1 GREASE DELIVERY FOR WORKSHOPS THAT RUN STANDARD DRUMS

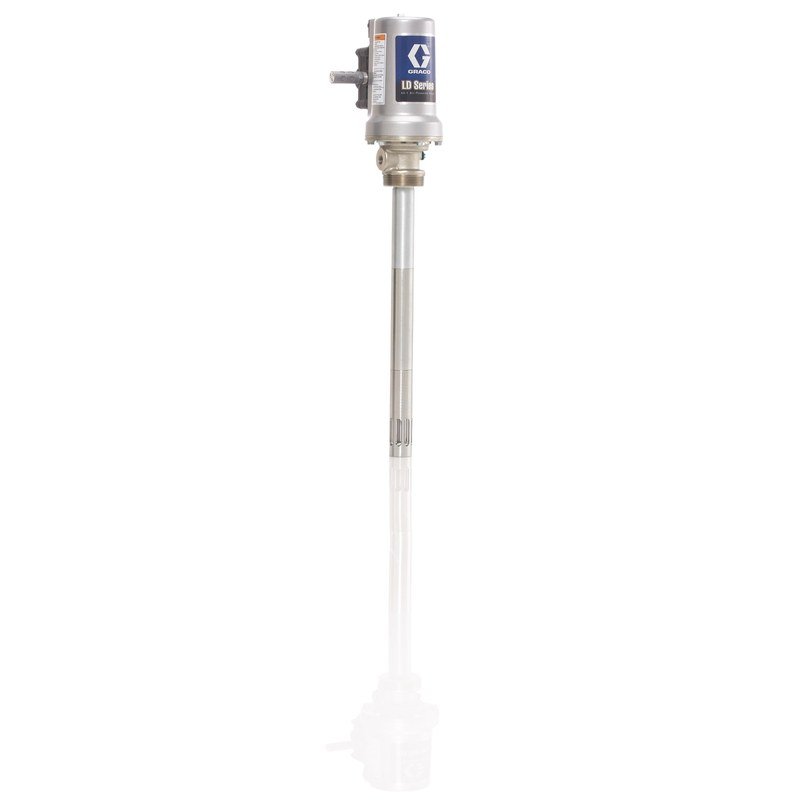

Graco LD Series 50:1 air-operated grease pump for 16 kg drums. Workhorse ratio for medium-pressure lubrication rigs in workshops and on-site maintenance.
Drum-fed lubrication
The LD Series mounts to 16 kg grease drums and feeds your hose reel or grease gun. Air-operated means no electric headaches in dusty bays. The 50:1 ratio pushes grease through standard lines without over-pressuring seals on older equipment.
NPT workshop standard
NPT threads match the air fittings already on your bench. No hunting for adapters. The 6.8 kg weight means you can shift the pump between bays or bolt it to a mobile rig without building a frame.
Features & Benefits
Key Features
- 50:1 pressure ratio
- 16 kg drum mount
- Air-operated design
- NPT thread connections
- 6.8 kg unit weight
- LD Series platform
- Medium-pressure lubrication duty
Benefits
- Drum-fed design cuts refill downtime
- NPT fittings match standard air tools
- Mid-ratio suits most workshop grease jobs
- Compact 6.8 kg weight for mobile rigs
- Graco parts network keeps you stocked
| Maximum Air Inlet Pressure (bar) | 10.34 |
| Maximum Air Inlet Pressure (psi) | 150 |
| Max Working Pressure | 517 |
| Air Inlet Size | 1/4 |
| Fluid Outlet Size | 6.35 |
| Air Inlet Size (mm) | 6.35 |
Shipping & Dimensions
Ships from Brisbane warehouse. Standard delivery 2-5 business days.
Downloads
Compatible Products
Frequently Asked Questions
Can't find your answer?
Contact UsWhat is the Graco LD Series grease pump?
A 50:1 air-operated pump that mounts to 16 kg grease drums. Delivers medium-pressure grease feed for workshop and mobile lubrication systems.
What pressure ratio does this pump provide?
50:1 ratio. Feed it compressed air and it delivers grease at 50 times that pressure. Suits most general workshop grease jobs.
What size drum does it fit?
16 kg grease drums. The pump mounts to the drum lid and draws grease from the bottom.
What thread standard do the connections use?
NPT threads. Common in air tool setups, so it mates with standard workshop fittings.
What warranty and support comes with this pump?
12-month warranty on manufacturing defects. Wear parts are consumables. For parts, service, or technical questions, contact sales@goind.com.au or 07 3204 2240.
