Graco|24G602

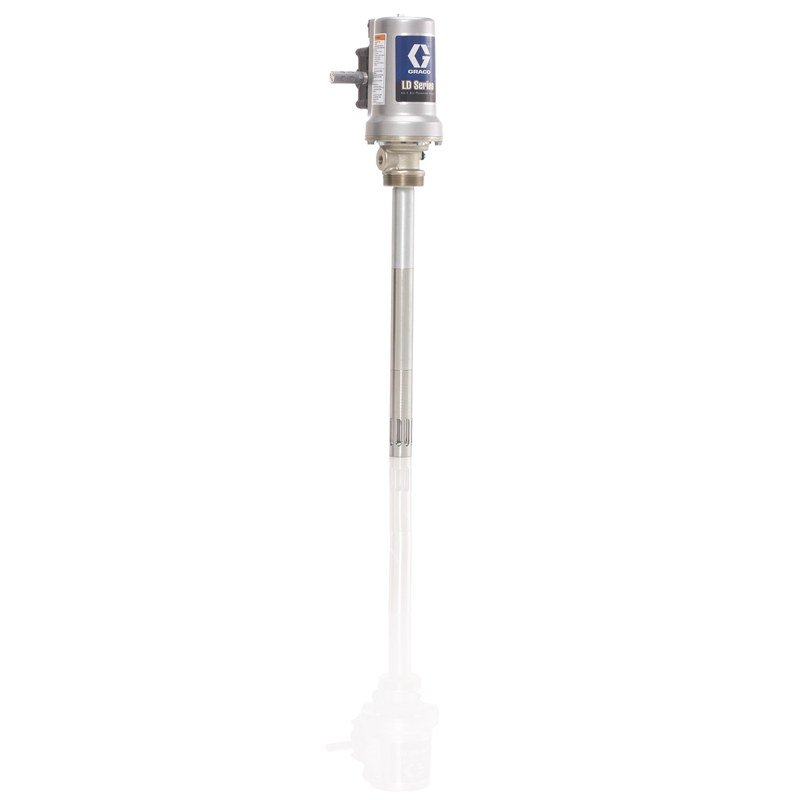

GRACO LD SERIES GREASE PUMP,50:1,16 KG,BSPT 24G602
Tax excluded. Shipping calculated at checkout
GST (10%) is calculated at checkout. Tax invoices provided with all orders.
Contact for live availability
Our inventory signal hasn't refreshed today. We update twice daily but the latest reading is stale.
Email sales@goind.com.au or call 07 3204 2240 for live availability.
Ships from Brisbane warehouse. Standard delivery 2-5 business days Australia-wide.
AIR-DRIVEN GREASE DELIVERY FOR WORKSHOPS WITH COMPRESSED AIR
Air-powered grease pump delivering 50:1 ratio for 16 kg drums. Built for workshop grease dispensing where compressed air is on hand.
50:1 ratio, shop air driven
The LD Series uses compressed air to deliver grease at 50 times inlet pressure. No electric motor, no cords to trip over. If your workshop already has an air reticulation line, you plug in and start greasing. Clean install, consistent output.
16 kg drum, BSPT connection
Designed for standard 16 kg grease pails common in Australian workshops. BSPT thread mates with local grease guns and hose reels without hunting for adapters. At 6.8 kg, the pump is light enough to shift between service bays or mount on a trolley.
Features & Benefits
Key Features
- 50:1 pressure ratio
- 16 kg drum compatibility
- Air-powered operation
- BSPT thread connection
- 6.8 kg unit weight
- Compact footprint for workshop mounting
Benefits
- Delivers grease at constant pressure using shop air
- Fits standard Australian grease fittings without adapters
- Light enough to relocate between service bays
- No electric supply required, cleaner install
| Maximum Air Inlet Pressure (bar) | 10.34 |
| Maximum Air Inlet Pressure (psi) | 150 |
| Max Working Pressure | 517 |
| Air Inlet Size | 1/4 |
| Fluid Outlet Size | 6.35 |
| Air Inlet Size (mm) | 6.35 |
Shipping & Dimensions
Ships from Brisbane warehouse. Standard delivery 2-5 business days.
Downloads
Compatible Products
Frequently Asked Questions
Can't find your answer?
Contact UsWhat is the Graco LD Series grease pump?
A 50:1 ratio air-operated grease pump for 16 kg drums, designed for workshop and field service use where compressed air is available.
What air pressure does it need?
Specific air requirements are not listed. Contact sales@goind.com.au or 07 3204 2240 for operating specs and setup advice.
Does it work with other drum sizes?
This model is built for 16 kg drums. For other drum sizes, contact us to specify the right LD Series variant.
What about warranty and support?
12-month manufacturer warranty covers defects. Wear items are consumables. For parts, service, or technical queries contact sales@goind.com.au or 07 3204 2240.
