Graco|24G578
GRACO LD Pump 3:1 Oil Pumps
Tax excluded. Shipping calculated at checkout
GST (10%) is calculated at checkout. Tax invoices provided with all orders.
Contact for live availability
Our inventory signal hasn't refreshed today. We update twice daily but the latest reading is stale.
Email sales@goind.com.au or call 07 3204 2240 for live availability.
Ships from Brisbane warehouse. Standard delivery 2-5 business days Australia-wide.
AIR-DRIVEN OIL PUMP AT A WORKHORSE PRICE

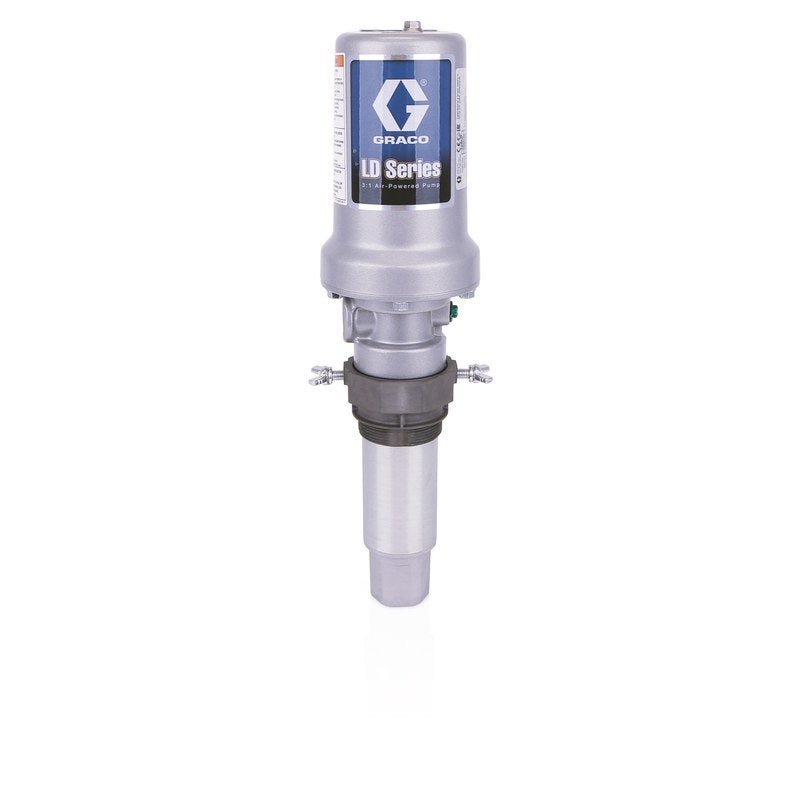

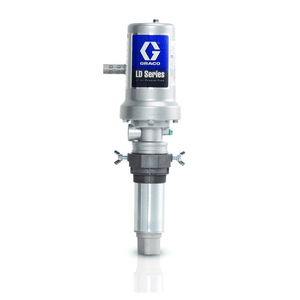

Air-driven 3:1 ratio piston pump for oil transfer, 30 L/min flow. Field-proven Graco design for workshop and mobile service applications.
No power points required
Pneumatic drive means you plug into shop air and start pumping. No electrician, no switchboard fuss. Move the unit between service bays or load it on the truck for field jobs. At 5.1 kilograms it goes where you go.
30 litres per minute
Fast enough for bulk oil changes and drum transfers without the cost or complexity of high-volume electric pumps. The 3:1 ratio gives you decent delivery pressure from typical shop air supply, no boost compressor needed.
Features & Benefits
Key Features
- Air-driven piston pump
- 3:1 pressure ratio
- Flow rate 30 L/min
- 5.1 kg portable unit
- Suitable for lubricating oils
- Graco Universal LD series
- Field-serviceable design
Benefits
- No electrical hookup, run off shop air
- Move between bays or trucks at 5.1 kg
- 30 litres per minute keeps pace with bulk jobs
- Parts availability through Graco network
- Lower cost than electric pump installs
| Maximum Air Inlet Pressure (bar) | 10.34 |
| Maximum Air Inlet Pressure (psi) | 150 |
| Max Working Pressure | 51.7 |
| Air Inlet Size | 1/4 |
| Fluid Outlet Size | 12.7 |
| Fluid Inlet Size (mm) | 25.4 |
| Fluid Inlet Size (in) | 1 |
| Air Inlet Size (mm) | 6.35 |
Shipping & Dimensions
Ships from Brisbane warehouse. Standard delivery 2-5 business days.
Downloads
Compare
Compare Similar Products
10.34
—
—
150
—
—
51.7
—
—
1/4
—
—
12.7
—
—
25.4
—
—
1
—
—
6.35
—
—
Compatible Products
Frequently Asked Questions
Can't find your answer?
Contact UsWhat is the Graco 3:1 air piston pump?
Air-powered piston pump that delivers 30 L/min oil flow using shop air. 3:1 ratio means 3 bar air pressure yields roughly 1 bar fluid delivery pressure.
What can I pump with this unit?
Designed for lubricating oils - engine oil, hydraulic oil, gear oil. Not suitable for fuels, solvents, or aggressive chemicals.
Do I need special air pressure?
Runs on standard workshop compressed air. Check your site air pressure matches typical 6-8 bar shop supply.
Can I get replacement seals?
Yes. Graco service kits are stocked locally. Contact sales@goind.com.au or 07 3204 2240 for parts or warranty support.
