Graco LD 3:1 Oil Transfer Pump - 200L Drum, BSPT · 24G584
Tax excluded. Shipping calculated at checkout
GST (10%) is calculated at checkout. Tax invoices provided with all orders.
Contact for live availability
Our inventory signal hasn't refreshed today. We update twice daily but the latest reading is stale.
Email sales@goind.com.au or call 07 3204 2240 for live availability.
Ships from Brisbane warehouse. Standard delivery 2-5 business days Australia-wide.
BUILT FOR 205L DRUMS ALL DAY
Air-operated 3:1 oil transfer pump for 205 litre (44 gallon) drums. 9.8 L/min flow, 51.7 bar max output pressure, 1/2" BSPT outlet. Includes 907 mm down tube and adjustable bung adapter. Suits engine oils, ATFs, gear oils, hydraulic fluids and 20W-50 motor oil. Direct off-the-shelf workshop replacement.
Three inches of pulling power, all day on shop air
The LD's 3-inch air motor moves more oil per cycle than the 2-inch motors on competitor drum pumps, and Graco's patent-pending cup-and-plate design eliminates the wear-prone O-rings that send older pumps to the service bench. Run it at 8-10 bar shop air, dispense 9.8 L/min into oil control nozzles or inline meters, walk away.
RECOMMENDED LONG-LIFE SPEED
907 mm down tube + adjustable bung adapter, ready out of the carton
Drops straight onto any standard 205 L oil drum with a 2" NPT bung. The adjustable adapter takes up slack on shorter drums; the 907 mm steel down tube reaches the bottom of a full 200 L without modification. BSPT threads throughout - the AU/UK standard - so existing workshop hoses and meters connect without thread adapters.
44 GALLON DRUM READY
Features & Benefits
Key Features
- Air-operated 3:1 fluid-to-air pressure ratio for reliable drum-to-dispenser transfer
- 9.8 L/min flow at the Graco-recommended 75 cycles per minute
- 51.7 bar (750 psi) maximum fluid working pressure
- Three-inch air motor delivers more power and better flow than 2 in. competitor pumps
- Innovative anti-icing air valve uses less air than competitive pumps
- Patent-pending cup and plate design eliminates wear-prone O-rings for longer life
- Modular four-bolt air valve simplifies on-site installation and service
- Self-cleaning pilot valve tolerates dirty shop air without losing pressure
- Adjustable bung adapter built in - drops straight onto 2 in. NPT drum bungs
- Includes 907 mm (35.7 in.) steel down tube for 205 L drums
- ATEX rated II 2 G Ex h T6 Gb for use in classified zones
Benefits
- Pulls oil from the bottom of a drum without re-priming, all day on shop air
- Workshop-grade build - patent-pending air motor outlasts traditional O-ring designs
- Drops in as a direct replacement for older 3:1 LD or Lincoln drum pumps
- Backed by Graco's worldwide spare-parts network - service kits ship same-day from Derrimut
- Ships direct from Graco Derrimut (VIC) to your workshop on a small-parcel freight rate
- Pairs with Graco oil hose reels, oil control nozzles and inline meters for a complete dispense kit
| Pressure ratio | 3:1 fluid-to-air |
| Flow rate (at 75 cpm) | 9.8 L/min (2.6 US gpm) |
| Maximum air inlet pressure | 10.3 bar (150 psi) |
| Maximum fluid output pressure | 51.7 bar (750 psi) |
| Cycles per litre | 7 |
| Maximum pump speed | 120 cycles/min |
| Recommended speed (long life) | 75 cycles/min or lower |
| Recommended air pressure (long life) | Under 8.6 bar (125 psi) |
| Air inlet | 1/4"-19 BSPT female |
| Fluid inlet | 1"-11 BSPT (drum tube) |
| Fluid outlet | 1/2"-14 BSPT female |
| Bung adapter | 2" NPT (male), adjustable |
| Air motor | 3 inch diameter |
| Wetted parts | Zinc plated carbon steel, aluminium, nitrile, polyurethane, nickel-plated aluminium |
| Down tube length | 907 mm (35.7 in.) |
| Overall pump length | 1138 mm (44.8 in.) |
| Hazardous area rating | ATEX II 2 G Ex h T6 Gb |
| Sound pressure level | 72.9 dB(A) at 1 m, 100 psi, 20 cpm |
| Sound power level | 82.0 dB(A) per ISO 9614-2 |
| Pump weight (assembled) | 3.2 kg |
| Overall pump length | 1138 mm (44.8 in.) |
| Down tube length | 907 mm (35.7 in.) |
| Country of origin | China |
| Manufacturer code | 24G584 |
| UPC | 633955613522 |
| Warranty | 12 months Graco manufacturer |
| Fluid compatibility | Engine oil, motor oil (20W-50 etc.), ATF, gear oil, hydraulic fluid - non-corrosive and non-abrasive lubricants |
| Not for use with | Petrol, diesel, AdBlue, water, solvents, windshield washer fluid, halogenated hydrocarbons |
| Compatible drum size | 205 L (44 gallon) drum with 2" NPT bung |
Shipping & Dimensions
Ships direct from the Graco Derrimut (VIC) warehouse on small-parcel freight. Most metro deliveries land in 2-3 business days; regional sites typically 3-5 business days. Long-parcel carton (>1m) so satchel rates do not apply.
Downloads
Compare
Compare Similar Products
3:1 fluid-to-air
—
—
9.8 L/min (2.6 US gpm)
—
—
10.3 bar (150 psi)
—
—
51.7 bar (750 psi)
—
—
7
—
—
120 cycles/min
—
—
75 cycles/min or lower
—
—
Under 8.6 bar (125 psi)
—
—
1/4"-19 BSPT female
—
—
1"-11 BSPT (drum tube)
—
—
1/2"-14 BSPT female
—
—
2" NPT (male), adjustable
—
—
3 inch diameter
—
—
Zinc plated carbon steel, aluminium, nitrile, polyurethane, nickel-plated aluminium
—
—
907 mm (35.7 in.)
—
—
1138 mm (44.8 in.)
—
—
ATEX II 2 G Ex h T6 Gb
—
—
72.9 dB(A) at 1 m, 100 psi, 20 cpm
—
—
82.0 dB(A) per ISO 9614-2
—
—
3.2 kg
—
—
1138 mm (44.8 in.)
—
—
907 mm (35.7 in.)
—
—
China
—
—
24G584
—
—
633955613522
—
—
12 months Graco manufacturer
—
—
Engine oil, motor oil (20W-50 etc.), ATF, gear oil, hydraulic fluid - non-corrosive and non-abrasive lubricants
—
—
Petrol, diesel, AdBlue, water, solvents, windshield washer fluid, halogenated hydrocarbons
—
—
205 L (44 gallon) drum with 2" NPT bung
—
—
Frequently Asked Questions
Can't find your answer?
Contact UsWill this pump handle 20W-50 motor oil?
Yes - the LD 3:1 is rated for engine oils, motor oils, ATFs, gear oils and hydraulic fluids at typical workshop temperatures. 20W-50 sits comfortably in the middle of that range. For very cold mornings (sub-5°C) you will see a flow drop until the oil warms up, which is normal for any air-operated pump.
What size drum does this fit?
Standard 205 litre (44 gallon, sometimes called 55 US gallon) steel drums with a 2 inch NPT bung. The adjustable bung adapter screws straight into the drum and the 907 mm down tube reaches the bottom without modification.
Will this pump petrol or diesel?
No. This is an oil-only pump. The wetted parts and seals are rated for non-corrosive lubricants. For diesel transfer use a dedicated diesel pump like the Piusi PB series or a Husky AODD pump. For petrol you need an ATEX Zone 0 rated dispenser.
How much air do I need to run it?
8 to 10 bar (110 to 150 psi) at the pump inlet is plenty. The pump uses a 1/4 inch BSPT air connection and is happy on any shop compressor outputting 60 LPM or more of free air at 8 bar. For continuous high-flow work, plumb it close to the compressor to avoid pressure drop in long air lines.
Can I use this with a hose reel and oil control valve?

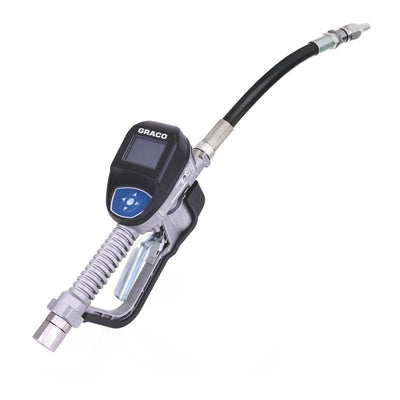

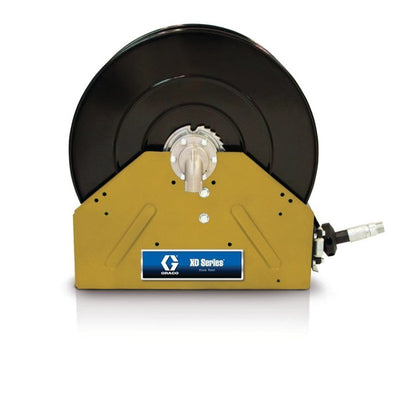

Yes - this is the standard pump pairing for Graco's XD-series hose reels and EM20 oil nozzles. The 1/2 inch BSPT outlet connects directly to Graco fluid hoses, swivels and inline meters like the Pulse Pro. See the Build the Dispense Kit section below.
Where does it ship from?
Direct from the Graco Derrimut (Victoria) warehouse, not GO Fill's Brisbane facility. Most metro deliveries land in 2-3 business days on small-parcel freight. Long-parcel rates apply because the pump is over 1 metre assembled.
