Graco|124300

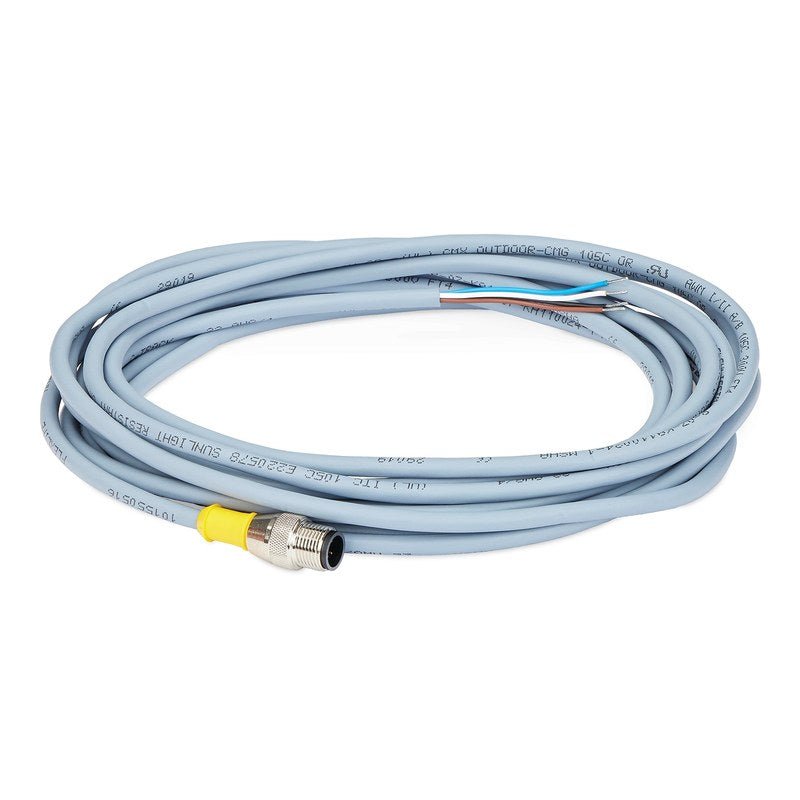

GRACO HARNESS, WIRING, M12 TO BARE WIRE 124300
Tax excluded. Shipping calculated at checkout
GST (10%) is calculated at checkout. Tax invoices provided with all orders.
Contact for live availability
Our inventory signal hasn't refreshed today. We update twice daily but the latest reading is stale.
Email sales@goind.com.au or call 07 3204 2240 for live availability.
Ships from Brisbane warehouse. Standard delivery 2-5 business days Australia-wide.
SIMPLE HARD-WIRING FOR GRACO METERS WITHOUT THE CONNECTOR FUSS
M12 connector to bare wire harness for Graco fuel meters and sensors. Simple field termination when hard-wiring is required.
What it does
This harness bridges the gap between Graco's M12 connectors and your control panel's terminal blocks. One end plugs into the meter, the other end is stripped wire ready for screw terminals or lugs. No crimping, no hunting for M12 backshells, no soldering in the field.
Why hard-wire instead of patch leads
Patch leads work fine for portable setups or test rigs. Permanent installations often need the cable run through conduit and terminated at a remote panel. That is where this harness fits. You pull the cable, land the wires, done. Cleaner than trying to fit an M12 plug through glands or cutting a factory patch lead.
Features & Benefits
Key Features
- M12 female connector to bare wire
- Pre-wired M12 end saves field assembly time
- Suits Graco fuel meters and sensors
- Direct termination to control panels
- Field-ready harness
- Weight 0.21 kg
Benefits
- No M12 crimping tools or connector kits to source
- Wire straight into existing panel terminals
- Faster meter commissioning on site
- Suits permanent installations where patch leads add clutter
| Includes | M12 Eurofast Extension Cordset, 4-Wire Straight Male to Flying Leads, 5 Meter Cable |
| Fluid Compatibility | - Graco digital meters, oval gear meters, turbine meters wit |
| For Use With | G-Series |
Shipping & Dimensions
Ships from Brisbane warehouse. Standard delivery 2-5 business days.
Downloads
Compatible Products
Frequently Asked Questions
Can't find your answer?
Contact UsWhat is the GRACO M12 to bare wire harness?
A pre-terminated wiring harness with an M12 female connector on one end and stripped wire on the other, allowing you to hard-wire Graco fuel meters or sensors directly into control panels or terminal blocks.
Which Graco products does this harness suit?
It suits Graco fuel meters and sensors with M12 male outputs, including digital meters, oval gear meters and turbine meters. Check your meter's connector type before ordering.
Can I use this outdoors or in weather-exposed installations?
The M12 connector is sealed when mated. The bare wire end must be terminated inside a weatherproof enclosure or junction box. Do not leave bare wire exposed to weather.
How long is the cable?
Cable length is not listed in the product specifications. Contact sales@goind.com.au or 07 3204 2240 for length confirmation or to discuss custom cable runs.
What warranty and support is included?
12-month manufacturer warranty covers defects in materials and workmanship. Cable damage from improper termination, over-torquing, or environmental exposure is not covered. For technical support, contact sales@goind.com.au or 07 3204 2240.
