Graco|26A814
GRACO GLC CONTROL, X 26A814
Tax excluded. Shipping calculated at checkout
GST (10%) is calculated at checkout. Tax invoices provided with all orders.
Contact for live availability
Our inventory signal hasn't refreshed today. We update twice daily but the latest reading is stale.
Email sales@goind.com.au or call 07 3204 2240 for live availability.
Ships from Brisbane warehouse. Standard delivery 2-5 business days Australia-wide.
AUTOMATED GRACO CONTROL FOR PRESET METERING AT WORKHORSE PRICE

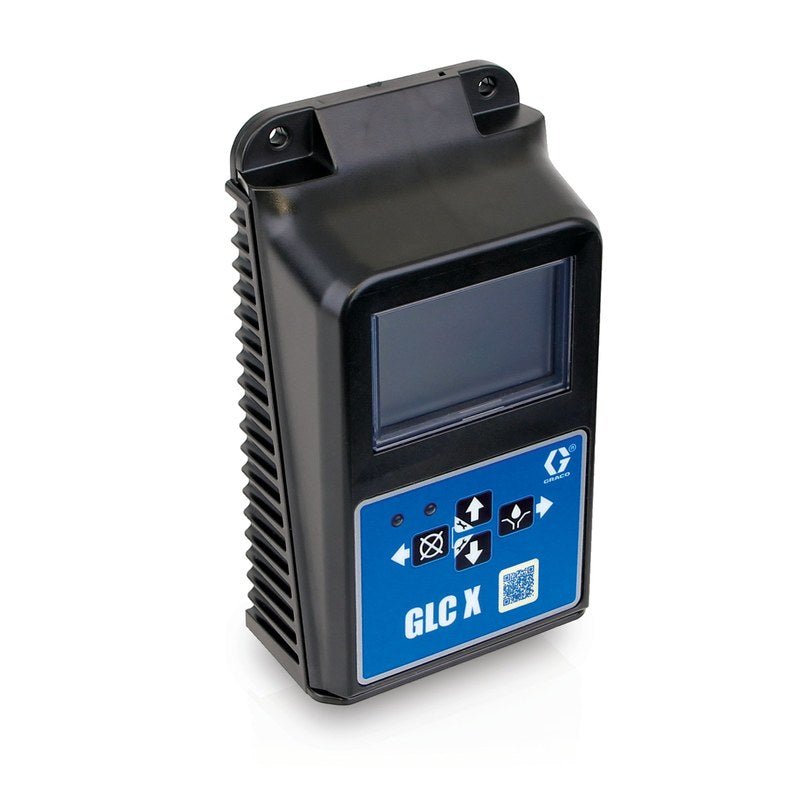

Graco GLC Control, X module for automated preset metering systems. Compact 0.54 kg panel for fleet and workshop installations.
What it does
The GLC Control, X is a control panel for Graco preset dispensing systems. It automates fuel delivery based on preset volumes, reducing manual metering errors and speeding up refuelling runs. At 0.54 kg, it fits tight equipment bays or mobile setups without adding bulk. Factory-configured for plug-and-play with compatible Graco meters.
Where it fits
Workshops running multi-pump setups, fleet depots with automated fuel management, remote mining or construction sites needing preset metering. If you are already running Graco dispensing gear and want to move away from manual valve control, this is the module you need.
Features & Benefits
Key Features
- Weight - 0.54 kg
- Compact control panel
- Graco preset meter integration
- Automated delivery control
- Factory-configured setup
- Multi-user system compatible
Benefits
- Drop-in control for existing Graco setups
- Light enough for mobile or temporary installs
- Reduces manual metering errors
- Fits tight equipment bay spaces
| Low Level Alarm Max Switching Current (A) | 10 |
| Low Level Alarm Max Switching Voltage (VDC) | 30 |
| Maximum Voltage (V dc) | 30 |
| Maximum Voltage (V) | 30 |
| Minimum Voltage (V dc) | 9 |
| Minimum Voltage (V) | 9 |
| Pump Control Max Switching Current (A) | 10 |
| Pump Control Max Switching Voltage (VDC) | 30 |
| Pump Control Voltage (VDC) | 9-30 |
| Auxiliary Alarm Max Switching Current (A) | 10 |
| Auxiliary Alarm Max Switching Voltage (VDC) | 9-30 |
| Auxiliary Alarm Voltage | 9-30 VDC |
| Current Consumption (A) | 15 |
| Overall Height (cm) | 16.9 |
| Height | 6.66 |
| Overall Width (cm) | 9.2 |
| Width | 3.62 |
| Intrusion Rating | IP69K |
| Lubrication Level Input | Input 1: 10V |
| Machine Count Control Input | Input 4 |
| Maximum Program Time (min) | 99 |
| Maximum Program Time (sec) | 5999 |
| Maximum Storage Temperature (°C) | 70 |
| Maximum Storage Temperature (°F) | 158 |
| Maximum System Cycle Count | 100 |
| Minimum Ambient Temperature (°F) | -22 |
| Minimum Monitor Time (hrs) | 0 |
| Minimum Monitor Time (min) | 1 |
| Minimum Monitor Time (sec) | 0 |
| Minimum Monitor Time (strokes) | 1 |
| Minimum Operating Temperature (°C) | -30 |
| Minimum Operating Temperature (°F) | -22 |
| Minimum Program Time (hrs) | 0 |
| Minimum Program Time (min) | 0 |
| Minimum Program Time (sec) | 10 |
| Minimum Program Time (strokes) | 1 |
| Minimum Storage Temperature (°C) | -30 |
| Minimum Storage Temperature (°F) | -22 |
| Minimum System Cycle Count | 1 |
| Number of Pieces | 1 |
| Overall Depth (cm) | 5 |
| Overall Depth (in) | 1.98 |
| Power Consumption (W) | 450 |
| Amperage (A) | 15 |
| Control Mode | Timer, Pressure, Cycle |
| Count Rate (counts/sec @ 50% duty cycle) | 5 |
Shipping & Dimensions
Ships from Brisbane warehouse. Standard delivery 2-5 business days.
Downloads
Compatible Products
Frequently Asked Questions
Can't find your answer?
Contact UsWhat is the Graco GLC Control, X?
A control module that automates preset metering and fuel delivery in Graco dispensing systems. Weighs 0.54 kg and mounts to panel or equipment bay.
What Graco systems does it work with?
Designed for Graco preset meters and automated dispensing packages. Confirm compatibility with your existing hardware before ordering.
Can I install this myself?
Basic electrical skills required. Factory-configured for plug-and-play in compatible Graco setups. For installation support, contact sales@goind.com.au or 07 3204 2240.
What is the warranty and how do I get support?
12-month manufacturer warranty on defects. Electronic components are not covered for exposure damage or incorrect wiring. Contact sales@goind.com.au or 07 3204 2240.
