Graco|96G225

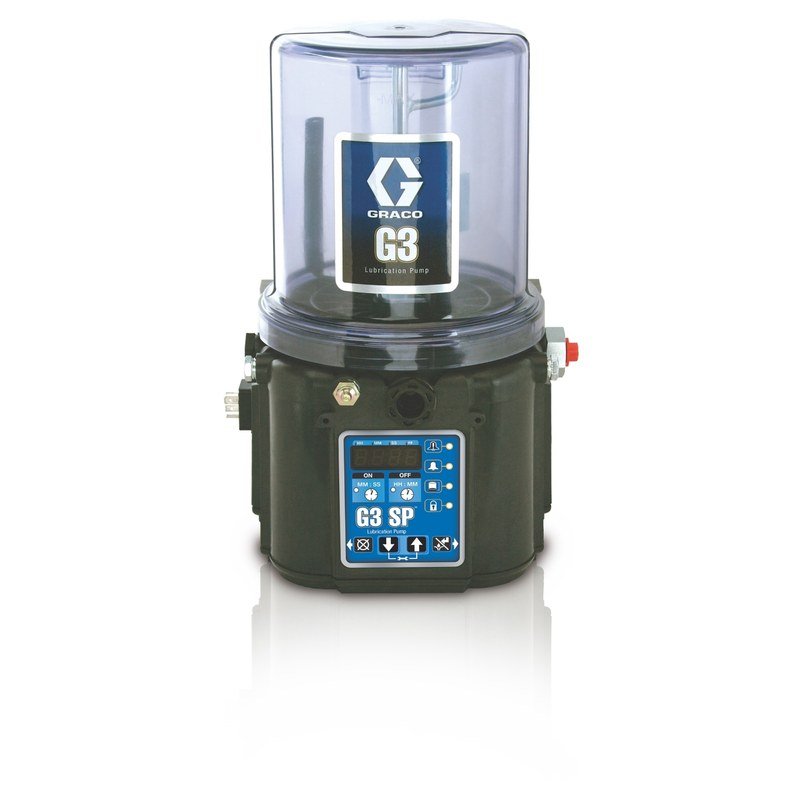

GRACO G3 SP PUMP,G3-G-24SP-8L0L09-10C00000 96G225
Tax excluded. Shipping calculated at checkout
GST (10%) is calculated at checkout. Tax invoices provided with all orders.
Contact for live availability
Our inventory signal hasn't refreshed today. We update twice daily but the latest reading is stale.
Email sales@goind.com.au or call 07 3204 2240 for live availability.
Ships from Brisbane warehouse. Standard delivery 2-5 business days Australia-wide.
AIR-DRIVEN DIAPHRAGM PUMP FOR DIESEL AND OILS AT A WORKHORSE PRICE
Air-operated double diaphragm pump rated for diesel, oils, and light chemicals. 8.3 kg dry weight makes it easy to shift between jobs or mount on service carts.
Safe around fuel
Air operation means no electrical spark risk when you're pumping diesel, petrol, or solvents. The G3 SP suits workshops, service trucks, and remote sites where compressed air is easier to manage than 240V supply.
Portable and field-serviceable
At 8.3 kg you can lift it one-handed and bolt it onto a mobile cart or shift it between tanks. Diaphragm and valve kits are stocked in Australia, so downtime is measured in minutes, not days waiting for parts.
Features & Benefits
Key Features
- Air-operated double diaphragm pump
- Weight 8.3 kg dry
- Self-priming design
- Diesel, oil, and light chemical compatible
- Can run dry without damage
- Field-serviceable diaphragms and valves
- Graco quality construction
Benefits
- No spark hazard around flammable fluids
- Light enough to move between service bays
- Self-primes, no manual priming routine
- Diaphragm and valve kits available locally
- Runs dry without seizing or scoring
| Alarm Relay Resistive Maximum Switching Capacity | 50 VA;60 W |
| Alarm Relay Inductive Maximum Switching Capacity | 25 VA;30 W |
| Max Working Pressure | 351.6 |
| Vent Valve Output Voltage (VDC) | 24 |
| Pump Output with 1 Spacer (cu in/min) | 0.18 |
| Pump Output with 2 Spacers (cu in/min) | 0.12 |
| Pump Output with 0 Spacers (cu in/min) | 0.25 |
| Max NLGI Grade | 2 |
| Input Load Current (mA @ 24 VDC) | 22 |
| Input Maximum Off Current (mA) | 1.5 |
| Alarm Relay Resistive Maximum Operating Current (A) | 3 |
| Alarm Relay Inductive Maximum Operating Voltage (VDC) | 220 |
| Alarm Relay Inductive Maximum Operating Current (A) | 1.5 |
| Input Maximum Residual Voltage (V) | 4 |
| Input Sensor Voltage (VDC) | 24 |
| Low Level Carry Current (A) | 1.2 |
| Low Level Switching Current (A) | 0.5 |
| Vent Valve Maximum Operating Current (A) | 2 |
| Voltage (V dc) | 24 |
| Fluid Outlet Size | 6.3500 |
| Fluid Outlet Thread | Female |
| Maximum Fill Inlet Pressure (kPa) | 34470 |
| Maximum Fill Inlet Pressure (psi) | 5000 |
| Maximum Fill Inlet Pressure (bar) | 344.7 |
| Height | 18.5 |
| Width | 9.25 |
| Includes | Low Level with Controller, Alarm |
| Alarm Relay Resistive Rated Load (A) | 2 |
| Alarm Relay Resistive Minimum Permissible Load | 10 µA;10m VDC |
| Alarm Relay Inductive Rated Load (A) | 1 |
| Low Level Switch Rating (VDC) | 200 |
| Alarm Relay Inductive Minimum Permissible Load | 10 µA;10m VDC |
| Input Impedance | 1.1 |
| Input Required Switch Type | Normally Open |
| Input Response Time (ms) | 60 |
| Low Level Contact Rating (W) | 10 |
| Maximum Run Time (min) | 30 |
| Overall Depth (in) | 10 |
| Overall Depth (mm) | 254 |
| Vent Valve Maximum Operating Power (W) | 48 |
| Number of Machine Count Sensor Inputs | 1 |
| Number of Pressure and Cycle Sensor Inputs | 3 |
| Number of Sensor Inputs | 1 |
Shipping & Dimensions
Ships from Brisbane warehouse. Standard delivery 2-5 business days.
Downloads
Compatible Products
Frequently Asked Questions
Can't find your answer?
Contact UsWhat is the Graco G3 SP pump?
An air-driven double diaphragm pump for diesel, oils, and light chemicals. Self-priming, runs dry safely, and weighs 8.3 kg so you can shift it between jobs or mount it on a cart.
Does it need electricity?
No. It runs on compressed air, so there's no electrical hazard around fuel or flammable liquids.
Can it run dry?
Yes. The diaphragm design handles dry running without damage, unlike vane or gear pumps that can seize.
Are service parts available in Australia?
Yes. Diaphragm and valve rebuild kits are stocked locally. For parts or technical support, contact sales@goind.com.au or 07 3204 2240.
