Graco|96G150

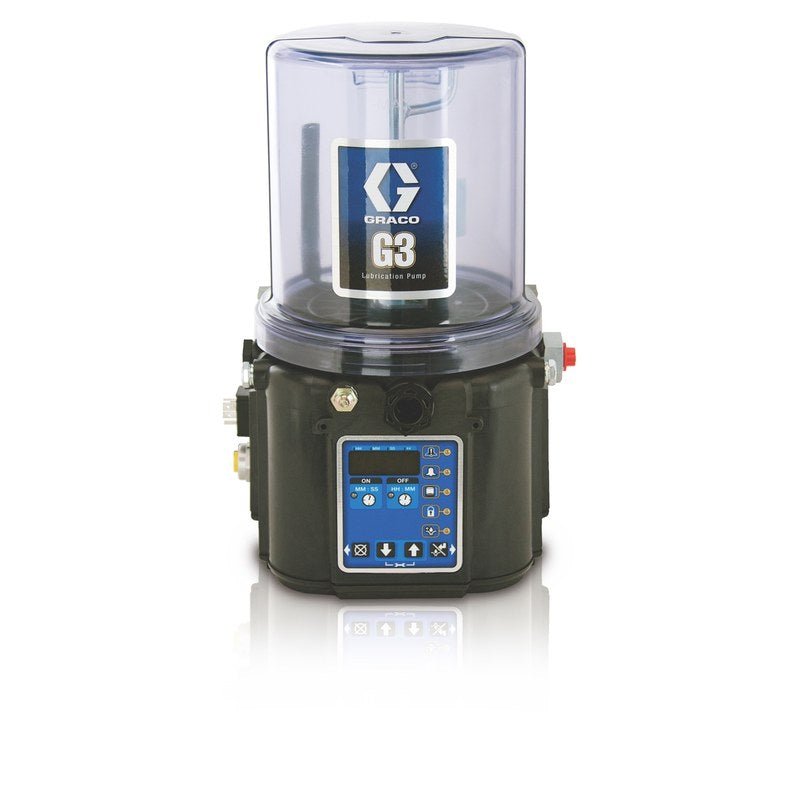

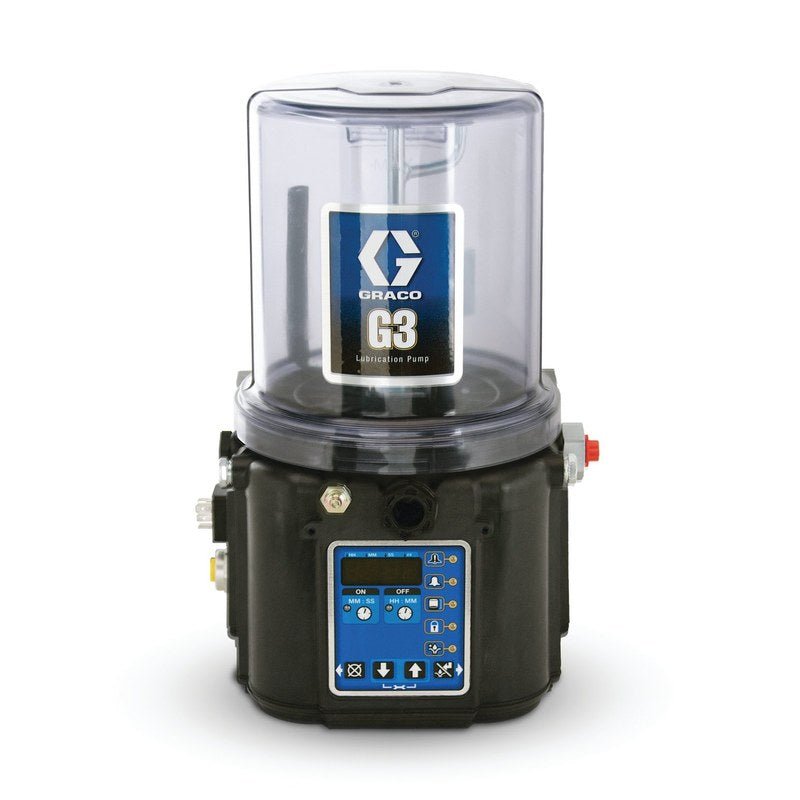

GRACO G3 PRO PUMP,G-24PR-8L0L05-00C00000 96G150
Tax excluded. Shipping calculated at checkout
GST (10%) is calculated at checkout. Tax invoices provided with all orders.
Contact for live availability
Our inventory signal hasn't refreshed today. We update twice daily but the latest reading is stale.
Email sales@goind.com.au or call 07 3204 2240 for live availability.
Ships from Brisbane warehouse. Standard delivery 2-5 business days Australia-wide.
24:1 AIR-OPERATED GREASE DELIVERY WITHOUT THE PREMIUM PRICE TAG
Graco G3 Pro 24:1 ratio air-operated pump for grease and oil delivery. Reliable mid-spec unit for workshop lubrication, bulk grease dispensing, and routine plant maintenance.
Air-powered, spark-free
Compressed air drives the pump, so there's no electrical ignition risk in dusty workshops or wet plant areas. It sits on your existing airline without needing dedicated wiring or switchgear. The 24:1 ratio delivers consistent pressure for medium greases without over-stressing hoses or couplers. Light enough at 8.85 kg to bolt onto a mobile cart or mount drum-side for bucket feeds.
Field-serviceable when it counts
Seal kits and wearing parts are stocked locally. When a packing wears or a valve clogs, you swap the part yourself without shipping the whole unit back. That keeps the bay running instead of waiting on a warranty claim. The G3 Pro handles daily grease-point servicing and routine oil transfers without pretending to be an automated bulk dispenser.
Features & Benefits
Key Features
- Air-operated design for hazardous areas
- 24:1 ratio for medium-viscosity greases
- Weight 8.85 kg
- Compact footprint for mobile or fixed mounting
- Field-serviceable components
- Handles bucket or drum-top feeds
Benefits
- No spark risk in wet or dusty bays
- Handles daily grease-point servicing without fuss
- Light enough to shift between bays or carts
- Parts available locally when seals wear
- Fits existing air lines, no new infrastructure
| Alarm Relay Resistive Maximum Switching Capacity | 50 VA;60 W |
| Alarm Relay Inductive Maximum Switching Capacity | 25 VA;30 W |
| Max Working Pressure | 351.6 |
| Vent Valve Output Voltage (VDC) | 24 |
| Pump Output with 1 Spacer (cu in/min) | 0.18 |
| Pump Output with 2 Spacers (cu in/min) | 0.12 |
| Pump Output with 0 Spacers (cu in/min) | 0.25 |
| Max NLGI Grade | 2 |
| Input Load Current (mA @ 24 VDC) | 22 |
| Input Maximum Off Current (mA) | 1.5 |
| Alarm Relay Resistive Maximum Operating Current (A) | 3 |
| Alarm Relay Inductive Maximum Operating Voltage (VDC) | 220 |
| Alarm Relay Inductive Maximum Operating Current (A) | 1.5 |
| Input Maximum Residual Voltage (V) | 4 |
| Input Sensor Voltage (VDC) | 24 |
| Low Level Carry Current (A) | 1.2 |
| Low Level Switching Current (A) | 0.5 |
| Vent Valve Maximum Operating Current (A) | 2 |
| Voltage (V dc) | 24 |
| Fluid Outlet Size | 6.3500 |
| Fluid Outlet Thread | Female |
| Maximum Fill Inlet Pressure (kPa) | 34470 |
| Maximum Fill Inlet Pressure (psi) | 5000 |
| Maximum Fill Inlet Pressure (bar) | 344.7 |
| Height | 18.5 |
| Width | 9.25 |
| Includes | Wiper Arm, Low Level |
| Alarm Relay Resistive Rated Load (A) | 2 |
| Alarm Relay Resistive Minimum Permissible Load | 10 µA;10m VDC |
| Alarm Relay Inductive Rated Load (A) | 1 |
| Low Level Switch Rating (VDC) | 200 |
| Alarm Relay Inductive Minimum Permissible Load | 10 ?A;10m VDC |
| Input Impedance | 1.1 |
| Input Required Switch Type | Normally Open |
| Input Response Time (ms) | 60 |
| Low Level Contact Rating (W) | 10 |
| Maximum Run Time (min) | 30 |
| Overall Depth (in) | 10 |
| Overall Depth (mm) | 254 |
| Vent Valve Maximum Operating Power (W) | 48 |
| Number of Machine Count Sensor Inputs | 1 |
| Number of Pressure and Cycle Sensor Inputs | 3 |
Shipping & Dimensions
Ships from Brisbane warehouse. Standard delivery 2-5 business days.
Downloads
Compatible Products
Frequently Asked Questions
Can't find your answer?
Contact UsWhat is the Graco G3 Pro pump?
A 24:1 ratio air-operated pump for grease and oil transfer in workshops and plant maintenance. It runs off compressed air, avoiding electrical hazards in dusty or wet environments.
What ratio does this pump use?
24:1 ratio. This suits medium-viscosity greases commonly used in fleet and plant maintenance without over-pressuring lines or fittings.
Can I run this off my existing air compressor?
Yes, if your compressor delivers sufficient CFM at the required PSI. Check your air supply specs against the pump's air consumption requirements before connecting.
Is this suitable for high-volume automated dispensing?
Not really. This is a workhorse unit for routine lube servicing and bucket-fed grease transfer. For automated high-volume systems, you need a larger ratio pump with integrated controls.
What warranty and support do I get?
12-month warranty on manufacturing defects. Wear items like seals are consumables. For service support or parts availability, contact sales@goind.com.au or 07 3204 2240.
