Graco|96G069

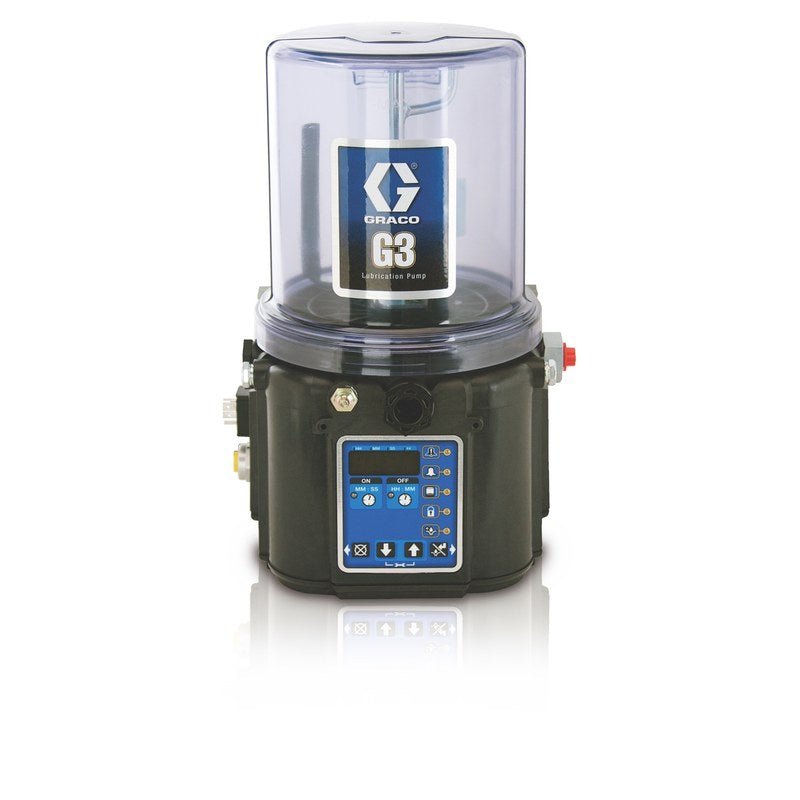

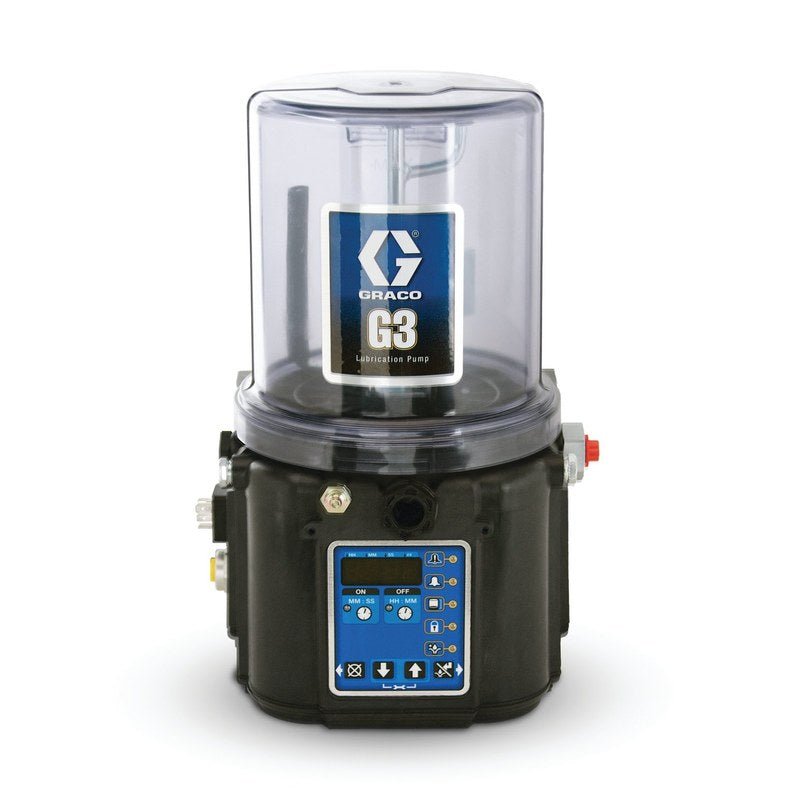

GRACO G3 PRO PUMP,G-24PR-8L0L00-R0C00000 96G069
Tax excluded. Shipping calculated at checkout
GST (10%) is calculated at checkout. Tax invoices provided with all orders.
Contact for live availability
Our inventory signal hasn't refreshed today. We update twice daily but the latest reading is stale.
Email sales@goind.com.au or call 07 3204 2240 for live availability.
Ships from Brisbane warehouse. Standard delivery 2-5 business days Australia-wide.
GRACO G3 PRO AIR-OPERATED DIAPHRAGM PUMP FOR FUEL AND FLUID TRANSFER
Graco G3 Pro 3:1 ratio air-operated diaphragm pump for diesel, oils, and light chemicals. Handles up to 68 L/min with continuous duty reliability.
Air-powered workhorse
The G3 Pro runs on compressed air, not mains power. That means no spark risk around fuel, no RCD trips in wet conditions, and no need to drag extension leads across the workshop. Hook it up to your air line and it runs all day. Transfers diesel, hydraulic oil, coolants, and light chemicals without complaint.
Light and capable
At 8.4 kg, one person can move this pump between bays, load it on a service ute, or shift it to a remote tank. Flows up to 68 L/min, fast enough for most workshop and field jobs. 3/4 inch ports fit standard hose fittings, no hunting for adapters.
Features & Benefits
Key Features
- 3:1 ratio air-operated diaphragm pump
- Flow rate up to 68 L/min
- Continuous duty cycle
- Weight 8.4 kg
- Anodised aluminium body
- Chemical-resistant diaphragm
- 3/4 inch inlet and outlet ports
- Handles diesel, oils, and coolants
Benefits
- No electric power required, runs on compressed air
- Moves fluid fast without overheating
- Light enough to shift between bays or vehicles
- Pumps a range of fluids without changeovers
- Keeps running shift after shift
| Alarm Relay Resistive Maximum Switching Capacity | 50 VA;60 W |
| Alarm Relay Inductive Maximum Switching Capacity | 25 VA;30 W |
| Max Working Pressure | 351.6 |
| Vent Valve Output Voltage (VDC) | 24 |
| Pump Output with 2 Spacers (cu in/min) | 0.12 |
| Pump Output with 0 Spacers (cu in/min) | 0.25 |
| Max NLGI Grade | 2 |
| Input Load Current (mA @ 24 VDC) | 22 |
| Input Maximum Off Current (mA) | 1.5 |
| Alarm Relay Resistive Maximum Operating Current (A) | 3 |
| Alarm Relay Inductive Maximum Operating Voltage (VDC) | 220 |
| Alarm Relay Inductive Maximum Operating Current (A) | 1.5 |
| Input Maximum Residual Voltage (V) | 4 |
| Input Sensor Voltage (VDC) | 24 |
| Low Level Carry Current (A) | 1.2 |
| Low Level Switching Current (A) | 0.5 |
| Vent Valve Maximum Operating Current (A) | 2 |
| Voltage (V dc) | 24 |
| Fluid Outlet Size | 6.3500 |
| Fluid Outlet Thread | Female |
| Maximum Fill Inlet Pressure (kPa) | 34470 |
| Maximum Fill Inlet Pressure (psi) | 5000 |
| Maximum Fill Inlet Pressure (bar) | 344.7 |
| Height | 18.5 |
| Width | 9.25 |
| Includes | M12 Connection for Remote, Wiper Arm, Low Level |
| Alarm Relay Resistive Rated Load (A) | 2 |
| Alarm Relay Resistive Minimum Permissible Load | 10 µA;10m VDC |
| Alarm Relay Inductive Rated Load (A) | 1 |
| Low Level Switch Rating (VDC) | 200 |
| Alarm Relay Inductive Minimum Permissible Load | 10 µA;10m VDC |
| Input Impedance | 1.1 |
| Input Required Switch Type | Normally Open |
| Input Response Time (ms) | 60 |
| Low Level Contact Rating (W) | 10 |
| Maximum Run Time (min) | 30 |
| Overall Depth (in) | 10 |
| Overall Depth (mm) | 254 |
| Vent Valve Maximum Operating Power (W) | 48 |
| Number of Machine Count Sensor Inputs | 1 |
| Number of Pressure and Cycle Sensor Inputs | 3 |
Shipping & Dimensions
Ships from Brisbane warehouse. Standard delivery 2-5 business days.
Downloads
Compatible Products
Frequently Asked Questions
Can't find your answer?
Contact UsWhat is the Graco G3 Pro pump?
A 3:1 ratio air-operated diaphragm pump that transfers diesel, oils, and light chemicals at up to 68 L/min. Runs on compressed air, suitable for workshops and service vehicles.
What fluids can it handle?
Diesel, hydraulic oils, lubricants, coolants, and light chemicals. Not suitable for highly corrosive acids or solvents without checking compatibility.
What air pressure does it need?
Operates on standard workshop compressed air. Exact inlet pressure and consumption specs available on request from sales@goind.com.au.
How does it compare to electric pumps?
No spark risk, no electric supply needed. Good for hazardous area work and mobile setups. Slower than high-flow electric units but more versatile in fluid types.
What is the warranty and support?
12-month warranty on defects. Diaphragms and seals are consumables. For service parts or technical support, contact sales@goind.com.au or 07 3204 2240.
