Graco|96G149

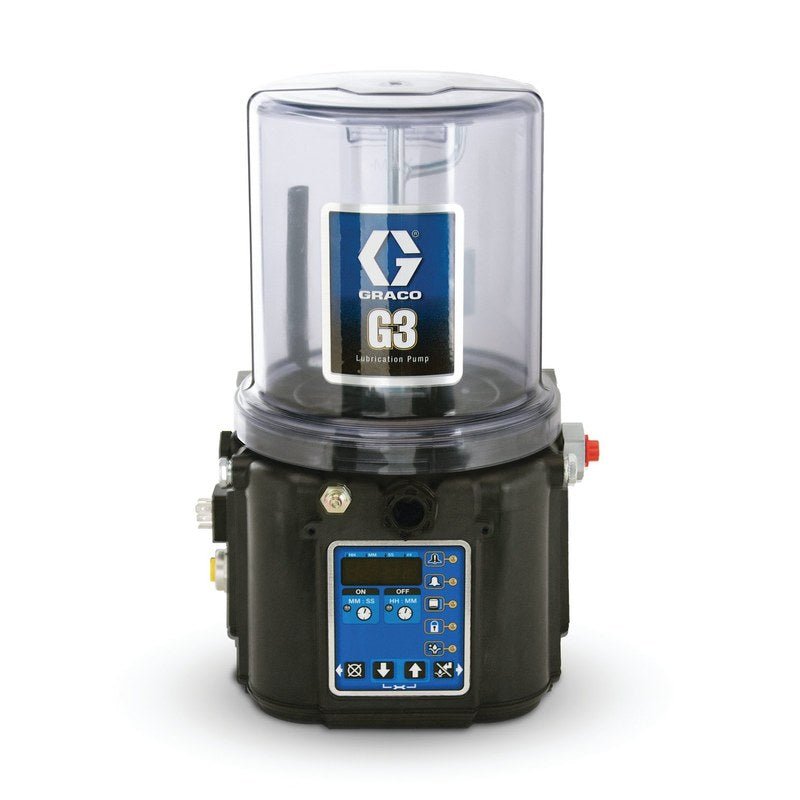

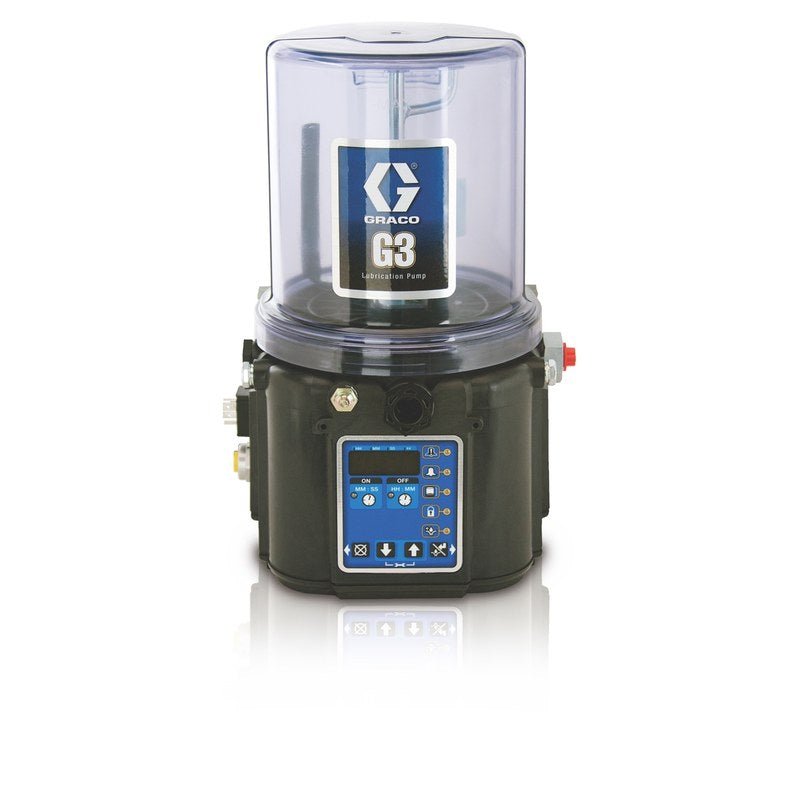

GRACO G3 PRO PUMP,G-24PR-4L0L05-00C00000 96G149
Tax excluded. Shipping calculated at checkout
GST (10%) is calculated at checkout. Tax invoices provided with all orders.
Contact for live availability
Our inventory signal hasn't refreshed today. We update twice daily but the latest reading is stale.
Email sales@goind.com.au or call 07 3204 2240 for live availability.
Ships from Brisbane warehouse. Standard delivery 2-5 business days Australia-wide.
AIR-DRIVEN FLUID TRANSFER WITHOUT THE WORKHORSE PRICE PREMIUM
Graco G3 Pro air-operated diaphragm pump for diesel, oils, and lubricants. Compact 7.7 kg unit for workshop and field service applications.
Light, portable, air-driven
At 7.7 kg, the G3 Pro moves with you. No electrical cord, no battery to charge. Hook it to your shop compressor or onboard air and transfer diesel, oils, or lubricants where the job is. It's the kind of kit that lives in the service van and earns its keep daily.
Who this suits
Mobile mechanics, workshop staff, agricultural service crews. Anyone who needs reliable fluid transfer without hauling a 240V pump or hand-cranking drums. It's not the fastest pump Graco makes and it's not trying to be. It's a solid mid-tier workhorse that does the job at a fair price, backed by Graco's parts network.
Features & Benefits
Key Features
- Air-operated diaphragm pump
- Weight 7.7 kg
- Handles diesel, oils, and lubricants
- Compact design for portability
- Workshop and field service applications
- Graco-backed reliability
Benefits
- Light enough to carry between service bays
- No electrical hookup needed, runs on shop air
- Handles thick oils and light fuels alike
- Graco parts network keeps you running
| Alarm Relay Resistive Maximum Switching Capacity | 50 VA;60 W |
| Alarm Relay Inductive Maximum Switching Capacity | 25 VA;30 W |
| Max Working Pressure | 351.6 |
| Vent Valve Output Voltage (VDC) | 24 |
| Pump Output with 1 Spacer (cu in/min) | 0.18 |
| Pump Output with 2 Spacers (cu in/min) | 0.12 |
| Pump Output with 0 Spacers (cu in/min) | 0.25 |
| Max NLGI Grade | 2 |
| Input Load Current (mA @ 24 VDC) | 22 |
| Input Maximum Off Current (mA) | 1.5 |
| Alarm Relay Resistive Maximum Operating Current (A) | 3 |
| Alarm Relay Inductive Maximum Operating Voltage (VDC) | 220 |
| Alarm Relay Inductive Maximum Operating Current (A) | 1.5 |
| Input Maximum Residual Voltage (V) | 4 |
| Input Sensor Voltage (VDC) | 24 |
| Low Level Carry Current (A) | 1.2 |
| Low Level Switching Current (A) | 0.5 |
| Vent Valve Maximum Operating Current (A) | 2 |
| Voltage (V dc) | 24 |
| Fluid Outlet Size | 6.3500 |
| Fluid Outlet Thread | Female |
| Maximum Fill Inlet Pressure (kPa) | 34470 |
| Maximum Fill Inlet Pressure (psi) | 5000 |
| Maximum Fill Inlet Pressure (bar) | 344.7 |
| Height | 14.5 |
| Width | 9.25 |
| Includes | Wiper Arm, Low Level |
| Alarm Relay Resistive Rated Load (A) | 2 |
| Alarm Relay Inductive Rated Load (A) | 1 |
| Low Level Switch Rating (VDC) | 200 |
| Alarm Relay Inductive Minimum Permissible Load | 10 ?A;10m VDC |
| Input Impedance | 1.1 |
| Input Required Switch Type | Normally Open |
| Input Response Time (ms) | 60 |
| Low Level Contact Rating (W) | 10 |
| Maximum Run Time (min) | 30 |
| Overall Depth (in) | 10 |
| Overall Depth (mm) | 254 |
| Vent Valve Maximum Operating Power (W) | 48 |
| Number of Machine Count Sensor Inputs | 1 |
| Number of Pressure and Cycle Sensor Inputs | 3 |
Shipping & Dimensions
Ships from Brisbane warehouse. Standard delivery 2-5 business days.
Downloads
Compatible Products
Frequently Asked Questions
Can't find your answer?
Contact UsWhat is the Graco G3 Pro pump?
An air-operated diaphragm pump for transferring diesel, oils, and lubricants. Weighs 7.7 kg and suits workshop or mobile service work where you need portability and reliable fluid handling.
What fluids can it handle?
Diesel, engine oils, hydraulic oils, and similar lubricants. Check fluid compatibility with your specific application before use.
Does it need electrical power?
No. It runs on compressed air, so you need a shop compressor or portable air source. No 240V required.
What warranty and support apply?
12-month warranty on defects. Diaphragms and seals are wear items. For technical support or parts, contact sales@goind.com.au or 07 3204 2240.
