Graco|96G068

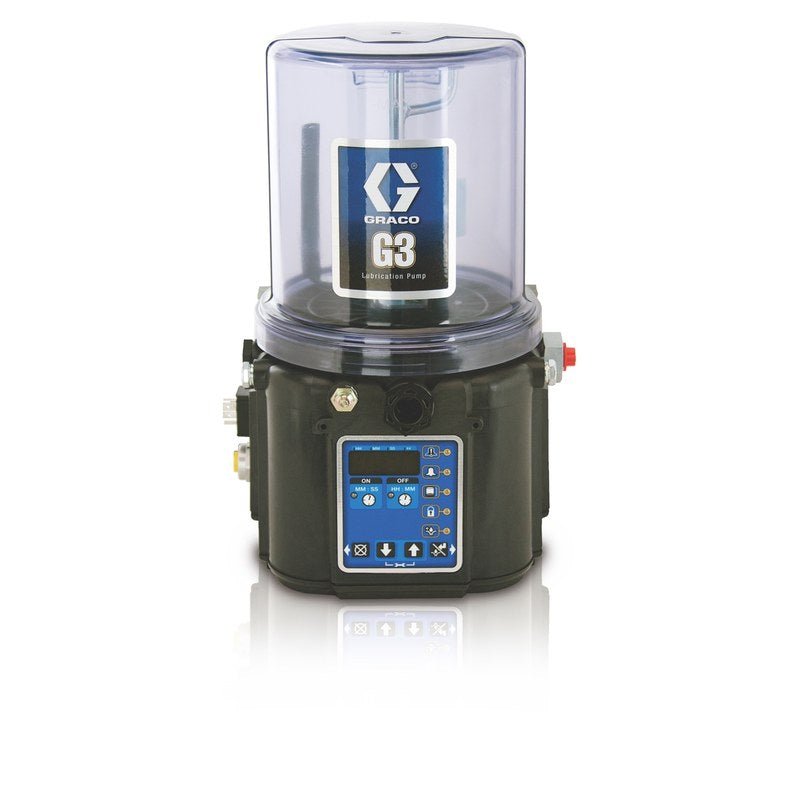

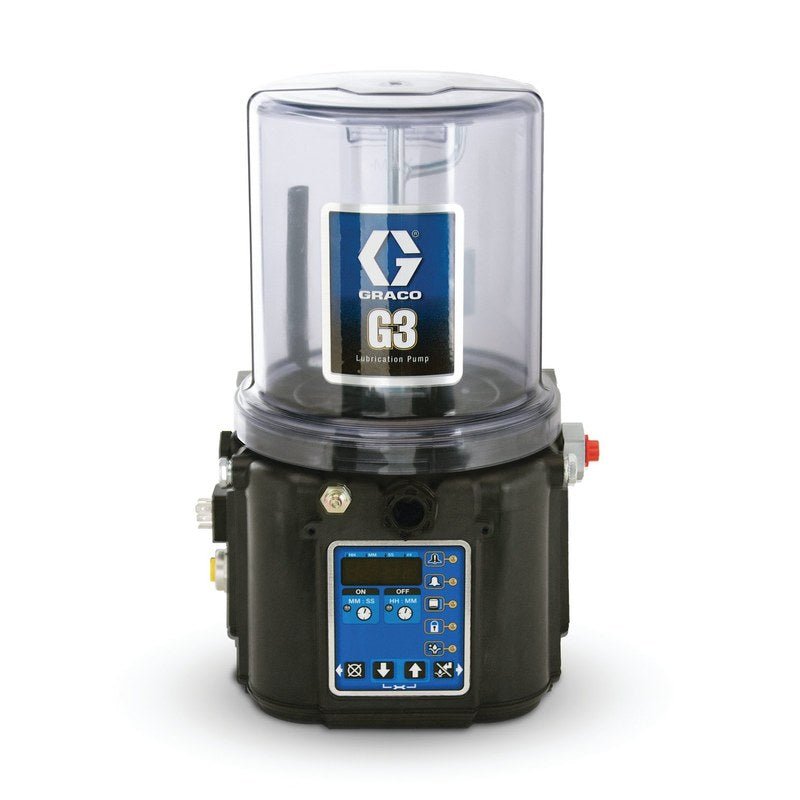

GRACO G3 PRO PUMP,G-24PR-4L0L00-R0C00000 96G068
Tax excluded. Shipping calculated at checkout
GST (10%) is calculated at checkout. Tax invoices provided with all orders.
Contact for live availability
Our inventory signal hasn't refreshed today. We update twice daily but the latest reading is stale.
Email sales@goind.com.au or call 07 3204 2240 for live availability.
Ships from Brisbane warehouse. Standard delivery 2-5 business days Australia-wide.
GRACO G3 PRO AIR-DRIVEN WORKHORSE FOR DIESEL AND LUBES
Graco G3 Pro pneumatic pump for diesel and lubricants, 3:1 ratio, field-proven design for workshop and mobile fuelling.
No power, no problem
The G3 Pro runs on shop air. No electrical hookup, no sparks, no extension leads trailing across the workshop floor. Mount it on a drum, hook up your air line, and pump. Suits sites where compressed air is easier to get to than 240V, or where you need intrinsically safe operation around diesel and oils.
Field service ready
At 7.7 kg, the G3 Pro is light enough for a mobile rig or drum mount. The lower assembly is replaceable in the field without pulling the whole pump, so you can swap wear parts between jobs. Graco parts stock locally, so downtime stays short.
Features & Benefits
Key Features
- 3:1 pneumatic ratio
- Air-operated, no electrical connection
- Weighs 7.7 kg
- Suits diesel, oil, light grease
- Field-serviceable lower assembly
- Intermittent to moderate duty cycle
Benefits
- No sparks, safe for flammable fluid zones
- Runs anywhere you have shop air
- Light enough to mount on drum or bulk tank
- Swap parts in the field without a full pump pull
- Proven Graco design, parts stocked locally
| Alarm Relay Resistive Maximum Switching Capacity | 50 VA;60 W |
| Alarm Relay Inductive Maximum Switching Capacity | 25 VA;30 W |
| Max Working Pressure | 351.6 |
| Vent Valve Output Voltage (VDC) | 24 |
| Pump Output with 1 Spacer (cu in/min) | 0.18 |
| Pump Output with 2 Spacers (cu in/min) | 0.12 |
| Pump Output with 0 Spacers (cu in/min) | 0.25 |
| Max NLGI Grade | 2 |
| Input Load Current (mA @ 24 VDC) | 22 |
| Input Maximum Off Current (mA) | 1.5 |
| Alarm Relay Resistive Maximum Operating Current (A) | 3 |
| Alarm Relay Inductive Maximum Operating Voltage (VDC) | 220 |
| Alarm Relay Inductive Maximum Operating Current (A) | 1.5 |
| Input Maximum Residual Voltage (V) | 4 |
| Input Sensor Voltage (VDC) | 24 |
| Low Level Carry Current (A) | 1.2 |
| Low Level Switching Current (A) | 0.5 |
| Vent Valve Maximum Operating Current (A) | 2 |
| Voltage (V dc) | 24 |
| Fluid Outlet Size | 6.3500 |
| Fluid Outlet Thread | Female |
| Maximum Fill Inlet Pressure (kPa) | 34470 |
| Maximum Fill Inlet Pressure (psi) | 5000 |
| Maximum Fill Inlet Pressure (bar) | 344.7 |
| Height | 14.5 |
| Width | 9.25 |
| Includes | M12 Connection for Remote, Wiper Arm, Low Level |
| Alarm Relay Resistive Rated Load (A) | 2 |
| Alarm Relay Resistive Minimum Permissible Load | 10 µA;10m VDC |
| Alarm Relay Inductive Rated Load (A) | 1 |
| Low Level Switch Rating (VDC) | 200 |
| Alarm Relay Inductive Minimum Permissible Load | 10 ?A;10m VDC |
| Input Impedance | 1.1 |
| Input Required Switch Type | Normally Open |
| Input Response Time (ms) | 60 |
| Low Level Contact Rating (W) | 10 |
| Maximum Run Time (min) | 30 |
| Overall Depth (in) | 10 |
| Overall Depth (mm) | 254 |
| Vent Valve Maximum Operating Power (W) | 48 |
| Number of Machine Count Sensor Inputs | 1 |
| Number of Pressure and Cycle Sensor Inputs | 3 |
Shipping & Dimensions
Ships from Brisbane warehouse. Standard delivery 2-5 business days.
Downloads
Compatible Products
Frequently Asked Questions
Can't find your answer?
Contact UsWhat is the Graco G3 Pro pump?
A 3:1 air-operated pump for diesel, oil, and light grease. Runs on compressed air, no electrical hookup. Suits workshop and mobile service rigs.
What air pressure does it need?
Graco recommends 5-7 bar shop air for most fluids. Check your specific viscosity and delivery pressure to confirm.
Can I use it for heavy grease?
This model suits light grease and lubricants. For heavier grease or higher output, a higher-ratio pump is needed.
Is it safe for diesel in fire-rated zones?
Yes. Air-driven pumps produce no sparks, making them suitable for flammable fluid areas where electric pumps are not permitted.
What warranty and support is included?
12-month warranty on manufacturing defects. Wear parts are consumables. For technical support or parts, contact sales@goind.com.au or 07 3204 2240.
