Graco|24G745
GRACO DIAPHRAGM PUMP,515P-PP01AP4PPFKPTPT-FK 24G745
Tax excluded. Shipping calculated at checkout
GST (10%) is calculated at checkout. Tax invoices provided with all orders.
Contact for live availability
Our inventory signal hasn't refreshed today. We update twice daily but the latest reading is stale.
Email sales@goind.com.au or call 07 3204 2240 for live availability.
Ships from Brisbane warehouse. Standard delivery 2-5 business days Australia-wide.
CHEMICAL-SAFE DIAPHRAGM PUMP WITHOUT THE STAINLESS STEEL PRICE

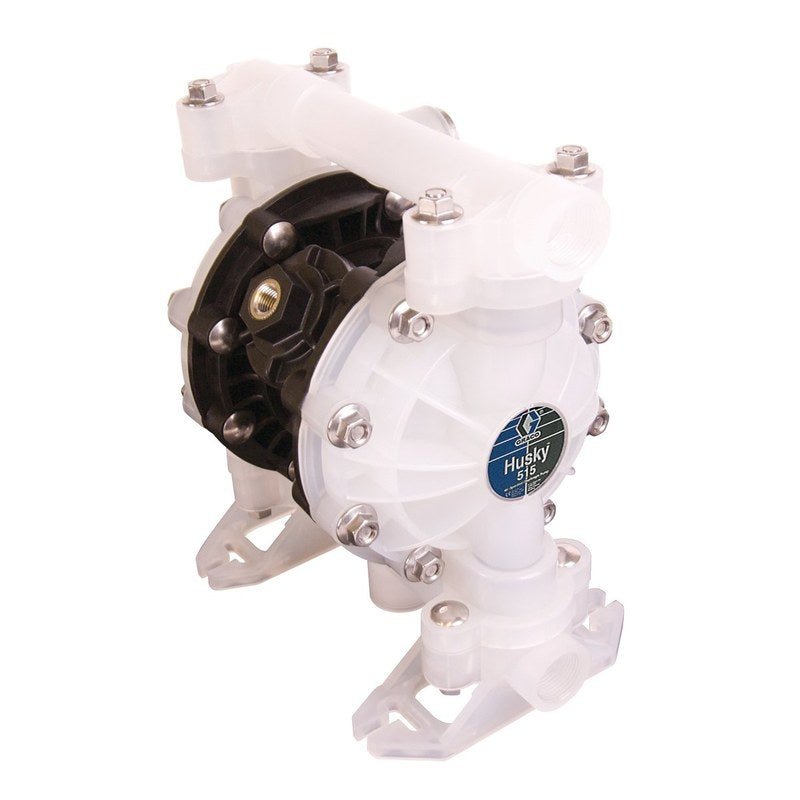

Graco 515P air-operated diaphragm pump in polypropylene construction. Lightweight at 3.86 kg, suited for chemical transfer and fluid handling where corrosion resistance matters.
Polypropylene where it counts
Wetted parts are polypropylene, so the pump stands up to many corrosive chemicals without the cost of stainless or exotic alloys. Suits acid handling, alkaline fluids, and plenty of solvents. At 3.86 kg you can carry it to the job one-handed, mount it on a cart, or throw it in the ute without a second thought.
Air-powered, no sparks
Runs on compressed air, so there's no motor to spark in hazardous areas and no 240V supply to find. Hook up your air line, prime the pump, and you're moving fluid. Self-priming means it'll pull from a drum or tank without a pre-fill, and it'll run dry without damage if the source runs out.
Features & Benefits
Key Features
- Air-operated double diaphragm pump
- Polypropylene wetted parts
- Weight 3.86 kg
- No electrical supply required
- Chemical-resistant construction
- Portable, one-person lift
Benefits
- Handles corrosive fluids without rusting or degrading
- Move between jobs without a forklift
- Runs anywhere you have compressed air
- Lower upfront cost than stainless steel alternatives
| Maximum Air Consumption (SCFM) | 28 |
| Maximum Flow Rate (L/min) | 56.8 |
| Air Inlet Size | 1/4 |
| Fluid Outlet Thread | Female |
| Fluid Outlet Size | 19.05 |
| Air Exhaust Port Size (in) | 3/8 |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Size (mm) | 19.05 |
| Fluid Inlet Size (in) | 3/4 |
| Maximum Solid Size (cm) | 0.2383 |
| Maximum Solid Size (in) | 0.09375 |
| Maximum Solid Size (mm) | 2.4 |
| Air Inlet Thread Gender | Female |
| Air Exhaust Port Thread Gender | Female |

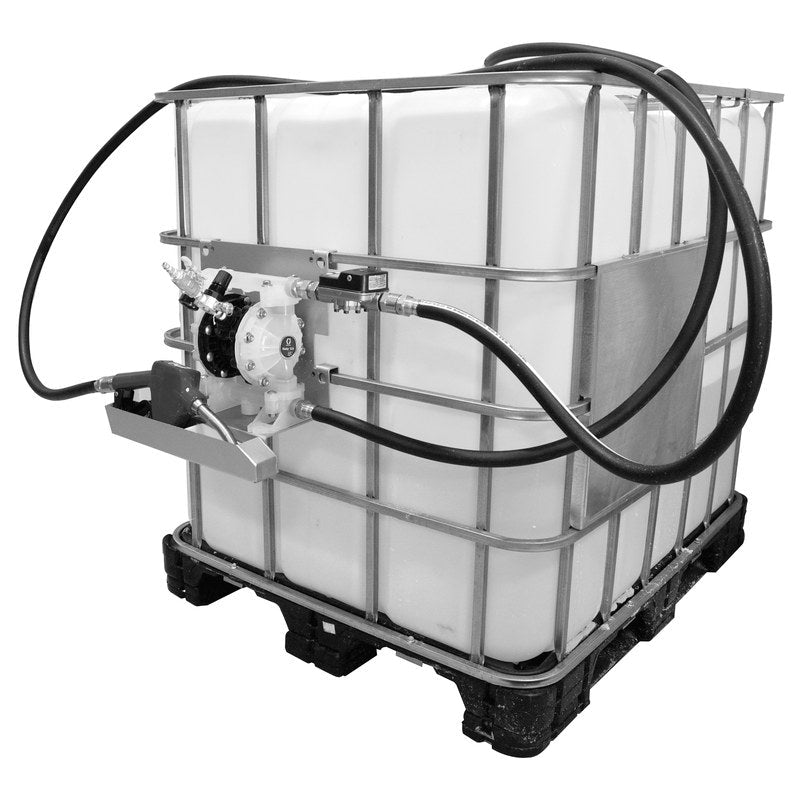

| For Use With | DEF |
| Maximum Air Pressure (bar) | 3.4 |
| Maximum Fluid Pressure (bar) | 3.4 |
| Minimum Operating Temperature (°C) | 4 |
| Minimum Operating Temperature (°F) | 40 |
| Maximum Air Pressure (psi) | 50 |
| Maximum Cycle Rate (CPM) | 400 |
| Maximum Fluid Pressure (psi) | 50 |
Shipping & Dimensions
Ships from Brisbane warehouse. Standard delivery 2-5 business days.
Downloads
Compatible Products
Frequently Asked Questions
Can't find your answer?
Contact UsWhat is the Graco 515P diaphragm pump?
An air-operated double diaphragm pump with polypropylene wetted parts. Weighs 3.86 kg and runs on compressed air, no electricity needed.
What fluids can it handle?
Polypropylene construction resists many acids, alkalis, and solvents. Check your chemical compatibility chart or contact us for specific fluids.
What air pressure does it need?
Typical AODD pumps run on 3 to 7 bar shop air. Confirm your compressor can supply the volume needed for your flow rate.
How do I get spares and what's the warranty?
12-month warranty covers manufacturing defects. Diaphragms and valve seats are consumables. For spares or technical support, contact sales@goind.com.au or 07 3204 2240.
