Graco|24Z487
GRACO CSP VALVE,8 OUTLET,NPT,PKG 24Z487
Tax excluded. Shipping calculated at checkout
GST (10%) is calculated at checkout. Tax invoices provided with all orders.
Contact for live availability
Our inventory signal hasn't refreshed today. We update twice daily but the latest reading is stale.
Email sales@goind.com.au or call 07 3204 2240 for live availability.
Ships from Brisbane warehouse. Standard delivery 2-5 business days Australia-wide.
EIGHT LUBE POINTS FROM ONE FEED AT WORKHORSE PRICE

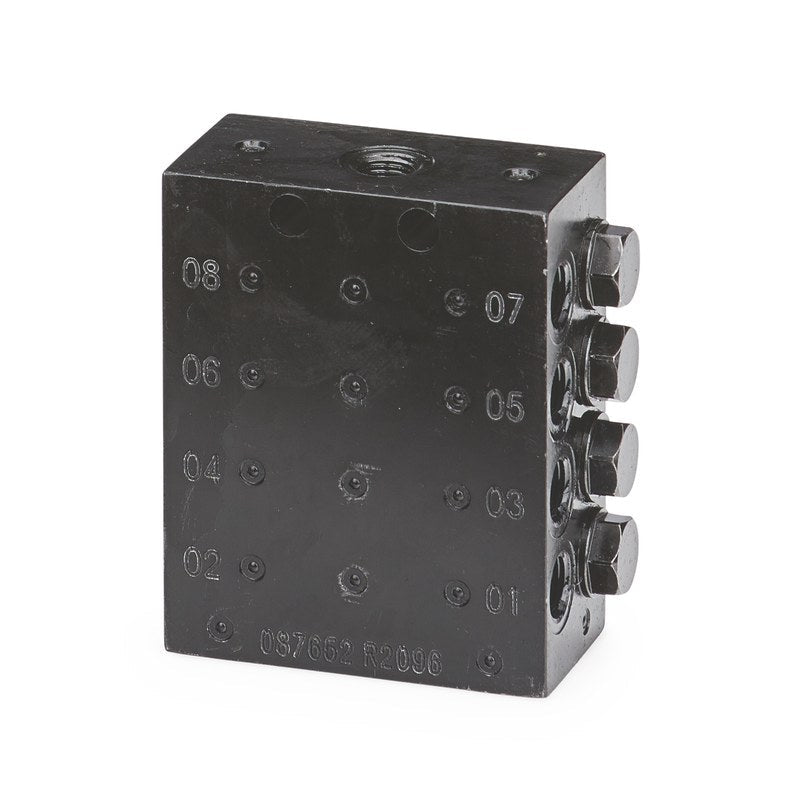

Graco 8-outlet CSP valve package for multi-point lubrication systems. NPT threaded connections, compact manifold design for workshop and mobile plant applications.
Progressive distribution
The CSP valve cycles through all eight outlets in sequence, dispensing grease or oil to each point before resetting. If one line blocks, the cycle stops until you clear it - which prevents over-greasing the open lines and alerts you to a problem. Practical for machinery where uneven distribution causes bearing failures.
NPT threaded package
NPT threads are standard on most American-made plant and imported machinery. If your gear already has NPT grease nipples or lube fittings, this valve bolts straight in without adapters. Compact manifold body mounts close to the equipment, keeping feed lines short and pressure loss minimal.
Features & Benefits
Key Features
- 8 outlets for multi-point distribution
- CSP progressive valve design
- NPT threaded connections
- Handles grease NLGI 0-2 and light oils
- Compact manifold construction
- Field serviceable if blockage occurs
Benefits
- One feed line lubricates eight points, less plumbing to run
- Progressive cycle ensures each outlet gets its dose
- Fits NPT fittings already on most imported gear
- Cuts manual greasing time on multi-bearing machines
| Max Working Pressure | 5076 |
| Max NLGI Grade | 2 |
| Inlet Size | 3.175 |
| Outlet Thread | Female |
| Number of Outlets | 8 |
| Divider Valve Series | CSP |
| Minimum Working Pressure (bar) | 15 |
| Minimum Working Pressure (kPa) | 1500 |
| Minimum Working Pressure (psi) | 217.5 |
| Discharge Per Piston Stroke (in³) | N/A |
Shipping & Dimensions
Ships from Brisbane warehouse. Standard delivery 2-5 business days.
Downloads
Compatible Products
Frequently Asked Questions
Can't find your answer?
Contact UsWhat is the Graco 8-outlet CSP valve?
A distribution block that splits one grease or oil feed into eight separate lube lines, cycling through outlets progressively so each point gets lubricated in turn.
What does CSP mean?
CSP stands for progressive valve operation - each outlet dispenses in sequence before the cycle resets, ensuring even distribution across all eight points.
Will this work with metric BSP fittings?
No, this package uses NPT threads. If your system is BSP, you will need NPT-to-BSP adapters at each connection point.
Can I use this with heavy grease?
Suitable for NLGI 0-2 grease. Heavier greases may require higher pump pressure or a different valve design. Contact sales@goind.com.au or 07 3204 2240 to confirm suitability.
