Graco|24Z492

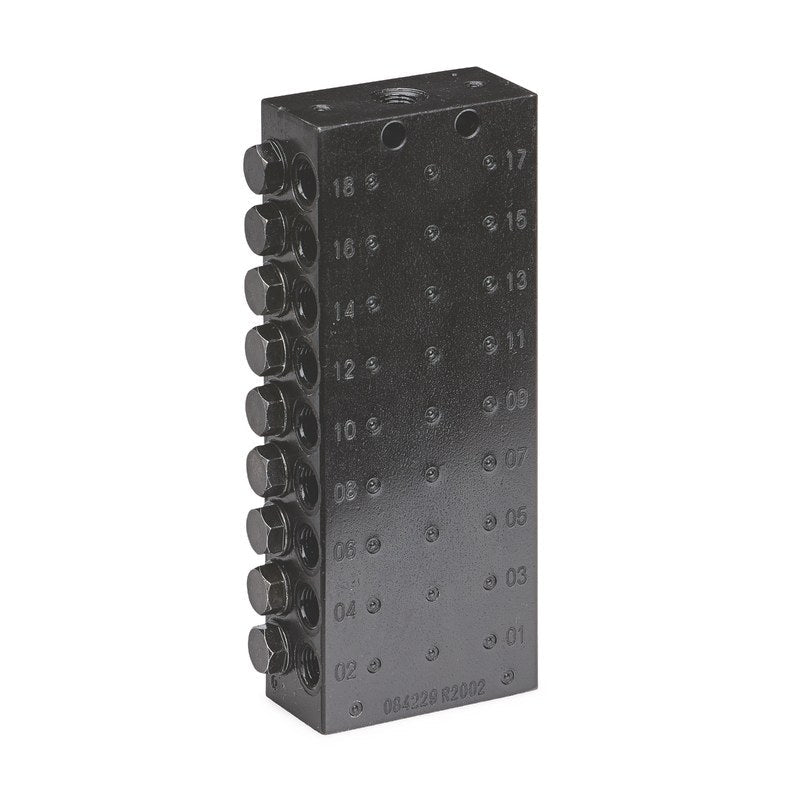

GRACO CSP VALVE,18 OUTLET,NPT,PKG 24Z492
Tax excluded. Shipping calculated at checkout
GST (10%) is calculated at checkout. Tax invoices provided with all orders.
Contact for live availability
Our inventory signal hasn't refreshed today. We update twice daily but the latest reading is stale.
Email sales@goind.com.au or call 07 3204 2240 for live availability.
Ships from Brisbane warehouse. Standard delivery 2-5 business days Australia-wide.
18-OUTLET GREASE VALVE FOR MULTI-POINT LUBE SYSTEMS
Graco CSP control valve assembly with 18 NPT outlets. Factory-packaged kit for multi-line grease distribution systems on plant, trucks, and earthmoving equipment.
One valve, eighteen lines
Centralised grease systems let you hit every bearing, pivot, and chassis point from the cabin or a timed controller. This Graco CSP valve gives you eighteen NPT outlets in a factory-packaged block. Plumb it once, route your lines, and you're done. Suits trucks, loaders, excavators, fixed crushers, anywhere you need automatic lube across multiple points.
NPT thread, not BSP
This valve uses NPT fittings, common on imported plant and North American-spec equipment. If your system is BSP, grab the right adapters before you start. The valve itself weighs 2 kg, so mounting to a truck chassis or plant frame is straightforward. Factory assembly means no juggling individual components on site.
Features & Benefits
Key Features
- 18 NPT grease outlets
- Factory-packaged valve assembly
- Weight 2 kg
- NPT thread standard (not BSP)
- Suits centralised grease systems
- Multi-point lubrication control
Benefits
- Run lines to 18 lube points from one valve
- Factory kit saves assembly time on site
- Fits NPT plumbing on imported plant
- Compact 2 kg block for vehicle mounting
| Max Working Pressure | 5076 |
| Max NLGI Grade | 2 |
| Inlet Size | 3.1750 |
| Outlet Size | M10 |
| Outlet Thread | Female |
| Number of Outlets | 18 |
| Divider Valve Series | CSP |
| Minimum Working Pressure (bar) | 15 |
| Minimum Working Pressure (kPa) | 1500 |
| Minimum Working Pressure (psi) | 217.5 |
| Discharge Per Piston Stroke (in³) | N/A |
Shipping & Dimensions
Ships from Brisbane warehouse. Standard delivery 2-5 business days.
Downloads
Compatible Products
Frequently Asked Questions
Can't find your answer?
Contact UsWhat is the Graco CSP valve?
A control valve block with 18 NPT outlets for routing grease to multiple lubrication points in centralised systems on trucks, plant, and earthmoving kit.
Is this valve BSP or NPT thread?
NPT thread. If your system is BSP, you will need adapters (not included). Check thread compatibility before ordering.
How many grease lines can I connect?
Eighteen NPT outlets, so up to eighteen individual lube points or circuits depending on your plumbing layout.
What about warranty and support?
Twelve-month warranty against factory defects. Damage from incorrect grease spec or excess pressure is not covered. Call 07 3204 2240 or email sales@goind.com.au for technical support or bulk orders.
