Graco|24Z491
GRACO CSP VALVE,16 OUTLET,NPT,PKG 24Z491
Tax excluded. Shipping calculated at checkout
GST (10%) is calculated at checkout. Tax invoices provided with all orders.
Contact for live availability
Our inventory signal hasn't refreshed today. We update twice daily but the latest reading is stale.
Email sales@goind.com.au or call 07 3204 2240 for live availability.
Ships from Brisbane warehouse. Standard delivery 2-5 business days Australia-wide.
16-POINT GREASE DISTRIBUTION FROM ONE PUMP LINE

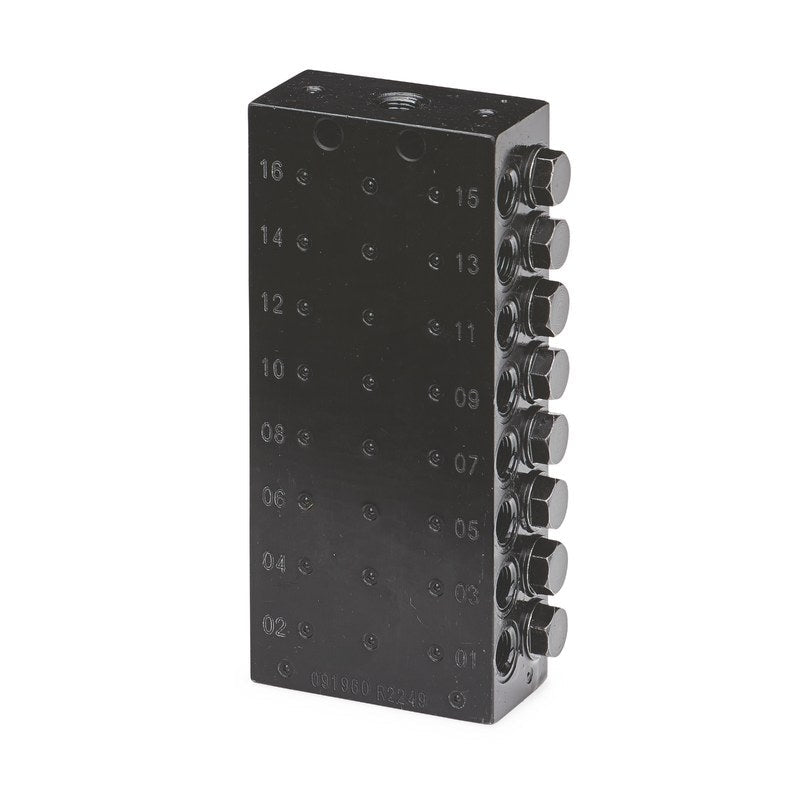

Graco CSP valve package with 16 NPT outlets. Distributes grease or lubricant to multiple points from a single pump line. 1.81 kg fitted weight.
One inlet, 16 outlets
The CSP valve takes a single grease or lubricant feed and splits it across 16 NPT outlet ports. Instead of running 16 separate pump lines or fitting 16 individual injectors, you centralise distribution through one compact valve block. Common in workshop centralized lube systems and on mobile service trucks where space is tight and simplicity matters.
NPT throughout
All connections are NPT thread. If your site runs BSP plumbing you will need adapters, but for yards and workshops already on NPT this package drops straight in. Weighs 1.81 kg fitted, so it mounts easily on a truck chassis or workshop wall without heavy brackets.
Features & Benefits
Key Features
- 16 NPT outlet ports
- Single inlet feeds all points
- Weight 1.81 kg
- NPT thread connections
- Grease and lubricant distribution
- Compact valve block package
Benefits
- One pump services 16 lube points
- Fewer pump units to buy and maintain
- NPT fittings standard in many sites
- Compact footprint saves space on rigs
| Max Working Pressure | 5076 |
| Max NLGI Grade | 2 |
| Inlet Size | 3.175 |
| Outlet Thread | Female |
| Number of Outlets | 16 |
| Divider Valve Series | CSP |
| Minimum Working Pressure (bar) | 15 |
| Minimum Working Pressure (kPa) | 1500 |
| Minimum Working Pressure (psi) | 217.5 |
| Discharge Per Piston Stroke (in³) | N/A |
Shipping & Dimensions
Ships from Brisbane warehouse. Standard delivery 2-5 business days.
Downloads
Compatible Products
Frequently Asked Questions
Can't find your answer?
Contact UsWhat is the Graco CSP valve package?
A 16-outlet distribution valve that splits one grease or lubricant feed into 16 separate NPT outlet points. Suits centralized lube systems in workshops or on mobile service rigs.
What thread type are the connections?
All connections are NPT thread. If your existing lines are BSP, you will need NPT to BSP adapters (not included).
How many outlets does it have?
16 NPT outlets, all fed from a single inlet port.
What fluids can it distribute?
Designed for grease and lubricant distribution. Not suitable for fuels or solvents.
What warranty and support apply?
12-month warranty on manufacturing defects. Seals and internal wear parts are consumables. For technical support or order queries, contact sales@goind.com.au or 07 3204 2240.
