Graco|24Z509

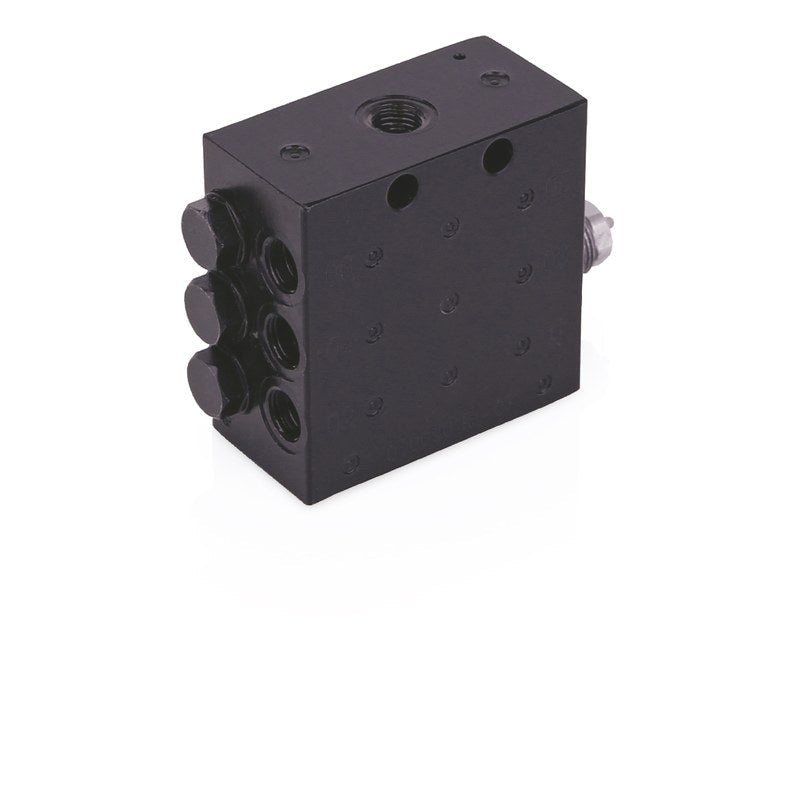

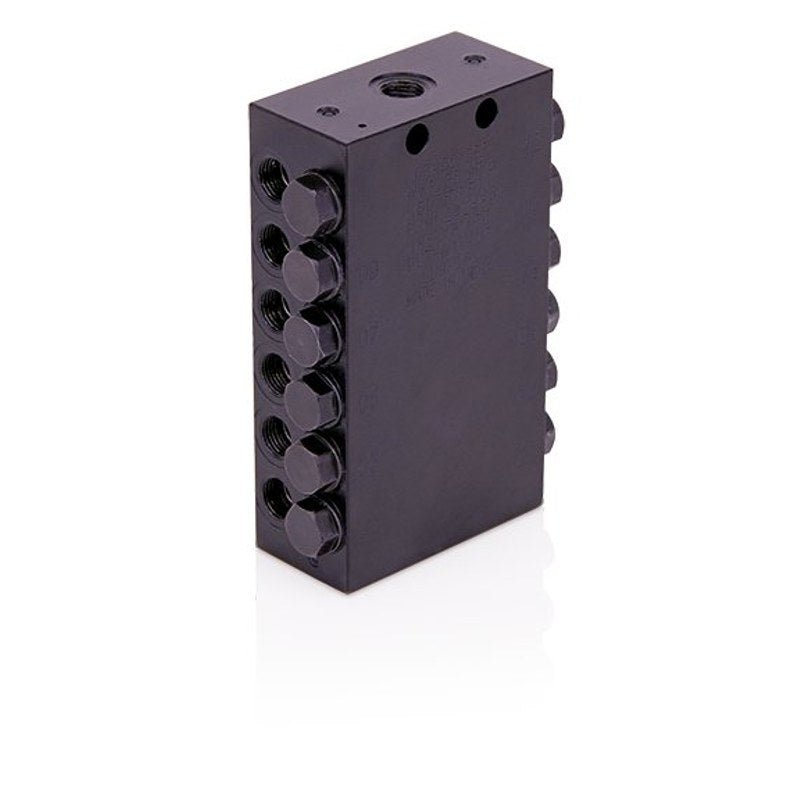

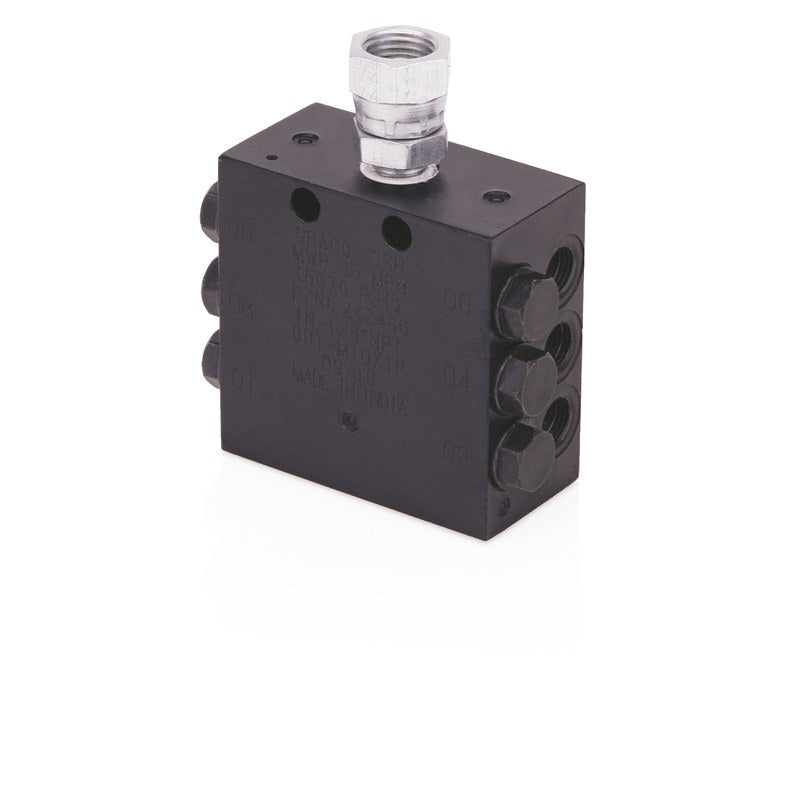

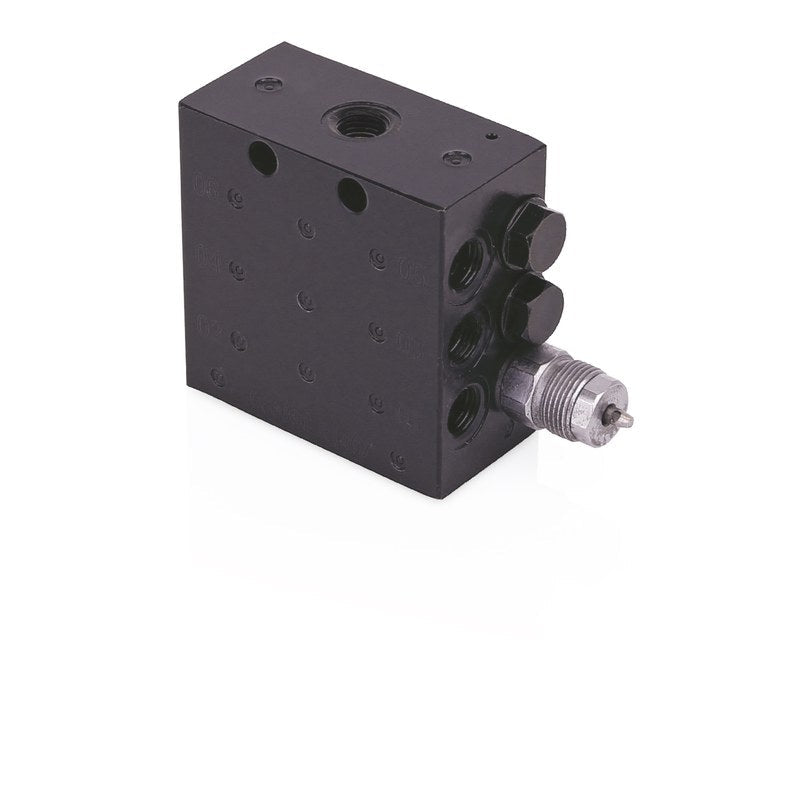

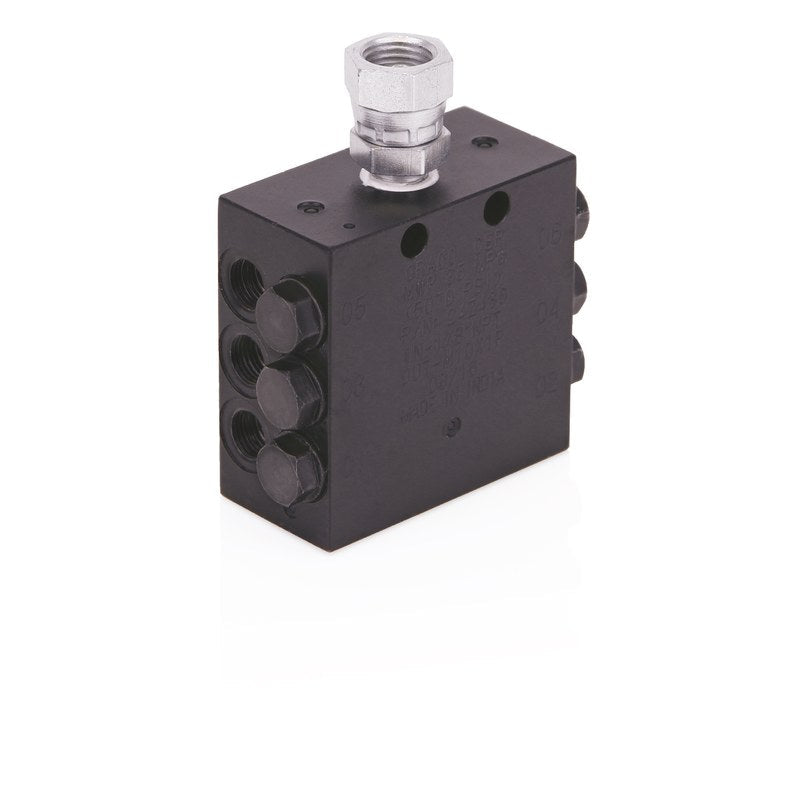

GRACO CSP VALVE,16 OUTLET,NPT,IND,PKG 24Z509
Tax excluded. Shipping calculated at checkout
GST (10%) is calculated at checkout. Tax invoices provided with all orders.
Contact for live availability
Our inventory signal hasn't refreshed today. We update twice daily but the latest reading is stale.
Email sales@goind.com.au or call 07 3204 2240 for live availability.
Ships from Brisbane warehouse. Standard delivery 2-5 business days Australia-wide.
16-POINT LUBE DISTRIBUTION WITHOUT THE PREMIUM PRICE TAG
Graco control-signal-progressive valve with 16 outlet ports, NPT threads. Designed for centralised lube systems requiring multi-point sequential delivery.
Sequential delivery, every cycle
The CSP valve fires each of its 16 outlets in turn, so every grease point on your machine gets lubrication when it should. No skipped fittings, no manual rounds with a grease gun. Drop it into a Graco centralised system and let the pump handle the rest.
NPT threads, compact footprint
NPT outlets suit North American pipe fittings (BSP users will need adapters). At 1.81 kg the valve fits tight spaces without a fight. Mount it where the lines run shortest and get on with the job.
Features & Benefits
Key Features
- 16 outlet ports
- NPT threaded connections
- Control-signal-progressive operation
- Sequential delivery to each point
- Weight 1.81 kg
- Industrial package configuration
Benefits
- Each grease point gets lubrication in turn, no skipped outlets
- Fits standard NPT fittings without adapters
- Compact enough for crowded machine bays

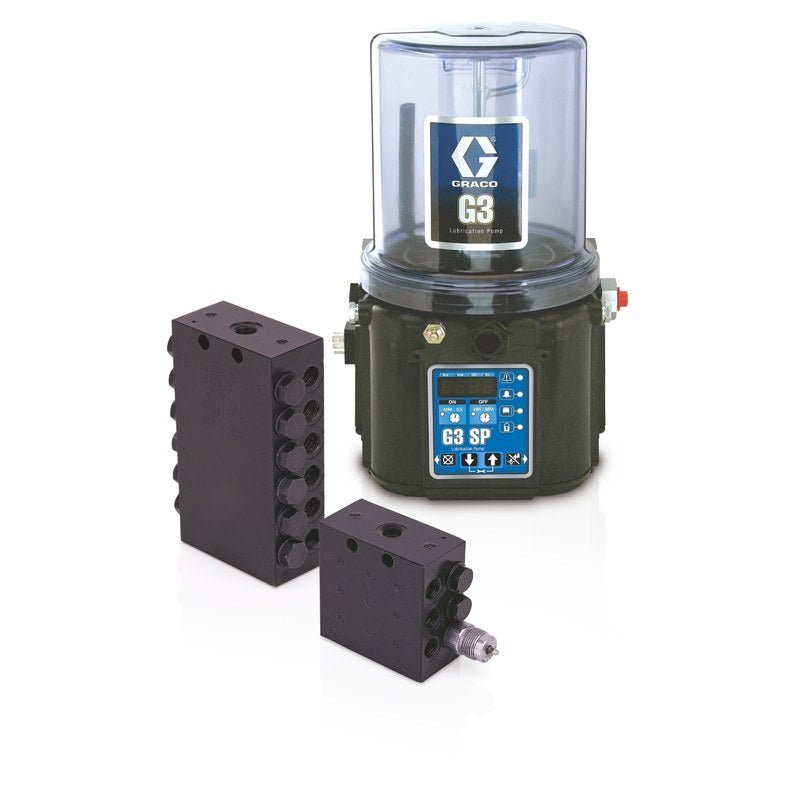

- Drop-in for Graco centralised lube systems
| Max Working Pressure | 5076 |
| Max NLGI Grade | 2 |
| Inlet Size | 3.175 |
| Outlet Thread | Female |
| Number of Outlets | 16 |
| Divider Valve Series | CSP |
| Minimum Working Pressure (bar) | 15 |
| Minimum Working Pressure (kPa) | 1500 |
| Minimum Working Pressure (psi) | 217.5 |
| Discharge Per Piston Stroke (in³) | N/A |
Shipping & Dimensions
Ships from Brisbane warehouse. Standard delivery 2-5 business days.
Downloads
Compatible Products
Frequently Asked Questions
Can't find your answer?
Contact UsWhat is the Graco CSP valve?
A progressive distributor valve that delivers lubricant to 16 points in sequence, ensuring each outlet receives grease or oil in turn. Used in centralised auto-lube systems.
What thread standard do the outlets use?
NPT (National Pipe Thread), the standard North American tapered pipe fitting. If your system uses BSP you will need adapters.
How does sequential delivery work?
The control-signal-progressive design ensures each of the 16 outlets fires in turn with every pump cycle, so no point gets skipped or over-lubricated.
What warranty and support do I get?
12-month manufacturer warranty covers defects, but seals and wear parts are consumables. For technical advice or bulk orders contact sales@goind.com.au or 07 3204 2240.
