Graco|563287

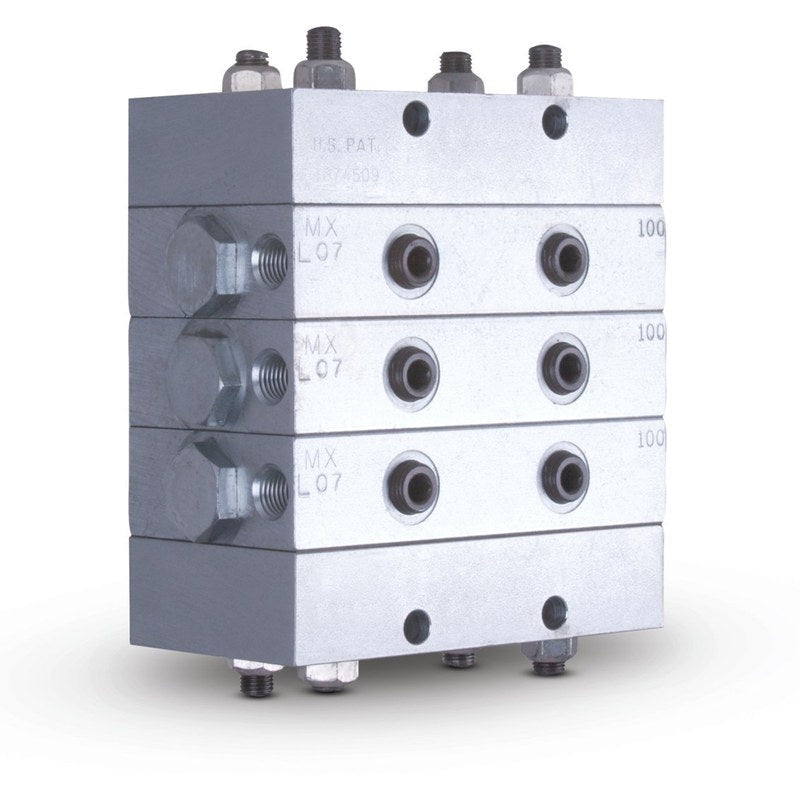

GRACO BLOCK, END MACH MX 563287
Tax excluded. Shipping calculated at checkout
GST (10%) is calculated at checkout. Tax invoices provided with all orders.
Contact for live availability
Our inventory signal hasn't refreshed today. We update twice daily but the latest reading is stale.
Email sales@goind.com.au or call 07 3204 2240 for live availability.
Ships from Brisbane warehouse. Standard delivery 2-5 business days Australia-wide.
FACTORY MX END BLOCK KEEPS YOUR GRACO SYSTEM SEALED AND RUNNING
Graco machined end block for MX series lubrication systems. Factory replacement component for extending or terminating injector manifolds.
What it does
This machined aluminium block caps the end of a Graco MX progressive manifold. Without it, pressure bleeds out and your lube points don't get grease. It's a simple termination component, but critical to system function. Part number 563287, direct from Graco.
When you need it
You're extending an existing MX manifold to add lube points, or you've damaged an end block during maintenance and need a replacement. This is the factory part workshops keep on the shelf so a small fitting failure doesn't shut down a whole machine.
Features & Benefits
Key Features
- Machined end block for MX manifolds
- Weight 1.81 kg
- Factory Graco replacement part
- Aluminium construction
- Seals manifold terminus
- Direct fit MX series systems
Benefits
- Keeps existing MX systems running without full manifold replacement
- Factory part means proper fit and thread engagement
- Lets you extend or reconfigure manifold runs on site
- Prevents pressure bleed at manifold ends
| Weight | 1.81 |
Shipping & Dimensions
Ships from Brisbane warehouse. Standard delivery 2-5 business days.
Downloads
Compatible Products
Frequently Asked Questions
Can't find your answer?
Contact UsWhat is the Graco MX end block?
A machined aluminium component that terminates or caps the end of a Graco MX progressive lubrication manifold. Seals the system to maintain pressure.
Will this fit my existing MX manifold?
Yes, if you have a Graco MX series progressive system. This is the factory part number 563287, designed for direct replacement.
Can I use this to extend a manifold run?
Yes. Remove the existing end block, add injectors or distribution blocks, then cap the new end with this component.
What warranty and support applies?
12-month manufacturer warranty covers factory defects. For system design help or part confirmation, contact sales@goind.com.au or 07 3204 2240.
